IslandPath Analysis: Methanococcoides burtonii DSM 6242

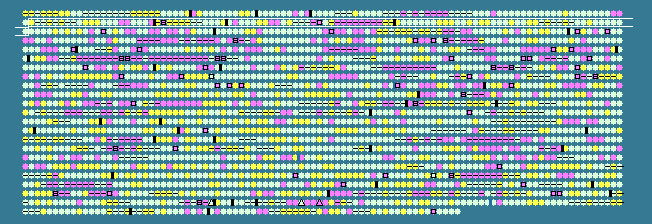

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
102	 46.70	+1	95377..96558	+	393	91772184	-	Mbur_0108	-	tryptophan synthase subunit beta
103	 44.23	0	96560..97339	+	259	91772185	trpA	Mbur_0109	-	tryptophan synthase subunit alpha
104	 43.69	0	97382..98482	-	366	91772186	-	Mbur_0110	-	signal recognition particle-docking protein FtsY
105	 48.20	+1	98542..98958	-	138	91772187	-	Mbur_0111	-	prefoldin subunit alpha
106	 40.11	0	98964..99140	-	58	91772188	rplX	Mbur_0112	-	50S ribosomal protein LX
107	 45.72	0	99182..99835	-	217	91772189	-	Mbur_0113	-	translation initiation factor IF-6
108	 44.94	0	99875..100141	-	88	91772190	-	Mbur_0114	-	50S ribosomal protein L31e
109	 44.87	0	100152..100307	-	51	91772191	rpl39e	Mbur_0115	-	50S ribosomal protein L39e
110	 41.92	0	100450..101043	-	197	91772192	-	Mbur_0116	-	ATP-binding protein
111	 47.83	+1	101046..101390	-	114	91772193	-	Mbur_0117	-	hypothetical protein
112	 47.56	+1	101491..101940	-	149	91772194	-	Mbur_0118	-	30S ribosomal protein S19e
113	 45.60	0	102155..103426	-	423	91772195	-	Mbur_0119	-	adenylosuccinate synthetase
114	 41.14	0	103569..104234	+	221	91772196	-	Mbur_0120	-	hexapaptide repeat-containing transferase
115	 44.75	0	104255..105331	+	358	91772197	-	Mbur_0121	-	DegT/DnrJ/EryC1/StrS aminotransferase
116	 42.25	0	105328..106269	+	313	91772198	-	Mbur_0122	-	oxidoreductase-like protein
117	 35.34	-1	106284..106781	-	165	91772199	-	Mbur_0123	-	VanZ like protein
118	 38.23	0	106975..107955	+	326	91772200	-	Mbur_0124	-	glycosyl transferase family protein
119	 40.57	0	107981..109237	-	418	91772201	-	Mbur_0125	-	hypothetical protein
120	 42.89	0	109535..110476	-	313	91772202	-	Mbur_0126	-	TPR repeat-containing protein
121	 40.57	0	111229..111546	+	105	91772203	-	Mbur_0128	-	hypothetical protein
122	 36.82	-1	112306..112821	+	171	91772204	-	Mbur_0129	-	hypothetical protein
123	 45.74	0	113408..114181	-	257	91772205	-	Mbur_0130	-	UBA/THIF-type NAD/FAD binding protein
124	 37.79	0	114393..115334	-	313	91772206	-	Mbur_0131	-	transposase, IS4
125	 46.35	0	115542..117908	+	788	91772207	-	Mbur_0132	-	putative monovalent cation/H+ antiporter subunit A
126	 45.95	0	117908..118327	+	139	91772208	-	Mbur_0133	-	putative monovalent cation/H+ antiporter subunit B
127	 46.34	0	118320..118742	+	140	91772209	-	Mbur_0134	-	putative monovalent cation/H+ antiporter subunit C
128	 46.43	+1	118739..120280	+	513	91772210	-	Mbur_0135	-	putative monovalent cation/H+ antiporter subunit D
129	 40.61	0	120277..120771	+	164	91772211	-	Mbur_0136	-	putative monovalent cation/H+ antiporter subunit E
130	 40.82	0	120768..121034	+	88	91772212	-	Mbur_0137	-	putative monovalent cation/H+ antiporter subunit F
131	 42.82	0	121031..121378	+	115	91772213	-	Mbur_0138	-	putative monovalent cation/H+ antiporter subunit G
132	 43.97	0	121415..122467	+	350	91772214	-	Mbur_0139	-	translation factor SUA5
133	 39.43	0	122475..122720	+	81	91772215	-	Mbur_0140	-	hypothetical protein
134	 47.35	+1	122790..124109	-	439	91772216	-	Mbur_0141	-	signal recognition particle protein Srp54
135	 44.69	0	124585..124998	+	137	91772217	-	Mbur_0142	-	hypothetical protein
136	 37.27	-1	125074..125835	+	253	91772218	-	Mbur_0143	-	hypothetical protein
137	 42.72	0	125849..126913	-	354	91772219	-	Mbur_0144	-	DNA-directed DNA polymerase
138	 40.55	0	127050..127340	+	96	91772220	-	Mbur_0145	-	hypothetical protein
139	 38.97	0	127460..127654	+	64	91772221	rps17E	Mbur_0146	-	30S ribosomal protein S17e
140	 46.69	+1	127674..128549	+	291	91772222	-	Mbur_0147	-	dihydrodipicolinate synthase
141	 47.10	+1	128546..129337	+	263	91772223	-	Mbur_0148	-	dihydrodipicolinate reductase
142	 33.33	-1	129478..130065	+	195	91772224	-	Mbur_0149	-	hypothetical protein
143	 35.61	-1	134240..135031	-	263	91772225	-	Mbur_0155	-	hypothetical protein
144	 39.96	0	135080..135532	-	150	91772226	-	Mbur_0156	-	hypothetical protein
145	 49.00	+1	135938..137086	-	382	91772227	-	Mbur_0157	-	AAA ATPase
146	 40.91	0	137348..137941	-	197	91772228	-	Mbur_0158	-	phosphoesterase, PA-phosphatase related
147	 40.65	0	138540..138785	-	81	91772229	-	Mbur_0159	-	hypothetical protein
148	 39.94	0	138861..139223	-	120	91772230	-	Mbur_0160	-	hypothetical protein
149	 32.73	-2	139878..140873	+	331	91772231	-	Mbur_0161	-	hypothetical protein
150	 36.59	-1	141168..142334	-	388	91772232	-	Mbur_0162	-	transposase
151	 40.64	0	143381..143722	+	113	91772233	-	Mbur_0164	-	hypothetical protein
152	 47.30	+1	143844..144695	+	283	91772234	-	Mbur_0165	-	UbiE/COQ5 methyltransferase
153	 28.83	-2	145426..145980	+	184	91772235	-	Mbur_0166	-	ArsR family transcriptional regulator
154	 34.31	-1	145977..146894	-	305	91772236	-	Mbur_0167	-	hypothetical protein
155	 31.76	-2	146910..147608	-	232	91772237	-	Mbur_0168	-	hypothetical protein
156	 36.60	-1	147931..148665	+	244	91772238	-	Mbur_0169	-	hypothetical protein
157	 37.27	-1	148695..149963	+	422	91772239	-	Mbur_0170	-	radical SAM family Fe-S protein
158	 29.59	-2	149941..150714	+	257	91772240	-	Mbur_0171	-	alpha/beta hydrolase
159	 31.76	-2	151491..153074	+	527	91772241	-	Mbur_0172	-	hypothetical protein
160	 32.54	-2	153079..153963	+	294	91772242	-	Mbur_0173	-	hypothetical protein
161	 49.36	+1	154400..156034	-	544	91772243	-	Mbur_0174	-	acetolactate synthase, large subunit
162	 49.49	+1	156036..157403	-	455	91772244	-	Mbur_0175	-	succinate-semialdehyde dehydrogenase (NAD(P)+)
163	 46.44	+1	157947..158297	-	116	91772245	-	Mbur_0176	-	hypothetical protein
164	 42.93	0	158321..158518	-	65	91772246	-	Mbur_0177	-	small ribonucleoprotein
165	 44.09	0	158685..159056	-	123	91772247	-	Mbur_0178	-	hypothetical protein
166	 44.55	0	159147..161624	-	825	91772248	-	Mbur_0179	-	DEAD/DEAH box helicase-like protein
167	 38.98	0	161797..162699	+	300	91772249	-	Mbur_0180	-	hypothetical protein
168	 42.22	0	163649..164413	-	254	91772250	-	Mbur_0182	-	methylthioadenosine phosphorylase
169	 40.81	0	164432..165568	-	378	91772251	-	Mbur_0183	-	hypothetical protein
170	 48.24	+1	165839..166462	-	207	91772252	-	Mbur_0184	-	hypothetical protein
171	 47.34	+1	166478..169654	-	1058	91772253	ileS	Mbur_0185	-	isoleucyl-tRNA synthetase
172	 46.00	0	169809..171134	-	441	91772254	-	Mbur_0186	-	L-lysine 2,3-aminomutase
173	 41.53	0	171407..171955	+	182	91772255	-	Mbur_0187	-	RNA-binding protein
174	 41.21	0	172131..172511	+	126	91772256	-	Mbur_0188	-	hypothetical protein
175	 45.65	0	172508..173173	+	221	91772257	-	Mbur_0189	-	ZPR1-like zinc finger protein
176	 45.09	0	173231..174667	+	478	91772258	-	Mbur_0190	-	prolyl-tRNA synthetase
177	 45.50	0	174690..175733	+	347	91772259	-	Mbur_0191	-	hypothetical protein
178	 47.81	+1	176578..177171	+	197	91772260	-	Mbur_0192	-	50S ribosomal protein L15e
179	 45.18	0	177168..177623	+	151	91772261	-	Mbur_0193	-	hypothetical protein
180	 44.49	0	177616..178341	+	241	91772262	-	Mbur_0194	-	ribonuclease P protein component 3
181	 44.44	0	178338..178706	+	122	91772263	-	Mbur_0195	-	ribonuclease P-related protein
182	 46.72	+1	178818..179609	+	263	91772264	-	Mbur_0196	-	proteasome subunit alpha
183	 44.30	0	179653..180345	+	230	91772265	-	Mbur_0197	-	putative RNA-associated protein
184	 42.17	0	180357..181148	+	263	91772266	-	Mbur_0198	-	exosome complex RNA-binding protein Rrp4
185	 46.51	+1	181199..182230	+	343	91772267	-	Mbur_0199	-	exosome complex exonuclease Rrp41
186	 45.38	0	182223..183002	+	259	91772268	-	Mbur_0200	-	exosome complex RNA-binding protein Rrp42
187	 43.40	0	183096..183383	+	95	91772269	rpl37ae	Mbur_0201	-	50S ribosomal protein L37Ae
188	 47.52	+1	183389..183529	+	46	91772270	-	Mbur_0202	-	DNA-directed RNA polymerase subunit P
189	 39.53	0	183536..184003	+	155	91772271	-	Mbur_0203	-	Imp4 family protein
190	 43.14	0	184000..184254	+	84	91772272	-	Mbur_0204	-	hypothetical protein
191	 47.18	+1	184339..184692	+	117	91772273	-	Mbur_0205	-	prefoldin, beta subunit
192	 44.51	0	184754..185719	+	321	91772274	-	Mbur_0206	-	phosphoesterase, RecJ-like protein
193	 44.60	0	185770..187074	+	434	91772275	-	Mbur_0207	-	phenylacetate-CoA ligase
194	 43.84	0	187118..187555	+	145	91772276	-	Mbur_0208	-	amino acid-binding (ACT) protein
195	 46.15	0	187655..188005	+	116	91772277	-	Mbur_0209	-	hypothetical protein
196	 44.07	0	188022..188999	+	325	91772278	-	Mbur_0210	-	hypothetical protein
197	 39.36	0	189047..189859	-	270	91772279	-	Mbur_0211	-	Nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
198	 42.17	0	189863..191152	+	429	91772280	-	Mbur_0212	-	hypothetical protein
199	 43.78	0	191160..192107	+	315	91772281	-	Mbur_0213	-	triphosphoribosyl-dephospho-CoA protein
200	 41.21	0	192107..192703	+	198	91772282	-	Mbur_0214	-	hypothetical protein
201	 42.92	0	192707..193186	+	159	91772283	-	Mbur_0215	-	CMP/dCMP deaminase, zinc-binding
41.89	MEAN

4.51	STD DEV
