IslandPathversion 1.0

IslandPath Analysis: Methanococcoides burtonii DSM 6242

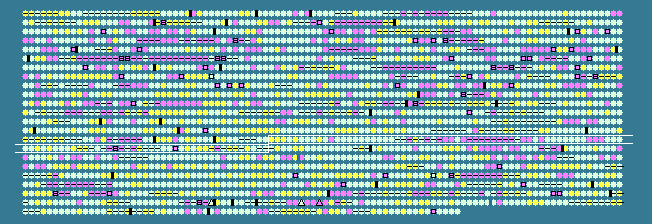

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1442	 46.03	0	1638621..1639313	-	230	91773524	-	Mbur_1561	-	fibrillarin
1443	 46.20	0	1639314..1640378	-	354	91773525	-	Mbur_1562	-	rRNA biogenesis protein Nop56/Nop58
1444	 48.75	+1	1640329..1641288	-	319	91773526	-	Mbur_1563	-	beta-ribofuranosylaminobenzene 5'-phosphate synthase
1445	 43.93	0	1641361..1642011	-	216	91773527	-	Mbur_1564	-	hypothetical protein
1446	 46.06	0	1642053..1642445	-	130	91773528	-	Mbur_1565	-	hypothetical protein
1447	 44.29	0	1642563..1644743	-	726	91773529	-	Mbur_1566	-	Rad3-related DNA helicases
1448	 44.86	0	1644789..1645430	-	213	91773530	-	Mbur_1567	-	hypothetical protein
1449	 42.94	0	1645802..1645978	+	58	91773531	-	Mbur_1568	-	4Fe-4S ferredoxin, iron-sulfur binding
1450	 45.53	0	1646117..1646821	+	234	91773532	pyrH	Mbur_1569	-	uridylate kinase
1451	 42.66	0	1647006..1648292	+	428	91773533	-	Mbur_1570	-	flagella protein
1452	 36.05	-1	1648282..1648722	+	146	91773534	-	Mbur_1571	-	flagellar protein F
1453	 41.67	0	1648766..1649269	+	167	91773535	-	Mbur_1572	-	putative flagellar protein G
1454	 40.37	0	1649281..1649976	+	231	91773536	-	Mbur_1573	-	ATPase
1455	 43.21	0	1650000..1651649	+	549	91773537	-	Mbur_1574	-	type II secretion system protein E
1456	 41.36	0	1651659..1653314	+	551	91773538	-	Mbur_1575	-	flagellar assembly protein J
1457	 44.25	0	1654382..1655242	-	286	91773539	-	Mbur_1577	-	hypothetical protein
1458	 43.50	0	1655243..1655734	-	163	91773540	-	Mbur_1578	-	3-isopropylmalate dehydratase, small subunit
1459	 42.10	0	1655813..1658287	-	824	91773541	-	Mbur_1579	-	transmembrane oligosaccharyl transferase
1460	 42.36	0	1658460..1660364	+	634	91773542	-	Mbur_1580	-	asparagine synthase, glutamine-hydrolyzing
1461	 39.54	0	1660383..1661462	+	359	91773543	-	Mbur_1581	-	glycosyl transferase, group 1
1462	 39.47	0	1661431..1662342	+	303	91773544	-	Mbur_1582	-	NAD-dependent epimerase/dehydratase
1463	 41.59	0	1662326..1663318	+	330	91773545	-	Mbur_1583	-	NAD-dependent epimerase/dehydratase
1464	 39.61	0	1663308..1664024	+	238	91773546	-	Mbur_1584	-	nucleotidyl transferase
1465	 37.52	0	1664307..1665023	+	238	91773547	-	Mbur_1585	-	acylneuraminate cytidylyltransferase
1466	 45.40	0	1664998..1666041	+	347	91773548	-	Mbur_1586	-	N-acetylneuraminate synthase
1467	 38.47	0	1666038..1667147	+	369	91773549	-	Mbur_1587	-	UDP-N-acetylglucosamine 2-epimerase
1468	 38.34	0	1667199..1667837	+	212	91773550	-	Mbur_1588	-	hexapaptide repeat-containing transferase
1469	 39.98	0	1667854..1668966	+	370	91773551	-	Mbur_1589	-	DegT/DnrJ/EryC1/StrS aminotransferase
1470	 32.35	-2	1669365..1670075	+	236	91773552	-	Mbur_1590	-	methyltransferase FkbM
1471	 36.91	-1	1670486..1671520	+	344	91773553	-	Mbur_1591	-	polysaccharide biosynthesis protein CapD
1472	 34.18	-1	1671631..1672809	+	392	91773554	-	Mbur_1592	-	hypothetical protein
1473	 39.67	0	1672886..1674400	+	504	91773555	-	Mbur_1593	-	polysaccharide biosynthesis protein
1474	 30.68	-2	1674609..1675325	+	238	91773556	-	Mbur_1594	-	acylneuraminate cytidylyltransferase
1475	 37.63	0	1675322..1676089	+	255	91773557	-	Mbur_1595	-	2-dehydro-3-deoxyglucarate aldolase
1476	 36.06	-1	1676086..1677039	+	317	91773558	-	Mbur_1596	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
1477	 32.43	-2	1677032..1677916	+	294	91773559	-	Mbur_1597	-	NAD-dependent epimerase/dehydratase
1478	 30.95	-2	1677913..1678584	+	223	91773560	-	Mbur_1598	-	putative cyclase
1479	 30.66	-2	1678574..1679209	+	211	91773561	-	Mbur_1599	-	haloacid dehalogenase-like hydrolase
1480	 30.56	-2	1679202..1680173	+	323	91773562	-	Mbur_1600	-	hypothetical protein
1481	 29.39	-2	1680154..1681800	+	548	91773563	-	Mbur_1601	-	hypothetical protein
1482	 32.86	-2	1681943..1683406	+	487	91773564	-	Mbur_1602	-	radical SAM family Fe-S protein
1483	 38.71	0	1683455..1684570	+	371	91773565	-	Mbur_1603	-	NAD-dependent epimerase/dehydratase
1484	 38.36	0	1684563..1685000	+	145	91773566	-	Mbur_1604	-	dTDP-4-dehydrorhamnose epimerase
1485	 37.60	0	1685009..1685782	+	257	91773567	-	Mbur_1605	-	nucleotidyl transferase
1486	 41.64	0	1685782..1686900	+	372	91773568	-	Mbur_1606	-	DegT/DnrJ/EryC1/StrS aminotransferase
1487	 34.52	-1	1686941..1687783	+	280	91773569	-	Mbur_1607	-	glycosyl transferase family protein
1488	 38.95	0	1687881..1689002	+	373	91773570	-	Mbur_1608	-	glycosyl transferase family protein
1489	 41.51	0	1689047..1689670	+	207	91773571	-	Mbur_1609	-	acetyltransferase
1490	 44.69	0	1689707..1690780	+	357	91773572	-	Mbur_1610	-	DegT/DnrJ/EryC1/StrS aminotransferase
1491	 42.16	0	1690777..1691784	+	335	91773573	-	Mbur_1611	-	oxidoreductase-like protein
1492	 41.92	0	1691806..1692678	-	290	91773574	-	Mbur_1612	-	UDP-glucose pyrophosphorylase
1493	 39.53	0	1692690..1694060	-	456	91773575	-	Mbur_1613	-	mannose-1-phosphate guanylyltransferase (GDP)
1494	 40.81	0	1694235..1695197	-	320	91773576	-	Mbur_1614	-	hypothetical protein
1495	 37.59	0	1695401..1696480	+	359	91773577	-	Mbur_1615	-	dolichyl-phosphate beta-D-mannosyltransferase
1496	 35.56	-1	1696559..1697275	+	238	91773578	-	Mbur_1616	-	hypothetical protein
1497	 36.72	-1	1697422..1699017	+	531	91773579	-	Mbur_1617	-	hypothetical protein
1498	 39.39	0	1699035..1699430	-	131	91773580	-	Mbur_1618	-	hypothetical protein
1499	 41.10	0	1699445..1700770	+	441	91773581	-	Mbur_1619	-	peptidase M24
1500	 45.08	0	1700806..1701699	+	297	91773582	-	Mbur_1620	-	methionine aminopeptidase
1501	 40.10	0	1701713..1702333	+	206	91773583	-	Mbur_1621	-	hypothetical protein
1502	 45.14	0	1702423..1702710	+	95	91773584	-	Mbur_1622	-	hypothetical protein
1503	 47.34	+1	1702719..1703753	+	344	91773585	-	Mbur_1623	-	putative RNA methylase
1504	 41.13	0	1703777..1704340	-	187	91773586	-	Mbur_1624	-	hypothetical protein
1505	 45.89	0	1704337..1705164	-	275	91773587	truA	Mbur_1625	-	tRNA pseudouridine synthase A
1506	 44.57	0	1705351..1706418	+	355	91773588	purP	Mbur_1626	-	5-formaminoimidazole-4-carboxamide-1-(beta)-D-ribofuranosyl 5'-monophosphate synthetase
1507	 41.82	0	1706564..1707046	-	160	91773589	-	Mbur_1627	-	hypothetical protein
1508	 40.16	0	1707091..1707603	-	170	91773590	-	Mbur_1628	-	hypothetical protein
1509	 48.83	+1	1709034..1709975	+	313	91773591	-	Mbur_1630	-	hypothetical protein
1510	 45.55	0	1710097..1710579	+	160	91773592	leuD	Mbur_1631	-	3-isopropylmalate dehydratase small subunit
1511	 50.00	+1	1710683..1711810	+	375	91773593	-	Mbur_1632	-	3-isopropylmalate dehydrogenase
1512	 40.70	0	1713418..1713702	+	94	91773594	-	Mbur_1634	-	ATPase
1513	 44.34	0	1713812..1714792	-	326	91773595	-	Mbur_1635	-	filamentation induced by cAMP protein Fic
1514	 40.35	0	1714823..1715050	-	75	91773596	-	Mbur_1636	-	hypothetical protein
1515	 32.69	-2	1715239..1715550	-	103	91773597	-	Mbur_1637	-	hypothetical protein
1516	 37.79	0	1716343..1717284	-	313	91773598	-	Mbur_1639	-	transposase, IS4
1517	 29.14	-2	1717835..1718644	+	269	91773599	-	Mbur_1641	-	hypothetical protein
1518	 39.89	0	1718675..1719040	-	121	91773600	-	Mbur_1642	-	hypothetical protein
1519	 36.97	-1	1719095..1722697	+	1200	91773601	-	Mbur_1643	-	cell surface protein
1520	 47.72	+1	1722711..1723961	+	416	91773602	-	Mbur_1644	-	hypothetical protein
1521	 40.93	0	1724154..1725509	+	451	91773603	-	Mbur_1645	-	ATPase
1522	 43.59	0	1725487..1726344	+	285	91773604	-	Mbur_1646	-	hypothetical protein
1523	 44.92	0	1726351..1727325	-	324	91773605	-	Mbur_1647	-	hypothetical protein
1524	 43.75	0	1727437..1729116	-	559	91773606	-	Mbur_1648	-	2-octaprenylphenol hydroxylase
1525	 39.53	0	1729205..1729591	-	128	91773607	-	Mbur_1649	-	hypothetical protein
1526	 34.67	-1	1729664..1730782	-	372	91773608	-	Mbur_1650	-	putative transposase, IS891/IS1136/IS1341
1527	 43.96	0	1731000..1732721	-	573	91773609	-	Mbur_1651	-	ABC transporter, ATPase subunit
1528	 46.91	+1	1732751..1733494	-	247	91773610	-	Mbur_1652	-	geranylgeranylglyceryl phosphate synthase-like protein
1529	 44.00	0	1733503..1733652	-	49	91773611	rpl40e	Mbur_1653	-	50S ribosomal protein L40e
1530	 47.61	+1	1734157..1735578	-	473	91773612	gatB	Mbur_1654	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
1531	 47.20	+1	1735579..1737006	-	475	91773613	-	Mbur_1655	-	aspartyl/glutamyl-tRNA(Asn/Gln) amidotransferase subunit A
1532	 45.74	0	1737015..1737296	-	93	91773614	gatC	Mbur_1656	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
1533	 38.27	0	1737518..1737922	-	134	91773615	-	Mbur_1657	-	pyridoxamine 5'-phosphate oxidase-related, FMN-binding
1534	 42.52	0	1738050..1738811	+	253	91773616	-	Mbur_1658	-	ArsR family transcriptional regulator
1535	 47.28	+1	1739916..1740761	-	281	91773617	-	Mbur_1659	-	hypothetical protein
1536	 45.83	0	1740978..1742666	+	562	91773618	-	Mbur_1660	-	hydroxylamine reductase
1537	 38.46	0	1742795..1743145	+	116	91773619	-	Mbur_1661	-	hypothetical protein
1538	 45.73	0	1743239..1744222	+	327	91773620	-	Mbur_1662	-	radical SAM family Fe-S protein
1539	 40.91	0	1744236..1744565	+	109	91773621	-	Mbur_1663	-	hypothetical protein
1540	 40.15	0	1750247..1750642	+	131	91773622	-	Mbur_1670	-	thioredoxin
1541	 44.89	0	1750657..1752093	+	478	91773623	-	Mbur_1671	-	hypothetical protein
41.89	MEAN

4.51	STD DEV
