IslandPath Analysis: Methanococcoides burtonii DSM 6242

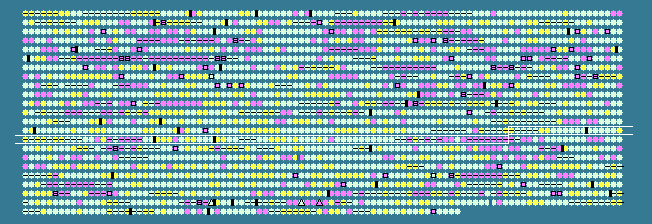

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1382	 45.96	0	1575058..1578582	-	1174	91773464	-	Mbur_1499	-	condensin subunit Smc
1383	 44.40	0	1578602..1579378	-	258	91773465	-	Mbur_1500	-	hypothetical protein
1384	 43.87	0	1579485..1582151	-	888	91773466	-	Mbur_1501	-	SMC-like protein
1385	 43.21	0	1582148..1583605	-	485	91773467	-	Mbur_1502	-	metallophosphoesterase
1386	 41.80	0	1583790..1584521	+	243	91773468	-	Mbur_1503	-	glucose-6-phosphate isomerase
1387	 46.38	0	1584608..1585366	+	252	91773469	-	Mbur_1504	-	hypothetical protein
1388	 47.40	+1	1585370..1586755	-	461	91773470	-	Mbur_1505	-	phosphoesterase, RecJ-like protein
1389	 42.71	0	1586776..1587276	-	166	91773471	-	Mbur_1506	-	hypothetical protein
1390	 38.52	0	1587288..1587557	+	89	91773472	-	Mbur_1507	-	hypothetical protein
1391	 39.14	0	1587797..1588192	-	131	91773473	-	Mbur_1508	-	hypothetical protein
1392	 43.53	0	1588449..1589105	+	218	91773474	-	Mbur_1509	-	hypothetical protein
1393	 43.43	0	1589135..1589461	+	108	91773475	-	Mbur_1510	-	RNAse P, Rpr2/Rpp21 subunit
1394	 42.80	0	1589466..1589708	-	80	91773476	-	Mbur_1511	-	hypothetical protein
1395	 39.17	0	1590369..1590608	+	79	91773477	-	Mbur_1512	-	hypothetical protein
1396	 42.46	0	1590659..1592038	-	459	91773478	-	Mbur_1513	-	KaiC
1397	 43.33	0	1592140..1592409	-	89	91773479	-	Mbur_1514	-	exodeoxyribonuclease VII small subunit
1398	 43.71	0	1592416..1593639	-	407	91773480	-	Mbur_1515	-	exodeoxyribonuclease VII large subunit
1399	 43.43	0	1593881..1594375	+	164	91773481	-	Mbur_1516	-	CoB--CoM heterodisulfide reductase subunit C
1400	 45.39	0	1594368..1595288	+	306	91773482	-	Mbur_1517	-	CoB--CoM heterodisulfide reductase subunit B
1401	 48.69	+1	1595846..1596802	-	318	91773483	-	Mbur_1518	-	tetrahydromethanopterin S-methyltransferase subunit H
1402	 40.79	0	1596817..1597044	-	75	91773484	-	Mbur_1519	-	tetrahydromethanopterin S-methyltransferase subunit G
1403	 47.08	+1	1597041..1597280	-	79	91773485	mtrF	Mbur_1520	-	tetrahydromethanopterin S-methyltransferase subunit F
1404	 48.07	+1	1597286..1598011	-	241	91773486	-	Mbur_1521	-	tetrahydromethanopterin S-methyltransferase subunit A
1405	 43.52	0	1598013..1598336	-	107	91773487	-	Mbur_1522	-	tetrahydromethanopterin S-methyltransferase subunit B
1406	 48.40	+1	1598333..1599142	-	269	91773488	-	Mbur_1523	-	tetrahydromethanopterin S-methyltransferase subunit C
1407	 46.94	+1	1599144..1599863	-	239	91773489	-	Mbur_1524	-	tetrahydromethanopterin S-methyltransferase subunit D
1408	 45.14	0	1599860..1600765	-	301	91773490	-	Mbur_1525	-	tetrahydromethanopterin S-methyltransferase subunit E
1409	 42.38	0	1600953..1601339	-	128	91773491	-	Mbur_1526	-	hypothetical protein
1410	 45.02	0	1601336..1602379	-	347	91773492	-	Mbur_1527	-	peptidase U32
1411	 45.19	0	1602464..1603273	+	269	91773493	-	Mbur_1528	-	xylose isomerase-like TIM barrel
1412	 44.53	0	1603287..1603697	-	136	91773494	-	Mbur_1529	-	hypothetical protein
1413	 33.87	-1	1604138..1604695	+	185	91773495	-	Mbur_1530	-	hypothetical protein
1414	 46.72	+1	1605077..1605487	+	136	91773496	-	Mbur_1531	-	histidine triad (HIT) protein
1415	 34.24	-1	1605531..1606847	-	438	91773497	-	Mbur_1532	-	filamentation induced by cAMP protein Fic
1416	 39.96	0	1607605..1608057	-	150	91773498	-	Mbur_1534	-	T/G mismatch-specific endonuclease
1417	 32.44	-2	1608171..1608845	+	224	91773499	-	Mbur_1535	-	hypothetical protein
1418	 31.44	-2	1608838..1609578	+	246	91773500	-	Mbur_1536	-	hypothetical protein
1419	 35.52	-1	1609571..1611769	+	732	91773501	-	Mbur_1537	-	type III restriction enzyme, res subunit
1420	 33.33	-1	1611935..1613908	+	657	91773502	-	Mbur_1538	-	ATPase involved in DNA repair-like protein
1421	 39.18	0	1614324..1616033	-	569	91773503	-	Mbur_1539	-	DNA-cytosine methyltransferase
1422	 39.08	0	1616610..1617131	-	173	91773504	-	Mbur_1540	-	GCN5-related N-acetyltransferase
1423	 46.52	+1	1617541..1618632	-	363	91773505	-	Mbur_1541	-	small GTP-binding protein
1424	 47.04	+1	1618683..1619900	-	405	91773506	-	Mbur_1542	-	molybdopterin molybdochelatase
1425	 47.78	+1	1619949..1620827	-	292	91773507	-	Mbur_1543	-	branched-chain amino acid aminotransferase
1426	 35.40	-1	1620929..1621459	-	176	91773508	-	Mbur_1544	-	hypothetical protein
1427	 42.63	0	1621686..1622492	-	268	91773509	-	Mbur_1545	-	ABC transporter, ATPase subunit
1428	 45.45	0	1622485..1623648	-	387	91773510	-	Mbur_1546	-	ABC transporter, inner membrane subunit
1429	 46.06	0	1623674..1624765	-	363	91773511	-	Mbur_1547	-	ligand binding protein
1430	 43.86	0	1625126..1626730	+	534	91773512	-	Mbur_1548	-	hypothetical protein
1431	 40.84	0	1626829..1628799	+	656	91773513	-	Mbur_1549	-	Pyrrolo-quinoline quinone
1432	 44.61	0	1628983..1631412	+	809	91773514	-	Mbur_1550	-	Pyrrolo-quinoline quinone
1433	 46.50	+1	1631784..1632884	-	366	91773515	-	Mbur_1551	-	ABC transporter, ATPase subunit
1434	 46.79	+1	1632894..1633562	-	222	91773516	-	Mbur_1552	-	molybdate ABC transporter inner membrane protein
1435	 41.07	0	1633562..1634362	-	266	91773517	-	Mbur_1553	-	molybdenum ABC transporter, periplasmic molybdate-binding protein
1436	 44.16	0	1634475..1634825	-	116	91773518	-	Mbur_1554	-	hypothetical protein
1437	 41.18	0	1635257..1635664	+	135	91773519	-	Mbur_1555	-	phenylacetic acid degradation-related protein
1438	 41.77	0	1635650..1636348	-	232	91773520	-	Mbur_1556	-	HAD family hydrolase
1439	 40.40	0	1636454..1636849	-	131	91773521	-	Mbur_1557	-	response regulator receiver
1440	 41.72	0	1637926..1638354	-	142	91773522	-	Mbur_1559	-	rhodanese-like protein
1441	 44.03	0	1638351..1638593	-	80	91773523	-	Mbur_1560	-	hypothetical protein
1442	 46.03	0	1638621..1639313	-	230	91773524	-	Mbur_1561	-	fibrillarin
1443	 46.20	0	1639314..1640378	-	354	91773525	-	Mbur_1562	-	rRNA biogenesis protein Nop56/Nop58
1444	 48.75	+1	1640329..1641288	-	319	91773526	-	Mbur_1563	-	beta-ribofuranosylaminobenzene 5'-phosphate synthase
1445	 43.93	0	1641361..1642011	-	216	91773527	-	Mbur_1564	-	hypothetical protein
1446	 46.06	0	1642053..1642445	-	130	91773528	-	Mbur_1565	-	hypothetical protein
1447	 44.29	0	1642563..1644743	-	726	91773529	-	Mbur_1566	-	Rad3-related DNA helicases
1448	 44.86	0	1644789..1645430	-	213	91773530	-	Mbur_1567	-	hypothetical protein
1449	 42.94	0	1645802..1645978	+	58	91773531	-	Mbur_1568	-	4Fe-4S ferredoxin, iron-sulfur binding
1450	 45.53	0	1646117..1646821	+	234	91773532	pyrH	Mbur_1569	-	uridylate kinase
1451	 42.66	0	1647006..1648292	+	428	91773533	-	Mbur_1570	-	flagella protein
1452	 36.05	-1	1648282..1648722	+	146	91773534	-	Mbur_1571	-	flagellar protein F
1453	 41.67	0	1648766..1649269	+	167	91773535	-	Mbur_1572	-	putative flagellar protein G
1454	 40.37	0	1649281..1649976	+	231	91773536	-	Mbur_1573	-	ATPase
1455	 43.21	0	1650000..1651649	+	549	91773537	-	Mbur_1574	-	type II secretion system protein E
1456	 41.36	0	1651659..1653314	+	551	91773538	-	Mbur_1575	-	flagellar assembly protein J
1457	 44.25	0	1654382..1655242	-	286	91773539	-	Mbur_1577	-	hypothetical protein
1458	 43.50	0	1655243..1655734	-	163	91773540	-	Mbur_1578	-	3-isopropylmalate dehydratase, small subunit
1459	 42.10	0	1655813..1658287	-	824	91773541	-	Mbur_1579	-	transmembrane oligosaccharyl transferase
1460	 42.36	0	1658460..1660364	+	634	91773542	-	Mbur_1580	-	asparagine synthase, glutamine-hydrolyzing
1461	 39.54	0	1660383..1661462	+	359	91773543	-	Mbur_1581	-	glycosyl transferase, group 1
1462	 39.47	0	1661431..1662342	+	303	91773544	-	Mbur_1582	-	NAD-dependent epimerase/dehydratase
1463	 41.59	0	1662326..1663318	+	330	91773545	-	Mbur_1583	-	NAD-dependent epimerase/dehydratase
1464	 39.61	0	1663308..1664024	+	238	91773546	-	Mbur_1584	-	nucleotidyl transferase
1465	 37.52	0	1664307..1665023	+	238	91773547	-	Mbur_1585	-	acylneuraminate cytidylyltransferase
1466	 45.40	0	1664998..1666041	+	347	91773548	-	Mbur_1586	-	N-acetylneuraminate synthase
1467	 38.47	0	1666038..1667147	+	369	91773549	-	Mbur_1587	-	UDP-N-acetylglucosamine 2-epimerase
1468	 38.34	0	1667199..1667837	+	212	91773550	-	Mbur_1588	-	hexapaptide repeat-containing transferase
1469	 39.98	0	1667854..1668966	+	370	91773551	-	Mbur_1589	-	DegT/DnrJ/EryC1/StrS aminotransferase
1470	 32.35	-2	1669365..1670075	+	236	91773552	-	Mbur_1590	-	methyltransferase FkbM
1471	 36.91	-1	1670486..1671520	+	344	91773553	-	Mbur_1591	-	polysaccharide biosynthesis protein CapD
1472	 34.18	-1	1671631..1672809	+	392	91773554	-	Mbur_1592	-	hypothetical protein
1473	 39.67	0	1672886..1674400	+	504	91773555	-	Mbur_1593	-	polysaccharide biosynthesis protein
1474	 30.68	-2	1674609..1675325	+	238	91773556	-	Mbur_1594	-	acylneuraminate cytidylyltransferase
1475	 37.63	0	1675322..1676089	+	255	91773557	-	Mbur_1595	-	2-dehydro-3-deoxyglucarate aldolase
1476	 36.06	-1	1676086..1677039	+	317	91773558	-	Mbur_1596	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
1477	 32.43	-2	1677032..1677916	+	294	91773559	-	Mbur_1597	-	NAD-dependent epimerase/dehydratase
1478	 30.95	-2	1677913..1678584	+	223	91773560	-	Mbur_1598	-	putative cyclase
1479	 30.66	-2	1678574..1679209	+	211	91773561	-	Mbur_1599	-	haloacid dehalogenase-like hydrolase
1480	 30.56	-2	1679202..1680173	+	323	91773562	-	Mbur_1600	-	hypothetical protein
1481	 29.39	-2	1680154..1681800	+	548	91773563	-	Mbur_1601	-	hypothetical protein
41.89	MEAN

4.51	STD DEV
