IslandPathversion 1.0

IslandPath Analysis: Methanococcoides burtonii DSM 6242

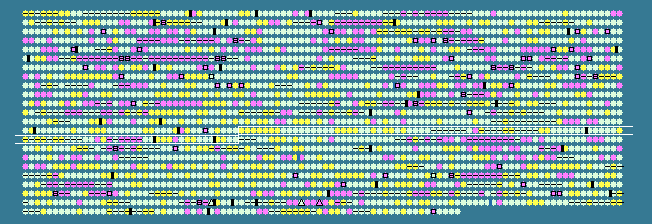

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1337	 46.49	+1	1530426..1531679	+	417	91773419	-	Mbur_1454	-	L-threonine synthase
1338	 49.54	+1	1531680..1532444	+	254	91773420	-	Mbur_1455	-	ABC transporter, ATPase subunit
1339	 47.21	+1	1532441..1533139	+	232	91773421	-	Mbur_1456	-	cobalamin synthesis protein, P47K
1340	 47.85	+1	1533143..1533769	+	208	91773422	-	Mbur_1457	-	putative Fe-S cluster protein
1341	 46.94	+1	1533766..1534272	+	168	91773423	-	Mbur_1458	-	sulfopyruvate decarboxylase subunit alpha
1342	 46.84	+1	1534269..1534838	+	189	91773424	-	Mbur_1459	-	sulfopyruvate decarboxylase subunit beta
1343	 47.12	+1	1534801..1536084	-	427	91773425	-	Mbur_1460	-	hypothetical protein
1344	 44.17	0	1536106..1538016	-	636	91773426	-	Mbur_1461	-	sodium/hydrogen exchanger
1345	 40.37	0	1538225..1539361	-	378	91773427	-	Mbur_1462	-	hypothetical protein
1346	 44.13	0	1539460..1540413	-	317	91773428	-	Mbur_1463	-	tyrosyl-tRNA synthetase
1347	 43.03	0	1540505..1541236	-	243	91773429	-	Mbur_1464	-	hypothetical protein
1348	 43.59	0	1541244..1541516	-	90	91773430	-	Mbur_1465	-	PRC-barrel protein
1349	 42.78	0	1541670..1542431	+	253	91773431	-	Mbur_1466	-	hypothetical protein
1350	 45.23	0	1542479..1544293	+	604	91773432	-	Mbur_1467	-	excinuclease ABC subunit C
1351	 42.75	0	1544559..1545248	+	229	91773433	-	Mbur_1468	-	hypothetical protein
1352	 45.08	0	1545251..1546357	-	368	91773434	-	Mbur_1469	-	radical SAM family Fe-S protein
1353	 46.13	0	1546368..1547477	-	369	91773435	-	Mbur_1470	-	peptidase M50
1354	 47.10	+1	1547505..1547918	-	137	91773436	-	Mbur_1471	-	hypothetical protein
1355	 50.25	+1	1547905..1549092	-	395	91773437	-	Mbur_1472	-	aconitase subunit 1
1356	 47.97	+1	1549160..1550437	-	425	91773438	-	Mbur_1473	-	carboxylyase-like protein
1357	 44.37	0	1550754..1551215	-	153	91773439	-	Mbur_1474	-	hypothetical protein
1358	 44.96	0	1551347..1552507	-	386	91773440	-	Mbur_1475	-	cytidyltransferase-related
1359	 45.76	0	1552732..1553085	+	117	91773441	-	Mbur_1476	-	cupin family protein
1360	 43.98	0	1553105..1553536	-	143	91773442	-	Mbur_1477	-	iron dependent repressor
1361	 45.58	0	1553626..1554597	-	323	91773443	-	Mbur_1478	-	hypothetical protein
1362	 45.80	0	1554605..1554973	-	122	91773444	-	Mbur_1479	-	4Fe-4S ferredoxin, iron-sulfur binding
1363	 45.10	0	1554988..1555191	-	67	91773445	-	Mbur_1480	-	hypothetical protein
1364	 46.08	0	1555355..1556107	-	250	91773446	-	Mbur_1481	-	hypothetical protein
1365	 43.79	0	1556220..1556879	-	219	91773447	-	Mbur_1482	-	nitrite and sulphite reductase, 4Fe-4S subunit
1366	 38.94	0	1556966..1557322	+	118	91773448	-	Mbur_1483	-	HxlR family transcriptional regulator
1367	 40.63	0	1557574..1558299	-	241	91773449	-	Mbur_1484	-	hypothetical protein
1368	 42.02	0	1558449..1558874	-	141	91773450	-	Mbur_1485	-	peptidylprolyl isomerase
1369	 40.72	0	1559132..1560079	+	315	91773451	-	Mbur_1486	-	hypothetical protein
1370	 41.86	0	1560076..1560591	+	171	91773452	-	Mbur_1487	-	hypothetical protein
1371	 41.39	0	1560579..1561037	+	152	91773453	-	Mbur_1488	-	hypothetical protein
1372	 38.93	0	1561034..1561480	+	148	91773454	-	Mbur_1489	-	hypothetical protein
1373	 40.22	0	1561461..1562201	+	246	91773455	-	Mbur_1490	-	hypothetical protein
1374	 41.65	0	1562373..1566149	-	1258	91773456	-	Mbur_1491	-	hypothetical protein
1375	 40.61	0	1566189..1568867	-	892	91773457	-	Mbur_1492	-	von Willebrand factor, type A
1376	 33.33	-1	1569038..1569403	+	121	91773458	-	Mbur_1493	-	hypothetical protein
1377	 48.13	+1	1569731..1571014	-	427	91773459	-	Mbur_1494	-	thiamine biosynthesis protein ThiC
1378	 42.93	0	1571447..1572373	-	308	91773460	-	Mbur_1495	-	glycosyl transferase family protein
1379	 43.80	0	1572374..1572994	-	206	91773461	-	Mbur_1496	-	transcription factor
1380	 44.38	0	1573100..1574203	-	367	91773462	-	Mbur_1497	-	condensin subunit ScpB
1381	 45.80	0	1574204..1575061	-	285	91773463	-	Mbur_1498	-	condensin subunit ScpA
1382	 45.96	0	1575058..1578582	-	1174	91773464	-	Mbur_1499	-	condensin subunit Smc
1383	 44.40	0	1578602..1579378	-	258	91773465	-	Mbur_1500	-	hypothetical protein
1384	 43.87	0	1579485..1582151	-	888	91773466	-	Mbur_1501	-	SMC-like protein
1385	 43.21	0	1582148..1583605	-	485	91773467	-	Mbur_1502	-	metallophosphoesterase
1386	 41.80	0	1583790..1584521	+	243	91773468	-	Mbur_1503	-	glucose-6-phosphate isomerase
1387	 46.38	0	1584608..1585366	+	252	91773469	-	Mbur_1504	-	hypothetical protein
1388	 47.40	+1	1585370..1586755	-	461	91773470	-	Mbur_1505	-	phosphoesterase, RecJ-like protein
1389	 42.71	0	1586776..1587276	-	166	91773471	-	Mbur_1506	-	hypothetical protein
1390	 38.52	0	1587288..1587557	+	89	91773472	-	Mbur_1507	-	hypothetical protein
1391	 39.14	0	1587797..1588192	-	131	91773473	-	Mbur_1508	-	hypothetical protein
1392	 43.53	0	1588449..1589105	+	218	91773474	-	Mbur_1509	-	hypothetical protein
1393	 43.43	0	1589135..1589461	+	108	91773475	-	Mbur_1510	-	RNAse P, Rpr2/Rpp21 subunit
1394	 42.80	0	1589466..1589708	-	80	91773476	-	Mbur_1511	-	hypothetical protein
1395	 39.17	0	1590369..1590608	+	79	91773477	-	Mbur_1512	-	hypothetical protein
1396	 42.46	0	1590659..1592038	-	459	91773478	-	Mbur_1513	-	KaiC
1397	 43.33	0	1592140..1592409	-	89	91773479	-	Mbur_1514	-	exodeoxyribonuclease VII small subunit
1398	 43.71	0	1592416..1593639	-	407	91773480	-	Mbur_1515	-	exodeoxyribonuclease VII large subunit
1399	 43.43	0	1593881..1594375	+	164	91773481	-	Mbur_1516	-	CoB--CoM heterodisulfide reductase subunit C
1400	 45.39	0	1594368..1595288	+	306	91773482	-	Mbur_1517	-	CoB--CoM heterodisulfide reductase subunit B
1401	 48.69	+1	1595846..1596802	-	318	91773483	-	Mbur_1518	-	tetrahydromethanopterin S-methyltransferase subunit H
1402	 40.79	0	1596817..1597044	-	75	91773484	-	Mbur_1519	-	tetrahydromethanopterin S-methyltransferase subunit G
1403	 47.08	+1	1597041..1597280	-	79	91773485	mtrF	Mbur_1520	-	tetrahydromethanopterin S-methyltransferase subunit F
1404	 48.07	+1	1597286..1598011	-	241	91773486	-	Mbur_1521	-	tetrahydromethanopterin S-methyltransferase subunit A
1405	 43.52	0	1598013..1598336	-	107	91773487	-	Mbur_1522	-	tetrahydromethanopterin S-methyltransferase subunit B
1406	 48.40	+1	1598333..1599142	-	269	91773488	-	Mbur_1523	-	tetrahydromethanopterin S-methyltransferase subunit C
1407	 46.94	+1	1599144..1599863	-	239	91773489	-	Mbur_1524	-	tetrahydromethanopterin S-methyltransferase subunit D
1408	 45.14	0	1599860..1600765	-	301	91773490	-	Mbur_1525	-	tetrahydromethanopterin S-methyltransferase subunit E
1409	 42.38	0	1600953..1601339	-	128	91773491	-	Mbur_1526	-	hypothetical protein
1410	 45.02	0	1601336..1602379	-	347	91773492	-	Mbur_1527	-	peptidase U32
1411	 45.19	0	1602464..1603273	+	269	91773493	-	Mbur_1528	-	xylose isomerase-like TIM barrel
1412	 44.53	0	1603287..1603697	-	136	91773494	-	Mbur_1529	-	hypothetical protein
1413	 33.87	-1	1604138..1604695	+	185	91773495	-	Mbur_1530	-	hypothetical protein
1414	 46.72	+1	1605077..1605487	+	136	91773496	-	Mbur_1531	-	histidine triad (HIT) protein
1415	 34.24	-1	1605531..1606847	-	438	91773497	-	Mbur_1532	-	filamentation induced by cAMP protein Fic
1416	 39.96	0	1607605..1608057	-	150	91773498	-	Mbur_1534	-	T/G mismatch-specific endonuclease
1417	 32.44	-2	1608171..1608845	+	224	91773499	-	Mbur_1535	-	hypothetical protein
1418	 31.44	-2	1608838..1609578	+	246	91773500	-	Mbur_1536	-	hypothetical protein
1419	 35.52	-1	1609571..1611769	+	732	91773501	-	Mbur_1537	-	type III restriction enzyme, res subunit
1420	 33.33	-1	1611935..1613908	+	657	91773502	-	Mbur_1538	-	ATPase involved in DNA repair-like protein
1421	 39.18	0	1614324..1616033	-	569	91773503	-	Mbur_1539	-	DNA-cytosine methyltransferase
1422	 39.08	0	1616610..1617131	-	173	91773504	-	Mbur_1540	-	GCN5-related N-acetyltransferase
1423	 46.52	+1	1617541..1618632	-	363	91773505	-	Mbur_1541	-	small GTP-binding protein
1424	 47.04	+1	1618683..1619900	-	405	91773506	-	Mbur_1542	-	molybdopterin molybdochelatase
1425	 47.78	+1	1619949..1620827	-	292	91773507	-	Mbur_1543	-	branched-chain amino acid aminotransferase
1426	 35.40	-1	1620929..1621459	-	176	91773508	-	Mbur_1544	-	hypothetical protein
1427	 42.63	0	1621686..1622492	-	268	91773509	-	Mbur_1545	-	ABC transporter, ATPase subunit
1428	 45.45	0	1622485..1623648	-	387	91773510	-	Mbur_1546	-	ABC transporter, inner membrane subunit
1429	 46.06	0	1623674..1624765	-	363	91773511	-	Mbur_1547	-	ligand binding protein
1430	 43.86	0	1625126..1626730	+	534	91773512	-	Mbur_1548	-	hypothetical protein
1431	 40.84	0	1626829..1628799	+	656	91773513	-	Mbur_1549	-	Pyrrolo-quinoline quinone
1432	 44.61	0	1628983..1631412	+	809	91773514	-	Mbur_1550	-	Pyrrolo-quinoline quinone
1433	 46.50	+1	1631784..1632884	-	366	91773515	-	Mbur_1551	-	ABC transporter, ATPase subunit
1434	 46.79	+1	1632894..1633562	-	222	91773516	-	Mbur_1552	-	molybdate ABC transporter inner membrane protein
1435	 41.07	0	1633562..1634362	-	266	91773517	-	Mbur_1553	-	molybdenum ABC transporter, periplasmic molybdate-binding protein
1436	 44.16	0	1634475..1634825	-	116	91773518	-	Mbur_1554	-	hypothetical protein
41.89	MEAN

4.51	STD DEV
