IslandPathversion 1.0

IslandPath Analysis: Methanococcoides burtonii DSM 6242

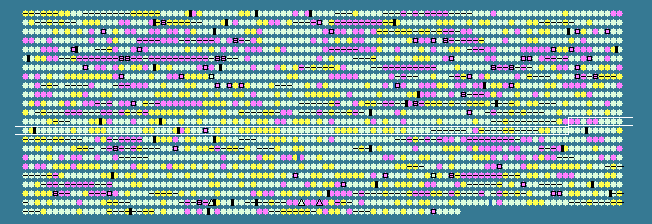

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1292	 32.05	-2	1490717..1490950	-	77	91773374	-	Mbur_1402	-	hypothetical protein
1293	 33.33	-1	1491266..1491778	+	170	91773375	-	Mbur_1403	-	hypothetical protein
1294	 39.37	0	1491878..1492192	-	104	91773376	-	Mbur_1404	-	hypothetical protein
1295	 38.22	0	1492281..1492505	-	74	91773377	-	Mbur_1405	-	hypothetical protein
1296	 34.06	-1	1492690..1493652	-	320	91773378	-	Mbur_1406	-	ribonuclease BN
1297	 42.56	0	1493738..1493932	+	64	91773379	-	Mbur_1407	-	hypothetical protein
1298	 42.96	0	1494668..1495477	-	269	91773380	-	Mbur_1409	-	secreted protein
1299	 43.76	0	1496227..1497147	-	306	91773381	-	Mbur_1411	-	LPPG:FO 2-phospho-L-lactate transferase
1300	 44.47	0	1497213..1498415	+	400	91773382	-	Mbur_1412	-	metal-dependent phosphohydrolase
1301	 43.80	0	1498412..1498774	+	120	91773383	-	Mbur_1413	-	hypothetical protein
1302	 46.20	0	1498777..1499328	+	183	91773384	-	Mbur_1414	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase
1303	 40.41	0	1499791..1500129	+	112	91773385	-	Mbur_1415	-	molybdopterin converting factor small subunit MoaD
1304	 43.65	0	1500162..1500539	+	125	91773386	-	Mbur_1416	-	camphor resistance protein CrcB
1305	 39.48	0	1500928..1501236	+	102	91773387	-	Mbur_1418	-	hypothetical protein
1306	 39.46	0	1501239..1501499	-	86	91773388	-	Mbur_1419	-	hypothetical protein
1307	 42.59	0	1501590..1502291	-	233	91773389	-	Mbur_1420	-	hypothetical protein
1308	 41.20	0	1502497..1503030	-	177	91773390	-	Mbur_1421	-	molybdopterin binding protein
1309	 46.63	+1	1503352..1503870	+	172	91773391	rpl10e	Mbur_1422	-	50S ribosomal protein L10e
1310	 45.16	0	1503902..1504510	+	202	91773392	-	Mbur_1423	-	translation initiation factor IF-2 subunit beta
1311	 43.09	0	1504560..1504805	+	81	91773393	-	Mbur_1424	-	hypothetical protein
1312	 46.12	0	1504829..1506040	+	403	91773394	-	Mbur_1425	-	radical SAM family Fe-S protein
1313	 46.81	+1	1506107..1507405	+	432	91773395	-	Mbur_1426	-	tryptophanyl-tRNA synthetase
1314	 46.96	+1	1507424..1508905	+	493	91773396	pheS	Mbur_1427	-	phenylalanyl-tRNA synthetase subunit alpha
1315	 44.74	0	1508920..1510059	-	379	91773397	-	Mbur_1428	-	hypothetical protein
1316	 42.47	0	1510063..1510620	-	185	91773398	-	Mbur_1429	-	hypothetical protein
1317	 41.61	0	1510624..1511058	-	144	91773399	-	Mbur_1430	-	GCN5-related N-acetyltransferase
1318	 43.78	0	1511061..1511864	-	267	91773400	-	Mbur_1431	-	hypothetical protein
1319	 40.74	0	1512061..1512465	+	134	91773401	-	Mbur_1432	-	hypothetical protein
1320	 43.79	0	1512615..1513628	+	337	91773402	-	Mbur_1433	-	protoporphyrin IX magnesium-chelatase
1321	 46.07	0	1515335..1515907	+	190	91773403	-	Mbur_1435	-	adenine phosphoribosyltransferase
1322	 46.69	+1	1515894..1516889	+	331	91773404	-	Mbur_1436	-	diphthamide biosynthesis protein
1323	 42.81	0	1516895..1517506	+	203	91773405	-	Mbur_1437	-	methyltransferase
1324	 43.70	0	1517581..1518294	+	237	91773406	-	Mbur_1438	-	RNA binding protein
1325	 39.86	0	1518319..1518594	+	91	91773407	-	Mbur_1439	-	DNA-directed RNA polymerase, subunit L
1326	 51.63	+2	1518674..1519837	+	387	91773408	-	Mbur_1440	-	Sep-tRNA:Cys-tRNA synthetase
1327	 29.49	-2	1520043..1520822	-	259	91773409	-	Mbur_1441	-	3-methyladenine DNA glycosylase-like protein
1328	 46.86	+1	1521024..1521230	-	68	91773410	-	Mbur_1442	-	hypothetical protein
1329	 38.62	0	1521779..1522591	+	270	91773411	-	Mbur_1443	-	molybdenum ABC transporter, periplasmic molybdate-binding protein
1330	 43.23	0	1524032..1524223	-	63	91773412	-	Mbur_1445	-	RNA-binding protein
1331	 37.79	0	1524737..1525678	+	313	91773413	-	Mbur_1446	-	transposase, IS4
1332	 42.73	0	1527031..1527711	+	226	91773414	-	Mbur_1449	-	hypothetical protein
1333	 45.90	0	1527764..1528360	-	198	91773415	-	Mbur_1450	-	hypothetical protein
1334	 42.86	0	1528488..1529642	+	384	91773416	-	Mbur_1451	-	aldo/keto reductase
1335	 40.48	0	1529789..1529956	+	55	91773417	-	Mbur_1452	-	PAS/PAC sensor signal transduction histidine kinase
1336	 43.16	0	1530004..1530237	+	77	91773418	-	Mbur_1453	-	cytochrome b5
1337	 46.49	+1	1530426..1531679	+	417	91773419	-	Mbur_1454	-	L-threonine synthase
1338	 49.54	+1	1531680..1532444	+	254	91773420	-	Mbur_1455	-	ABC transporter, ATPase subunit
1339	 47.21	+1	1532441..1533139	+	232	91773421	-	Mbur_1456	-	cobalamin synthesis protein, P47K
1340	 47.85	+1	1533143..1533769	+	208	91773422	-	Mbur_1457	-	putative Fe-S cluster protein
1341	 46.94	+1	1533766..1534272	+	168	91773423	-	Mbur_1458	-	sulfopyruvate decarboxylase subunit alpha
1342	 46.84	+1	1534269..1534838	+	189	91773424	-	Mbur_1459	-	sulfopyruvate decarboxylase subunit beta
1343	 47.12	+1	1534801..1536084	-	427	91773425	-	Mbur_1460	-	hypothetical protein
1344	 44.17	0	1536106..1538016	-	636	91773426	-	Mbur_1461	-	sodium/hydrogen exchanger
1345	 40.37	0	1538225..1539361	-	378	91773427	-	Mbur_1462	-	hypothetical protein
1346	 44.13	0	1539460..1540413	-	317	91773428	-	Mbur_1463	-	tyrosyl-tRNA synthetase
1347	 43.03	0	1540505..1541236	-	243	91773429	-	Mbur_1464	-	hypothetical protein
1348	 43.59	0	1541244..1541516	-	90	91773430	-	Mbur_1465	-	PRC-barrel protein
1349	 42.78	0	1541670..1542431	+	253	91773431	-	Mbur_1466	-	hypothetical protein
1350	 45.23	0	1542479..1544293	+	604	91773432	-	Mbur_1467	-	excinuclease ABC subunit C
1351	 42.75	0	1544559..1545248	+	229	91773433	-	Mbur_1468	-	hypothetical protein
1352	 45.08	0	1545251..1546357	-	368	91773434	-	Mbur_1469	-	radical SAM family Fe-S protein
1353	 46.13	0	1546368..1547477	-	369	91773435	-	Mbur_1470	-	peptidase M50
1354	 47.10	+1	1547505..1547918	-	137	91773436	-	Mbur_1471	-	hypothetical protein
1355	 50.25	+1	1547905..1549092	-	395	91773437	-	Mbur_1472	-	aconitase subunit 1
1356	 47.97	+1	1549160..1550437	-	425	91773438	-	Mbur_1473	-	carboxylyase-like protein
1357	 44.37	0	1550754..1551215	-	153	91773439	-	Mbur_1474	-	hypothetical protein
1358	 44.96	0	1551347..1552507	-	386	91773440	-	Mbur_1475	-	cytidyltransferase-related
1359	 45.76	0	1552732..1553085	+	117	91773441	-	Mbur_1476	-	cupin family protein
1360	 43.98	0	1553105..1553536	-	143	91773442	-	Mbur_1477	-	iron dependent repressor
1361	 45.58	0	1553626..1554597	-	323	91773443	-	Mbur_1478	-	hypothetical protein
1362	 45.80	0	1554605..1554973	-	122	91773444	-	Mbur_1479	-	4Fe-4S ferredoxin, iron-sulfur binding
1363	 45.10	0	1554988..1555191	-	67	91773445	-	Mbur_1480	-	hypothetical protein
1364	 46.08	0	1555355..1556107	-	250	91773446	-	Mbur_1481	-	hypothetical protein
1365	 43.79	0	1556220..1556879	-	219	91773447	-	Mbur_1482	-	nitrite and sulphite reductase, 4Fe-4S subunit
1366	 38.94	0	1556966..1557322	+	118	91773448	-	Mbur_1483	-	HxlR family transcriptional regulator
1367	 40.63	0	1557574..1558299	-	241	91773449	-	Mbur_1484	-	hypothetical protein
1368	 42.02	0	1558449..1558874	-	141	91773450	-	Mbur_1485	-	peptidylprolyl isomerase
1369	 40.72	0	1559132..1560079	+	315	91773451	-	Mbur_1486	-	hypothetical protein
1370	 41.86	0	1560076..1560591	+	171	91773452	-	Mbur_1487	-	hypothetical protein
1371	 41.39	0	1560579..1561037	+	152	91773453	-	Mbur_1488	-	hypothetical protein
1372	 38.93	0	1561034..1561480	+	148	91773454	-	Mbur_1489	-	hypothetical protein
1373	 40.22	0	1561461..1562201	+	246	91773455	-	Mbur_1490	-	hypothetical protein
1374	 41.65	0	1562373..1566149	-	1258	91773456	-	Mbur_1491	-	hypothetical protein
1375	 40.61	0	1566189..1568867	-	892	91773457	-	Mbur_1492	-	von Willebrand factor, type A
1376	 33.33	-1	1569038..1569403	+	121	91773458	-	Mbur_1493	-	hypothetical protein
1377	 48.13	+1	1569731..1571014	-	427	91773459	-	Mbur_1494	-	thiamine biosynthesis protein ThiC
1378	 42.93	0	1571447..1572373	-	308	91773460	-	Mbur_1495	-	glycosyl transferase family protein
1379	 43.80	0	1572374..1572994	-	206	91773461	-	Mbur_1496	-	transcription factor
1380	 44.38	0	1573100..1574203	-	367	91773462	-	Mbur_1497	-	condensin subunit ScpB
1381	 45.80	0	1574204..1575061	-	285	91773463	-	Mbur_1498	-	condensin subunit ScpA
1382	 45.96	0	1575058..1578582	-	1174	91773464	-	Mbur_1499	-	condensin subunit Smc
1383	 44.40	0	1578602..1579378	-	258	91773465	-	Mbur_1500	-	hypothetical protein
1384	 43.87	0	1579485..1582151	-	888	91773466	-	Mbur_1501	-	SMC-like protein
1385	 43.21	0	1582148..1583605	-	485	91773467	-	Mbur_1502	-	metallophosphoesterase
1386	 41.80	0	1583790..1584521	+	243	91773468	-	Mbur_1503	-	glucose-6-phosphate isomerase
1387	 46.38	0	1584608..1585366	+	252	91773469	-	Mbur_1504	-	hypothetical protein
1388	 47.40	+1	1585370..1586755	-	461	91773470	-	Mbur_1505	-	phosphoesterase, RecJ-like protein
1389	 42.71	0	1586776..1587276	-	166	91773471	-	Mbur_1506	-	hypothetical protein
1390	 38.52	0	1587288..1587557	+	89	91773472	-	Mbur_1507	-	hypothetical protein
1391	 39.14	0	1587797..1588192	-	131	91773473	-	Mbur_1508	-	hypothetical protein
41.89	MEAN

4.51	STD DEV
