IslandPath Analysis: Methanococcoides burtonii DSM 6242

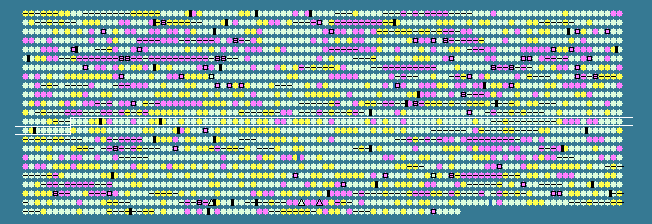

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1209	 43.94	0	1401250..1402173	+	307	91773291	-	Mbur_1315	-	hypothetical protein
1210	 44.68	0	1402170..1403147	+	325	91773292	-	Mbur_1316	-	hydantoinase/oxoprolinase
1211	 42.97	0	1403163..1403795	+	210	91773293	-	Mbur_1317	-	aspartate/glutamate/uridylate kinase
1212	 46.06	0	1403900..1404064	+	54	91773294	-	Mbur_1318	-	hypothetical protein
1213	 47.78	+1	1404074..1404343	+	89	91773295	ef1B	Mbur_1319	-	elongation factor 1-beta
1214	 45.70	0	1404769..1405698	-	309	91773296	-	Mbur_1320	-	thiamine biosynthesis protein
1215	 38.22	0	1405856..1406080	+	74	91773297	-	Mbur_1321	-	hypothetical protein
1216	 41.93	0	1406242..1406718	-	158	91773298	-	Mbur_1322	-	hypothetical protein
1217	 44.67	0	1407130..1407420	-	96	91773299	-	Mbur_1323	-	acylphosphatase
1218	 44.71	0	1407442..1409349	-	635	91773300	-	Mbur_1324	-	threonyl-tRNA synthetase
1219	 37.69	0	1409650..1409970	-	106	91773301	-	Mbur_1325	-	hypothetical protein
1220	 41.60	0	1410077..1411141	-	354	91773302	-	Mbur_1326	-	hypothetical protein
1221	 44.21	0	1411231..1413234	-	667	91773303	-	Mbur_1327	-	hypothetical protein
1222	 47.81	+1	1413337..1414704	-	455	91773304	-	Mbur_1328	-	putative oxidoreductase
1223	 48.12	+1	1414695..1415546	-	283	91773305	-	Mbur_1329	-	ferredoxin--NADP(+) reductase subunit alpha
1224	 46.10	0	1416309..1417514	-	401	91773306	-	Mbur_1330	-	S-adenosylmethionine synthetase
1225	 45.15	0	1417811..1418665	+	284	91773307	hisG	Mbur_1331	-	ATP phosphoribosyltransferase
1226	 43.99	0	1418676..1419416	+	246	91773308	-	Mbur_1332	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
1227	 46.53	+1	1419443..1420018	+	191	91773309	hisB	Mbur_1333	-	imidazoleglycerol-phosphate dehydratase
1228	 44.37	0	1420057..1422159	-	700	91773310	-	Mbur_1334	-	DNA mismatch repair protein MutS-like protein
1229	 43.29	0	1422174..1423007	-	277	91773311	-	Mbur_1335	-	hypothetical protein
1230	 46.58	+1	1423004..1424143	-	379	91773312	-	Mbur_1336	-	hypothetical protein
1231	 42.93	0	1424301..1424498	-	65	91773313	-	Mbur_1337	-	hypothetical protein
1232	 40.26	0	1424502..1425656	-	384	91773314	-	Mbur_1338	-	ADP-specific phosphofructokinase
1233	 41.63	0	1425666..1427123	-	485	91773315	-	Mbur_1339	-	ADP-specific phosphofructokinase
1234	 47.26	+1	1427159..1428343	-	394	91773316	argJ	Mbur_1340	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
1235	 42.15	0	1428353..1428817	-	154	91773317	-	Mbur_1341	-	CBS domain-containing protein
1236	 45.55	0	1428838..1429860	-	340	91773318	argC	Mbur_1342	-	N-acetyl-gamma-glutamyl-phosphate reductase
1237	 42.66	0	1429973..1430401	+	142	91773319	-	Mbur_1343	-	nucleoside 2-deoxyribosyltransferase
1238	 48.42	+1	1430428..1431030	-	200	91773320	-	Mbur_1344	-	hypothetical protein
1239	 45.17	0	1431050..1432291	-	413	91773321	pgk	Mbur_1345	-	phosphoglycerate kinase
1240	 46.82	+1	1432439..1433506	-	355	91773322	-	Mbur_1346	-	cobyrinic acid ac-diamide synthase
1241	 48.59	+1	1433550..1435640	-	696	91773323	-	Mbur_1347	-	Acyl-CoA synthetase
1242	 42.86	0	1435796..1436320	-	174	91773324	-	Mbur_1348	-	bifunctional deaminase-reductase-like protein
1243	 38.03	0	1437602..1438708	+	368	91773325	-	Mbur_1349	-	hypothetical protein
1244	 37.41	0	1438850..1439905	+	351	91773326	-	Mbur_1350	-	hypothetical protein
1245	 44.86	0	1439963..1440526	+	187	91773327	-	Mbur_1351	-	NADPH-dependent FMN reductase
1246	 45.44	0	1440635..1442368	+	577	91773328	-	Mbur_1352	-	Cl- channel, voltage gated
1247	 46.09	0	1442371..1443663	-	430	91773329	-	Mbur_1353	-	MiaB-like tRNA modifying enzyme
1248	 48.48	+1	1443676..1444764	-	362	91773330	glpX	Mbur_1354	-	fructose 1,6-bisphosphatase II
1249	 42.88	0	1444875..1445429	-	184	91773331	-	Mbur_1355	-	hypothetical protein
1250	 45.59	0	1445652..1448540	+	962	91773332	leuS	Mbur_1356	-	leucyl-tRNA synthetase
1251	 40.23	0	1448587..1449195	-	202	91773333	-	Mbur_1357	-	hypothetical protein
1252	 37.48	0	1449438..1449944	+	168	91773334	-	Mbur_1358	-	ArsR family transcriptional regulator
1253	 41.06	0	1449944..1450732	+	262	91773335	-	Mbur_1359	-	Crp/FNR family transcriptional regulator
1254	 39.36	0	1450762..1451292	+	176	91773336	-	Mbur_1360	-	hypothetical protein
1255	 43.74	0	1451479..1452045	-	188	91773337	-	Mbur_1361	-	hypothetical protein
1256	 40.75	0	1452046..1453326	-	426	91773338	-	Mbur_1362	-	replication factor A
1257	 43.43	0	1453437..1455269	-	610	91773339	-	Mbur_1363	-	sodium/hydrogen exchanger
1258	 46.83	+1	1456880..1457635	-	251	91773340	-	Mbur_1365	-	dimethylamine corrinoid protein
1259	 37.37	-1	1457845..1458141	-	98	91773341	-	Mbur_1366	-	hypothetical protein
1260	 43.46	0	1458143..1459189	-	348	91773342	-	Mbur_1367	-	transmembrane protein MttP
1261	 47.77	+1	1459313..1459963	-	216	91773343	-	Mbur_1368	-	trimethylamine corrinoid protein
1262	 43.75	0	1462262..1463884	-	540	91773344	-	Mbur_1370	-	4Fe-4S ferredoxin, iron-sulfur binding
1263	 42.30	0	1464051..1464641	-	196	91773345	-	Mbur_1371	-	hypothetical protein
1264	 36.19	-1	1465126..1465440	+	104	91773346	-	Mbur_1372	-	hypothetical protein
1265	 42.59	0	1465518..1466381	-	287	91773347	-	Mbur_1373	-	hypothetical protein
1266	 42.13	0	1466386..1467738	-	450	91773348	-	Mbur_1374	-	replication factor A
1267	 38.74	0	1467892..1468113	+	73	91773349	-	Mbur_1375	-	histone
1268	 43.39	0	1468130..1468636	-	168	91773350	-	Mbur_1376	-	putative small multi-drug exporter
1269	 41.44	0	1469761..1470093	-	110	91773351	-	Mbur_1378	-	hypothetical protein
1270	 45.61	0	1470106..1470903	-	265	91773352	-	Mbur_1379	-	ferredoxin
1271	 43.32	0	1470900..1471490	-	196	91773353	-	Mbur_1380	-	electron transport complex, RnfABCDGE type, A subunit
1272	 43.14	0	1471492..1472103	-	203	91773354	-	Mbur_1381	-	SoxR-reducing system protein RsxE
1273	 44.50	0	1472118..1472690	-	190	91773355	-	Mbur_1382	-	electron transport complex, RnfABCDGE type, G subunit
1274	 44.30	0	1472683..1473612	-	309	91773356	-	Mbur_1383	-	NADH--ubiquinone oxidoreductase subunit RnfD
1275	 44.42	0	1473614..1474975	-	453	91773357	-	Mbur_1384	-	electron transport complex, RnfABCDGE type, C subunit
1276	 46.10	0	1474989..1476461	-	490	91773358	-	Mbur_1385	-	hypothetical protein
1277	 39.75	0	1476471..1476875	-	134	91773359	-	Mbur_1386	-	hypothetical protein
1278	 44.25	0	1476977..1478029	+	350	91773360	-	Mbur_1387	-	ApbE-like lipoprotein
1279	 40.04	0	1478078..1478629	-	183	91773361	-	Mbur_1388	-	2',5' RNA ligase
1280	 44.78	0	1478764..1479645	+	293	91773362	-	Mbur_1389	-	hypothetical protein
1281	 45.79	0	1479668..1480711	-	347	91773363	-	Mbur_1390	-	cell division protein pelota
1282	 44.83	0	1480761..1482752	-	663	91773364	-	Mbur_1391	-	hypothetical protein
1283	 44.50	0	1482903..1484075	+	390	91773365	-	Mbur_1392	-	DNA primase small subunit
1284	 43.50	0	1484065..1484772	+	235	91773366	-	Mbur_1393	-	hypothetical protein
1285	 41.58	0	1484788..1485066	+	92	91773367	rpl44e	Mbur_1394	-	50S ribosomal protein L44e
1286	 41.81	0	1485072..1485248	+	58	91773368	rps27e	Mbur_1395	-	30S ribosomal protein S27e
1287	 43.61	0	1485259..1486056	+	265	91773369	-	Mbur_1396	-	translation initiation factor IF-2 subunit alpha
1288	 42.69	0	1486063..1486233	+	56	91773370	-	Mbur_1397	-	nucleolar RNA-binding protein Nop10p
1289	 45.04	0	1486226..1487011	+	261	91773371	-	Mbur_1398	-	hypothetical protein
1290	 45.93	0	1487021..1488250	+	409	91773372	-	Mbur_1399	-	PHP-like protein
1291	 35.23	-1	1489779..1490726	-	315	91773373	-	Mbur_1401	-	hypothetical protein
1292	 32.05	-2	1490717..1490950	-	77	91773374	-	Mbur_1402	-	hypothetical protein
1293	 33.33	-1	1491266..1491778	+	170	91773375	-	Mbur_1403	-	hypothetical protein
1294	 39.37	0	1491878..1492192	-	104	91773376	-	Mbur_1404	-	hypothetical protein
1295	 38.22	0	1492281..1492505	-	74	91773377	-	Mbur_1405	-	hypothetical protein
1296	 34.06	-1	1492690..1493652	-	320	91773378	-	Mbur_1406	-	ribonuclease BN
1297	 42.56	0	1493738..1493932	+	64	91773379	-	Mbur_1407	-	hypothetical protein
1298	 42.96	0	1494668..1495477	-	269	91773380	-	Mbur_1409	-	secreted protein
1299	 43.76	0	1496227..1497147	-	306	91773381	-	Mbur_1411	-	LPPG:FO 2-phospho-L-lactate transferase
1300	 44.47	0	1497213..1498415	+	400	91773382	-	Mbur_1412	-	metal-dependent phosphohydrolase
1301	 43.80	0	1498412..1498774	+	120	91773383	-	Mbur_1413	-	hypothetical protein
1302	 46.20	0	1498777..1499328	+	183	91773384	-	Mbur_1414	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase
1303	 40.41	0	1499791..1500129	+	112	91773385	-	Mbur_1415	-	molybdopterin converting factor small subunit MoaD
1304	 43.65	0	1500162..1500539	+	125	91773386	-	Mbur_1416	-	camphor resistance protein CrcB
1305	 39.48	0	1500928..1501236	+	102	91773387	-	Mbur_1418	-	hypothetical protein
1306	 39.46	0	1501239..1501499	-	86	91773388	-	Mbur_1419	-	hypothetical protein
1307	 42.59	0	1501590..1502291	-	233	91773389	-	Mbur_1420	-	hypothetical protein
1308	 41.20	0	1502497..1503030	-	177	91773390	-	Mbur_1421	-	molybdopterin binding protein
41.89	MEAN

4.51	STD DEV
