IslandPathversion 1.0

IslandPath Analysis: Methanococcoides burtonii DSM 6242

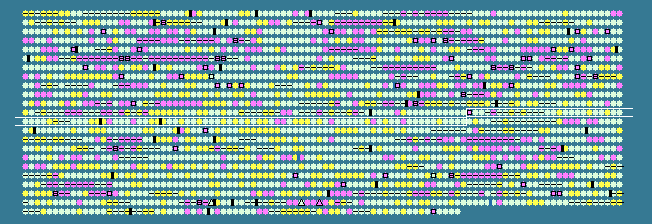

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1175	 37.79	0	1368328..1369269	+	313	91773257	-	Mbur_1279	-	transposase, IS4
1176	 42.80	0	1369759..1371078	+	439	91773258	truD	Mbur_1281	-	tRNA pseudouridine synthase D
1177	 43.99	0	1371152..1372756	-	534	91773259	-	Mbur_1282	-	CTP synthetase
1178	 39.11	0	1372776..1373450	-	224	91773260	-	Mbur_1283	-	hypothetical protein
1179	 37.70	0	1373471..1373653	-	60	91773261	-	Mbur_1284	-	hypothetical protein
1180	 42.43	0	1373796..1374740	+	314	91773262	-	Mbur_1285	-	nucleoside recognition
1181	 44.44	0	1374785..1375135	-	116	91773263	-	Mbur_1286	-	F420H2 dehydrogenase subunit O
1182	 45.74	0	1375150..1376592	-	480	91773264	-	Mbur_1287	-	F420H2 dehydrogenase subunit N
1183	 44.15	0	1376596..1378083	-	495	91773265	-	Mbur_1288	-	F420H2 dehydrogenase subunit M
1184	 45.70	0	1378083..1380080	-	665	91773266	-	Mbur_1289	-	F420H2 dehydrogenase subunit L
1185	 39.93	0	1380083..1380385	-	100	91773267	-	Mbur_1290	-	F420H2 dehydrogenase subunit K
1186	 43.38	0	1380999..1381406	-	135	91773268	-	Mbur_1292	-	F420H2 dehydrogenase subunit I
1187	 42.61	0	1381411..1382445	-	344	91773269	-	Mbur_1293	-	F420H2 dehydrogenase subunit H
1188	 44.00	0	1382451..1383575	-	374	91773270	-	Mbur_1294	-	F420H2 dehydrogenase subunit D
1189	 40.67	0	1383586..1384062	-	158	91773271	-	Mbur_1295	-	NADH dehydrogenase subunit C
1190	 45.41	0	1384072..1384626	-	184	91773272	-	Mbur_1296	-	F420H2 dehydrogenase subunit B
1191	 40.40	0	1384614..1385009	-	131	91773273	-	Mbur_1297	-	F420H2 dehydrogenase subunit A
1192	 40.04	0	1385255..1385761	-	168	91773274	-	Mbur_1298	-	hypothetical protein
1193	 43.57	0	1385782..1386201	-	139	91773275	-	Mbur_1299	-	hypothetical protein
1194	 41.98	0	1386483..1386644	+	53	91773276	-	Mbur_1300	-	4Fe-4S ferredoxin, iron-sulfur binding
1195	 46.79	+1	1386641..1387918	+	425	91773277	-	Mbur_1301	-	amine oxidase
1196	 44.11	0	1388045..1389037	+	330	91773278	cofG	Mbur_1302	-	FO synthase subunit 1
1197	 43.88	0	1389034..1390104	+	356	91773279	-	Mbur_1303	-	FO synthase subunit 2
1198	 45.94	0	1390104..1391174	+	356	91773280	-	Mbur_1304	-	FO synthase subunit 2
1199	 39.97	0	1391161..1391823	+	220	91773281	-	Mbur_1305	-	hypothetical protein
1200	 39.74	0	1391800..1392111	-	103	91773282	-	Mbur_1306	-	CutA1 divalent ion tolerance protein
1201	 43.10	0	1392429..1392602	+	57	91773283	-	Mbur_1307	-	4Fe-4S ferredoxin, iron-sulfur binding
1202	 42.83	0	1392599..1393819	+	406	91773284	-	Mbur_1308	-	geranylgeranyl reductase
1203	 42.29	0	1393869..1395308	-	479	91773285	-	Mbur_1309	-	K+ transporter Trk
1204	 42.62	0	1395327..1396661	-	444	91773286	trkA	Mbur_1310	-	potassium transporter peripheral membrane component
1205	 46.94	+1	1396781..1397971	-	396	91773287	-	Mbur_1311	-	chaperone DnaJ
1206	 46.22	0	1398038..1399900	-	620	91773288	-	Mbur_1312	-	chaperone DnaK
1207	 40.62	0	1399979..1400554	-	191	91773289	-	Mbur_1313	-	GrpE protein
1208	 43.24	0	1400706..1401119	-	137	91773290	-	Mbur_1314	-	hypothetical protein
1209	 43.94	0	1401250..1402173	+	307	91773291	-	Mbur_1315	-	hypothetical protein
1210	 44.68	0	1402170..1403147	+	325	91773292	-	Mbur_1316	-	hydantoinase/oxoprolinase
1211	 42.97	0	1403163..1403795	+	210	91773293	-	Mbur_1317	-	aspartate/glutamate/uridylate kinase
1212	 46.06	0	1403900..1404064	+	54	91773294	-	Mbur_1318	-	hypothetical protein
1213	 47.78	+1	1404074..1404343	+	89	91773295	ef1B	Mbur_1319	-	elongation factor 1-beta
1214	 45.70	0	1404769..1405698	-	309	91773296	-	Mbur_1320	-	thiamine biosynthesis protein
1215	 38.22	0	1405856..1406080	+	74	91773297	-	Mbur_1321	-	hypothetical protein
1216	 41.93	0	1406242..1406718	-	158	91773298	-	Mbur_1322	-	hypothetical protein
1217	 44.67	0	1407130..1407420	-	96	91773299	-	Mbur_1323	-	acylphosphatase
1218	 44.71	0	1407442..1409349	-	635	91773300	-	Mbur_1324	-	threonyl-tRNA synthetase
1219	 37.69	0	1409650..1409970	-	106	91773301	-	Mbur_1325	-	hypothetical protein
1220	 41.60	0	1410077..1411141	-	354	91773302	-	Mbur_1326	-	hypothetical protein
1221	 44.21	0	1411231..1413234	-	667	91773303	-	Mbur_1327	-	hypothetical protein
1222	 47.81	+1	1413337..1414704	-	455	91773304	-	Mbur_1328	-	putative oxidoreductase
1223	 48.12	+1	1414695..1415546	-	283	91773305	-	Mbur_1329	-	ferredoxin--NADP(+) reductase subunit alpha
1224	 46.10	0	1416309..1417514	-	401	91773306	-	Mbur_1330	-	S-adenosylmethionine synthetase
1225	 45.15	0	1417811..1418665	+	284	91773307	hisG	Mbur_1331	-	ATP phosphoribosyltransferase
1226	 43.99	0	1418676..1419416	+	246	91773308	-	Mbur_1332	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
1227	 46.53	+1	1419443..1420018	+	191	91773309	hisB	Mbur_1333	-	imidazoleglycerol-phosphate dehydratase
1228	 44.37	0	1420057..1422159	-	700	91773310	-	Mbur_1334	-	DNA mismatch repair protein MutS-like protein
1229	 43.29	0	1422174..1423007	-	277	91773311	-	Mbur_1335	-	hypothetical protein
1230	 46.58	+1	1423004..1424143	-	379	91773312	-	Mbur_1336	-	hypothetical protein
1231	 42.93	0	1424301..1424498	-	65	91773313	-	Mbur_1337	-	hypothetical protein
1232	 40.26	0	1424502..1425656	-	384	91773314	-	Mbur_1338	-	ADP-specific phosphofructokinase
1233	 41.63	0	1425666..1427123	-	485	91773315	-	Mbur_1339	-	ADP-specific phosphofructokinase
1234	 47.26	+1	1427159..1428343	-	394	91773316	argJ	Mbur_1340	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
1235	 42.15	0	1428353..1428817	-	154	91773317	-	Mbur_1341	-	CBS domain-containing protein
1236	 45.55	0	1428838..1429860	-	340	91773318	argC	Mbur_1342	-	N-acetyl-gamma-glutamyl-phosphate reductase
1237	 42.66	0	1429973..1430401	+	142	91773319	-	Mbur_1343	-	nucleoside 2-deoxyribosyltransferase
1238	 48.42	+1	1430428..1431030	-	200	91773320	-	Mbur_1344	-	hypothetical protein
1239	 45.17	0	1431050..1432291	-	413	91773321	pgk	Mbur_1345	-	phosphoglycerate kinase
1240	 46.82	+1	1432439..1433506	-	355	91773322	-	Mbur_1346	-	cobyrinic acid ac-diamide synthase
1241	 48.59	+1	1433550..1435640	-	696	91773323	-	Mbur_1347	-	Acyl-CoA synthetase
1242	 42.86	0	1435796..1436320	-	174	91773324	-	Mbur_1348	-	bifunctional deaminase-reductase-like protein
1243	 38.03	0	1437602..1438708	+	368	91773325	-	Mbur_1349	-	hypothetical protein
1244	 37.41	0	1438850..1439905	+	351	91773326	-	Mbur_1350	-	hypothetical protein
1245	 44.86	0	1439963..1440526	+	187	91773327	-	Mbur_1351	-	NADPH-dependent FMN reductase
1246	 45.44	0	1440635..1442368	+	577	91773328	-	Mbur_1352	-	Cl- channel, voltage gated
1247	 46.09	0	1442371..1443663	-	430	91773329	-	Mbur_1353	-	MiaB-like tRNA modifying enzyme
1248	 48.48	+1	1443676..1444764	-	362	91773330	glpX	Mbur_1354	-	fructose 1,6-bisphosphatase II
1249	 42.88	0	1444875..1445429	-	184	91773331	-	Mbur_1355	-	hypothetical protein
1250	 45.59	0	1445652..1448540	+	962	91773332	leuS	Mbur_1356	-	leucyl-tRNA synthetase
1251	 40.23	0	1448587..1449195	-	202	91773333	-	Mbur_1357	-	hypothetical protein
1252	 37.48	0	1449438..1449944	+	168	91773334	-	Mbur_1358	-	ArsR family transcriptional regulator
1253	 41.06	0	1449944..1450732	+	262	91773335	-	Mbur_1359	-	Crp/FNR family transcriptional regulator
1254	 39.36	0	1450762..1451292	+	176	91773336	-	Mbur_1360	-	hypothetical protein
1255	 43.74	0	1451479..1452045	-	188	91773337	-	Mbur_1361	-	hypothetical protein
1256	 40.75	0	1452046..1453326	-	426	91773338	-	Mbur_1362	-	replication factor A
1257	 43.43	0	1453437..1455269	-	610	91773339	-	Mbur_1363	-	sodium/hydrogen exchanger
1258	 46.83	+1	1456880..1457635	-	251	91773340	-	Mbur_1365	-	dimethylamine corrinoid protein
1259	 37.37	-1	1457845..1458141	-	98	91773341	-	Mbur_1366	-	hypothetical protein
1260	 43.46	0	1458143..1459189	-	348	91773342	-	Mbur_1367	-	transmembrane protein MttP
1261	 47.77	+1	1459313..1459963	-	216	91773343	-	Mbur_1368	-	trimethylamine corrinoid protein
1262	 43.75	0	1462262..1463884	-	540	91773344	-	Mbur_1370	-	4Fe-4S ferredoxin, iron-sulfur binding
1263	 42.30	0	1464051..1464641	-	196	91773345	-	Mbur_1371	-	hypothetical protein
1264	 36.19	-1	1465126..1465440	+	104	91773346	-	Mbur_1372	-	hypothetical protein
1265	 42.59	0	1465518..1466381	-	287	91773347	-	Mbur_1373	-	hypothetical protein
1266	 42.13	0	1466386..1467738	-	450	91773348	-	Mbur_1374	-	replication factor A
1267	 38.74	0	1467892..1468113	+	73	91773349	-	Mbur_1375	-	histone
1268	 43.39	0	1468130..1468636	-	168	91773350	-	Mbur_1376	-	putative small multi-drug exporter
1269	 41.44	0	1469761..1470093	-	110	91773351	-	Mbur_1378	-	hypothetical protein
1270	 45.61	0	1470106..1470903	-	265	91773352	-	Mbur_1379	-	ferredoxin
1271	 43.32	0	1470900..1471490	-	196	91773353	-	Mbur_1380	-	electron transport complex, RnfABCDGE type, A subunit
1272	 43.14	0	1471492..1472103	-	203	91773354	-	Mbur_1381	-	SoxR-reducing system protein RsxE
1273	 44.50	0	1472118..1472690	-	190	91773355	-	Mbur_1382	-	electron transport complex, RnfABCDGE type, G subunit
1274	 44.30	0	1472683..1473612	-	309	91773356	-	Mbur_1383	-	NADH--ubiquinone oxidoreductase subunit RnfD
41.89	MEAN

4.51	STD DEV
