IslandPath Analysis: Methanococcoides burtonii DSM 6242

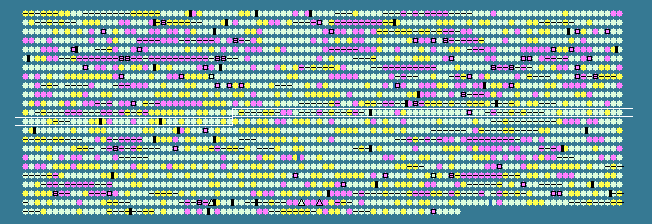

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1136	 39.82	0	1326626..1328566	+	646	91773218	-	Mbur_1238	-	V-type ATP synthase subunit I
1137	 46.67	+1	1328571..1328810	+	79	91773219	-	Mbur_1239	-	H+-transporting two-sector ATPase, C subunit
1138	 39.67	0	1328861..1329412	+	183	91773220	-	Mbur_1240	-	V-type ATP synthase subunit E
1139	 39.29	0	1329420..1330493	+	357	91773221	-	Mbur_1241	-	V-type ATP synthase subunit C
1140	 38.67	0	1330493..1330792	+	99	91773222	-	Mbur_1242	-	V-type ATP synthase subunit F
1141	 46.86	+1	1330783..1332519	+	578	91773223	-	Mbur_1243	-	V-type ATP synthase subunit A
1142	 47.94	+1	1332522..1333904	+	460	91773224	-	Mbur_1244	-	V-type ATP synthase subunit B
1143	 43.00	0	1333925..1334545	+	206	91773225	-	Mbur_1245	-	V-type ATP synthase subunit D
1144	 36.82	-1	1334945..1337065	+	706	91773226	-	Mbur_1246	-	flagella protein
1145	 37.34	-1	1337458..1339281	-	607	91773227	-	Mbur_1247	-	multisensor signal transduction histidine kinase
1146	 40.42	0	1339291..1339530	-	79	91773228	-	Mbur_1248	-	hypothetical protein
1147	 39.97	0	1339694..1340281	-	195	91773229	-	Mbur_1249	-	hypothetical protein
1148	 40.15	0	1340351..1341436	-	361	91773230	-	Mbur_1250	-	MscS mechanosensitive ion channel
1149	 41.98	0	1341708..1342031	+	107	91773231	-	Mbur_1251	-	hypothetical protein
1150	 30.35	-2	1342712..1343281	+	189	91773232	-	Mbur_1252	-	hypothetical protein
1151	 40.10	0	1344630..1344821	-	63	91773233	-	Mbur_1254	-	excinuclease ABC (subunit A)
1152	 50.28	+1	1344923..1345807	+	294	91773234	-	Mbur_1255	-	heat shock protein HtpX
1153	 44.85	0	1345807..1346379	+	190	91773235	-	Mbur_1256	-	hypothetical protein
1154	 43.37	0	1346387..1346665	-	92	91773236	-	Mbur_1257	-	hypothetical protein
1155	 46.78	+1	1346662..1347360	-	232	91773237	-	Mbur_1258	-	Phage shock protein A PspA/IM30
1156	 36.74	-1	1347969..1351811	-	1280	91773238	-	Mbur_1259	-	hypothetical protein
1157	 39.13	0	1351798..1353108	-	436	91773239	-	Mbur_1260	-	metallophosphoesterase
1158	 38.94	0	1353195..1353551	-	118	91773240	-	Mbur_1261	-	hypothetical protein
1159	 44.06	0	1353995..1354516	-	173	91773241	-	Mbur_1262	-	hypothetical protein
1160	 42.95	0	1354550..1354861	-	103	91773242	-	Mbur_1263	-	hypothetical protein
1161	 41.04	0	1354912..1356597	-	561	91773243	-	Mbur_1264	-	PAS/PAC sensor signal transduction histidine kinase
1162	 39.94	0	1357094..1357789	-	231	91773244	-	Mbur_1265	-	radical SAM family Fe-S protein
1163	 37.04	-1	1357949..1358245	+	98	91773245	-	Mbur_1266	-	hypothetical protein
1164	 46.18	0	1358290..1359285	-	331	91773246	-	Mbur_1267	-	AIR synthase related protein
1165	 44.52	0	1359326..1360264	-	312	91773247	-	Mbur_1268	-	radical SAM family Fe-S protein
1166	 40.17	0	1360344..1360694	-	116	91773248	-	Mbur_1269	-	putative 6-pyruvoyl tetrahydropterin synthase
1167	 43.10	0	1360694..1361410	-	238	91773249	-	Mbur_1270	-	radical SAM family Fe-S protein
1168	 41.22	0	1361410..1361967	-	185	91773250	-	Mbur_1271	-	hypothetical protein
1169	 41.03	0	1361978..1362679	-	233	91773251	-	Mbur_1272	-	ATPase ExsB
1170	 41.55	0	1363023..1363850	-	275	91773252	-	Mbur_1273	-	PKD repeat-containing protein
1171	 42.41	0	1364105..1365085	-	326	91773253	-	Mbur_1274	-	alanine dehydrogenase
1172	 39.95	0	1365529..1365921	+	130	91773254	-	Mbur_1275	-	hypothetical protein
1173	 42.34	0	1366098..1367030	+	310	91773255	-	Mbur_1276	-	SSU ribosomal protein S6P modification protein
1174	 44.83	0	1367073..1367420	+	115	91773256	-	Mbur_1277	-	peptidyl-tRNA hydrolase
1175	 37.79	0	1368328..1369269	+	313	91773257	-	Mbur_1279	-	transposase, IS4
1176	 42.80	0	1369759..1371078	+	439	91773258	truD	Mbur_1281	-	tRNA pseudouridine synthase D
1177	 43.99	0	1371152..1372756	-	534	91773259	-	Mbur_1282	-	CTP synthetase
1178	 39.11	0	1372776..1373450	-	224	91773260	-	Mbur_1283	-	hypothetical protein
1179	 37.70	0	1373471..1373653	-	60	91773261	-	Mbur_1284	-	hypothetical protein
1180	 42.43	0	1373796..1374740	+	314	91773262	-	Mbur_1285	-	nucleoside recognition
1181	 44.44	0	1374785..1375135	-	116	91773263	-	Mbur_1286	-	F420H2 dehydrogenase subunit O
1182	 45.74	0	1375150..1376592	-	480	91773264	-	Mbur_1287	-	F420H2 dehydrogenase subunit N
1183	 44.15	0	1376596..1378083	-	495	91773265	-	Mbur_1288	-	F420H2 dehydrogenase subunit M
1184	 45.70	0	1378083..1380080	-	665	91773266	-	Mbur_1289	-	F420H2 dehydrogenase subunit L
1185	 39.93	0	1380083..1380385	-	100	91773267	-	Mbur_1290	-	F420H2 dehydrogenase subunit K
1186	 43.38	0	1380999..1381406	-	135	91773268	-	Mbur_1292	-	F420H2 dehydrogenase subunit I
1187	 42.61	0	1381411..1382445	-	344	91773269	-	Mbur_1293	-	F420H2 dehydrogenase subunit H
1188	 44.00	0	1382451..1383575	-	374	91773270	-	Mbur_1294	-	F420H2 dehydrogenase subunit D
1189	 40.67	0	1383586..1384062	-	158	91773271	-	Mbur_1295	-	NADH dehydrogenase subunit C
1190	 45.41	0	1384072..1384626	-	184	91773272	-	Mbur_1296	-	F420H2 dehydrogenase subunit B
1191	 40.40	0	1384614..1385009	-	131	91773273	-	Mbur_1297	-	F420H2 dehydrogenase subunit A
1192	 40.04	0	1385255..1385761	-	168	91773274	-	Mbur_1298	-	hypothetical protein
1193	 43.57	0	1385782..1386201	-	139	91773275	-	Mbur_1299	-	hypothetical protein
1194	 41.98	0	1386483..1386644	+	53	91773276	-	Mbur_1300	-	4Fe-4S ferredoxin, iron-sulfur binding
1195	 46.79	+1	1386641..1387918	+	425	91773277	-	Mbur_1301	-	amine oxidase
1196	 44.11	0	1388045..1389037	+	330	91773278	cofG	Mbur_1302	-	FO synthase subunit 1
1197	 43.88	0	1389034..1390104	+	356	91773279	-	Mbur_1303	-	FO synthase subunit 2
1198	 45.94	0	1390104..1391174	+	356	91773280	-	Mbur_1304	-	FO synthase subunit 2
1199	 39.97	0	1391161..1391823	+	220	91773281	-	Mbur_1305	-	hypothetical protein
1200	 39.74	0	1391800..1392111	-	103	91773282	-	Mbur_1306	-	CutA1 divalent ion tolerance protein
1201	 43.10	0	1392429..1392602	+	57	91773283	-	Mbur_1307	-	4Fe-4S ferredoxin, iron-sulfur binding
1202	 42.83	0	1392599..1393819	+	406	91773284	-	Mbur_1308	-	geranylgeranyl reductase
1203	 42.29	0	1393869..1395308	-	479	91773285	-	Mbur_1309	-	K+ transporter Trk
1204	 42.62	0	1395327..1396661	-	444	91773286	trkA	Mbur_1310	-	potassium transporter peripheral membrane component
1205	 46.94	+1	1396781..1397971	-	396	91773287	-	Mbur_1311	-	chaperone DnaJ
1206	 46.22	0	1398038..1399900	-	620	91773288	-	Mbur_1312	-	chaperone DnaK
1207	 40.62	0	1399979..1400554	-	191	91773289	-	Mbur_1313	-	GrpE protein
1208	 43.24	0	1400706..1401119	-	137	91773290	-	Mbur_1314	-	hypothetical protein
1209	 43.94	0	1401250..1402173	+	307	91773291	-	Mbur_1315	-	hypothetical protein
1210	 44.68	0	1402170..1403147	+	325	91773292	-	Mbur_1316	-	hydantoinase/oxoprolinase
1211	 42.97	0	1403163..1403795	+	210	91773293	-	Mbur_1317	-	aspartate/glutamate/uridylate kinase
1212	 46.06	0	1403900..1404064	+	54	91773294	-	Mbur_1318	-	hypothetical protein
1213	 47.78	+1	1404074..1404343	+	89	91773295	ef1B	Mbur_1319	-	elongation factor 1-beta
1214	 45.70	0	1404769..1405698	-	309	91773296	-	Mbur_1320	-	thiamine biosynthesis protein
1215	 38.22	0	1405856..1406080	+	74	91773297	-	Mbur_1321	-	hypothetical protein
1216	 41.93	0	1406242..1406718	-	158	91773298	-	Mbur_1322	-	hypothetical protein
1217	 44.67	0	1407130..1407420	-	96	91773299	-	Mbur_1323	-	acylphosphatase
1218	 44.71	0	1407442..1409349	-	635	91773300	-	Mbur_1324	-	threonyl-tRNA synthetase
1219	 37.69	0	1409650..1409970	-	106	91773301	-	Mbur_1325	-	hypothetical protein
1220	 41.60	0	1410077..1411141	-	354	91773302	-	Mbur_1326	-	hypothetical protein
1221	 44.21	0	1411231..1413234	-	667	91773303	-	Mbur_1327	-	hypothetical protein
1222	 47.81	+1	1413337..1414704	-	455	91773304	-	Mbur_1328	-	putative oxidoreductase
1223	 48.12	+1	1414695..1415546	-	283	91773305	-	Mbur_1329	-	ferredoxin--NADP(+) reductase subunit alpha
1224	 46.10	0	1416309..1417514	-	401	91773306	-	Mbur_1330	-	S-adenosylmethionine synthetase
1225	 45.15	0	1417811..1418665	+	284	91773307	hisG	Mbur_1331	-	ATP phosphoribosyltransferase
1226	 43.99	0	1418676..1419416	+	246	91773308	-	Mbur_1332	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
1227	 46.53	+1	1419443..1420018	+	191	91773309	hisB	Mbur_1333	-	imidazoleglycerol-phosphate dehydratase
1228	 44.37	0	1420057..1422159	-	700	91773310	-	Mbur_1334	-	DNA mismatch repair protein MutS-like protein
1229	 43.29	0	1422174..1423007	-	277	91773311	-	Mbur_1335	-	hypothetical protein
1230	 46.58	+1	1423004..1424143	-	379	91773312	-	Mbur_1336	-	hypothetical protein
1231	 42.93	0	1424301..1424498	-	65	91773313	-	Mbur_1337	-	hypothetical protein
1232	 40.26	0	1424502..1425656	-	384	91773314	-	Mbur_1338	-	ADP-specific phosphofructokinase
1233	 41.63	0	1425666..1427123	-	485	91773315	-	Mbur_1339	-	ADP-specific phosphofructokinase
1234	 47.26	+1	1427159..1428343	-	394	91773316	argJ	Mbur_1340	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
1235	 42.15	0	1428353..1428817	-	154	91773317	-	Mbur_1341	-	CBS domain-containing protein
41.89	MEAN

4.51	STD DEV
