IslandPath Analysis: Methanococcoides burtonii DSM 6242

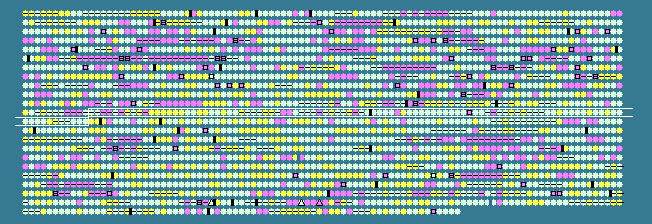

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1112	 41.30	0	1303974..1305002	-	342	91773194	-	Mbur_1214	-	hypothetical protein
1113	 42.32	0	1304989..1306023	-	344	91773195	-	Mbur_1215	-	hypothetical protein
1114	 35.27	-1	1306130..1306954	-	274	91773196	-	Mbur_1216	-	hypothetical protein
1115	 29.17	-2	1306951..1307502	-	183	91773197	-	Mbur_1217	-	hypothetical protein
1116	 39.30	0	1307499..1308554	-	351	91773198	-	Mbur_1218	-	restriction modification system DNA specificity subunit
1117	 37.09	-1	1308635..1309780	-	381	91773199	-	Mbur_1219	-	hypothetical protein
1118	 45.86	0	1309777..1310175	-	132	91773200	-	Mbur_1220	-	hypothetical protein
1119	 39.74	0	1310384..1311460	-	358	91773201	-	Mbur_1221	-	filamentation induced by cAMP protein Fic
1120	 45.51	0	1311450..1313009	-	519	91773202	-	Mbur_1222	-	N-6 DNA methylase
1121	 37.50	0	1313777..1314160	+	127	91773203	-	Mbur_1223	-	hypothetical protein
1122	 47.69	+1	1314181..1314960	-	259	91773204	-	Mbur_1224	-	dihydroorotate dehydrogenase electron transfer subunit
1123	 47.73	+1	1314960..1315862	-	300	91773205	-	Mbur_1225	-	dihydroorotate dehydrogenase 1B
1124	 50.22	+1	1315886..1316815	-	309	91773206	hemC	Mbur_1226	-	porphobilinogen deaminase
1125	 46.89	+1	1316829..1318097	-	422	91773207	-	Mbur_1227	-	glutamate-1-semialdehyde aminotransferase
1126	 46.39	0	1318168..1319124	-	318	91773208	-	Mbur_1228	-	delta-aminolevulinic acid dehydratase
1127	 46.02	0	1319155..1320423	-	422	91773209	hemA	Mbur_1229	-	glutamyl-tRNA reductase
1128	 43.61	0	1320517..1321197	-	226	91773210	-	Mbur_1230	-	siroheme synthase
1129	 44.38	0	1321198..1321677	-	159	91773211	-	Mbur_1231	-	AsnC family transcriptional regulator
1130	 46.93	+1	1321667..1322122	-	151	91773212	-	Mbur_1232	-	AsnC family transcriptional regulator
1131	 47.45	+1	1322215..1323255	-	346	91773213	-	Mbur_1233	-	radical SAM family Fe-S protein
1132	 43.57	0	1323570..1323950	+	126	91773214	-	Mbur_1234	-	hypothetical protein
1133	 43.30	0	1323990..1324892	+	300	91773215	-	Mbur_1235	-	polyprenyl synthetase
1134	 45.39	0	1324879..1326072	+	397	91773216	-	Mbur_1236	-	radical SAM family Fe-S protein
1135	 41.90	0	1326307..1326633	+	108	91773217	-	Mbur_1237	-	H(+)-transporting ATP synthase, subunit H
1136	 39.82	0	1326626..1328566	+	646	91773218	-	Mbur_1238	-	V-type ATP synthase subunit I
1137	 46.67	+1	1328571..1328810	+	79	91773219	-	Mbur_1239	-	H+-transporting two-sector ATPase, C subunit
1138	 39.67	0	1328861..1329412	+	183	91773220	-	Mbur_1240	-	V-type ATP synthase subunit E
1139	 39.29	0	1329420..1330493	+	357	91773221	-	Mbur_1241	-	V-type ATP synthase subunit C
1140	 38.67	0	1330493..1330792	+	99	91773222	-	Mbur_1242	-	V-type ATP synthase subunit F
1141	 46.86	+1	1330783..1332519	+	578	91773223	-	Mbur_1243	-	V-type ATP synthase subunit A
1142	 47.94	+1	1332522..1333904	+	460	91773224	-	Mbur_1244	-	V-type ATP synthase subunit B
1143	 43.00	0	1333925..1334545	+	206	91773225	-	Mbur_1245	-	V-type ATP synthase subunit D
1144	 36.82	-1	1334945..1337065	+	706	91773226	-	Mbur_1246	-	flagella protein
1145	 37.34	-1	1337458..1339281	-	607	91773227	-	Mbur_1247	-	multisensor signal transduction histidine kinase
1146	 40.42	0	1339291..1339530	-	79	91773228	-	Mbur_1248	-	hypothetical protein
1147	 39.97	0	1339694..1340281	-	195	91773229	-	Mbur_1249	-	hypothetical protein
1148	 40.15	0	1340351..1341436	-	361	91773230	-	Mbur_1250	-	MscS mechanosensitive ion channel
1149	 41.98	0	1341708..1342031	+	107	91773231	-	Mbur_1251	-	hypothetical protein
1150	 30.35	-2	1342712..1343281	+	189	91773232	-	Mbur_1252	-	hypothetical protein
1151	 40.10	0	1344630..1344821	-	63	91773233	-	Mbur_1254	-	excinuclease ABC (subunit A)
1152	 50.28	+1	1344923..1345807	+	294	91773234	-	Mbur_1255	-	heat shock protein HtpX
1153	 44.85	0	1345807..1346379	+	190	91773235	-	Mbur_1256	-	hypothetical protein
1154	 43.37	0	1346387..1346665	-	92	91773236	-	Mbur_1257	-	hypothetical protein
1155	 46.78	+1	1346662..1347360	-	232	91773237	-	Mbur_1258	-	Phage shock protein A PspA/IM30
1156	 36.74	-1	1347969..1351811	-	1280	91773238	-	Mbur_1259	-	hypothetical protein
1157	 39.13	0	1351798..1353108	-	436	91773239	-	Mbur_1260	-	metallophosphoesterase
1158	 38.94	0	1353195..1353551	-	118	91773240	-	Mbur_1261	-	hypothetical protein
1159	 44.06	0	1353995..1354516	-	173	91773241	-	Mbur_1262	-	hypothetical protein
1160	 42.95	0	1354550..1354861	-	103	91773242	-	Mbur_1263	-	hypothetical protein
1161	 41.04	0	1354912..1356597	-	561	91773243	-	Mbur_1264	-	PAS/PAC sensor signal transduction histidine kinase
1162	 39.94	0	1357094..1357789	-	231	91773244	-	Mbur_1265	-	radical SAM family Fe-S protein
1163	 37.04	-1	1357949..1358245	+	98	91773245	-	Mbur_1266	-	hypothetical protein
1164	 46.18	0	1358290..1359285	-	331	91773246	-	Mbur_1267	-	AIR synthase related protein
1165	 44.52	0	1359326..1360264	-	312	91773247	-	Mbur_1268	-	radical SAM family Fe-S protein
1166	 40.17	0	1360344..1360694	-	116	91773248	-	Mbur_1269	-	putative 6-pyruvoyl tetrahydropterin synthase
1167	 43.10	0	1360694..1361410	-	238	91773249	-	Mbur_1270	-	radical SAM family Fe-S protein
1168	 41.22	0	1361410..1361967	-	185	91773250	-	Mbur_1271	-	hypothetical protein
1169	 41.03	0	1361978..1362679	-	233	91773251	-	Mbur_1272	-	ATPase ExsB
1170	 41.55	0	1363023..1363850	-	275	91773252	-	Mbur_1273	-	PKD repeat-containing protein
1171	 42.41	0	1364105..1365085	-	326	91773253	-	Mbur_1274	-	alanine dehydrogenase
1172	 39.95	0	1365529..1365921	+	130	91773254	-	Mbur_1275	-	hypothetical protein
1173	 42.34	0	1366098..1367030	+	310	91773255	-	Mbur_1276	-	SSU ribosomal protein S6P modification protein
1174	 44.83	0	1367073..1367420	+	115	91773256	-	Mbur_1277	-	peptidyl-tRNA hydrolase
1175	 37.79	0	1368328..1369269	+	313	91773257	-	Mbur_1279	-	transposase, IS4
1176	 42.80	0	1369759..1371078	+	439	91773258	truD	Mbur_1281	-	tRNA pseudouridine synthase D
1177	 43.99	0	1371152..1372756	-	534	91773259	-	Mbur_1282	-	CTP synthetase
1178	 39.11	0	1372776..1373450	-	224	91773260	-	Mbur_1283	-	hypothetical protein
1179	 37.70	0	1373471..1373653	-	60	91773261	-	Mbur_1284	-	hypothetical protein
1180	 42.43	0	1373796..1374740	+	314	91773262	-	Mbur_1285	-	nucleoside recognition
1181	 44.44	0	1374785..1375135	-	116	91773263	-	Mbur_1286	-	F420H2 dehydrogenase subunit O
1182	 45.74	0	1375150..1376592	-	480	91773264	-	Mbur_1287	-	F420H2 dehydrogenase subunit N
1183	 44.15	0	1376596..1378083	-	495	91773265	-	Mbur_1288	-	F420H2 dehydrogenase subunit M
1184	 45.70	0	1378083..1380080	-	665	91773266	-	Mbur_1289	-	F420H2 dehydrogenase subunit L
1185	 39.93	0	1380083..1380385	-	100	91773267	-	Mbur_1290	-	F420H2 dehydrogenase subunit K
1186	 43.38	0	1380999..1381406	-	135	91773268	-	Mbur_1292	-	F420H2 dehydrogenase subunit I
1187	 42.61	0	1381411..1382445	-	344	91773269	-	Mbur_1293	-	F420H2 dehydrogenase subunit H
1188	 44.00	0	1382451..1383575	-	374	91773270	-	Mbur_1294	-	F420H2 dehydrogenase subunit D
1189	 40.67	0	1383586..1384062	-	158	91773271	-	Mbur_1295	-	NADH dehydrogenase subunit C
1190	 45.41	0	1384072..1384626	-	184	91773272	-	Mbur_1296	-	F420H2 dehydrogenase subunit B
1191	 40.40	0	1384614..1385009	-	131	91773273	-	Mbur_1297	-	F420H2 dehydrogenase subunit A
1192	 40.04	0	1385255..1385761	-	168	91773274	-	Mbur_1298	-	hypothetical protein
1193	 43.57	0	1385782..1386201	-	139	91773275	-	Mbur_1299	-	hypothetical protein
1194	 41.98	0	1386483..1386644	+	53	91773276	-	Mbur_1300	-	4Fe-4S ferredoxin, iron-sulfur binding
1195	 46.79	+1	1386641..1387918	+	425	91773277	-	Mbur_1301	-	amine oxidase
1196	 44.11	0	1388045..1389037	+	330	91773278	cofG	Mbur_1302	-	FO synthase subunit 1
1197	 43.88	0	1389034..1390104	+	356	91773279	-	Mbur_1303	-	FO synthase subunit 2
1198	 45.94	0	1390104..1391174	+	356	91773280	-	Mbur_1304	-	FO synthase subunit 2
1199	 39.97	0	1391161..1391823	+	220	91773281	-	Mbur_1305	-	hypothetical protein
1200	 39.74	0	1391800..1392111	-	103	91773282	-	Mbur_1306	-	CutA1 divalent ion tolerance protein
1201	 43.10	0	1392429..1392602	+	57	91773283	-	Mbur_1307	-	4Fe-4S ferredoxin, iron-sulfur binding
1202	 42.83	0	1392599..1393819	+	406	91773284	-	Mbur_1308	-	geranylgeranyl reductase
1203	 42.29	0	1393869..1395308	-	479	91773285	-	Mbur_1309	-	K+ transporter Trk
1204	 42.62	0	1395327..1396661	-	444	91773286	trkA	Mbur_1310	-	potassium transporter peripheral membrane component
1205	 46.94	+1	1396781..1397971	-	396	91773287	-	Mbur_1311	-	chaperone DnaJ
1206	 46.22	0	1398038..1399900	-	620	91773288	-	Mbur_1312	-	chaperone DnaK
1207	 40.62	0	1399979..1400554	-	191	91773289	-	Mbur_1313	-	GrpE protein
1208	 43.24	0	1400706..1401119	-	137	91773290	-	Mbur_1314	-	hypothetical protein
1209	 43.94	0	1401250..1402173	+	307	91773291	-	Mbur_1315	-	hypothetical protein
1210	 44.68	0	1402170..1403147	+	325	91773292	-	Mbur_1316	-	hydantoinase/oxoprolinase
1211	 42.97	0	1403163..1403795	+	210	91773293	-	Mbur_1317	-	aspartate/glutamate/uridylate kinase
41.89	MEAN

4.51	STD DEV
