IslandPathversion 1.0

IslandPath Analysis: Methanococcoides burtonii DSM 6242

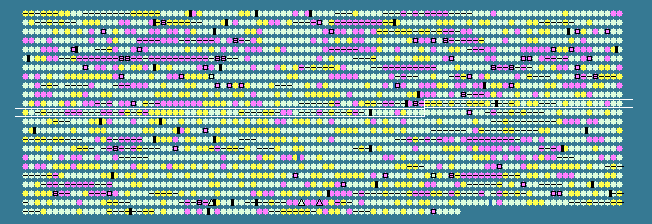

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1068	 46.15	0	1257743..1258054	-	103	91773150	rps10p	Mbur_1169	-	30S ribosomal protein S10P
1069	 48.38	+1	1258086..1259354	-	422	91773151	-	Mbur_1170	-	elongation factor 1-alpha
1070	 48.24	+1	1259477..1261669	-	730	91773152	-	Mbur_1171	-	elongation factor EF-2
1071	 44.92	0	1261718..1262278	-	186	91773153	-	Mbur_1172	-	30S ribosomal protein S7P
1072	 47.32	+1	1262283..1262711	-	142	91773154	rps12P	Mbur_1173	-	30S ribosomal protein S12P
1073	 40.85	0	1262789..1263214	-	141	91773155	-	Mbur_1174	-	transcription elongation factor NusA-like protein
1074	 40.62	0	1263231..1263518	-	95	91773156	-	Mbur_1175	-	50S ribosomal protein L30e
1075	 46.94	+1	1263609..1264769	-	386	91773157	-	Mbur_1176	-	DNA-directed RNA polymerase subunit A''
1076	 46.49	+1	1264769..1267420	-	883	91773158	-	Mbur_1177	-	DNA-directed RNA polymerase subunit alpha
1077	 47.27	+1	1267426..1269240	-	604	91773159	-	Mbur_1178	-	DNA-directed RNA polymerase subunit B'
1078	 46.59	+1	1269240..1270868	-	542	91773160	-	Mbur_1179	-	DNA-directed RNA polymerase subunit beta''
1079	 41.35	0	1271110..1271346	-	78	91773161	rpoH	Mbur_1180	-	DNA-directed RNA polymerase subunit H
1080	 43.37	0	1271980..1273215	-	411	91773162	-	Mbur_1181	-	S-adenosyl-L-homocysteine hydrolase
1081	 43.22	0	1273264..1274568	-	434	91773163	-	Mbur_1182	-	N-ethylammeline chlorohydrolase
1082	 46.17	0	1274585..1275223	-	212	91773164	-	Mbur_1183	-	metal-dependent phosphohydrolase
1083	 45.56	0	1275210..1275986	-	258	91773165	-	Mbur_1184	-	hypothetical protein
1084	 45.32	0	1276001..1276951	-	316	91773166	-	Mbur_1185	-	membrane protease
1085	 47.39	+1	1277045..1277926	-	293	91773167	-	Mbur_1186	-	pantothenate kinase
1086	 45.70	0	1277916..1279160	-	414	91773168	-	Mbur_1187	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
1087	 39.22	0	1279247..1280266	+	339	91773169	-	Mbur_1188	-	hypothetical protein
1088	 39.09	0	1280263..1280853	+	196	91773170	-	Mbur_1189	-	hypothetical protein
1089	 42.16	0	1280884..1281687	+	267	91773171	-	Mbur_1190	-	ribosomal RNA methyltransferase RrmJ/FtsJ
1090	 44.33	0	1281699..1281989	-	96	91773172	-	Mbur_1191	-	hypothetical protein
1091	 47.89	+1	1282205..1282843	+	212	91773173	-	Mbur_1192	-	hypothetical protein
1092	 41.25	0	1282852..1283445	-	197	91773174	-	Mbur_1193	-	hypothetical protein
1093	 45.24	0	1283485..1284030	-	181	91773175	-	Mbur_1194	-	Ham1-like protein
1094	 43.98	0	1284023..1284595	-	190	91773176	-	Mbur_1195	-	O-sialoglycoprotein endopeptidase
1095	 49.11	+1	1284595..1285602	-	335	91773177	-	Mbur_1196	-	O-sialoglycoprotein endopeptidase
1096	 44.70	0	1285719..1285982	+	87	91773178	-	Mbur_1197	-	hypothetical protein
1097	 38.72	0	1286145..1287221	-	358	91773179	-	Mbur_1198	-	hypothetical protein
1098	 37.55	0	1287607..1288152	+	181	91773180	-	Mbur_1199	-	hypothetical protein
1099	 40.14	0	1288149..1289015	+	288	91773181	-	Mbur_1200	-	hypothetical protein
1100	 43.51	0	1289012..1290946	+	644	91773182	-	Mbur_1201	-	HEAT repeat-containing protein
1101	 45.99	0	1291062..1292183	-	373	91773183	-	Mbur_1202	-	DNA topoisomerase VI subunit A
1102	 45.37	0	1292185..1294053	-	622	91773184	-	Mbur_1203	-	DNA topoisomerase VI subunit B
1103	 42.36	0	1294292..1294723	-	143	91773185	-	Mbur_1204	-	CMP/dCMP deaminase, zinc-binding
1104	 47.17	+1	1294806..1296026	-	406	91773186	-	Mbur_1205	-	peptidase U32
1105	 41.60	0	1296107..1296505	-	132	91773187	-	Mbur_1206	-	transcription activator, effector binding
1106	 41.59	0	1296696..1297034	-	112	91773188	-	Mbur_1207	-	hypothetical protein
1107	 41.98	0	1298005..1298247	-	80	91773189	-	Mbur_1209	-	hypothetical protein
1108	 31.07	-2	1298576..1299016	+	146	91773190	-	Mbur_1210	-	hypothetical protein
1109	 31.37	-2	1299086..1299289	+	67	91773191	-	Mbur_1211	-	XRE family transcriptional regulator
1110	 37.83	0	1299685..1300218	+	177	91773192	-	Mbur_1212	-	heat shock protein DnaJ-like protein
1111	 44.34	0	1300748..1303972	-	1074	91773193	-	Mbur_1213	-	HsdR family type I site-specific deoxyribonuclease
1112	 41.30	0	1303974..1305002	-	342	91773194	-	Mbur_1214	-	hypothetical protein
1113	 42.32	0	1304989..1306023	-	344	91773195	-	Mbur_1215	-	hypothetical protein
1114	 35.27	-1	1306130..1306954	-	274	91773196	-	Mbur_1216	-	hypothetical protein
1115	 29.17	-2	1306951..1307502	-	183	91773197	-	Mbur_1217	-	hypothetical protein
1116	 39.30	0	1307499..1308554	-	351	91773198	-	Mbur_1218	-	restriction modification system DNA specificity subunit
1117	 37.09	-1	1308635..1309780	-	381	91773199	-	Mbur_1219	-	hypothetical protein
1118	 45.86	0	1309777..1310175	-	132	91773200	-	Mbur_1220	-	hypothetical protein
1119	 39.74	0	1310384..1311460	-	358	91773201	-	Mbur_1221	-	filamentation induced by cAMP protein Fic
1120	 45.51	0	1311450..1313009	-	519	91773202	-	Mbur_1222	-	N-6 DNA methylase
1121	 37.50	0	1313777..1314160	+	127	91773203	-	Mbur_1223	-	hypothetical protein
1122	 47.69	+1	1314181..1314960	-	259	91773204	-	Mbur_1224	-	dihydroorotate dehydrogenase electron transfer subunit
1123	 47.73	+1	1314960..1315862	-	300	91773205	-	Mbur_1225	-	dihydroorotate dehydrogenase 1B
1124	 50.22	+1	1315886..1316815	-	309	91773206	hemC	Mbur_1226	-	porphobilinogen deaminase
1125	 46.89	+1	1316829..1318097	-	422	91773207	-	Mbur_1227	-	glutamate-1-semialdehyde aminotransferase
1126	 46.39	0	1318168..1319124	-	318	91773208	-	Mbur_1228	-	delta-aminolevulinic acid dehydratase
1127	 46.02	0	1319155..1320423	-	422	91773209	hemA	Mbur_1229	-	glutamyl-tRNA reductase
1128	 43.61	0	1320517..1321197	-	226	91773210	-	Mbur_1230	-	siroheme synthase
1129	 44.38	0	1321198..1321677	-	159	91773211	-	Mbur_1231	-	AsnC family transcriptional regulator
1130	 46.93	+1	1321667..1322122	-	151	91773212	-	Mbur_1232	-	AsnC family transcriptional regulator
1131	 47.45	+1	1322215..1323255	-	346	91773213	-	Mbur_1233	-	radical SAM family Fe-S protein
1132	 43.57	0	1323570..1323950	+	126	91773214	-	Mbur_1234	-	hypothetical protein
1133	 43.30	0	1323990..1324892	+	300	91773215	-	Mbur_1235	-	polyprenyl synthetase
1134	 45.39	0	1324879..1326072	+	397	91773216	-	Mbur_1236	-	radical SAM family Fe-S protein
1135	 41.90	0	1326307..1326633	+	108	91773217	-	Mbur_1237	-	H(+)-transporting ATP synthase, subunit H
1136	 39.82	0	1326626..1328566	+	646	91773218	-	Mbur_1238	-	V-type ATP synthase subunit I
1137	 46.67	+1	1328571..1328810	+	79	91773219	-	Mbur_1239	-	H+-transporting two-sector ATPase, C subunit
1138	 39.67	0	1328861..1329412	+	183	91773220	-	Mbur_1240	-	V-type ATP synthase subunit E
1139	 39.29	0	1329420..1330493	+	357	91773221	-	Mbur_1241	-	V-type ATP synthase subunit C
1140	 38.67	0	1330493..1330792	+	99	91773222	-	Mbur_1242	-	V-type ATP synthase subunit F
1141	 46.86	+1	1330783..1332519	+	578	91773223	-	Mbur_1243	-	V-type ATP synthase subunit A
1142	 47.94	+1	1332522..1333904	+	460	91773224	-	Mbur_1244	-	V-type ATP synthase subunit B
1143	 43.00	0	1333925..1334545	+	206	91773225	-	Mbur_1245	-	V-type ATP synthase subunit D
1144	 36.82	-1	1334945..1337065	+	706	91773226	-	Mbur_1246	-	flagella protein
1145	 37.34	-1	1337458..1339281	-	607	91773227	-	Mbur_1247	-	multisensor signal transduction histidine kinase
1146	 40.42	0	1339291..1339530	-	79	91773228	-	Mbur_1248	-	hypothetical protein
1147	 39.97	0	1339694..1340281	-	195	91773229	-	Mbur_1249	-	hypothetical protein
1148	 40.15	0	1340351..1341436	-	361	91773230	-	Mbur_1250	-	MscS mechanosensitive ion channel
1149	 41.98	0	1341708..1342031	+	107	91773231	-	Mbur_1251	-	hypothetical protein
1150	 30.35	-2	1342712..1343281	+	189	91773232	-	Mbur_1252	-	hypothetical protein
1151	 40.10	0	1344630..1344821	-	63	91773233	-	Mbur_1254	-	excinuclease ABC (subunit A)
1152	 50.28	+1	1344923..1345807	+	294	91773234	-	Mbur_1255	-	heat shock protein HtpX
1153	 44.85	0	1345807..1346379	+	190	91773235	-	Mbur_1256	-	hypothetical protein
1154	 43.37	0	1346387..1346665	-	92	91773236	-	Mbur_1257	-	hypothetical protein
1155	 46.78	+1	1346662..1347360	-	232	91773237	-	Mbur_1258	-	Phage shock protein A PspA/IM30
1156	 36.74	-1	1347969..1351811	-	1280	91773238	-	Mbur_1259	-	hypothetical protein
1157	 39.13	0	1351798..1353108	-	436	91773239	-	Mbur_1260	-	metallophosphoesterase
1158	 38.94	0	1353195..1353551	-	118	91773240	-	Mbur_1261	-	hypothetical protein
1159	 44.06	0	1353995..1354516	-	173	91773241	-	Mbur_1262	-	hypothetical protein
1160	 42.95	0	1354550..1354861	-	103	91773242	-	Mbur_1263	-	hypothetical protein
1161	 41.04	0	1354912..1356597	-	561	91773243	-	Mbur_1264	-	PAS/PAC sensor signal transduction histidine kinase
1162	 39.94	0	1357094..1357789	-	231	91773244	-	Mbur_1265	-	radical SAM family Fe-S protein
1163	 37.04	-1	1357949..1358245	+	98	91773245	-	Mbur_1266	-	hypothetical protein
1164	 46.18	0	1358290..1359285	-	331	91773246	-	Mbur_1267	-	AIR synthase related protein
1165	 44.52	0	1359326..1360264	-	312	91773247	-	Mbur_1268	-	radical SAM family Fe-S protein
1166	 40.17	0	1360344..1360694	-	116	91773248	-	Mbur_1269	-	putative 6-pyruvoyl tetrahydropterin synthase
1167	 43.10	0	1360694..1361410	-	238	91773249	-	Mbur_1270	-	radical SAM family Fe-S protein
41.89	MEAN

4.51	STD DEV
