IslandPathversion 1.0

IslandPath Analysis: Methanococcoides burtonii DSM 6242

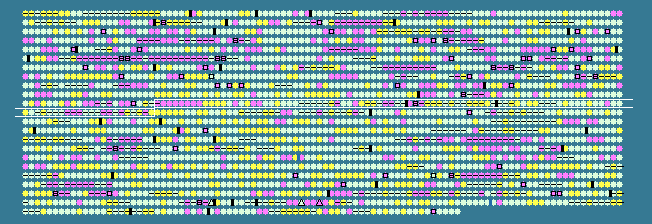

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1023	 35.81	-1	1203460..1204185	+	241	91773105	-	Mbur_1121	-	CRISPR-associated Cas6 family protein
1024	 27.21	-2	1204231..1206108	+	625	91773106	-	Mbur_1122	-	hypothetical protein
1025	 31.48	-2	1206133..1206993	+	286	91773107	-	Mbur_1123	-	hypothetical protein
1026	 31.32	-2	1206994..1207788	+	264	91773108	-	Mbur_1124	-	hypothetical protein
1027	 27.13	-2	1207778..1210420	+	880	91773109	-	Mbur_1125	-	CRISPR-associated helicase Cas3
1028	 33.00	-1	1210526..1211125	+	199	91773110	-	Mbur_1126	-	CRISPR-associated Cas4 family protein
1029	 32.04	-2	1211168..1212169	+	333	91773111	-	Mbur_1127	-	CRISPR-associated Cas1 family protein
1030	 30.30	-2	1212171..1212434	+	87	91773112	-	Mbur_1128	-	hypothetical protein
1031	 45.86	0	1214110..1215450	+	446	91773113	-	Mbur_1130	-	tRNA CCA-pyrophosphorylase
1032	 45.95	0	1215476..1216315	-	279	91773114	-	Mbur_1131	-	8-oxoguanine DNA glycosylase-like protein
1033	 49.07	+1	1216378..1216968	-	196	91773115	-	Mbur_1132	-	indolepyruvate oxidoreductase subunit B
1034	 47.90	+1	1216965..1218770	-	601	91773116	-	Mbur_1133	-	thiamine pyrophosphate enzyme-like TPP-binding
1035	 39.94	0	1218906..1220843	-	645	91773117	-	Mbur_1134	-	hydantoinase/oxoprolinase
1036	 33.33	-1	1220889..1221347	-	152	91773118	-	Mbur_1135	-	pyridoxamine 5'-phosphate oxidase-related, FMN-binding
1037	 41.78	0	1221585..1221797	+	70	91773119	-	Mbur_1136	-	hypothetical protein
1038	 47.04	+1	1222356..1224245	-	629	91773120	-	Mbur_1137	-	acetyl-coenzyme A synthetase
1039	 32.67	-2	1224612..1224761	+	49	91773121	-	Mbur_1138	-	hypothetical protein
1040	 30.61	-2	1224853..1225512	-	219	91773122	-	Mbur_1139	-	hypothetical protein
1041	 39.66	0	1226641..1226988	+	115	91773123	-	Mbur_1140	-	hypothetical protein
1042	 44.66	0	1226989..1227606	+	205	91773124	-	Mbur_1141	-	4Fe-4S ferredoxin, iron-sulfur binding
1043	 47.57	+1	1227715..1230762	+	1015	91773125	-	Mbur_1142	-	FAD linked oxidase-like protein
1044	 41.34	0	1230814..1231200	-	128	91773126	-	Mbur_1143	-	hypothetical protein
1045	 39.68	0	1231623..1232252	+	209	91773127	-	Mbur_1144	-	ABC transporter, ATPase subunit
1046	 38.97	0	1232253..1233050	+	265	91773128	-	Mbur_1145	-	ABC transporter, inner membrane subunit
1047	 43.89	0	1233201..1233683	+	160	91773129	-	Mbur_1146	-	hypothetical protein
1048	 42.12	0	1233718..1234047	+	109	91773130	-	Mbur_1147	-	hypothetical protein
1049	 43.72	0	1234068..1235579	+	503	91773131	-	Mbur_1148	-	ArsR family transcriptional regulator
1050	 41.18	0	1235843..1236823	-	326	91773132	-	Mbur_1149	-	radical SAM family Fe-S protein
1051	 43.73	0	1236895..1237500	-	201	91773133	-	Mbur_1150	-	hypothetical protein
1052	 48.53	+1	1238853..1239701	+	282	91773134	-	Mbur_1153	-	TatD-related deoxyribonuclease
1053	 37.89	0	1240242..1241492	-	416	91773135	-	Mbur_1154	-	WD40-like beta propeller protein
1054	 38.89	0	1241514..1242737	-	407	91773136	-	Mbur_1155	-	periplasmic component of the Tol biopolymer transport system-like protein
1055	 38.57	0	1242753..1243478	-	241	91773137	-	Mbur_1156	-	hypothetical protein
1056	 38.00	0	1243481..1244530	-	349	91773138	-	Mbur_1157	-	hypothetical protein
1057	 46.85	+1	1245007..1247832	+	941	91773139	-	Mbur_1158	-	excinuclease ABC subunit A
1058	 45.81	0	1247880..1248464	-	194	91773140	-	Mbur_1159	-	formylmethanofuran dehydrogenase, subunit E
1059	 49.14	+1	1248474..1249814	-	446	91773141	-	Mbur_1160	-	adenylosuccinate lyase
1060	 40.53	0	1249896..1250423	+	175	91773142	-	Mbur_1161	-	hypothetical protein
1061	 29.71	-2	1250579..1251433	+	284	91773143	-	Mbur_1162	-	hypothetical protein
1062	 32.41	-2	1251430..1252191	+	253	91773144	-	Mbur_1163	-	hypothetical protein
1063	 41.55	0	1252732..1252950	-	72	91773145	-	Mbur_1164	-	hypothetical protein
1064	 38.48	0	1253113..1253520	+	135	91773146	-	Mbur_1165	-	hypothetical protein
1065	 36.15	-1	1254051..1255574	+	507	91773147	-	Mbur_1166	-	PAS/PAC sensor signal transduction histidine kinase
1066	 37.11	-1	1255720..1257201	+	493	91773148	-	Mbur_1167	-	transposase
1067	 35.90	-1	1257371..1257565	-	64	91773149	-	Mbur_1168	-	hypothetical protein
1068	 46.15	0	1257743..1258054	-	103	91773150	rps10p	Mbur_1169	-	30S ribosomal protein S10P
1069	 48.38	+1	1258086..1259354	-	422	91773151	-	Mbur_1170	-	elongation factor 1-alpha
1070	 48.24	+1	1259477..1261669	-	730	91773152	-	Mbur_1171	-	elongation factor EF-2
1071	 44.92	0	1261718..1262278	-	186	91773153	-	Mbur_1172	-	30S ribosomal protein S7P
1072	 47.32	+1	1262283..1262711	-	142	91773154	rps12P	Mbur_1173	-	30S ribosomal protein S12P
1073	 40.85	0	1262789..1263214	-	141	91773155	-	Mbur_1174	-	transcription elongation factor NusA-like protein
1074	 40.62	0	1263231..1263518	-	95	91773156	-	Mbur_1175	-	50S ribosomal protein L30e
1075	 46.94	+1	1263609..1264769	-	386	91773157	-	Mbur_1176	-	DNA-directed RNA polymerase subunit A''
1076	 46.49	+1	1264769..1267420	-	883	91773158	-	Mbur_1177	-	DNA-directed RNA polymerase subunit alpha
1077	 47.27	+1	1267426..1269240	-	604	91773159	-	Mbur_1178	-	DNA-directed RNA polymerase subunit B'
1078	 46.59	+1	1269240..1270868	-	542	91773160	-	Mbur_1179	-	DNA-directed RNA polymerase subunit beta''
1079	 41.35	0	1271110..1271346	-	78	91773161	rpoH	Mbur_1180	-	DNA-directed RNA polymerase subunit H
1080	 43.37	0	1271980..1273215	-	411	91773162	-	Mbur_1181	-	S-adenosyl-L-homocysteine hydrolase
1081	 43.22	0	1273264..1274568	-	434	91773163	-	Mbur_1182	-	N-ethylammeline chlorohydrolase
1082	 46.17	0	1274585..1275223	-	212	91773164	-	Mbur_1183	-	metal-dependent phosphohydrolase
1083	 45.56	0	1275210..1275986	-	258	91773165	-	Mbur_1184	-	hypothetical protein
1084	 45.32	0	1276001..1276951	-	316	91773166	-	Mbur_1185	-	membrane protease
1085	 47.39	+1	1277045..1277926	-	293	91773167	-	Mbur_1186	-	pantothenate kinase
1086	 45.70	0	1277916..1279160	-	414	91773168	-	Mbur_1187	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
1087	 39.22	0	1279247..1280266	+	339	91773169	-	Mbur_1188	-	hypothetical protein
1088	 39.09	0	1280263..1280853	+	196	91773170	-	Mbur_1189	-	hypothetical protein
1089	 42.16	0	1280884..1281687	+	267	91773171	-	Mbur_1190	-	ribosomal RNA methyltransferase RrmJ/FtsJ
1090	 44.33	0	1281699..1281989	-	96	91773172	-	Mbur_1191	-	hypothetical protein
1091	 47.89	+1	1282205..1282843	+	212	91773173	-	Mbur_1192	-	hypothetical protein
1092	 41.25	0	1282852..1283445	-	197	91773174	-	Mbur_1193	-	hypothetical protein
1093	 45.24	0	1283485..1284030	-	181	91773175	-	Mbur_1194	-	Ham1-like protein
1094	 43.98	0	1284023..1284595	-	190	91773176	-	Mbur_1195	-	O-sialoglycoprotein endopeptidase
1095	 49.11	+1	1284595..1285602	-	335	91773177	-	Mbur_1196	-	O-sialoglycoprotein endopeptidase
1096	 44.70	0	1285719..1285982	+	87	91773178	-	Mbur_1197	-	hypothetical protein
1097	 38.72	0	1286145..1287221	-	358	91773179	-	Mbur_1198	-	hypothetical protein
1098	 37.55	0	1287607..1288152	+	181	91773180	-	Mbur_1199	-	hypothetical protein
1099	 40.14	0	1288149..1289015	+	288	91773181	-	Mbur_1200	-	hypothetical protein
1100	 43.51	0	1289012..1290946	+	644	91773182	-	Mbur_1201	-	HEAT repeat-containing protein
1101	 45.99	0	1291062..1292183	-	373	91773183	-	Mbur_1202	-	DNA topoisomerase VI subunit A
1102	 45.37	0	1292185..1294053	-	622	91773184	-	Mbur_1203	-	DNA topoisomerase VI subunit B
1103	 42.36	0	1294292..1294723	-	143	91773185	-	Mbur_1204	-	CMP/dCMP deaminase, zinc-binding
1104	 47.17	+1	1294806..1296026	-	406	91773186	-	Mbur_1205	-	peptidase U32
1105	 41.60	0	1296107..1296505	-	132	91773187	-	Mbur_1206	-	transcription activator, effector binding
1106	 41.59	0	1296696..1297034	-	112	91773188	-	Mbur_1207	-	hypothetical protein
1107	 41.98	0	1298005..1298247	-	80	91773189	-	Mbur_1209	-	hypothetical protein
1108	 31.07	-2	1298576..1299016	+	146	91773190	-	Mbur_1210	-	hypothetical protein
1109	 31.37	-2	1299086..1299289	+	67	91773191	-	Mbur_1211	-	XRE family transcriptional regulator
1110	 37.83	0	1299685..1300218	+	177	91773192	-	Mbur_1212	-	heat shock protein DnaJ-like protein
1111	 44.34	0	1300748..1303972	-	1074	91773193	-	Mbur_1213	-	HsdR family type I site-specific deoxyribonuclease
1112	 41.30	0	1303974..1305002	-	342	91773194	-	Mbur_1214	-	hypothetical protein
1113	 42.32	0	1304989..1306023	-	344	91773195	-	Mbur_1215	-	hypothetical protein
1114	 35.27	-1	1306130..1306954	-	274	91773196	-	Mbur_1216	-	hypothetical protein
1115	 29.17	-2	1306951..1307502	-	183	91773197	-	Mbur_1217	-	hypothetical protein
1116	 39.30	0	1307499..1308554	-	351	91773198	-	Mbur_1218	-	restriction modification system DNA specificity subunit
1117	 37.09	-1	1308635..1309780	-	381	91773199	-	Mbur_1219	-	hypothetical protein
1118	 45.86	0	1309777..1310175	-	132	91773200	-	Mbur_1220	-	hypothetical protein
1119	 39.74	0	1310384..1311460	-	358	91773201	-	Mbur_1221	-	filamentation induced by cAMP protein Fic
1120	 45.51	0	1311450..1313009	-	519	91773202	-	Mbur_1222	-	N-6 DNA methylase
1121	 37.50	0	1313777..1314160	+	127	91773203	-	Mbur_1223	-	hypothetical protein
1122	 47.69	+1	1314181..1314960	-	259	91773204	-	Mbur_1224	-	dihydroorotate dehydrogenase electron transfer subunit
41.89	MEAN

4.51	STD DEV
