IslandPath Analysis: Methanococcoides burtonii DSM 6242

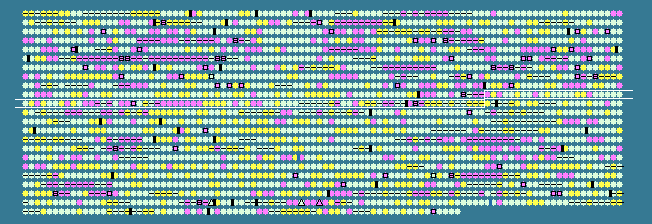

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
978	 34.81	-1	1150271..1150744	-	157	91773060	-	Mbur_1072	-	hypothetical protein
979	 45.56	0	1150993..1152006	+	337	91773061	-	Mbur_1073	-	isocitrate dehydrogenase (NADP)
980	 37.04	-1	1152126..1153313	-	395	91773062	-	Mbur_1074	-	MscS mechanosensitive ion channel
981	 43.66	0	1153530..1154807	-	425	91773063	-	Mbur_1075	-	pyruvate carboxyltransferase
982	 44.44	0	1155163..1155666	+	167	91773064	-	Mbur_1076	-	amino acid-binding protein
983	 45.42	0	1155672..1156871	-	399	91773065	-	Mbur_1077	-	geranylgeranyl reductase
984	 45.25	0	1156906..1158189	-	427	91773066	-	Mbur_1078	-	3-phosphoshikimate 1-carboxyvinyltransferase
985	 43.43	0	1158190..1158843	-	217	91773067	thyA	Mbur_1079	-	thymidylate synthase
986	 38.40	0	1159211..1159585	+	124	91773068	-	Mbur_1080	-	hypothetical protein
987	 38.70	0	1159752..1160198	+	148	91773069	-	Mbur_1081	-	hypothetical protein
988	 47.20	+1	1160203..1161060	-	285	91773070	-	Mbur_1082	-	HtpX-2 peptidase
989	 43.92	0	1161427..1161681	-	84	91773071	-	Mbur_1083	-	hypothetical protein
990	 43.43	0	1161684..1163099	-	471	91773072	-	Mbur_1084	-	hypothetical protein
991	 40.78	0	1163504..1164376	+	290	91773073	-	Mbur_1085	-	hypothetical protein
992	 43.00	0	1164461..1164967	+	168	91773074	-	Mbur_1086	-	hypothetical protein
993	 46.29	0	1164981..1165976	+	331	91773075	-	Mbur_1087	-	homoserine dehydrogenase
994	 45.66	0	1166020..1167723	+	567	91773076	-	Mbur_1088	-	DNA ligase I, ATP-dependent (dnl1)
995	 38.29	0	1168744..1169934	+	396	91773077	-	Mbur_1089	-	cell surface protein
996	 43.08	0	1169976..1170827	+	283	91773078	-	Mbur_1090	-	methyltransferase
997	 42.35	0	1170824..1171588	+	254	91773079	-	Mbur_1091	-	cobyrinic acid a,c-diamide synthase
998	 42.76	0	1171625..1172239	+	204	91773080	-	Mbur_1092	-	hypothetical protein
999	 42.62	0	1172236..1173516	+	426	91773081	-	Mbur_1093	-	Fe3+-hydroxamate binding protein
1000	 40.91	0	1173616..1174737	+	373	91773082	-	Mbur_1094	-	ABC Fe3+-siderophore transporter, inner membrane subunit
1001	 40.81	0	1174739..1175527	+	262	91773083	-	Mbur_1095	-	ABC cobalamin/Fe3+-siderophores transporter, ATPase subunit
1002	 47.79	+1	1177539..1178783	-	414	91773084	-	Mbur_1098	-	3-hydroxy-3-methylglutaryl-coenzyme A reductase
1003	 38.25	0	1179227..1179796	+	189	91773085	-	Mbur_1099	-	hypothetical protein
1004	 45.82	0	1179980..1181284	+	434	91773086	-	Mbur_1100	-	tryptophan synthase subunit beta
1005	 42.60	0	1181345..1181959	-	204	91773087	-	Mbur_1101	-	endonuclease III / DNA-(apurinic or apyrimidinic site) lyase
1006	 44.55	0	1182074..1184356	+	760	91773088	-	Mbur_1102	-	ski2-like helicase
1007	 46.60	+1	1184434..1185714	+	426	91773089	hisD	Mbur_1103	-	histidinol dehydrogenase
1008	 36.59	-1	1185819..1186217	+	132	91773090	-	Mbur_1104	-	hypothetical protein
1009	 50.07	+1	1186426..1187178	+	250	91773091	-	Mbur_1105	-	uroporphyrinogen-III C-methyltransferase
1010	 43.20	0	1187209..1188009	+	266	91773092	hemD	Mbur_1106	-	uroporphyrinogen-III synthase
1011	 29.59	-2	1189453..1189986	-	177	91773093	-	Mbur_1108	-	hypothetical protein
1012	 36.69	-1	1190058..1190771	-	237	91773094	-	Mbur_1109	-	hypothetical protein
1013	 31.88	-2	1191002..1191277	-	91	91773095	-	Mbur_1110	-	hypothetical protein
1014	 38.94	0	1191464..1192711	-	415	91773096	-	Mbur_1111	-	YVTN beta-propeller repeat-containing protein
1015	 37.98	0	1192947..1194152	-	401	91773097	-	Mbur_1112	-	hypothetical protein
1016	 41.82	0	1194669..1195481	+	270	91773098	-	Mbur_1113	-	ArsR family transcriptional regulator
1017	 36.81	-1	1195585..1196016	-	143	91773099	-	Mbur_1114	-	hypothetical protein
1018	 34.30	-1	1196108..1196725	-	205	91773100	-	Mbur_1115	-	hypothetical protein
1019	 37.11	-1	1198994..1200475	+	493	91773101	-	Mbur_1117	-	transposase
1020	 39.62	0	1200668..1201813	-	381	91773102	-	Mbur_1118	-	hypothetical protein
1021	 45.56	0	1202239..1202598	-	119	91773103	-	Mbur_1119	-	carboxymuconolactone decarboxylase
1022	 45.20	0	1202605..1203135	-	176	91773104	-	Mbur_1120	-	Ferritin and Dps
1023	 35.81	-1	1203460..1204185	+	241	91773105	-	Mbur_1121	-	CRISPR-associated Cas6 family protein
1024	 27.21	-2	1204231..1206108	+	625	91773106	-	Mbur_1122	-	hypothetical protein
1025	 31.48	-2	1206133..1206993	+	286	91773107	-	Mbur_1123	-	hypothetical protein
1026	 31.32	-2	1206994..1207788	+	264	91773108	-	Mbur_1124	-	hypothetical protein
1027	 27.13	-2	1207778..1210420	+	880	91773109	-	Mbur_1125	-	CRISPR-associated helicase Cas3
1028	 33.00	-1	1210526..1211125	+	199	91773110	-	Mbur_1126	-	CRISPR-associated Cas4 family protein
1029	 32.04	-2	1211168..1212169	+	333	91773111	-	Mbur_1127	-	CRISPR-associated Cas1 family protein
1030	 30.30	-2	1212171..1212434	+	87	91773112	-	Mbur_1128	-	hypothetical protein
1031	 45.86	0	1214110..1215450	+	446	91773113	-	Mbur_1130	-	tRNA CCA-pyrophosphorylase
1032	 45.95	0	1215476..1216315	-	279	91773114	-	Mbur_1131	-	8-oxoguanine DNA glycosylase-like protein
1033	 49.07	+1	1216378..1216968	-	196	91773115	-	Mbur_1132	-	indolepyruvate oxidoreductase subunit B
1034	 47.90	+1	1216965..1218770	-	601	91773116	-	Mbur_1133	-	thiamine pyrophosphate enzyme-like TPP-binding
1035	 39.94	0	1218906..1220843	-	645	91773117	-	Mbur_1134	-	hydantoinase/oxoprolinase
1036	 33.33	-1	1220889..1221347	-	152	91773118	-	Mbur_1135	-	pyridoxamine 5'-phosphate oxidase-related, FMN-binding
1037	 41.78	0	1221585..1221797	+	70	91773119	-	Mbur_1136	-	hypothetical protein
1038	 47.04	+1	1222356..1224245	-	629	91773120	-	Mbur_1137	-	acetyl-coenzyme A synthetase
1039	 32.67	-2	1224612..1224761	+	49	91773121	-	Mbur_1138	-	hypothetical protein
1040	 30.61	-2	1224853..1225512	-	219	91773122	-	Mbur_1139	-	hypothetical protein
1041	 39.66	0	1226641..1226988	+	115	91773123	-	Mbur_1140	-	hypothetical protein
1042	 44.66	0	1226989..1227606	+	205	91773124	-	Mbur_1141	-	4Fe-4S ferredoxin, iron-sulfur binding
1043	 47.57	+1	1227715..1230762	+	1015	91773125	-	Mbur_1142	-	FAD linked oxidase-like protein
1044	 41.34	0	1230814..1231200	-	128	91773126	-	Mbur_1143	-	hypothetical protein
1045	 39.68	0	1231623..1232252	+	209	91773127	-	Mbur_1144	-	ABC transporter, ATPase subunit
1046	 38.97	0	1232253..1233050	+	265	91773128	-	Mbur_1145	-	ABC transporter, inner membrane subunit
1047	 43.89	0	1233201..1233683	+	160	91773129	-	Mbur_1146	-	hypothetical protein
1048	 42.12	0	1233718..1234047	+	109	91773130	-	Mbur_1147	-	hypothetical protein
1049	 43.72	0	1234068..1235579	+	503	91773131	-	Mbur_1148	-	ArsR family transcriptional regulator
1050	 41.18	0	1235843..1236823	-	326	91773132	-	Mbur_1149	-	radical SAM family Fe-S protein
1051	 43.73	0	1236895..1237500	-	201	91773133	-	Mbur_1150	-	hypothetical protein
1052	 48.53	+1	1238853..1239701	+	282	91773134	-	Mbur_1153	-	TatD-related deoxyribonuclease
1053	 37.89	0	1240242..1241492	-	416	91773135	-	Mbur_1154	-	WD40-like beta propeller protein
1054	 38.89	0	1241514..1242737	-	407	91773136	-	Mbur_1155	-	periplasmic component of the Tol biopolymer transport system-like protein
1055	 38.57	0	1242753..1243478	-	241	91773137	-	Mbur_1156	-	hypothetical protein
1056	 38.00	0	1243481..1244530	-	349	91773138	-	Mbur_1157	-	hypothetical protein
1057	 46.85	+1	1245007..1247832	+	941	91773139	-	Mbur_1158	-	excinuclease ABC subunit A
1058	 45.81	0	1247880..1248464	-	194	91773140	-	Mbur_1159	-	formylmethanofuran dehydrogenase, subunit E
1059	 49.14	+1	1248474..1249814	-	446	91773141	-	Mbur_1160	-	adenylosuccinate lyase
1060	 40.53	0	1249896..1250423	+	175	91773142	-	Mbur_1161	-	hypothetical protein
1061	 29.71	-2	1250579..1251433	+	284	91773143	-	Mbur_1162	-	hypothetical protein
1062	 32.41	-2	1251430..1252191	+	253	91773144	-	Mbur_1163	-	hypothetical protein
1063	 41.55	0	1252732..1252950	-	72	91773145	-	Mbur_1164	-	hypothetical protein
1064	 38.48	0	1253113..1253520	+	135	91773146	-	Mbur_1165	-	hypothetical protein
1065	 36.15	-1	1254051..1255574	+	507	91773147	-	Mbur_1166	-	PAS/PAC sensor signal transduction histidine kinase
1066	 37.11	-1	1255720..1257201	+	493	91773148	-	Mbur_1167	-	transposase
1067	 35.90	-1	1257371..1257565	-	64	91773149	-	Mbur_1168	-	hypothetical protein
1068	 46.15	0	1257743..1258054	-	103	91773150	rps10p	Mbur_1169	-	30S ribosomal protein S10P
1069	 48.38	+1	1258086..1259354	-	422	91773151	-	Mbur_1170	-	elongation factor 1-alpha
1070	 48.24	+1	1259477..1261669	-	730	91773152	-	Mbur_1171	-	elongation factor EF-2
1071	 44.92	0	1261718..1262278	-	186	91773153	-	Mbur_1172	-	30S ribosomal protein S7P
1072	 47.32	+1	1262283..1262711	-	142	91773154	rps12P	Mbur_1173	-	30S ribosomal protein S12P
1073	 40.85	0	1262789..1263214	-	141	91773155	-	Mbur_1174	-	transcription elongation factor NusA-like protein
1074	 40.62	0	1263231..1263518	-	95	91773156	-	Mbur_1175	-	50S ribosomal protein L30e
1075	 46.94	+1	1263609..1264769	-	386	91773157	-	Mbur_1176	-	DNA-directed RNA polymerase subunit A''
1076	 46.49	+1	1264769..1267420	-	883	91773158	-	Mbur_1177	-	DNA-directed RNA polymerase subunit alpha
1077	 47.27	+1	1267426..1269240	-	604	91773159	-	Mbur_1178	-	DNA-directed RNA polymerase subunit B'
41.89	MEAN

4.51	STD DEV
