IslandPathversion 1.0

IslandPath Analysis: Methanosarcina barkeri str. Fusaro

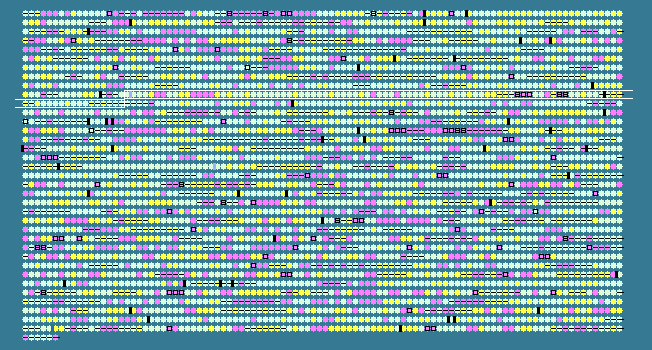

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.74 STD DEV: 4.78
Methanosarcina barkeri str. fusaro chromosome 1, complete sequence - 1..4837408
3606 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
918	 42.80	0	1137438..1137680	+	80	73668478	-	Mbar_A0941	-	bacterioferritin
919	 43.47	0	1143794..1145302	+	502	73668479	-	Mbar_A0942	-	2-isopropylmalate synthase
920	 45.09	0	1145438..1146211	+	257	73668480	-	Mbar_A0943	-	sec-independent transport protein TatD
921	 44.08	0	1146417..1147058	+	213	73668481	-	Mbar_A0944	-	hypothetical protein
922	 45.85	0	1147436..1149409	+	657	73668482	-	Mbar_A0945	-	hypothetical protein
923	 34.35	-1	1150186..1150974	+	262	73668483	-	Mbar_A0946	-	hypothetical protein
924	 35.08	-1	1150971..1154126	+	1051	73668484	-	Mbar_A0947	-	hypothetical protein
925	 43.62	0	1154349..1154630	-	93	73668485	-	Mbar_A0948	-	hypothetical protein
926	 39.53	0	1154734..1154991	-	85	73668486	-	Mbar_A0949	-	hypothetical protein
927	 46.96	+1	1155256..1156422	-	388	73668487	-	Mbar_A0950	-	iron-sulfur binding reductase
928	 48.72	+1	1156427..1157797	-	456	73668488	-	Mbar_A0951	-	(S)-2-hydroxy-acid dehydrogenase
929	 37.93	0	1158230..1159012	-	260	73668489	-	Mbar_A0952	-	hypothetical protein
930	 33.53	-1	1159023..1159541	-	172	73668490	-	Mbar_A0953	-	hypothetical protein
931	 36.02	-1	1159795..1160277	-	160	73668491	-	Mbar_A0954	-	hypothetical protein
932	 35.53	-1	1160743..1161015	-	90	73668492	-	Mbar_A0955	-	hypothetical protein
933	 46.52	0	1162003..1163883	+	626	73668493	-	Mbar_A0956	-	archaeosine tRNA-ribosyltransferase
934	 39.92	0	1164101..1164631	+	176	73668494	-	Mbar_A0957	-	SSU ribosomal protein S18P alanine acetyltransferase
935	 45.88	0	1164615..1164893	-	92	73668495	-	Mbar_A0958	-	hypothetical protein
936	 44.21	0	1165546..1167099	-	517	73668496	-	Mbar_A0959	-	DNA primase
937	 42.93	0	1168616..1170136	+	506	73668497	-	Mbar_A0960	-	NADH oxidase
938	 45.78	0	1170323..1171318	+	331	73668498	-	Mbar_A0961	-	RNA 3'-terminal-phosphate cyclase
939	 43.75	0	1171555..1172178	-	207	73668499	-	Mbar_A0962	-	RNA 2'-phosphotransferase-like protein
940	 43.23	0	1172729..1174183	+	484	73668500	-	Mbar_A0963	-	replication factor A
941	 41.59	0	1174997..1175650	+	217	73668501	-	Mbar_A0964	-	hypothetical protein
942	 43.87	0	1175711..1176526	+	271	73668502	-	Mbar_A0965	-	hypothetical protein
943	 44.28	0	1176869..1177864	+	331	73668503	-	Mbar_A0966	-	hypothetical protein
944	 41.02	0	1178426..1179271	+	281	73668504	-	Mbar_A0967	-	hypothetical protein
945	 43.37	0	1179442..1180218	+	258	73668505	-	Mbar_A0968	-	hypothetical protein
946	 48.54	+1	1180715..1181503	-	262	73668506	-	Mbar_A0969	-	hypothetical protein
947	 40.15	0	1181846..1183018	+	390	73668507	-	Mbar_A0970	-	hypothetical protein
948	 42.67	0	1183334..1184404	+	356	73668508	-	Mbar_A0971	-	translation elongation factor
949	 42.11	0	1184450..1185007	+	185	73668509	-	Mbar_A0972	-	hypothetical protein
950	 42.51	0	1185147..1185920	-	257	73668510	-	Mbar_A0973	-	hypothetical protein
951	 41.25	0	1186182..1186661	-	159	73668511	-	Mbar_A0974	-	hypothetical protein
952	 45.63	0	1186735..1187295	-	186	73668512	-	Mbar_A0975	-	hypothetical protein
953	 42.97	0	1187952..1189196	-	414	73668513	cdc6	Mbar_A0976	-	cell division control protein 6
954	 43.86	0	1191362..1192549	+	395	73668514	-	Mbar_A0977	-	L-tyrosine decarboxylase
955	 43.74	0	1193106..1194200	+	364	73668515	-	Mbar_A0978	-	hypothetical protein
956	 43.50	0	1194667..1196220	+	517	73668516	-	Mbar_A0979	-	pheromone shutdown protein
957	 45.64	0	1197154..1198047	-	297	73668517	-	Mbar_A0980	-	tetrahydromethanopterin formyltransferase
958	 39.25	0	1200106..1200561	-	151	73668518	-	Mbar_A0982	-	chemoreceptor glutamine deamidase CheD
959	 35.42	-1	1201353..1202261	-	302	73668519	-	Mbar_A0983	-	chemotaxis protein methyltransferase
960	 39.29	0	1202322..1204118	-	598	73668520	-	Mbar_A0984	-	chemotaxis sensor histidine kinase
961	 43.74	0	1204575..1205669	-	364	73668521	-	Mbar_A0985	-	chemotaxis protein-glutamate methylesterase
962	 39.07	0	1205935..1206300	-	121	73668522	-	Mbar_A0986	-	chemotaxis response regulator
963	 36.27	-1	1207613..1207987	+	124	73668523	-	Mbar_A0988	-	response regulator receiver
964	 39.66	0	1208339..1210408	+	689	73668524	-	Mbar_A0989	-	methyl-accepting chemotaxis protein
965	 42.91	0	1210437..1210958	+	173	73668525	-	Mbar_A0990	-	CheW protein
966	 41.45	0	1212434..1212901	+	155	73668526	-	Mbar_A0992	-	iron dependent repressor
967	 42.80	0	1213217..1214188	+	323	73668527	-	Mbar_A0993	-	zinc ABC transporter, zinc-binding protein
968	 45.36	0	1214482..1215246	+	254	73668528	-	Mbar_A0995	-	zinc ABC transporter, ATP-binding protein
969	 43.39	0	1215301..1216125	+	274	73668529	-	Mbar_A0996	-	zinc ABC transporter, permease protein
970	 39.04	0	1216598..1217053	+	151	73668530	-	Mbar_A0997	-	hypothetical protein
971	 39.57	0	1218450..1219571	-	373	73668531	-	Mbar_A0998	-	iron ABC transporter, solute-binding protein
972	 48.48	+1	1220851..1221741	-	296	73668532	-	Mbar_A0999	-	pyruvate ferredoxin oxidoreductase, beta subunit
973	 45.08	0	1221738..1222946	-	402	73668533	-	Mbar_A1000	-	pyruvate ferredoxin oxidoreductase, alpha subunit
974	 40.28	0	1222946..1223233	-	95	73668534	-	Mbar_A1001	-	pyruvate ferredoxin oxidoreductase, delta subunit
975	 47.18	+1	1223230..1223778	-	182	73668535	-	Mbar_A1002	-	pyruvate ferredoxin oxidoreductase subunit gamma
976	 44.75	0	1224416..1225387	-	323	73668536	-	Mbar_A1003	-	hypothetical protein
977	 42.83	0	1225843..1226400	-	185	73668537	-	Mbar_A1004	-	signal sequence peptidase
978	 45.78	0	1227072..1229096	+	674	73668538	-	Mbar_A1005	-	DNA polymerase II small subunit
979	 45.66	0	1229273..1230310	+	345	73668539	-	Mbar_A1006	-	tRNA-modifying enzyme
980	 46.71	+1	1231238..1232485	+	415	73668540	-	Mbar_A1007	-	peptide chain release factor 1
981	 46.37	0	1232780..1234489	+	569	73668541	argS	Mbar_A1008	-	arginyl-tRNA synthetase
982	 41.85	0	1234797..1235207	+	136	73668542	-	Mbar_A1009	-	hypothetical protein
983	 36.51	-1	1235224..1235664	-	146	73668543	-	Mbar_A1010	-	transposase
984	 35.00	-1	1235702..1235881	-	59	73668544	-	Mbar_A1011	-	transposase
985	 36.57	-1	1235887..1236318	-	143	73668545	-	Mbar_A1012	-	transposase
986	 43.74	0	1236615..1237325	+	236	73668546	-	Mbar_A1013	-	hypothetical protein
987	 43.41	0	1237407..1240304	-	965	73668547	-	Mbar_A1014	-	type I restriction-modification system restriction subunit
988	 36.05	-1	1240418..1241851	-	477	73668548	-	Mbar_A1015	-	hypothetical protein
989	 45.23	0	1241848..1243890	-	680	73668549	-	Mbar_A1016	-	type I restriction-modification system methyltransferase subunit
990	 33.33	-1	1244451..1244684	-	77	73668550	-	Mbar_A1017	-	transposase
991	 34.59	-1	1244730..1245842	+	370	73668551	-	Mbar_A1018	-	transposase
992	 39.77	0	1245967..1246479	+	170	73668552	-	Mbar_A1019	-	hypothetical protein
993	 38.67	0	1246668..1246892	+	74	73668553	-	Mbar_A1020	-	hypothetical protein
994	 46.03	0	1246920..1247171	+	83	73668554	-	Mbar_A1021	-	RelE protein
995	 43.65	0	1247397..1248443	+	348	73668555	-	Mbar_A1022	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
996	 42.51	0	1248570..1249604	+	344	73668556	-	Mbar_A1023	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
997	 41.52	0	1249870..1250040	-	56	73668557	-	Mbar_A1024	-	hypothetical protein
998	 44.93	0	1251084..1251290	+	68	73668558	-	Mbar_A1025	-	hypothetical protein
999	 47.83	+1	1251347..1251553	+	68	73668559	-	Mbar_A1026	-	hypothetical protein
1000	 46.38	0	1251640..1251846	+	68	73668560	-	Mbar_A1027	-	hypothetical protein
1001	 45.89	0	1251899..1252105	+	68	73668561	-	Mbar_A1028	-	hypothetical protein
1002	 42.83	0	1252562..1253014	+	150	73668562	-	Mbar_A1029	-	hypothetical protein
1003	 46.01	0	1253130..1253894	-	254	73668563	-	Mbar_A1030	-	ABC transporter, ATP-binding protein
1004	 40.84	0	1253896..1254681	-	261	73668564	-	Mbar_A1031	-	sulfonate ABC transporter, permease protein
1005	 44.11	0	1254823..1255806	-	327	73668565	-	Mbar_A1032	-	putative aliphatic sulfonate binding protein precursor
1006	 41.00	0	1256392..1256913	+	173	73668566	-	Mbar_A1033	-	XRE family transcriptional regulator
1007	 42.23	0	1257191..1260676	-	1161	73668567	-	Mbar_A1034	-	hypothetical protein
1008	 48.19	+1	1260839..1261861	-	340	73668568	-	Mbar_A1035	-	thiamin-monophosphate kinase
1009	 43.30	0	1262319..1263101	-	260	73668569	-	Mbar_A1036	-	radical activating enzyme
1010	 44.49	0	1263150..1265534	-	794	73668570	-	Mbar_A1037	-	anaerobic ribonucleoside-triphosphate reductase
1011	 41.27	0	1265657..1265908	-	83	73668571	-	Mbar_A1038	-	glutaredoxin-like protein
1012	 45.63	0	1266663..1267394	+	243	73668572	radB	Mbar_A1039	-	DNA repair and recombination protein RadB
1013	 45.05	0	1267652..1268752	-	366	73668573	-	Mbar_A1040	-	myo-inositol-1-phosphate synthase
1014	 47.29	+1	1269220..1270308	+	362	73668574	-	Mbar_A1041	-	translation initiation factor IF-2B subunit alpha
1015	 44.05	0	1270718..1270885	+	55	73668575	-	Mbar_A1042	-	preprotein translocase subunit SecG
1016	 44.18	0	1270869..1271882	+	337	73668576	-	Mbar_A1043	-	hydrolase
1017	 44.95	0	1271936..1274095	+	719	73668577	-	Mbar_A1044	-	hypothetical protein
41.74	MEAN

4.78	STD DEV
