IslandPath Analysis: Methanosarcina barkeri str. Fusaro

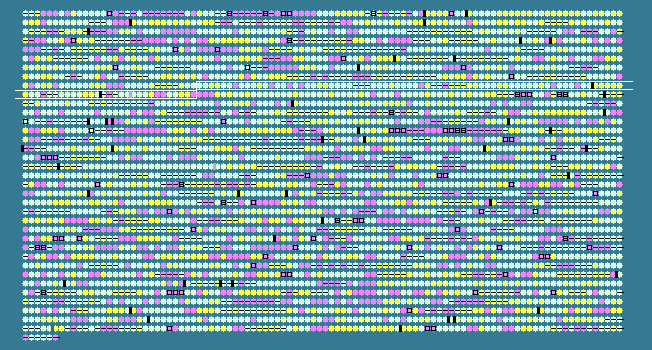

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 41.74   STD DEV: 4.78
Methanosarcina barkeri str. fusaro chromosome 1, complete sequence - 1..4837408
3606 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
830	 43.21	0	1028095..1029117	-	340	73668390	-	Mbar_A0850	-	replication factor C small subunit 2
831	 44.68	0	1029187..1030887	-	566	73668391	secD	Mbar_A0851	-	preprotein translocase subunit SecD
832	 45.32	0	1030884..1031792	-	302	73668392	-	Mbar_A0852	-	preprotein translocase subunit SecF
833	 46.88	+1	1032262..1032741	+	159	73668393	-	Mbar_A0853	-	dCMP deaminase
834	 40.74	0	1033010..1033333	+	107	73668394	-	Mbar_A0854	-	hypothetical protein
835	 44.53	0	1033537..1034304	-	255	73668395	-	Mbar_A0855	-	F420-0--gamma-glutamyl ligase
836	 36.64	-1	1036408..1036800	+	130	73668396	-	Mbar_A0857	-	hypothetical protein
837	 41.27	0	1037493..1038488	+	331	73668397	-	Mbar_A0858	-	cation efflux system protein
838	 44.59	0	1038656..1039117	-	153	73668398	-	Mbar_A0859	-	heat shock protein Hsp20
839	 44.28	0	1039342..1040538	-	398	73668399	-	Mbar_A0860	-	cofactor-independent phosphoglycerate mutase
840	 45.38	0	1040939..1042357	+	472	73668400	-	Mbar_A0861	-	aspartate kinase
841	 43.71	0	1042381..1043382	+	333	73668401	-	Mbar_A0862	-	phosphoribosylaminoimidazole synthetase
842	 30.10	-2	1044024..1044332	-	102	73668402	-	Mbar_A0863	-	hypothetical protein
843	 40.53	0	1044823..1045197	-	124	73668403	-	Mbar_A0864	-	hypothetical protein
844	 42.05	0	1045194..1045652	-	152	73668404	-	Mbar_A0865	-	hypothetical protein
845	 34.65	-1	1046009..1046311	+	100	73668405	-	Mbar_A0866	-	hypothetical protein
846	 43.74	0	1046910..1047476	-	188	73668406	-	Mbar_A0867	-	hypothetical protein
847	 38.26	0	1047590..1048684	-	364	73668407	-	Mbar_A0868	-	hypothetical protein
848	 43.69	0	1049041..1049523	+	160	73668408	-	Mbar_A0869	-	hypothetical protein
849	 42.85	0	1049907..1051094	+	395	73668409	-	Mbar_A0870	-	hypothetical protein
850	 48.60	+1	1051766..1052977	+	403	73668410	-	Mbar_A0871	-	acetylornithine aminotransferase
851	 46.59	+1	1052958..1054058	+	366	73668411	-	Mbar_A0872	-	histidinol-phosphate aminotransferase
852	 38.38	0	1054244..1054639	-	131	73668412	-	Mbar_A0873	-	hypothetical protein
853	 43.47	0	1054666..1055454	-	262	73668413	-	Mbar_A0874	-	archaetidylserine synthase
854	 41.67	0	1055470..1056081	-	203	73668414	-	Mbar_A0875	-	phosphatidylserine decarboxylase
855	 43.10	0	1056087..1056956	-	289	73668415	-	Mbar_A0876	-	hypothetical protein
856	 41.38	0	1057681..1058115	+	144	73668416	-	Mbar_A0877	-	MutT-like protein
857	 42.86	0	1058075..1058389	+	104	73668417	-	Mbar_A0878	-	DNA-directed RNA polymerase, subunit M
858	 44.72	0	1058686..1059423	+	245	73668418	-	Mbar_A0879	-	DNA polymerase sliding clamp
859	 38.89	0	1059425..1060666	+	413	73668419	-	Mbar_A0880	-	DNA primase large subunit
860	 42.87	0	1060962..1062125	+	387	73668420	-	Mbar_A0881	-	coenzyme F420 hydrogenase, beta subunit
861	 44.68	0	1062456..1062737	+	93	73668421	gatC	Mbar_A0882	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
862	 45.94	0	1062750..1064177	+	475	73668422	-	Mbar_A0883	-	aspartyl/glutamyl-tRNA(Asn/Gln) amidotransferase subunit A
863	 44.29	0	1064178..1065665	+	495	73668423	gatB	Mbar_A0884	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
864	 43.57	0	1065961..1066761	-	266	73668424	-	Mbar_A0885	-	carbon-nitrogen hydrolase
865	 45.18	0	1067939..1068850	+	303	73668425	-	Mbar_A0886	-	hypothetical protein
866	 40.49	0	1069044..1070147	-	367	73668426	-	Mbar_A0887	-	hypothetical protein
867	 37.02	0	1070335..1071255	+	306	73668427	-	Mbar_A0888	-	5-methylcytosine-specific restriction enzyme
868	 47.45	+1	1071814..1072677	+	287	73668428	-	Mbar_A0889	-	HtpX-2 peptidase
869	 42.97	0	1073157..1073810	+	217	73668429	thyA	Mbar_A0890	-	thymidylate synthase
870	 44.59	0	1073929..1075260	+	443	73668430	-	Mbar_A0891	-	3-phosphoshikimate 1-carboxyvinyltransferase
871	 35.17	-1	1075605..1076585	+	326	73668431	-	Mbar_A0892	-	hypothetical protein
872	 52.48	+2	1076826..1078538	-	570	73668432	-	Mbar_A0893	-	methyl-coenzyme M reductase, alpha subunit
873	 50.33	+1	1078549..1079295	-	248	73668433	-	Mbar_A0894	-	methyl-coenzyme M reductase, gamma subunit
874	 47.02	+1	1079297..1079917	-	206	73668434	-	Mbar_A0895	-	methyl coenzyme M reductase, subunit D
875	 46.51	0	1079924..1080439	-	171	73668435	-	Mbar_A0896	-	methyl coenzyme M reductase, subunit C
876	 49.89	+1	1080464..1081768	-	434	73668436	-	Mbar_A0897	-	methyl-coenzyme M reductase, beta subunit
877	 41.59	0	1082187..1083422	+	411	73668437	-	Mbar_A0898	-	hypothetical protein
878	 45.19	0	1083806..1087246	-	1146	73668438	-	Mbar_A0899	-	DNA polymerase II large subunit
879	 39.74	0	1087279..1087512	-	77	73668439	-	Mbar_A0900	-	hypothetical protein
880	 48.73	+1	1087888..1088991	-	367	73668440	-	Mbar_A0901	-	translation factor SUA5
881	 47.86	+1	1089041..1090327	-	428	73668441	rbcL	Mbar_A0902	-	ribulose bisophosphate carboxylase
882	 41.87	0	1091079..1092191	-	370	73668442	-	Mbar_A0903	-	cation transporter
883	 40.63	0	1092900..1094009	-	369	73668443	-	Mbar_A0904	-	cation transporter
884	 41.08	0	1095457..1096566	-	369	73668444	-	Mbar_A0905	-	hypothetical protein
885	 42.97	0	1097933..1098430	-	165	73668445	-	Mbar_A0906	-	hypothetical protein
886	 41.10	0	1098485..1099012	-	175	73668446	-	Mbar_A0907	-	putative heat shock protein
887	 46.14	0	1099166..1101430	-	754	73668447	-	Mbar_A0908	-	cell division control protein 48
888	 44.25	0	1101427..1102113	-	228	73668448	-	Mbar_A0909	-	ArsR family transcriptional regulator
889	 35.44	-1	1102482..1103147	-	221	73668449	-	Mbar_A0910	-	hypothetical protein
890	 44.75	0	1103476..1103913	-	145	73668450	-	Mbar_A0911	-	hypothetical protein
891	 42.67	0	1104764..1105438	-	224	73668451	-	Mbar_A0913	-	xanthine-guanine phosphoribosyltransferase
892	 38.35	0	1105864..1106640	+	258	73668452	-	Mbar_A0914	-	hypothetical protein
893	 34.69	-1	1106628..1107584	-	318	73668453	-	Mbar_A0915	-	hypothetical protein
894	 40.60	0	1108622..1109488	+	288	73668454	-	Mbar_A0916	-	hypothetical protein
895	 43.75	0	1109598..1109789	-	63	73668455	-	Mbar_A0917	-	hypothetical protein
896	 47.75	+1	1110653..1111984	+	443	73668456	-	Mbar_A0918	-	signal recognition particle protein Srp54
897	 47.19	+1	1112593..1113162	-	189	73668457	-	Mbar_A0919	-	GMP synthase subunit A
898	 49.12	+1	1113590..1114387	+	265	73668458	-	Mbar_A0920	-	fructose-bisphosphate aldolase
899	 46.37	0	1114485..1115627	+	380	73668459	-	Mbar_A0921	-	3-dehydroquinate synthase
900	 45.68	0	1115729..1116457	+	242	73668460	-	Mbar_A0922	-	3-dehydroquinate dehydratase
901	 46.14	0	1116454..1117296	+	280	73668461	-	Mbar_A0923	-	shikimate dehydrogenase
902	 42.16	0	1117293..1118810	+	505	73668462	-	Mbar_A0924	-	prephenate dehydrogenase
903	 41.89	0	1118895..1120448	+	517	73668463	-	Mbar_A0925	-	hypothetical protein
904	 38.11	0	1120563..1121357	-	264	73668464	-	Mbar_A0926	-	oligopeptide ABC transporter, ATP-binding protein
905	 40.95	0	1121360..1122304	-	314	73668465	-	Mbar_A0927	-	oligopeptide ABC transporter, ATP-binding protein
906	 43.03	0	1122304..1123128	-	274	73668466	-	Mbar_A0928	-	oligopeptide ABC transporter, permease protein
907	 42.34	0	1123131..1124129	-	332	73668467	-	Mbar_A0929	-	oligopeptide ABC transporter, permease protein
908	 41.65	0	1124153..1125919	-	588	73668468	-	Mbar_A0930	-	oligopeptide ABC transporter, solute-binding protein
909	 43.46	0	1125922..1126563	-	213	73668469	-	Mbar_A0931	-	formylmethanofuran dehydrogenase, subunit E
910	 41.92	0	1129297..1132173	+	958	73668470	-	Mbar_A0933	-	hypothetical protein
911	 49.63	+1	1132170..1132838	-	222	73668471	-	Mbar_A0934	-	triosephosphate isomerase
912	 46.90	+1	1133012..1134190	-	392	73668472	-	Mbar_A0935	-	bifunctional formaldehyde-activating enzyme/3-hexulose-6-phosphate synthase
913	 42.11	0	1134460..1135074	-	204	73668473	-	Mbar_A0936	-	endonuclease III
914	 41.55	0	1135645..1136277	-	210	73668474	-	Mbar_A0937	-	hypothetical protein
915	 37.29	0	1136505..1136681	-	58	73668475	-	Mbar_A0938	-	hypothetical protein
916	 38.56	0	1136747..1136899	-	50	73668476	-	Mbar_A0939	-	hypothetical protein
917	 45.10	0	1137210..1137362	+	50	73668477	-	Mbar_A0940	-	bacterioferritin
918	 42.80	0	1137438..1137680	+	80	73668478	-	Mbar_A0941	-	bacterioferritin
919	 43.47	0	1143794..1145302	+	502	73668479	-	Mbar_A0942	-	2-isopropylmalate synthase
920	 45.09	0	1145438..1146211	+	257	73668480	-	Mbar_A0943	-	sec-independent transport protein TatD
921	 44.08	0	1146417..1147058	+	213	73668481	-	Mbar_A0944	-	hypothetical protein
922	 45.85	0	1147436..1149409	+	657	73668482	-	Mbar_A0945	-	hypothetical protein
923	 34.35	-1	1150186..1150974	+	262	73668483	-	Mbar_A0946	-	hypothetical protein
924	 35.08	-1	1150971..1154126	+	1051	73668484	-	Mbar_A0947	-	hypothetical protein
925	 43.62	0	1154349..1154630	-	93	73668485	-	Mbar_A0948	-	hypothetical protein
926	 39.53	0	1154734..1154991	-	85	73668486	-	Mbar_A0949	-	hypothetical protein
927	 46.96	+1	1155256..1156422	-	388	73668487	-	Mbar_A0950	-	iron-sulfur binding reductase
928	 48.72	+1	1156427..1157797	-	456	73668488	-	Mbar_A0951	-	(S)-2-hydroxy-acid dehydrogenase
929	 37.93	0	1158230..1159012	-	260	73668489	-	Mbar_A0952	-	hypothetical protein
41.74	MEAN

4.78	STD DEV
