IslandPathversion 1.0

IslandPath Analysis: Methanosarcina barkeri str. Fusaro

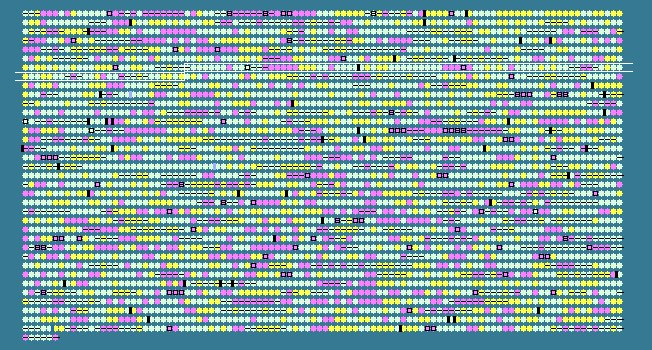

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.74 STD DEV: 4.78
Methanosarcina barkeri str. fusaro chromosome 1, complete sequence - 1..4837408
3606 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
628	 43.00	0	763772..764650	-	292	73668187	-	Mbar_A0643	-	oligopeptide ABC transporter, permease protein
629	 40.11	0	764660..765604	-	314	73668188	-	Mbar_A0644	-	oligopeptide ABC transporter, permease protein
630	 41.40	0	765659..767233	-	524	73668189	-	Mbar_A0645	-	oligopeptide ABC transporter, solute-binding protein
631	 41.86	0	767253..768014	-	253	73668190	-	Mbar_A0646	-	UbiE/COQ5 methyltransferase
632	 42.94	0	769855..770562	-	235	73668191	-	Mbar_A0647	-	reduced coenzyme F420:NADP oxidoreductase
633	 42.78	0	770865..771404	-	179	73668192	-	Mbar_A0648	-	hypothetical protein
634	 40.37	0	771949..773142	+	397	73668193	-	Mbar_A0649	-	Xaa-Pro aminopeptidase
635	 37.07	0	773325..774074	-	249	73668194	-	Mbar_A0650	-	hypothetical protein
636	 40.74	0	774085..774381	-	98	73668195	-	Mbar_A0651	-	hypothetical protein
637	 39.81	0	774729..776504	-	591	73668196	-	Mbar_A0652	-	hypothetical protein
638	 38.30	0	776712..777194	-	160	73668197	-	Mbar_A0653	-	transposase
639	 38.55	0	777616..778344	-	242	73668198	-	Mbar_A0654	-	hypothetical protein
640	 38.74	0	778381..778842	-	153	73668199	-	Mbar_A0655	-	hypothetical protein
641	 36.90	-1	779391..780119	+	242	73668200	-	Mbar_A0656	-	hypothetical protein
642	 35.98	-1	780203..780580	+	125	73668201	-	Mbar_A0657	-	hypothetical protein
643	 33.33	-1	780577..781326	+	249	73668202	-	Mbar_A0658	-	hypothetical protein
644	 37.17	0	781398..782258	+	286	73668203	-	Mbar_A0659	-	ABC transporter, ATP-binding protein
645	 37.02	0	782959..784665	-	568	73668204	-	Mbar_A0660	-	hypothetical protein
646	 33.58	-1	785426..785836	+	136	73668205	-	Mbar_A0661	-	hypothetical protein
647	 48.02	+1	786180..787214	-	344	73668206	-	Mbar_A0662	-	coenzyme F420 hydrogenase beta subunit
648	 49.06	+1	787221..787964	-	247	73668207	-	Mbar_A0663	-	glutamate synthase (NADPH) GltB3 subunit
649	 48.08	+1	787970..789481	-	503	73668208	-	Mbar_A0664	-	glutamate synthase (NADPH) GltB2 subunit
650	 45.20	0	789478..790530	-	350	73668209	-	Mbar_A0665	-	glutamate synthase (NADPH) GltB1 subunit
651	 42.86	0	791346..792689	-	447	73668210	-	Mbar_A0666	-	L-glutamine synthetase
652	 36.67	-1	793618..794037	-	139	73668211	-	Mbar_A0667	-	hypothetical protein
653	 39.19	0	794365..794637	-	90	73668212	-	Mbar_A0668	-	hypothetical protein
654	 41.72	0	795115..797106	-	663	73668213	-	Mbar_A0669	-	glutathione-regulated potassium-efflux system protein
655	 44.02	0	798061..799305	+	414	73668214	-	Mbar_A0670	-	L-lysine 2,3-aminomutase
656	 38.65	0	799381..800358	+	325	73668215	-	Mbar_A0671	-	acetyltransferase (GNAT) family protein
657	 43.79	0	802306..803931	+	541	73668216	-	Mbar_A0672	-	hypothetical protein
658	 45.88	0	804143..805489	-	448	73668217	-	Mbar_A0673	-	adenylosuccinate lyase
659	 42.00	0	805973..806122	+	49	73668218	rpl40e	Mbar_A0674	-	50S ribosomal protein L40e
660	 48.39	+1	806129..806872	+	247	73668219	-	Mbar_A0675	-	geranylgeranylglyceryl phosphate synthase-like protein
661	 45.30	0	807443..809197	+	584	73668220	-	Mbar_A0676	-	methylcoenzyme M reductase system, component A2
662	 41.83	0	809491..810243	-	250	73668221	-	Mbar_A0677	-	iron-sulfur flavoprotein
663	 42.70	0	810389..810943	-	184	73668222	-	Mbar_A0678	-	flavoredoxin
664	 40.58	0	811671..813008	+	445	73668223	-	Mbar_A0679	-	sensory transduction histidine kinase
665	 40.81	0	813215..814471	-	418	73668224	-	Mbar_A0680	-	hypothetical protein
666	 42.75	0	814521..815189	-	222	73668225	-	Mbar_A0681	-	ABC transporter, ATP-binding protein
667	 41.15	0	815663..816877	-	404	73668226	-	Mbar_A0682	-	ABC transporter, permease protein
668	 41.71	0	816919..818160	-	413	73668227	-	Mbar_A0683	-	hypothetical protein
669	 40.29	0	822760..823593	-	277	73668228	-	Mbar_A0685	-	ABC transporter, permease protein
670	 39.40	0	823590..824627	-	345	73668229	-	Mbar_A0686	-	ABC transporter, ATP-binding protein
671	 36.40	-1	825370..825630	+	86	73668230	-	Mbar_A0687	-	putative small heat shock protein
672	 35.92	-1	825702..826010	+	102	73668231	-	Mbar_A0688	-	putative small heat shock protein
673	 37.62	0	826144..826353	+	69	73668232	-	Mbar_A0689	-	hypothetical protein
674	 30.21	-2	826907..827194	+	95	73668233	-	Mbar_A0690	-	IS1648 transposase
675	 35.68	-1	827530..827913	+	127	73668234	-	Mbar_A0691	-	hypothetical protein
676	 40.44	0	828057..828281	+	74	73668235	-	Mbar_A0692	-	XRE family transcriptional regulator
677	 41.67	0	828721..828900	+	59	73668236	-	Mbar_A0693	-	hypothetical protein
678	 46.46	0	829158..830033	-	291	73668237	-	Mbar_A0694	-	agmatinase
679	 42.64	0	830117..830503	-	128	73668238	-	Mbar_A0695	-	translation initiation factor IF-5A
680	 46.17	0	831052..832827	-	591	73668239	-	Mbar_A0696	-	aldehyde ferredoxin oxidoreductase
681	 43.38	0	833548..833985	+	145	73668240	-	Mbar_A0697	-	MutT related protein
682	 37.99	0	835830..837590	+	586	73668241	-	Mbar_A0698	-	cell surface protein
683	 44.49	0	838204..838893	-	229	73668242	-	Mbar_A0699	-	hypothetical protein
684	 41.67	0	839237..839704	-	155	73668243	-	Mbar_A0700	-	carboxymuconolactone decarboxylase
685	 42.66	0	839847..840779	-	310	73668244	-	Mbar_A0701	-	hypothetical protein
686	 42.83	0	840781..841380	-	199	73668245	-	Mbar_A0702	-	hypothetical protein
687	 45.83	0	841388..842635	-	415	73668246	-	Mbar_A0703	-	hypothetical protein
688	 42.16	0	842632..843141	-	169	73668247	-	Mbar_A0704	-	hypothetical protein
689	 45.27	0	843138..843581	-	147	73668248	-	Mbar_A0705	-	hypothetical protein
690	 43.67	0	843867..845423	-	518	73668249	-	Mbar_A0706	-	hypothetical protein
691	 44.67	0	845463..847076	-	537	73668250	-	Mbar_A0707	-	ABC transporter, ATP-binding protein
692	 41.45	0	847458..848258	-	266	73668251	-	Mbar_A0708	-	potassium/copper-transporting ATPase
693	 40.88	0	848356..849243	-	295	73668252	-	Mbar_A0709	-	hypothetical protein
694	 37.96	0	849991..851136	+	381	73668253	-	Mbar_A0710	-	hypothetical protein
695	 36.15	-1	851501..852424	+	307	73668254	-	Mbar_A0711	-	hypothetical protein
696	 44.65	0	852794..853447	-	217	73668255	-	Mbar_A0712	-	haloacid dehalogenase-like hydrolase
697	 41.23	0	855955..856701	+	248	73668256	-	Mbar_A0713	-	hypothetical protein
698	 47.95	+1	857778..860582	+	934	73668257	-	Mbar_A0714	-	aconitate hydratase
699	 43.35	0	861008..862075	+	355	73668258	-	Mbar_A0715	-	citrate synthase
700	 43.52	0	862441..863706	+	421	73668259	-	Mbar_A0716	-	4-hydroxybenzoate decarboxylase
701	 47.87	+1	863765..864982	+	405	73668260	-	Mbar_A0717	-	aconitase subunit 1
702	 39.86	0	864969..865412	+	147	73668261	-	Mbar_A0718	-	hypothetical protein
703	 44.23	0	865524..866633	+	369	73668262	-	Mbar_A0719	-	zinc metalloprotease
704	 47.00	+1	866670..867803	+	377	73668263	-	Mbar_A0720	-	Fe-S oxidoreductase
705	 46.28	0	868722..870080	-	452	73668264	-	Mbar_A0721	-	phosphomannomutase / alpha-phosphoglucomutase
706	 44.57	0	870362..871180	+	272	73668265	-	Mbar_A0722	-	hypothetical protein
707	 39.86	0	871236..871679	+	147	73668266	-	Mbar_A0723	-	amino-acid acetyltransferase
708	 40.52	0	872102..874243	+	713	73668267	-	Mbar_A0724	-	cell surface protein
709	 37.56	0	874332..874544	+	70	73668268	-	Mbar_A0725	-	hypothetical protein
710	 39.39	0	875061..876743	+	560	73668269	-	Mbar_A0726	-	hypothetical protein
711	 42.44	0	877584..878132	+	182	73668270	-	Mbar_A0727	-	hypothetical protein
712	 42.19	0	878528..878764	+	78	73668271	-	Mbar_A0728	-	hypothetical protein
713	 45.69	0	878807..879988	+	393	73668272	-	Mbar_A0729	-	NifS protein
714	 33.09	-1	880428..881249	+	273	73668273	-	Mbar_A0730	-	hypothetical protein
715	 40.67	0	881958..883634	+	558	73668274	-	Mbar_A0731	-	type II secretion system protein
716	 39.38	0	883820..885802	+	660	73668275	-	Mbar_A0732	-	transporter
717	 33.61	-1	886475..886837	-	120	73668276	-	Mbar_A0733	-	hypothetical protein
718	 44.55	0	887578..888549	+	323	73668277	-	Mbar_A0734	-	cysteine protease
719	 43.33	0	888769..890688	+	639	73668278	-	Mbar_A0735	-	hypothetical protein
720	 46.11	0	890968..891147	+	59	73668279	-	Mbar_A0736	-	ferredoxin
721	 42.98	0	891248..891724	-	158	73668280	-	Mbar_A0737	-	hypothetical protein
722	 38.38	0	892061..892852	-	263	73668281	-	Mbar_A0738	-	hypothetical protein
723	 41.17	0	893046..893900	-	284	73668282	-	Mbar_A0739	-	hypothetical protein
724	 46.46	0	894830..895606	+	258	73668283	-	Mbar_A0740	-	methanol corrinoid protein
725	 47.62	+1	895617..897002	+	461	73668284	-	Mbar_A0741	-	methanol:corrinoid methyltransferase
726	 40.93	0	897996..898640	-	214	73668285	-	Mbar_A0742	-	beta-phosphoglucomutase
727	 46.39	0	899076..899504	-	142	73668286	-	Mbar_A0743	-	methionine sulfoxide reductase B
41.74	MEAN

4.78	STD DEV
