IslandPath Analysis: Methanosarcina barkeri str. Fusaro

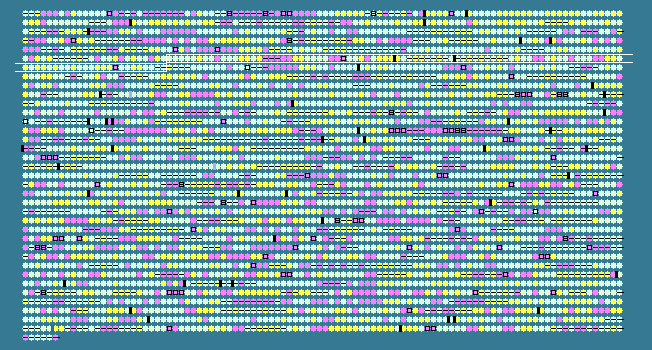

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.74 STD DEV: 4.78
Methanosarcina barkeri str. fusaro chromosome 1, complete sequence - 1..4837408
3606 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
525	 44.28	0	640156..641352	+	398	73668084	-	Mbar_A0538	-	alpha-amylase
526	 41.85	0	641390..642199	+	269	73668085	-	Mbar_A0539	-	hypothetical protein
527	 43.82	0	642196..644217	+	673	73668086	-	Mbar_A0540	-	glucoamylase
528	 43.40	0	644704..645975	-	423	161712041	-	Mbar_A0541	-	seryl-tRNA synthetase
529	 43.21	0	646230..647414	-	394	73668088	-	Mbar_A0542	-	signal peptide peptidase A
530	 47.77	+1	648158..650290	+	710	73668089	metG	Mbar_A0543	-	methionyl-tRNA synthetase
531	 38.75	0	650847..651566	+	239	73668090	-	Mbar_A0544	-	hypothetical protein
532	 38.45	0	651853..654762	+	969	73668091	-	Mbar_A0545	-	hypothetical protein
533	 35.90	-1	654948..656465	+	505	73668092	-	Mbar_A0546	-	WD repeat-containing protein
534	 44.33	0	656764..657372	-	202	73668093	-	Mbar_A0547	-	orotate phosphoribosyltransferase
535	 44.94	0	657558..658091	-	177	73668094	-	Mbar_A0548	-	adenylate cyclase
536	 44.86	0	659121..659519	-	132	73668095	-	Mbar_A0549	-	hypothetical protein
537	 50.30	+1	659526..660698	-	390	73668096	-	Mbar_A0550	-	acetyl-CoA acetyltransferase
538	 47.62	+1	660715..661764	-	349	73668097	-	Mbar_A0551	-	hypothetical protein
539	 42.78	0	661812..662552	-	246	73668098	-	Mbar_A0552	-	XRE family transcriptional regulator
540	 45.62	0	662689..663510	+	273	73668099	-	Mbar_A0553	-	hypothetical protein
541	 30.84	-2	663709..664590	+	293	73668100	-	Mbar_A0554	-	hypothetical protein
542	 36.11	-1	664912..665199	-	95	73668101	-	Mbar_A0555	-	hypothetical protein
543	 27.50	-2	665783..666313	+	176	73668102	-	Mbar_A0556	-	hypothetical protein
544	 30.65	-2	666699..667406	+	235	73668103	-	Mbar_A0557	-	haloacid dehalogenase-like hydrolase family protein
545	 32.51	-1	667596..668078	+	160	73668104	-	Mbar_A0558	-	putative acetyltransferase
546	 46.30	0	668238..670142	+	634	73668105	-	Mbar_A0559	-	hypothetical protein
547	 45.72	0	670274..671371	-	365	73668106	-	Mbar_A0560	-	DNA polymerase IV
548	 41.51	0	671799..672617	-	272	73668107	-	Mbar_A0562	-	putative methyltransferase
549	 41.92	0	672610..673482	-	290	73668108	-	Mbar_A0563	-	hypothetical protein
550	 39.61	0	674733..675719	+	328	73668109	-	Mbar_A0564	-	hypothetical protein
551	 44.44	0	676448..676753	+	101	73668110	-	Mbar_A0565	-	cobalt transport protein CbiN
552	 32.87	-1	677383..678024	+	213	73668111	-	Mbar_A0566	-	hypothetical protein
553	 36.72	-1	678062..679243	+	393	73668112	-	Mbar_A0567	-	hypothetical protein
554	 34.15	-1	679418..679786	+	122	73668113	-	Mbar_A0568	-	transposase
555	 41.10	0	680219..680926	-	235	73668114	-	Mbar_A0569	-	endonuclease III
556	 41.91	0	681040..682392	-	450	73668115	-	Mbar_A0570	-	glutathione reductase (NADPH)
557	 46.32	0	682785..684401	+	538	73668116	-	Mbar_A0571	-	phosphoribosylaminoimidazolecarboxamide formyltransferase / IMP cyclohydrolase
558	 33.33	-1	686250..686441	-	63	73668117	-	Mbar_A0572	-	hypothetical protein
559	 43.34	0	686658..687926	+	422	73668118	-	Mbar_A0573	-	arsenite permease
560	 45.94	0	688258..689352	-	364	73668119	-	Mbar_A0574	-	GTP-binding protein
561	 45.72	0	689769..691697	-	642	73668120	-	Mbar_A0575	-	molybdenum cofactor biosynthesis protein
562	 45.51	0	692109..692987	-	292	73668121	-	Mbar_A0576	-	branched-chain amino acid aminotransferase
563	 45.98	0	693812..694420	-	202	73668122	-	Mbar_A0577	-	hypothetical protein
564	 44.96	0	694570..695730	-	386	73668123	-	Mbar_A0578	-	hypothetical protein
565	 44.95	0	696206..696928	-	240	73668124	-	Mbar_A0579	-	hypothetical protein
566	 45.52	0	697022..698449	-	475	73668125	-	Mbar_A0580	-	hypothetical protein
567	 45.40	0	698446..698793	-	115	73668126	-	Mbar_A0581	-	ArsR family transcriptional regulator
568	 42.27	0	699668..700372	+	234	73668127	-	Mbar_A0582	-	hypothetical protein
569	 44.83	0	700747..701520	-	257	73668128	-	Mbar_A0583	-	cobalt transport family protein
570	 45.76	0	701690..702526	-	278	73668129	-	Mbar_A0584	-	membrane associated ATPase
571	 44.36	0	702502..703326	-	274	73668130	-	Mbar_A0585	-	cobalt transporter ATP-binding subunit
572	 45.21	0	703446..704009	-	187	73668131	-	Mbar_A0586	-	biotin synthesis BioY protein
573	 45.00	0	704805..705284	+	159	73668132	-	Mbar_A0587	-	acetyltransferase
574	 42.19	0	705489..706154	+	221	73668133	-	Mbar_A0588	-	iron dependent repressor
575	 46.66	+1	706270..708183	+	637	73668134	-	Mbar_A0589	-	ferrous iron transport protein B
576	 39.58	0	708400..708639	+	79	73668135	-	Mbar_A0590	-	hypothetical protein
577	 45.71	0	709368..710450	+	360	73668136	-	Mbar_A0591	-	hypothetical protein
578	 44.64	0	710503..714030	+	1175	73668137	-	Mbar_A0592	-	condensin subunit Smc
579	 42.06	0	714023..715042	+	339	73668138	-	Mbar_A0593	-	condensin subunit ScpA
580	 45.43	0	715100..716215	+	371	73668139	-	Mbar_A0594	-	condensin subunit ScpB
581	 44.57	0	716409..716960	+	183	73668140	-	Mbar_A0595	-	transcription factor
582	 41.61	0	717089..718006	+	305	73668141	-	Mbar_A0596	-	dolichol-phosphate mannosyltransferase
583	 48.56	+1	718417..719703	+	428	73668142	-	Mbar_A0597	-	thiamine biosynthesis protein ThiC
584	 40.25	0	720344..720820	+	158	73668143	-	Mbar_A0598	-	methylated-DNA--protein-cysteine methyltransferase
585	 44.76	0	720872..721615	+	247	73668144	-	Mbar_A0599	-	hypothetical protein
586	 37.46	0	722335..723207	+	290	73668145	-	Mbar_A0600	-	gliding motility protein
587	 36.69	-1	723197..724240	+	347	73668146	-	Mbar_A0601	-	putative ABC-2 type transport system permease protein
588	 39.73	0	724814..725329	-	171	73668147	-	Mbar_A0602	-	hypothetical protein
589	 46.01	0	725449..726237	+	262	73668148	-	Mbar_A0603	-	hypothetical protein
590	 43.56	0	726544..728049	+	501	73668149	-	Mbar_A0604	-	phycocyanin alpha phycocyanobilin lyase related protein
591	 38.62	0	728184..728372	-	62	73668150	-	Mbar_A0605	-	hypothetical protein
592	 33.18	-1	728743..729402	+	219	73668151	-	Mbar_A0606	-	hypothetical protein
593	 40.03	0	729498..731333	+	611	73668152	-	Mbar_A0607	-	hypothetical protein
594	 43.30	0	731545..732537	-	330	73668153	-	Mbar_A0608	-	coenzyme PQQ synthesis protein E
595	 39.56	0	732830..733471	-	213	73668154	-	Mbar_A0609	-	hypothetical protein
596	 34.92	-1	733721..734350	-	209	73668155	-	Mbar_A0610	-	hypothetical protein
597	 37.70	0	734606..735223	-	205	73668156	-	Mbar_A0611	-	hypothetical protein
598	 54.52	+2	735929..736249	-	106	73668157	rpl12p	Mbar_A0612	-	50S ribosomal protein L12P
599	 47.74	+1	736286..737326	-	346	73668158	rplP0	Mbar_A0613	-	acidic ribosomal protein P0
600	 44.39	0	737327..737968	-	213	73668159	rpl1P	Mbar_A0614	-	50S ribosomal protein L1P
601	 46.30	0	738208..738693	-	161	73668160	rpl11p	Mbar_A0615	-	50S ribosomal protein L11P
602	 44.23	0	738812..739270	-	152	73668161	nusG	Mbar_A0616	-	transcription antitermination protein NusG
603	 45.83	0	739267..739482	-	71	73668162	secE	Mbar_A0617	-	preprotein translocase subunit SecE
604	 48.67	+1	739901..741028	-	375	73668163	-	Mbar_A0618	-	cell division protein FtsZ
605	 40.68	0	741394..741978	-	194	73668164	-	Mbar_A0619	-	hypothetical protein
606	 46.22	0	742166..743461	-	431	73668165	-	Mbar_A0620	-	proteasome-activating nucleotidase
607	 42.39	0	743519..744004	+	161	73668166	-	Mbar_A0621	-	XRE family transcriptional regulator
608	 43.18	0	744371..745213	-	280	73668167	-	Mbar_A0622	-	putative molybdenum cofactor biosynthesis protein
609	 45.38	0	745528..746556	+	342	73668168	-	Mbar_A0623	-	isocitrate dehydrogenase (NADP)
610	 43.12	0	746580..747908	-	442	73668169	-	Mbar_A0624	-	2-isopropylmalate synthase
611	 43.35	0	748679..749227	+	182	73668170	-	Mbar_A0625	-	precorrin-8W decarboxylase
612	 42.86	0	749294..749902	+	202	73668171	-	Mbar_A0626	-	cobalt-precorrin-2 C(20)-methyltransferase
613	 46.50	0	750029..750757	+	242	73668172	-	Mbar_A0627	-	cobalt-factor II C20-methyltransferase / precorrin-4 C11-methyltransferase
614	 45.57	0	751701..752501	+	266	73668173	-	Mbar_A0629	-	precorrin-3B C17-methyltransferase
615	 46.48	0	752491..753228	+	245	73668174	-	Mbar_A0630	-	precorrin-8X methylmutase
616	 37.82	0	753561..754028	-	155	73668175	-	Mbar_A0631	-	transposase
617	 44.70	0	754585..755235	-	216	73668176	-	Mbar_A0632	-	cytochrome c-type biogenesis protein
618	 42.72	0	755364..755981	-	205	73668177	-	Mbar_A0633	-	thiol-disulfide isomerase/thioredoxin
619	 45.79	0	756530..757372	-	280	73668178	-	Mbar_A0634	-	ATP-binding protein involved in chromosome partitioning
620	 47.49	+1	757427..757765	-	112	73668179	-	Mbar_A0635	-	hypothetical protein
621	 40.96	0	758095..758343	-	82	73668180	-	Mbar_A0636	-	hypothetical protein
622	 38.76	0	758634..759167	+	177	73668181	-	Mbar_A0637	-	hypothetical protein
623	 42.22	0	759232..759681	+	149	73668182	-	Mbar_A0638	-	iron-sulfur binding protein
624	 44.30	0	759951..760853	-	300	73668183	-	Mbar_A0639	-	CoB--CoM heterodisulfide reductase subunit B
41.74	MEAN

4.78	STD DEV
