IslandPath Analysis: Methanosarcina barkeri str. Fusaro

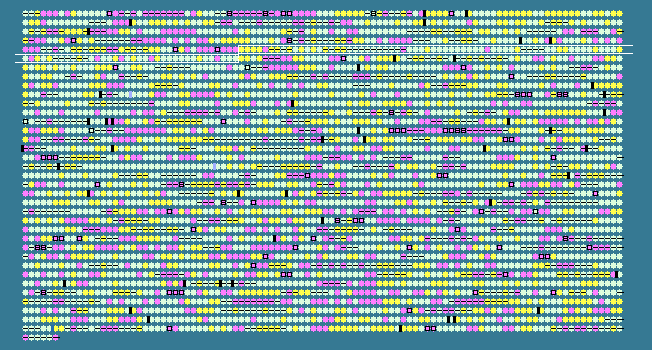

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.74 STD DEV: 4.78
Methanosarcina barkeri str. fusaro chromosome 1, complete sequence - 1..4837408
3606 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
437	 53.08	+2	547965..548840	-	291	73667996	-	Mbar_A0449	-	coenzyme F420-reducing hydrogenase subunit beta
438	 53.06	+2	548833..549714	-	293	73667997	-	Mbar_A0450	-	coenzyme F420-reducing hydrogenase, gamma subunit
439	 51.67	+2	549701..550180	-	159	73667998	-	Mbar_A0451	-	coenzyme F420-reducing hydrogenase, delta subunit
440	 53.17	+2	550186..551556	-	456	73667999	-	Mbar_A0452	-	coenzyme F420-reducing hydrogenase, alpha subunit
441	 21.32	-2	551705..551962	+	85	73668000	-	Mbar_A0453	-	hypothetical protein
442	 46.67	+1	552991..553440	+	149	73668001	-	Mbar_A0454	-	30S ribosomal protein S19e
443	 48.24	+1	553561..553929	+	122	73668002	-	Mbar_A0455	-	hypothetical protein
444	 44.01	0	553935..554552	+	205	73668003	-	Mbar_A0456	-	ATP-binding protein
445	 46.79	+1	554835..554990	+	51	73668004	rpl39e	Mbar_A0457	-	50S ribosomal protein L39e
446	 45.19	0	555009..555278	+	89	73668005	-	Mbar_A0458	-	50S ribosomal protein L31e
447	 47.58	+1	555311..555970	+	219	73668006	-	Mbar_A0459	-	translation initiation factor IF-6
448	 38.62	0	556008..556196	+	62	73668007	rplX	Mbar_A0460	-	50S ribosomal protein LX
449	 48.05	+1	556202..556636	+	144	73668008	-	Mbar_A0461	-	prefoldin subunit alpha
450	 43.74	0	556748..558016	+	422	73668009	-	Mbar_A0462	-	signal recognition particle-docking protein FtsY
451	 47.01	+1	558137..558889	-	250	73668010	-	Mbar_A0463	-	ubiquinone/menaquinone biosynthesis methyltransferase
452	 44.87	0	558905..559684	-	259	73668011	-	Mbar_A0464	-	ubiquinone/menaquinone biosynthesis methyltransferase
453	 47.37	+1	559687..560484	-	265	73668012	-	Mbar_A0465	-	Fe(III) dicitrate ABC transporter, ATP-binding protein
454	 49.14	+1	560481..561524	-	347	73668013	-	Mbar_A0466	-	Fe(III) dicitrate ABC transporter, permease
455	 44.76	0	561555..562709	-	384	73668014	-	Mbar_A0467	-	Fe(III) dicitrate ABC transporter, permease
456	 42.53	0	563677..564426	+	249	73668015	-	Mbar_A0468	-	hypothetical protein
457	 40.22	0	564692..565621	+	309	73668016	-	Mbar_A0469	-	nickel ABC transporter, permease protein
458	 43.07	0	565631..566503	+	290	73668017	-	Mbar_A0470	-	nickel ABC transporter, permease protein
459	 44.90	0	566487..567299	+	270	73668018	-	Mbar_A0471	-	nickel ABC transporter, ATP-binding protein
460	 42.20	0	567311..568291	+	326	73668019	-	Mbar_A0472	-	nickel ABC transporter, ATP-binding protein
461	 44.28	0	568318..569934	+	538	73668020	-	Mbar_A0473	-	nickel ABC transporter, solute-binding protein
462	 41.50	0	569946..570704	+	252	73668021	-	Mbar_A0474	-	hypothetical protein
463	 39.78	0	571073..571258	-	61	73668022	-	Mbar_A0475	-	stress-responsive transcriptional regulator
464	 30.67	-2	571794..572468	-	224	73668023	-	Mbar_A0476	-	serine O-acetyltransferase
465	 41.85	0	572930..574021	-	363	73668024	-	Mbar_A0477	-	hypothetical protein
466	 43.80	0	574059..575042	-	327	73668025	-	Mbar_A0478	-	hypothetical protein
467	 41.45	0	575482..576171	+	229	73668026	-	Mbar_A0479	-	peroxiredoxin
468	 47.62	+1	576445..577263	-	272	73668027	-	Mbar_A0480	-	pyrroline-5-carboxylate reductase
469	 42.01	0	577486..578706	-	406	73668028	-	Mbar_A0481	-	gamma-glutamyl kinase
470	 43.90	0	578787..580130	-	447	73668029	-	Mbar_A0482	-	glutamate-5-semialdehyde dehydrogenase
471	 40.00	0	581397..581801	+	134	73668030	-	Mbar_A0483	-	hypothetical protein
472	 38.43	0	581945..582376	-	143	73668031	-	Mbar_A0484	-	hypothetical protein
473	 38.94	0	582517..582819	-	100	73668032	-	Mbar_A0485	-	hypothetical protein
474	 42.52	0	583700..584809	+	369	73668033	-	Mbar_A0486	-	chlorohydrolase family protein
475	 44.59	0	584828..585280	+	150	73668034	-	Mbar_A0487	-	universal stress protein
476	 44.11	0	585312..586220	+	302	73668035	-	Mbar_A0488	-	hypothetical protein
477	 43.20	0	586436..587134	+	232	73668036	-	Mbar_A0489	-	hypothetical protein
478	 36.65	-1	587285..587797	-	170	73668037	-	Mbar_A0490	-	hypothetical protein
479	 43.86	0	588372..589112	-	246	73668038	-	Mbar_A0491	-	hypothetical protein
480	 43.33	0	589441..589620	+	59	73668039	-	Mbar_A0492	-	hypothetical protein
481	 40.65	0	589825..590193	-	122	73668040	-	Mbar_A0493	-	camphor resistance protein CrcB
482	 41.99	0	590198..590578	-	126	73668041	-	Mbar_A0494	-	camphor resistance protein CrcB
483	 47.57	+1	591021..592214	-	397	73668042	-	Mbar_A0495	-	molybdenum cofactor biosynthesis protein MoeA2
484	 43.20	0	592235..592528	-	97	73668043	-	Mbar_A0496	-	molybdopterin converting factor small subunit
485	 39.87	0	592608..594260	+	550	73668044	-	Mbar_A0497	-	hypothetical protein
486	 39.90	0	594471..595094	+	207	73668045	-	Mbar_A0498	-	hypothetical protein
487	 42.05	0	595349..596518	+	389	73668046	-	Mbar_A0499	-	NaH antiporter protein
488	 43.83	0	596709..599453	-	914	73668047	-	Mbar_A0500	-	cation-transporting ATPase
489	 43.15	0	599740..601053	+	437	73668048	-	Mbar_A0501	-	hypothetical protein
490	 45.42	0	601612..601884	+	90	73668049	-	Mbar_A0502	-	hypothetical protein
491	 47.66	+1	602097..603527	-	476	73668050	-	Mbar_A0503	-	aldehyde dehydrogenase (NAD(P)+)
492	 40.87	0	603929..606118	+	729	73668051	-	Mbar_A0504	-	hypothetical protein
493	 44.23	0	606242..607966	+	574	73668052	-	Mbar_A0505	-	dolichol-P-glucose synthetase
494	 42.58	0	609329..609685	+	118	73668053	-	Mbar_A0506	-	ArsR family transcriptional regulator
495	 40.19	0	609972..610394	-	140	73668054	-	Mbar_A0507	-	CopG family transcriptional regulator
496	 47.08	+1	611136..612503	-	455	73668055	-	Mbar_A0508	-	coenzyme F390 synthetase
497	 44.88	0	612804..613574	-	256	73668056	-	Mbar_A0509	-	iron compounds ABC transporter, ATP-binding protein
498	 44.12	0	613574..614593	-	339	73668057	-	Mbar_A0510	-	iron compounds ABC transporter, permease protein
499	 43.03	0	614586..616358	-	590	73668058	-	Mbar_A0511	-	hypothetical protein
500	 45.67	0	616362..616985	-	207	73668059	-	Mbar_A0512	-	hypothetical protein
501	 43.62	0	616982..618079	-	365	73668060	-	Mbar_A0513	-	ABC transporter, solute-binding protein
502	 34.19	-1	619588..619821	+	77	73668061	-	Mbar_A0515	-	hypothetical protein
503	 46.23	0	619866..620555	+	229	73668062	-	Mbar_A0516	-	hypothetical protein
504	 41.67	0	621134..621529	-	131	73668063	-	Mbar_A0517	-	hypothetical protein
505	 47.08	+1	621547..621837	-	96	73668064	-	Mbar_A0518	-	hypothetical protein
506	 38.69	0	621914..622510	-	198	73668065	-	Mbar_A0519	-	hypothetical protein
507	 41.37	0	623082..623417	+	111	73668066	-	Mbar_A0520	-	PadR family transcriptional regulator
508	 42.77	0	623596..623934	+	112	73668067	-	Mbar_A0521	-	hypothetical protein
509	 41.08	0	624012..624605	+	197	73668068	-	Mbar_A0522	-	hypothetical protein
510	 48.48	+1	624617..624946	-	109	73668069	-	Mbar_A0523	-	hypothetical protein
511	 43.89	0	625084..626172	+	362	73668070	-	Mbar_A0524	-	hypothetical protein
512	 43.59	0	626563..626796	-	77	73668071	-	Mbar_A0525	-	hypothetical protein
513	 27.83	-2	627023..627349	-	108	73668072	-	Mbar_A0526	-	hypothetical protein
514	 42.69	0	627646..629034	-	462	73668073	-	Mbar_A0527	-	deoxyribodipyrimidine photo-lyase type II
515	 43.45	0	629177..629917	-	246	73668074	-	Mbar_A0528	-	ATP-binding protein PhnP
516	 45.51	0	629919..631199	-	426	73668075	-	Mbar_A0529	-	cell division cycle protein 48-like protein
517	 35.42	-1	631683..631826	+	47	73668076	-	Mbar_A0530	-	hypothetical protein
518	 40.90	0	631838..632551	+	237	73668077	-	Mbar_A0531	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
519	 46.65	+1	632653..633876	-	407	73668078	-	Mbar_A0532	-	hypothetical protein
520	 45.08	0	633873..634238	-	121	73668079	-	Mbar_A0533	-	hypothetical protein
521	 41.42	0	634623..634931	-	102	73668080	-	Mbar_A0534	-	translation initiation factor Sui1
522	 34.54	-1	635521..635769	+	82	73668081	-	Mbar_A0535	-	hypothetical protein
523	 48.04	+1	636445..638592	+	715	73668082	-	Mbar_A0536	-	phosphoribosylformylglycinamidine synthase II
524	 43.10	0	639023..640159	+	378	73668083	-	Mbar_A0537	-	alpha-amylase
525	 44.28	0	640156..641352	+	398	73668084	-	Mbar_A0538	-	alpha-amylase
526	 41.85	0	641390..642199	+	269	73668085	-	Mbar_A0539	-	hypothetical protein
527	 43.82	0	642196..644217	+	673	73668086	-	Mbar_A0540	-	glucoamylase
528	 43.40	0	644704..645975	-	423	161712041	-	Mbar_A0541	-	seryl-tRNA synthetase
529	 43.21	0	646230..647414	-	394	73668088	-	Mbar_A0542	-	signal peptide peptidase A
530	 47.77	+1	648158..650290	+	710	73668089	metG	Mbar_A0543	-	methionyl-tRNA synthetase
531	 38.75	0	650847..651566	+	239	73668090	-	Mbar_A0544	-	hypothetical protein
532	 38.45	0	651853..654762	+	969	73668091	-	Mbar_A0545	-	hypothetical protein
533	 35.90	-1	654948..656465	+	505	73668092	-	Mbar_A0546	-	WD repeat-containing protein
534	 44.33	0	656764..657372	-	202	73668093	-	Mbar_A0547	-	orotate phosphoribosyltransferase
535	 44.94	0	657558..658091	-	177	73668094	-	Mbar_A0548	-	adenylate cyclase
536	 44.86	0	659121..659519	-	132	73668095	-	Mbar_A0549	-	hypothetical protein
41.74	MEAN

4.78	STD DEV
