IslandPath Analysis: Methanosarcina barkeri str. Fusaro

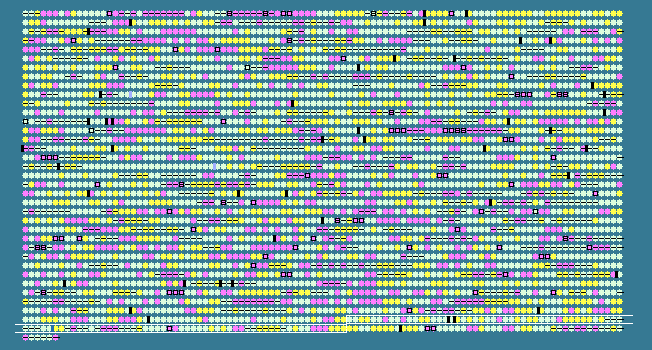

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.74 STD DEV: 4.78
Methanosarcina barkeri str. fusaro chromosome 1, complete sequence - 1..4837408
3606 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3455	 41.01	0	4597098..4598165	-	355	73671015	-	Mbar_A3582	-	PAP2 superfamily protein
3456	 44.76	0	4598566..4600158	-	530	73671016	-	Mbar_A3583	-	hypothetical protein
3457	 46.26	0	4600408..4601235	-	275	73671017	-	Mbar_A3584	-	methylthiol:coenzyme M methyltransferase
3458	 49.00	+1	4601232..4602335	-	367	73671018	-	Mbar_A3585	-	methylcobalamin:coenzyme M methyltransferase
3459	 40.25	0	4603232..4604287	+	351	73671019	-	Mbar_A3586	-	hypothetical protein
3460	 41.33	0	4604534..4605658	+	374	73671020	-	Mbar_A3587	-	hypothetical protein
3461	 33.63	-1	4606035..4606367	-	110	73671021	-	Mbar_A3588	-	hypothetical protein
3462	 39.54	0	4607422..4608033	-	203	73671022	-	Mbar_A3589	-	superoxide dismutase
3463	 44.63	0	4608547..4609599	+	350	73671023	-	Mbar_A3590	-	hypothetical protein
3464	 37.56	0	4609775..4610176	-	133	73671024	-	Mbar_A3591	-	hypothetical protein
3465	 39.18	0	4610425..4610766	-	113	73671025	-	Mbar_A3592	-	hypothetical protein
3466	 43.62	0	4611365..4612501	+	378	73671026	-	Mbar_A3593	-	transmembrane protein
3467	 45.82	0	4612595..4613371	+	258	73671027	-	Mbar_A3594	-	methylthioadenosine phosphorylase
3468	 45.48	0	4614041..4616518	+	825	73671028	-	Mbar_A3595	-	ATP-dependent DNA helicase
3469	 44.11	0	4616689..4617087	+	132	73671029	-	Mbar_A3596	-	hypothetical protein
3470	 39.56	0	4617663..4617887	+	74	73671030	-	Mbar_A3597	-	small nuclear riboprotein-like protein
3471	 41.90	0	4617920..4618339	+	139	73671031	-	Mbar_A3598	-	hypothetical protein
3472	 39.19	0	4618969..4619190	+	73	73671032	-	Mbar_A3599	-	hypothetical protein
3473	 46.03	0	4619860..4620678	-	272	73671033	-	Mbar_A3600	-	hypothetical protein
3474	 43.40	0	4620935..4621252	-	105	73671034	-	Mbar_A3601	-	SugE protein
3475	 46.24	0	4621670..4622707	+	345	73671035	-	Mbar_A3602	-	formate acetyltransferase activating enzyme
3476	 38.46	0	4622941..4623681	-	246	73671036	-	Mbar_A3603	-	hypothetical protein
3477	 46.98	+1	4624260..4624904	+	214	73671037	-	Mbar_A3604	-	dimethylamine corrinoid protein
3478	 43.61	0	4626418..4627944	+	508	73671038	-	Mbar_A3606	-	amino acid permease
3479	 40.46	0	4628190..4629494	-	434	73671039	-	Mbar_A3607	-	hypothetical protein
3480	 34.85	-1	4629811..4630008	-	65	73671040	-	Mbar_A3608	-	hypothetical protein
3481	 43.28	0	4635736..4636107	+	123	73671041	-	Mbar_A3611	-	hypothetical protein
3482	 43.30	0	4638867..4639508	-	213	73671042	-	Mbar_A3612	-	hypothetical protein
3483	 47.88	+1	4639580..4642756	-	1058	73671043	ileS	Mbar_A3613	-	isoleucyl-tRNA synthetase
3484	 42.03	0	4643378..4644343	-	321	73671044	-	Mbar_A3614	-	integral membrane protein
3485	 45.61	0	4644544..4646229	-	561	73671045	-	Mbar_A3615	-	ribonucleotide reductase
3486	 46.79	+1	4646508..4646975	-	155	73671046	-	Mbar_A3616	-	peptidyl-prolyl cis-trans isomerase
3487	 39.46	0	4647987..4648508	-	173	73671047	-	Mbar_A3617	-	thioredoxin
3488	 40.62	0	4649351..4649899	+	182	73671048	-	Mbar_A3618	-	hypothetical protein
3489	 40.09	0	4650574..4651209	-	211	73671049	-	Mbar_A3619	-	hypothetical protein
3490	 36.56	-1	4651788..4654046	-	752	73671050	-	Mbar_A3620	-	putative surface layer protein
3491	 47.34	+1	4654365..4655171	+	268	73671051	-	Mbar_A3621	-	indole-3-glycerol phosphate synthase
3492	 47.23	+1	4655443..4656723	+	426	73671052	-	Mbar_A3622	-	tryptophan synthase subunit beta
3493	 47.35	+1	4656725..4657516	+	263	73671053	trpA	Mbar_A3623	-	tryptophan synthase subunit alpha
3494	 47.68	+1	4657654..4658754	+	366	73671054	-	Mbar_A3624	-	anthranilate phosphoribosyltransferase
3495	 49.09	+1	4658751..4659467	+	238	73671055	-	Mbar_A3625	-	phosphoribosylanthranilate isomerase
3496	 44.89	0	4659454..4661097	+	547	73671056	-	Mbar_A3626	-	anthranilate synthase, component I
3497	 45.94	0	4661265..4661867	+	200	73671057	-	Mbar_A3627	-	anthranilate synthase component II
3498	 41.63	0	4661974..4662720	-	248	73671058	-	Mbar_A3628	-	hypothetical protein
3499	 44.07	0	4663562..4664455	-	297	73671059	-	Mbar_A3629	-	hypothetical protein
3500	 40.32	0	4664790..4666292	-	500	73671060	-	Mbar_A3630	-	cell surface glycoprotein (S-layer protein)
3501	 42.57	0	4666625..4667263	-	212	73671061	-	Mbar_A3631	-	hypothetical protein
3502	 42.43	0	4667617..4668462	-	281	73671062	-	Mbar_A3632	-	hypothetical protein
3503	 44.95	0	4670549..4671202	-	217	73671063	-	Mbar_A3634	-	monomethylamine corrinoid protein
3504	 40.40	0	4671720..4672511	-	263	73671064	-	Mbar_A3635	-	hypothetical protein
3505	 44.11	0	4673041..4673643	+	200	73671065	-	Mbar_A3636	-	hypothetical protein
3506	 45.31	0	4680050..4680817	+	255	73671066	-	Mbar_A3637	-	methanol corrinoid protein
3507	 47.40	+1	4680830..4682215	+	461	73671067	-	Mbar_A3638	-	methanol:corrinoid methyltransferase
3508	 44.61	0	4682663..4683682	-	339	73671068	-	Mbar_A3639	-	methylcobalamin:coenzyme M methyltransferase
3509	 38.22	0	4684634..4686310	+	558	73671069	-	Mbar_A3640	-	phosphorylase
3510	 44.16	0	4686791..4687945	+	384	73671070	-	Mbar_A3641	-	hypothetical protein
3511	 41.43	0	4688246..4688776	+	176	73671071	-	Mbar_A3642	-	hypothetical protein
3512	 42.78	0	4689330..4695269	+	1979	73671072	-	Mbar_A3643	-	TPR domain-containing protein
3513	 42.97	0	4695386..4695883	-	165	73671073	-	Mbar_A3644	-	hypothetical protein
3514	 26.80	-2	4696915..4698078	+	387	73671074	-	Mbar_A3645	-	hypothetical protein
3515	 37.70	0	4698099..4700825	+	908	73671075	-	Mbar_A3646	-	hypothetical protein
3516	 36.82	-1	4701163..4702080	-	305	73671076	-	Mbar_A3647	-	hypothetical protein
3517	 40.80	0	4702082..4703179	-	365	73671077	-	Mbar_A3648	-	hypothetical protein
3518	 44.42	0	4703857..4705011	-	384	73671078	-	Mbar_A3649	-	cation efflux system protein
3519	 43.80	0	4706636..4706998	-	120	73671079	nac	Mbar_A3650	-	nascent polypeptide-associated complex protein
3520	 45.48	0	4707069..4707389	-	106	73671080	-	Mbar_A3651	-	HesB protein
3521	 38.87	0	4707683..4708837	-	384	73671081	-	Mbar_A3652	-	hypothetical protein
3522	 43.99	0	4709027..4711006	+	659	73671082	-	Mbar_A3653	-	glycogen debranching enzyme-related protein (4-alpha-glucanotransferase)
3523	 44.87	0	4711074..4711463	+	129	73671083	-	Mbar_A3654	-	phosphoribosyl-AMP cyclohydrolase
3524	 39.65	0	4711771..4712166	-	131	73671084	-	Mbar_A3655	-	hypothetical protein
3525	 37.28	0	4713326..4714921	-	531	73671085	-	Mbar_A3656	-	transposase
3526	 33.79	-1	4714988..4716073	-	361	73671086	-	Mbar_A3657	-	hypothetical protein
3527	 41.81	0	4717042..4718244	-	400	73671087	-	Mbar_A3658	-	hypothetical protein
3528	 43.38	0	4718417..4719202	-	261	73671088	-	Mbar_A3659	-	hypothetical protein
3529	 41.49	0	4719957..4721219	+	420	73671089	-	Mbar_A3660	-	hypothetical protein
3530	 43.92	0	4721473..4722105	-	210	73671090	-	Mbar_A3661	-	integral membrane protein
3531	 40.90	0	4723039..4723395	-	118	73671091	-	Mbar_A3663	-	MarR family transcriptional regulator
3532	 47.73	+1	4723754..4724413	+	219	73671092	-	Mbar_A3664	-	hypothetical protein
3533	 44.54	0	4724918..4725256	+	112	73671093	-	Mbar_A3665	-	hypothetical protein
3534	 45.51	0	4725306..4725650	+	114	73671094	-	Mbar_A3666	-	hypothetical protein
3535	 38.93	0	4726119..4726547	+	142	73671095	-	Mbar_A3667	-	hypothetical protein
3536	 37.25	0	4726647..4726748	+	33	73671096	-	Mbar_A3668	-	ferredoxin
3537	 37.81	0	4726956..4727513	-	185	73671097	-	Mbar_A3669	-	hypothetical protein
3538	 41.36	0	4727893..4728714	+	273	73671098	-	Mbar_A3670	-	hypothetical protein
3539	 45.11	0	4729092..4729490	+	132	73671099	-	Mbar_A3671	-	carboxymuconolactone decarboxylase
3540	 49.67	+1	4729956..4730873	-	305	73671100	-	Mbar_A3672	-	oligopeptide ABC transporter, ATP-binding protein
3541	 48.88	+1	4730866..4731804	-	312	73671101	-	Mbar_A3673	-	oligopeptide ABC transporter, ATP-binding protein
3542	 47.38	+1	4731806..4732645	-	279	73671102	-	Mbar_A3674	-	oligopeptide ABC transporter, permease
3543	 47.74	+1	4732629..4733579	-	316	73671103	-	Mbar_A3675	-	oligopeptide ABC transporter, permease
3544	 42.14	0	4733727..4734419	-	230	73671104	-	Mbar_A3676	-	UbiE/COQ5 methyltransferase
3545	 44.66	0	4734431..4735993	-	520	73671105	-	Mbar_A3677	-	oligopeptide ABC transporter, oligopeptide-binding protein
3546	 46.01	0	4736329..4737906	-	525	73671106	-	Mbar_A3678	-	oligopeptide ABC transporter, oligopeptide-binding protein
3547	 39.86	0	4738829..4739563	+	244	73671107	-	Mbar_A3679	-	hypothetical protein
3548	 43.79	0	4740161..4741681	+	506	73671108	-	Mbar_A3680	-	hypothetical protein
3549	 32.03	-2	4742104..4742640	-	178	73671109	-	Mbar_A3681	-	hypothetical protein
3550	 33.48	-1	4743461..4744150	-	229	73671110	-	Mbar_A3682	-	hypothetical protein
3551	 35.76	-1	4744187..4745092	-	301	73671111	-	Mbar_A3683	-	hypothetical protein
3552	 45.31	0	4745279..4745587	-	102	73671112	rps10p	Mbar_A3684	-	30S ribosomal protein S10P
3553	 48.78	+1	4745624..4746892	-	422	73671113	-	Mbar_A3685	-	elongation factor 1-alpha
3554	 47.15	+1	4747245..4749437	-	730	73671114	-	Mbar_A3686	-	elongation factor EF-2
41.74	MEAN

4.78	STD DEV
