IslandPath Analysis: Methanosarcina barkeri str. Fusaro

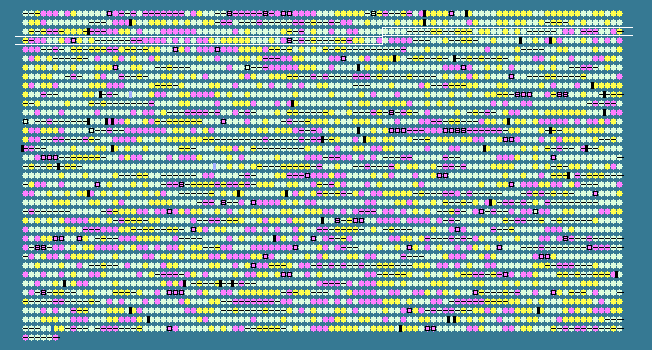

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.74 STD DEV: 4.78
Methanosarcina barkeri str. fusaro chromosome 1, complete sequence - 1..4837408
3606 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
261	 40.80	0	322403..322951	+	182	73667820	-	Mbar_A0271	-	acetyltransferase
262	 42.22	0	322971..323555	-	194	73667821	-	Mbar_A0272	-	hypothetical protein
263	 43.13	0	323777..324838	-	353	73667822	-	Mbar_A0273	-	hypothetical protein
264	 41.40	0	324972..325157	+	61	73667823	-	Mbar_A0274	-	hypothetical protein
265	 42.68	0	325228..325944	+	238	73667824	-	Mbar_A0275	-	hypothetical protein
266	 42.83	0	326121..326720	-	199	73667825	-	Mbar_A0276	-	hypothetical protein
267	 41.11	0	327107..327466	+	119	73667826	-	Mbar_A0277	-	hypothetical protein
268	 45.04	0	328027..328590	-	187	73667827	-	Mbar_A0278	-	nucleoside-triphosphatase
269	 47.80	+1	328583..330220	-	545	73667828	-	Mbar_A0279	-	O-sialoglycoprotein endopeptidase/protein kinase
270	 45.23	0	330591..333632	-	1013	73667829	-	Mbar_A0280	-	TPR domain-containing protein
271	 43.33	0	334010..334159	-	49	73667830	-	Mbar_A0281	-	30S ribosomal protein S27ae
272	 44.12	0	334175..334480	-	101	73667831	rps24e	Mbar_A0282	-	30S ribosomal protein S24e
273	 45.41	0	334461..335048	-	195	73667832	-	Mbar_A0283	-	hypothetical protein
274	 46.77	+1	335050..335235	-	61	73667833	-	Mbar_A0284	-	DNA-directed RNA polymerase, subunit E''
275	 45.30	0	335253..335837	-	194	73667834	-	Mbar_A0285	-	DNA-directed RNA polymerase subunit E'
276	 44.72	0	335894..336262	-	122	73667835	-	Mbar_A0286	-	hypothetical protein
277	 45.67	0	336259..337539	-	426	73667836	-	Mbar_A0287	-	translation initiation factor IF-2 subunit gamma
278	 45.70	0	337834..338997	-	387	73667837	purP	Mbar_A0288	-	5-formaminoimidazole-4-carboxamide-1-(beta)-D-ribofuranosyl 5'-monophosphate synthetase-like protein
279	 39.81	0	339419..340159	-	246	73667838	-	Mbar_A0289	-	integral membrane protein
280	 40.09	0	340238..341095	-	285	73667839	-	Mbar_A0290	-	hypothetical protein
281	 46.87	+1	341921..342991	+	356	73667840	egsA	Mbar_A0291	-	NAD(P)-dependent glycerol-1-phosphate dehydrogenase
282	 43.56	0	343426..343875	+	149	73667841	-	Mbar_A0292	-	hypothetical protein
283	 47.33	+1	343950..344585	+	211	73667842	-	Mbar_A0293	-	hypothetical protein
284	 44.95	0	344733..345920	-	395	73667843	-	Mbar_A0294	-	hypothetical protein
285	 43.58	0	346397..347401	-	334	73667844	-	Mbar_A0295	-	sulfate adenylyltransferase (ADP)
286	 44.81	0	347457..349268	-	603	73667845	-	Mbar_A0296	-	hypothetical protein
287	 45.17	0	349682..350509	-	275	73667846	-	Mbar_A0297	-	ABC transporter, ATP-binding protein
288	 39.78	0	350913..351269	+	118	73667847	-	Mbar_A0298	-	hypothetical protein
289	 40.40	0	351445..351939	-	164	73667848	-	Mbar_A0299	-	N-acetyltransferase
290	 44.74	0	352165..352839	+	224	73667849	-	Mbar_A0300	-	hypothetical protein
291	 36.57	-1	353461..354201	+	246	73667850	-	Mbar_A0301	-	CRISPR-associated Cas6 family protein
292	 37.33	0	354215..354814	+	199	73667851	-	Mbar_A0302	-	hypothetical protein
293	 40.64	0	355078..355857	+	259	73667852	-	Mbar_A0303	-	hypothetical protein
294	 36.36	-1	355894..356157	+	87	73667853	-	Mbar_A0304	-	hypothetical protein
295	 37.55	0	358540..358800	+	86	73667854	-	Mbar_A0305	-	hypothetical protein
296	 36.62	-1	359947..361317	+	456	73667855	-	Mbar_A0306	-	hypothetical protein
297	 40.92	0	361320..362321	+	333	73667856	-	Mbar_A0307	-	hypothetical protein
298	 39.10	0	362323..362946	+	207	73667857	-	Mbar_A0308	-	hypothetical protein
299	 35.44	-1	362969..365194	+	741	73667858	-	Mbar_A0309	-	hypothetical protein
300	 47.28	+1	365339..365632	+	97	73667859	-	Mbar_A0310	-	hypothetical protein
301	 46.38	0	365682..366248	+	188	73667860	-	Mbar_A0311	-	acetyltransferase related protein
302	 35.32	-1	366851..367102	+	83	73667861	-	Mbar_A0312	-	hypothetical protein
303	 33.07	-1	367104..367490	+	128	73667862	-	Mbar_A0313	-	hypothetical protein
304	 37.58	0	367762..368397	+	211	73667863	-	Mbar_A0314	-	putative methyltransferase
305	 40.85	0	368622..369473	+	283	73667864	ubiA	Mbar_A0315	-	prenyltransferase
306	 44.62	0	369845..370801	+	318	73667865	-	Mbar_A0316	-	hypothetical protein
307	 47.12	+1	371251..371649	-	132	73667866	-	Mbar_A0317	-	hypothetical protein
308	 36.55	-1	372426..372767	+	113	73667867	-	Mbar_A0318	-	hypothetical protein
309	 33.44	-1	374732..375646	-	304	73667868	-	Mbar_A0319	-	transposase
310	 47.13	+1	376145..376405	+	86	73667869	-	Mbar_A0320	-	hypothetical protein
311	 43.24	0	378705..380966	+	753	73667870	-	Mbar_A0321	-	amino acid permease
312	 46.36	0	381490..381750	+	86	73667871	-	Mbar_A0322	-	hypothetical protein
313	 44.44	0	382339..382509	+	56	73667872	-	Mbar_A0323	-	putative cation transport regulator
314	 39.31	0	383213..384082	+	289	73667873	-	Mbar_A0324	-	hypothetical protein
315	 40.62	0	384336..384815	+	159	73667874	-	Mbar_A0325	-	hypothetical protein
316	 42.86	0	385649..385879	+	76	73667875	-	Mbar_A0326	-	gas vesicle synthesis protein GvpA
317	 42.86	0	385913..386143	+	76	73667876	-	Mbar_A0327	-	gas vesicle synthesis protein GvpA
318	 43.29	0	386177..386407	+	76	73667877	-	Mbar_A0328	-	gas vesicle synthesis protein GvpA
319	 35.58	-1	386764..387075	+	103	73667878	-	Mbar_A0329	-	hypothetical protein
320	 37.14	0	387749..389062	+	437	73667879	-	Mbar_A0330	-	hypothetical protein
321	 33.91	-1	389243..389587	+	114	73667880	-	Mbar_A0331	-	hypothetical protein
322	 33.79	-1	389974..390633	+	219	73667881	-	Mbar_A0332	-	GvpF
323	 33.33	-1	390663..390914	+	83	73667882	-	Mbar_A0333	-	hypothetical protein
324	 34.63	-1	390889..391197	+	102	73667883	-	Mbar_A0334	-	hypothetical protein
325	 44.12	0	391493..391909	+	138	73667884	-	Mbar_A0335	-	hypothetical protein
326	 38.26	0	391992..392681	+	229	73667885	-	Mbar_A0336	-	hypothetical protein
327	 38.71	0	392665..393036	+	123	73667886	-	Mbar_A0337	-	hypothetical protein
328	 36.69	-1	393221..394024	+	267	73667887	-	Mbar_A0338	-	GvpL
329	 39.93	0	394021..394566	+	181	73667888	-	Mbar_A0339	-	hypothetical protein
330	 28.79	-2	395669..396064	+	131	73667889	-	Mbar_A0340	-	PadR family transcriptional regulator
331	 36.38	-1	396211..396801	+	196	73667890	-	Mbar_A0341	-	hypothetical protein
332	 45.80	0	397171..397611	+	146	73667891	-	Mbar_A0342	-	hypothetical protein
333	 41.80	0	398007..399944	-	645	73667892	-	Mbar_A0343	-	cadmium efflux ATPase
334	 47.84	+1	400369..400761	+	130	73667893	-	Mbar_A0344	-	sirohydrochlorin cobaltochelatase
335	 46.12	0	400788..402374	+	528	73667894	-	Mbar_A0345	-	UDP-N-acetylmuramoylalanine-D-glutamate ligase
336	 45.82	0	402810..403922	+	370	73667895	-	Mbar_A0346	-	hypothetical protein
337	 46.37	0	403960..404757	+	265	73667896	-	Mbar_A0347	-	nitrogenase iron protein subunit NifH
338	 48.35	+1	404859..406343	+	494	73667897	-	Mbar_A0348	-	cobyrinate a,c-diamide synthase / hydrogenobyrinic acid a,c-diamide synthase (glutamine-hydrolysing)
339	 44.54	0	406711..407763	+	350	73667898	-	Mbar_A0349	-	tRNA splicing endonuclease
340	 44.95	0	407935..408330	+	131	73667899	-	Mbar_A0350	-	hypothetical protein
341	 44.93	0	408327..409637	+	436	73667900	-	Mbar_A0351	-	GTP-binding protein
342	 45.93	0	410500..411174	+	224	73667901	-	Mbar_A0352	-	isoleucyl-tRNA synthetase
343	 38.76	0	411346..411972	-	208	73667902	-	Mbar_A0353	-	ThiJ/PfpI family intracellular protease
344	 34.03	-1	412196..412624	-	142	73667903	-	Mbar_A0354	-	hypothetical protein
345	 34.74	-1	413474..415111	-	545	73667904	-	Mbar_A0355	-	transposase
346	 40.84	0	415576..415908	+	110	73667905	-	Mbar_A0356	-	hypothetical protein
347	 36.51	-1	416338..416526	-	62	73667906	-	Mbar_A0357	-	hypothetical protein
348	 41.60	0	416848..417210	+	120	73667907	-	Mbar_A0358	-	hypothetical protein
349	 45.35	0	417639..419969	+	776	73667908	-	Mbar_A0359	-	DNA repair protein
350	 44.81	0	419966..423190	+	1074	73667909	-	Mbar_A0360	-	chromosome segregation protein
351	 40.18	0	423336..424124	-	262	73667910	-	Mbar_A0361	-	hypothetical protein
352	 42.54	0	424694..425410	-	238	73667911	-	Mbar_A0362	-	hypothetical protein
353	 47.77	+1	425471..426322	-	283	73667912	-	Mbar_A0363	-	ribose-phosphate pyrophosphokinase
354	 46.37	0	426399..426866	-	155	73667913	moaC	Mbar_A0364	-	putative molybdenum cofactor biosynthesis protein C
355	 37.10	0	427137..427322	-	61	73667914	-	Mbar_A0365	-	hypothetical protein
356	 48.11	+1	427403..428911	-	502	73667915	-	Mbar_A0366	-	putative sugar kinase
357	 46.90	+1	429393..430859	+	488	73667916	-	Mbar_A0367	-	hypothetical protein
358	 42.41	0	431073..433583	-	836	73667917	-	Mbar_A0368	-	oligosaccharyl transferase
359	 38.98	0	434472..435569	+	365	73667918	-	Mbar_A0369	-	mannosyltransferase
360	 32.94	-1	435660..436427	+	255	73667919	-	Mbar_A0370	-	putative ABC-2 type transport system permease protein
41.74	MEAN

4.78	STD DEV
