IslandPath Analysis: Methanosarcina barkeri str. Fusaro

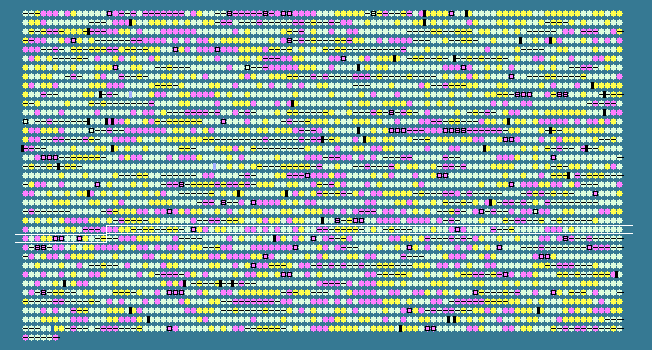

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.74 STD DEV: 4.78
Methanosarcina barkeri str. fusaro chromosome 1, complete sequence - 1..4837408
3606 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2415	 36.06	-1	3153386..3155146	+	586	73669975	-	Mbar_A2497	-	hypothetical protein
2416	 32.21	-1	3155339..3155962	+	207	73669976	-	Mbar_A2498	-	hypothetical protein
2417	 50.17	+1	3156228..3156827	+	199	73669977	-	Mbar_A2499	-	50S ribosomal protein L15e
2418	 47.75	+1	3156824..3157267	+	147	73669978	-	Mbar_A2500	-	hypothetical protein
2419	 47.08	+1	3157260..3157979	+	239	73669979	-	Mbar_A2501	-	ribonuclease P protein component 3
2420	 43.63	0	3157976..3158383	+	135	73669980	-	Mbar_A2502	-	putative ribonuclease P subunit P14
2421	 47.73	+1	3159446..3160195	+	249	73669981	-	Mbar_A2503	-	proteasome subunit alpha
2422	 46.32	0	3160274..3160966	+	230	73669982	-	Mbar_A2504	-	putative RNA-associated protein
2423	 42.53	0	3160978..3161760	+	260	73669983	-	Mbar_A2505	-	exosome complex RNA-binding protein Rrp4
2424	 45.22	0	3161834..3163339	+	501	73669984	-	Mbar_A2506	-	exosome complex exonuclease 1
2425	 46.49	0	3163332..3164114	+	260	73669985	-	Mbar_A2507	-	exosome complex RNA-binding protein Rrp42
2426	 49.12	+1	3164297..3164581	+	94	73669986	rpl37ae	Mbar_A2508	-	50S ribosomal protein L37Ae
2427	 43.48	0	3164602..3164739	+	45	73669987	-	Mbar_A2509	-	DNA-directed RNA polymerase subunit P
2428	 41.98	0	3165281..3165754	-	157	73669988	-	Mbar_A2510	-	transcriptional regulator
2429	 35.18	-1	3166635..3167825	+	396	73669989	-	Mbar_A2511	-	transposase
2430	 45.57	0	3168531..3169241	-	236	73669990	-	Mbar_A2512	-	3-oxoacyl-(acyl-carrier protein) reductase
2431	 33.24	-1	3170339..3171421	+	360	73669991	-	Mbar_A2513	-	hypothetical protein
2432	 44.44	0	3171612..3171872	-	86	73669992	-	Mbar_A2514	-	hypothetical protein
2433	 46.00	0	3171980..3172816	-	278	73669993	-	Mbar_A2515	-	ABC transporter, permease protein
2434	 45.76	0	3172820..3173632	-	270	73669994	-	Mbar_A2516	-	multidrug ABC transporter, ATP-binding protein
2435	 43.57	0	3174185..3176509	+	774	73669995	-	Mbar_A2517	-	glycogen debranching enzyme
2436	 43.86	0	3176615..3178315	-	566	73669996	-	Mbar_A2518	-	sulfate transporter
2437	 39.39	0	3179247..3179609	+	120	73669997	-	Mbar_A2519	-	hypothetical protein
2438	 32.53	-1	3180010..3180507	+	165	73669998	-	Mbar_A2520	-	putative acetyltransferase
2439	 34.22	-1	3180725..3181174	+	149	73669999	-	Mbar_A2521	-	hypothetical protein
2440	 40.25	0	3181268..3182482	-	404	73670000	-	Mbar_A2522	-	hypothetical protein
2441	 37.02	0	3182635..3185022	-	795	73670001	-	Mbar_A2523	-	hypothetical protein
2442	 43.87	0	3185115..3185522	+	135	73670002	-	Mbar_A2524	-	hypothetical protein
2443	 30.03	-2	3185541..3185873	-	110	73670003	-	Mbar_A2525	-	hypothetical protein
2444	 39.56	0	3186022..3188220	-	732	73670004	-	Mbar_A2526	-	hypothetical protein
2445	 40.00	0	3188551..3188655	-	34	73670005	-	Mbar_A2527	-	hypothetical protein
2446	 36.90	-1	3188930..3189517	-	195	73670006	-	Mbar_A2528	-	hypothetical protein
2447	 47.44	+1	3190138..3191151	+	337	73670007	-	Mbar_A2529	-	hypothetical protein
2448	 39.58	0	3191869..3192204	+	111	73670008	-	Mbar_A2530	-	hypothetical protein
2449	 42.74	0	3192820..3193776	+	318	73670009	-	Mbar_A2531	-	hypothetical protein
2450	 32.28	-1	3193870..3194058	-	62	73670010	-	Mbar_A2532	-	hypothetical protein
2451	 38.00	0	3194897..3195196	-	99	73670011	-	Mbar_A2533	-	hypothetical protein
2452	 38.27	0	3195397..3195801	-	134	73670012	-	Mbar_A2534	-	hypothetical protein
2453	 50.00	+1	3197608..3197829	+	73	73670013	-	Mbar_A2535	-	DNA-directed RNA polymerase I, II, and III, 7.3 kDa polypeptide
2454	 50.72	+1	3198225..3198431	+	68	73670014	-	Mbar_A2536	-	DNA-directed RNA polymerase I, II, and III, 7.3 kDa polypeptide
2455	 46.74	+1	3199003..3199293	+	96	73670015	-	Mbar_A2537	-	translation initiation factor IF-1A
2456	 46.57	+1	3199867..3200070	+	67	73670016	-	Mbar_A2538	-	hypothetical protein
2457	 42.39	0	3200747..3200989	+	80	73670017	-	Mbar_A2539	-	hypothetical protein
2458	 43.39	0	3201290..3201637	+	115	73670018	-	Mbar_A2540	-	translation initiation factor IF-1A
2459	 45.93	0	3202315..3203949	-	544	73670019	-	Mbar_A2541	-	acetolactate synthase
2460	 43.74	0	3204249..3205613	-	454	73670020	-	Mbar_A2542	-	aldehyde dehydrogenase
2461	 43.12	0	3205903..3206280	+	125	73670021	-	Mbar_A2543	-	acidic integral membrane protein
2462	 45.28	0	3206809..3212475	-	1888	73670022	-	Mbar_A2544	-	hypothetical protein
2463	 41.21	0	3212817..3213743	-	308	73670023	-	Mbar_A2545	-	integral membrane protein
2464	 41.63	0	3214453..3215235	-	260	73670024	-	Mbar_A2546	-	sec-independent protein translocase, protein
2465	 44.57	0	3216096..3216878	+	260	73670025	-	Mbar_A2547	-	sec-independent protein translocase, protein
2466	 45.04	0	3217008..3217400	+	130	73670026	-	Mbar_A2548	-	sec-independent protein translocase, protein
2467	 44.44	0	3217675..3217980	+	101	73670027	-	Mbar_A2549	-	Sec-independent protein translocase TatA
2468	 40.36	0	3218044..3218655	+	203	73670028	-	Mbar_A2550	-	hypothetical protein
2469	 45.26	0	3218843..3219907	-	354	73670029	-	Mbar_A2551	-	pyruvate formate-lyase activating enzyme-like protein
2470	 40.98	0	3220514..3222973	-	819	73670030	-	Mbar_A2552	-	sensory transduction histidine kinase
2471	 42.20	0	3223271..3224545	-	424	73670031	-	Mbar_A2553	-	methyltransferase
2472	 36.03	-1	3225153..3225449	-	98	73670032	-	Mbar_A2554	-	hypothetical protein
2473	 31.08	-2	3225875..3226939	+	354	73670033	-	Mbar_A2555	-	transposase, putative
2474	 35.47	-1	3227276..3227509	+	77	73670034	-	Mbar_A2556	-	hypothetical protein
2475	 44.67	0	3227689..3227988	-	99	73670035	-	Mbar_A2557	-	hypothetical protein
2476	 42.10	0	3228571..3229152	-	193	73670036	-	Mbar_A2558	-	hypothetical protein
2477	 43.42	0	3230507..3231190	-	227	73670037	-	Mbar_A2559	-	molybdate ABC transporter, permease protein
2478	 42.81	0	3231213..3232046	-	277	73670038	-	Mbar_A2560	-	molybdenum ABC transporter, solute-binding protein
2479	 34.30	-1	3232533..3233363	-	276	73670039	-	Mbar_A2561	-	ribonuclease RN
2480	 40.61	0	3234056..3234880	-	274	73670040	-	Mbar_A2562	-	ABC transporter, ATP-binding protein
2481	 43.20	0	3234888..3235769	-	293	73670041	-	Mbar_A2563	-	cobalt transport protein
2482	 47.30	+1	3236402..3236716	-	104	73670042	-	Mbar_A2564	-	cobalamin biosynthesis protein
2483	 43.75	0	3236726..3237445	-	239	73670043	-	Mbar_A2565	-	cobalt transport protein CbiM
2484	 43.89	0	3239024..3240577	-	517	73670044	-	Mbar_A2567	-	heteropolysaccharide repeat-containing protein
2485	 39.95	0	3240599..3241006	-	135	73670045	-	Mbar_A2568	-	hypothetical protein
2486	 42.03	0	3242491..3244008	-	505	73670046	-	Mbar_A2569	-	surface layer protein B
2487	 39.50	0	3244686..3245204	+	172	73670047	-	Mbar_A2570	-	hypothetical protein
2488	 29.60	-2	3246835..3248787	+	650	73670048	-	Mbar_A2572	-	hypothetical protein
2489	 34.10	-1	3248771..3249553	+	260	73670049	-	Mbar_A2573	-	hypothetical protein
2490	 33.33	-1	3250160..3250588	+	142	73670050	-	Mbar_A2574	-	helicase
2491	 39.76	0	3250739..3251158	+	139	73670051	-	Mbar_A2575	-	MarR family transcriptional regulator
2492	 46.41	0	3251244..3253652	+	802	73670052	-	Mbar_A2576	-	ATP-dependent protease La
2493	 40.49	0	3254455..3254943	+	162	73670053	-	Mbar_A2577	-	thioredoxin
2494	 40.12	0	3255324..3257003	-	559	73670054	-	Mbar_A2578	-	2-octaprenylphenol hydroxylase
2495	 42.78	0	3257197..3258096	-	299	73670055	-	Mbar_A2579	-	hypothetical protein
2496	 41.41	0	3258763..3259431	+	222	73670056	-	Mbar_A2580	-	iron-sulfur flavoprotein
2497	 44.86	0	3259601..3260815	-	404	73670057	-	Mbar_A2581	-	membrane transport protein
2498	 43.73	0	3261199..3261996	+	265	73670058	-	Mbar_A2582	-	hypothetical protein
2499	 44.66	0	3262156..3262782	+	208	73670059	-	Mbar_A2583	-	hypothetical protein
2500	 40.62	0	3263043..3264482	-	479	73670060	-	Mbar_A2584	-	surface antigen gene
2501	 30.84	-2	3264650..3265210	-	186	73670061	-	Mbar_A2585	-	hypothetical protein
2502	 43.66	0	3266569..3266994	+	141	73670062	-	Mbar_A2586	-	universal stress protein
2503	 37.50	0	3267076..3267291	-	71	73670063	-	Mbar_A2587	-	hypothetical protein
2504	 48.94	+1	3267535..3268995	-	486	73670064	-	Mbar_A2588	-	formylmethanofuran dehydrogenase, subunit F
2505	 49.05	+1	3268995..3271373	-	792	73670065	-	Mbar_A2589	-	CoB--CoM heterodisulfide reductase subunit A
2506	 37.77	0	3274333..3275640	+	435	73670066	-	Mbar_A2591	-	transposase
2507	 32.59	-1	3276062..3276466	+	134	73670067	-	Mbar_A2592	-	transposase
2508	 38.94	0	3277218..3278447	+	409	73670068	-	Mbar_A2593	-	hypothetical protein
2509	 38.50	0	3278659..3280632	+	657	73670069	-	Mbar_A2594	-	hypothetical protein
2510	 37.82	0	3281893..3282360	+	155	73670070	-	Mbar_A2595	-	transposase
2511	 47.44	+1	3282741..3283385	+	214	73670071	-	Mbar_A2596	-	hypothetical protein
2512	 40.38	0	3283973..3287689	+	1238	73670072	-	Mbar_A2597	-	hypothetical protein
2513	 39.00	0	3287892..3288350	+	152	73670073	-	Mbar_A2598	-	hypothetical protein
2514	 45.80	0	3288489..3289916	+	475	73670074	-	Mbar_A2599	-	putrescine-ornithine antiporter
41.74	MEAN

4.78	STD DEV
