IslandPathversion 1.0

IslandPath Analysis: Methanosarcina barkeri str. Fusaro

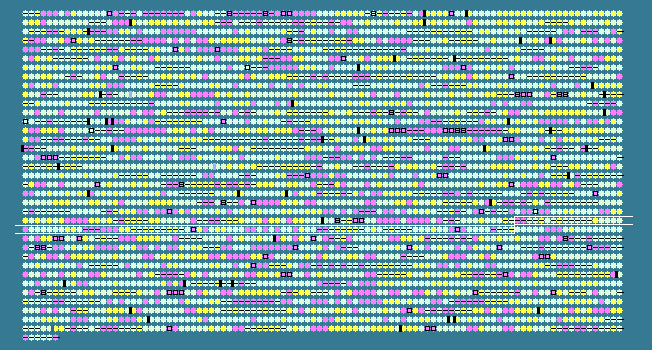

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.74 STD DEV: 4.78
Methanosarcina barkeri str. fusaro chromosome 1, complete sequence - 1..4837408
3606 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2383	 37.23	0	3112040..3112450	+	136	73669943	-	Mbar_A2463	-	hypothetical protein
2384	 36.94	-1	3112371..3112814	+	147	73669944	-	Mbar_A2464	-	hypothetical protein
2385	 42.86	0	3113469..3114077	+	202	73669945	-	Mbar_A2465	-	nitroreductase
2386	 42.18	0	3115158..3115304	-	48	73669946	-	Mbar_A2468	-	hypothetical protein
2387	 49.24	+1	3115470..3116324	-	284	73669947	-	Mbar_A2469	-	hypothetical protein
2388	 40.53	0	3116985..3117470	-	161	73669948	-	Mbar_A2470	-	hypothetical protein
2389	 39.88	0	3117540..3118196	-	218	73669949	-	Mbar_A2471	-	hypothetical protein
2390	 45.57	0	3118680..3118916	-	78	73669950	-	Mbar_A2472	-	hypothetical protein
2391	 43.49	0	3119249..3120124	+	291	73669951	-	Mbar_A2473	-	hypothetical protein
2392	 44.52	0	3121270..3122154	+	294	73669952	-	Mbar_A2474	-	hypothetical protein
2393	 44.05	0	3122151..3125351	+	1066	73669953	-	Mbar_A2475	-	hypothetical protein
2394	 42.82	0	3125317..3126855	+	512	73669954	-	Mbar_A2476	-	hypothetical protein
2395	 41.54	0	3126836..3128248	+	470	73669955	-	Mbar_A2477	-	hypothetical protein
2396	 45.60	0	3128933..3130261	+	442	73669956	-	Mbar_A2478	-	hypothetical protein
2397	 44.00	0	3130975..3131808	+	277	73669957	-	Mbar_A2479	-	hypothetical protein
2398	 44.77	0	3132058..3133368	-	436	73669958	-	Mbar_A2480	-	hemolysin
2399	 42.04	0	3133754..3134557	-	267	73669959	-	Mbar_A2481	-	hypothetical protein
2400	 38.60	0	3135430..3135771	-	113	73669960	-	Mbar_A2482	-	hypothetical protein
2401	 35.44	-1	3135991..3136512	-	173	73669961	-	Mbar_A2483	-	hypothetical protein
2402	 42.01	0	3136794..3137531	-	245	73669962	-	Mbar_A2484	-	hypothetical protein
2403	 42.97	0	3137786..3138553	-	255	73669963	-	Mbar_A2485	-	hypothetical protein
2404	 42.74	0	3138540..3139496	-	318	73669964	-	Mbar_A2486	-	ATP-binding protein
2405	 41.49	0	3139677..3139958	-	93	73669965	-	Mbar_A2487	-	hypothetical protein
2406	 40.74	0	3139955..3140143	-	62	73669966	-	Mbar_A2488	-	hypothetical protein
2407	 38.97	0	3140733..3141122	-	129	73669967	-	Mbar_A2489	-	hypothetical protein
2408	 45.58	0	3141667..3143577	+	636	73669968	-	Mbar_A2490	-	hydantoinase
2409	 45.87	0	3143976..3146081	+	701	73669969	-	Mbar_A2491	-	hydantoinase
2410	 44.14	0	3146390..3146935	+	181	73669970	-	Mbar_A2492	-	pyruvoyl-dependent arginine decarboxylase
2411	 37.57	0	3147171..3149390	-	739	73669971	-	Mbar_A2493	-	hypothetical protein
2412	 35.21	-1	3149485..3150069	-	194	73669972	-	Mbar_A2494	-	hypothetical protein
2413	 33.33	-1	3150398..3151291	-	297	73669973	-	Mbar_A2495	-	hypothetical protein
2414	 37.37	0	3151269..3152210	-	313	73669974	-	Mbar_A2496	-	glycosyltransferase
2415	 36.06	-1	3153386..3155146	+	586	73669975	-	Mbar_A2497	-	hypothetical protein
2416	 32.21	-1	3155339..3155962	+	207	73669976	-	Mbar_A2498	-	hypothetical protein
2417	 50.17	+1	3156228..3156827	+	199	73669977	-	Mbar_A2499	-	50S ribosomal protein L15e
2418	 47.75	+1	3156824..3157267	+	147	73669978	-	Mbar_A2500	-	hypothetical protein
2419	 47.08	+1	3157260..3157979	+	239	73669979	-	Mbar_A2501	-	ribonuclease P protein component 3
2420	 43.63	0	3157976..3158383	+	135	73669980	-	Mbar_A2502	-	putative ribonuclease P subunit P14
2421	 47.73	+1	3159446..3160195	+	249	73669981	-	Mbar_A2503	-	proteasome subunit alpha
2422	 46.32	0	3160274..3160966	+	230	73669982	-	Mbar_A2504	-	putative RNA-associated protein
2423	 42.53	0	3160978..3161760	+	260	73669983	-	Mbar_A2505	-	exosome complex RNA-binding protein Rrp4
2424	 45.22	0	3161834..3163339	+	501	73669984	-	Mbar_A2506	-	exosome complex exonuclease 1
2425	 46.49	0	3163332..3164114	+	260	73669985	-	Mbar_A2507	-	exosome complex RNA-binding protein Rrp42
2426	 49.12	+1	3164297..3164581	+	94	73669986	rpl37ae	Mbar_A2508	-	50S ribosomal protein L37Ae
2427	 43.48	0	3164602..3164739	+	45	73669987	-	Mbar_A2509	-	DNA-directed RNA polymerase subunit P
2428	 41.98	0	3165281..3165754	-	157	73669988	-	Mbar_A2510	-	transcriptional regulator
2429	 35.18	-1	3166635..3167825	+	396	73669989	-	Mbar_A2511	-	transposase
2430	 45.57	0	3168531..3169241	-	236	73669990	-	Mbar_A2512	-	3-oxoacyl-(acyl-carrier protein) reductase
2431	 33.24	-1	3170339..3171421	+	360	73669991	-	Mbar_A2513	-	hypothetical protein
2432	 44.44	0	3171612..3171872	-	86	73669992	-	Mbar_A2514	-	hypothetical protein
2433	 46.00	0	3171980..3172816	-	278	73669993	-	Mbar_A2515	-	ABC transporter, permease protein
2434	 45.76	0	3172820..3173632	-	270	73669994	-	Mbar_A2516	-	multidrug ABC transporter, ATP-binding protein
2435	 43.57	0	3174185..3176509	+	774	73669995	-	Mbar_A2517	-	glycogen debranching enzyme
2436	 43.86	0	3176615..3178315	-	566	73669996	-	Mbar_A2518	-	sulfate transporter
2437	 39.39	0	3179247..3179609	+	120	73669997	-	Mbar_A2519	-	hypothetical protein
2438	 32.53	-1	3180010..3180507	+	165	73669998	-	Mbar_A2520	-	putative acetyltransferase
2439	 34.22	-1	3180725..3181174	+	149	73669999	-	Mbar_A2521	-	hypothetical protein
2440	 40.25	0	3181268..3182482	-	404	73670000	-	Mbar_A2522	-	hypothetical protein
2441	 37.02	0	3182635..3185022	-	795	73670001	-	Mbar_A2523	-	hypothetical protein
2442	 43.87	0	3185115..3185522	+	135	73670002	-	Mbar_A2524	-	hypothetical protein
2443	 30.03	-2	3185541..3185873	-	110	73670003	-	Mbar_A2525	-	hypothetical protein
2444	 39.56	0	3186022..3188220	-	732	73670004	-	Mbar_A2526	-	hypothetical protein
2445	 40.00	0	3188551..3188655	-	34	73670005	-	Mbar_A2527	-	hypothetical protein
2446	 36.90	-1	3188930..3189517	-	195	73670006	-	Mbar_A2528	-	hypothetical protein
2447	 47.44	+1	3190138..3191151	+	337	73670007	-	Mbar_A2529	-	hypothetical protein
2448	 39.58	0	3191869..3192204	+	111	73670008	-	Mbar_A2530	-	hypothetical protein
2449	 42.74	0	3192820..3193776	+	318	73670009	-	Mbar_A2531	-	hypothetical protein
2450	 32.28	-1	3193870..3194058	-	62	73670010	-	Mbar_A2532	-	hypothetical protein
2451	 38.00	0	3194897..3195196	-	99	73670011	-	Mbar_A2533	-	hypothetical protein
2452	 38.27	0	3195397..3195801	-	134	73670012	-	Mbar_A2534	-	hypothetical protein
2453	 50.00	+1	3197608..3197829	+	73	73670013	-	Mbar_A2535	-	DNA-directed RNA polymerase I, II, and III, 7.3 kDa polypeptide
2454	 50.72	+1	3198225..3198431	+	68	73670014	-	Mbar_A2536	-	DNA-directed RNA polymerase I, II, and III, 7.3 kDa polypeptide
2455	 46.74	+1	3199003..3199293	+	96	73670015	-	Mbar_A2537	-	translation initiation factor IF-1A
2456	 46.57	+1	3199867..3200070	+	67	73670016	-	Mbar_A2538	-	hypothetical protein
2457	 42.39	0	3200747..3200989	+	80	73670017	-	Mbar_A2539	-	hypothetical protein
2458	 43.39	0	3201290..3201637	+	115	73670018	-	Mbar_A2540	-	translation initiation factor IF-1A
2459	 45.93	0	3202315..3203949	-	544	73670019	-	Mbar_A2541	-	acetolactate synthase
2460	 43.74	0	3204249..3205613	-	454	73670020	-	Mbar_A2542	-	aldehyde dehydrogenase
2461	 43.12	0	3205903..3206280	+	125	73670021	-	Mbar_A2543	-	acidic integral membrane protein
2462	 45.28	0	3206809..3212475	-	1888	73670022	-	Mbar_A2544	-	hypothetical protein
2463	 41.21	0	3212817..3213743	-	308	73670023	-	Mbar_A2545	-	integral membrane protein
2464	 41.63	0	3214453..3215235	-	260	73670024	-	Mbar_A2546	-	sec-independent protein translocase, protein
2465	 44.57	0	3216096..3216878	+	260	73670025	-	Mbar_A2547	-	sec-independent protein translocase, protein
2466	 45.04	0	3217008..3217400	+	130	73670026	-	Mbar_A2548	-	sec-independent protein translocase, protein
2467	 44.44	0	3217675..3217980	+	101	73670027	-	Mbar_A2549	-	Sec-independent protein translocase TatA
2468	 40.36	0	3218044..3218655	+	203	73670028	-	Mbar_A2550	-	hypothetical protein
2469	 45.26	0	3218843..3219907	-	354	73670029	-	Mbar_A2551	-	pyruvate formate-lyase activating enzyme-like protein
2470	 40.98	0	3220514..3222973	-	819	73670030	-	Mbar_A2552	-	sensory transduction histidine kinase
2471	 42.20	0	3223271..3224545	-	424	73670031	-	Mbar_A2553	-	methyltransferase
2472	 36.03	-1	3225153..3225449	-	98	73670032	-	Mbar_A2554	-	hypothetical protein
2473	 31.08	-2	3225875..3226939	+	354	73670033	-	Mbar_A2555	-	transposase, putative
2474	 35.47	-1	3227276..3227509	+	77	73670034	-	Mbar_A2556	-	hypothetical protein
2475	 44.67	0	3227689..3227988	-	99	73670035	-	Mbar_A2557	-	hypothetical protein
2476	 42.10	0	3228571..3229152	-	193	73670036	-	Mbar_A2558	-	hypothetical protein
2477	 43.42	0	3230507..3231190	-	227	73670037	-	Mbar_A2559	-	molybdate ABC transporter, permease protein
2478	 42.81	0	3231213..3232046	-	277	73670038	-	Mbar_A2560	-	molybdenum ABC transporter, solute-binding protein
2479	 34.30	-1	3232533..3233363	-	276	73670039	-	Mbar_A2561	-	ribonuclease RN
2480	 40.61	0	3234056..3234880	-	274	73670040	-	Mbar_A2562	-	ABC transporter, ATP-binding protein
2481	 43.20	0	3234888..3235769	-	293	73670041	-	Mbar_A2563	-	cobalt transport protein
2482	 47.30	+1	3236402..3236716	-	104	73670042	-	Mbar_A2564	-	cobalamin biosynthesis protein
41.74	MEAN

4.78	STD DEV
