IslandPath Analysis: Methanosarcina barkeri str. Fusaro

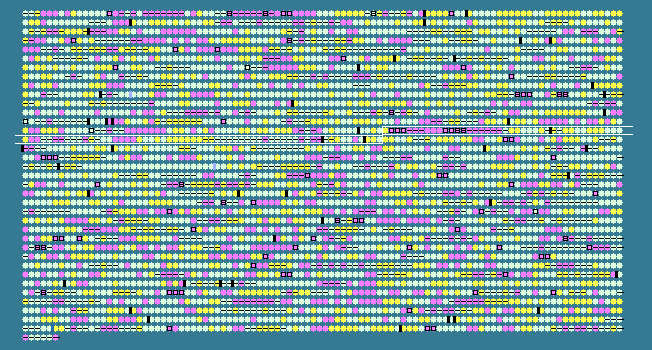

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.74 STD DEV: 4.78
Methanosarcina barkeri str. fusaro chromosome 1, complete sequence - 1..4837408
3606 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1361	 46.58	+1	1719171..1721819	+	882	73668921	-	Mbar_A1396	-	pyruvate phosphate dikinase
1362	 36.98	0	1723225..1724514	+	429	73668922	-	Mbar_A1397	-	transposase
1363	 32.35	-1	1724474..1724779	-	101	73668923	-	Mbar_A1398	-	transposase, putative
1364	 33.91	-1	1724837..1725532	-	231	73668924	-	Mbar_A1399	-	transposase, putative
1365	 28.90	-2	1727076..1728452	-	458	73668925	-	Mbar_A1401	-	hypothetical protein
1366	 37.68	0	1729282..1730409	-	375	73668926	-	Mbar_A1402	-	hypothetical protein
1367	 35.32	-1	1730402..1731358	-	318	73668927	-	Mbar_A1403	-	hypothetical protein
1368	 34.10	-1	1731334..1731981	-	215	73668928	-	Mbar_A1404	-	hypothetical protein
1369	 28.50	-2	1732268..1733653	-	461	73668929	-	Mbar_A1405	-	hypothetical protein
1370	 32.60	-1	1733637..1734593	-	318	73668930	-	Mbar_A1406	-	phosphoribose diphosphate:decaprenyl-phosphate phosphoribosyltransferase
1371	 35.58	-1	1735187..1736431	+	414	73668931	-	Mbar_A1407	-	transposase
1372	 35.90	-1	1736774..1738018	+	414	73668932	-	Mbar_A1408	-	transposase
1373	 33.62	-1	1738262..1738615	+	117	73668933	-	Mbar_A1409	-	transposase
1374	 27.66	-2	1738858..1739298	+	146	73668934	-	Mbar_A1410	-	transposase
1375	 28.73	-2	1739307..1740218	-	303	73668935	-	Mbar_A1411	-	hypothetical protein
1376	 38.03	0	1740258..1741385	-	375	73668936	-	Mbar_A1412	-	hypothetical protein
1377	 34.90	-1	1741378..1742334	-	318	73668937	-	Mbar_A1413	-	hypothetical protein
1378	 35.97	-1	1742310..1742954	-	214	73668938	-	Mbar_A1414	-	hypothetical protein
1379	 28.28	-2	1742959..1745667	-	902	73668939	-	Mbar_A1415	-	hypothetical protein
1380	 31.36	-2	1745619..1746581	-	320	73668940	-	Mbar_A1416	-	phosphoribose diphosphate:decaprenyl-phosphate phosphoribosyltransferase
1381	 45.13	0	1747255..1748220	-	321	73668941	-	Mbar_A1417	-	dimethylallyltranstransferase / geranyltranstransferase
1382	 47.40	+1	1748256..1749599	-	447	73668942	-	Mbar_A1418	-	metallo-beta-lactamase
1383	 49.09	+1	1750942..1752039	-	365	73668943	-	Mbar_A1419	-	isopentenyl pyrophosphate isomerase
1384	 45.21	0	1752043..1752825	-	260	73668944	-	Mbar_A1420	-	amino acid kinase
1385	 43.82	0	1752923..1753828	-	301	73668945	-	Mbar_A1421	-	mevalonate kinase
1386	 44.24	0	1754129..1754926	-	265	73668946	-	Mbar_A1422	-	hypothetical protein
1387	 45.30	0	1754997..1755740	-	247	73668947	rps2P	Mbar_A1423	-	30S ribosomal protein S2
1388	 44.81	0	1755811..1755993	-	60	73668948	-	Mbar_A1424	-	DNA-directed RNA polymerase, subunit K
1389	 46.03	0	1756182..1756370	-	62	73668949	-	Mbar_A1425	-	DNA-directed RNA polymerase subunit N
1390	 45.19	0	1756375..1756779	-	134	73668950	rps9p	Mbar_A1426	-	30S ribosomal protein S9P
1391	 45.39	0	1756793..1757215	-	140	73668951	rpl13p	Mbar_A1427	-	50S ribosomal protein L13P
1392	 46.19	0	1757226..1757645	-	139	73668952	-	Mbar_A1428	-	50S ribosomal protein L18e
1393	 43.89	0	1758207..1759835	+	542	73668953	-	Mbar_A1429	-	indolepyruvate decarboxylase
1394	 41.07	0	1759972..1760475	-	167	73668954	-	Mbar_A1430	-	hypothetical protein
1395	 45.80	0	1760876..1762447	-	523	73668955	-	Mbar_A1431	-	D-3-phosphoglycerate dehydrogenase
1396	 46.09	0	1762631..1763500	-	289	73668956	-	Mbar_A1432	-	hypothetical protein
1397	 46.53	+1	1763538..1764863	-	441	73668957	-	Mbar_A1433	-	replication factor A
1398	 44.24	0	1765178..1766305	+	375	73668958	-	Mbar_A1434	-	cell surface protein
1399	 41.77	0	1766707..1767714	-	335	73668959	-	Mbar_A1435	-	hypothetical protein
1400	 41.89	0	1770273..1771184	+	303	73668960	-	Mbar_A1437	-	cobalt-zinc-cadmium resistance protein
1401	 49.36	+1	1771190..1772287	+	365	73668961	-	Mbar_A1438	-	chorismate synthase
1402	 30.67	-2	1772711..1773349	-	212	73668962	-	Mbar_A1439	-	methyltransferase
1403	 35.87	-1	1773978..1774253	+	91	73668963	-	Mbar_A1440	-	hypothetical protein
1404	 41.79	0	1774419..1776275	+	618	73668964	-	Mbar_A1441	-	hypothetical protein
1405	 39.85	0	1776457..1776993	+	178	73668965	-	Mbar_A1442	-	hypothetical protein
1406	 28.70	-2	1777264..1777716	+	150	73668966	-	Mbar_A1443	-	hypothetical protein
1407	 33.13	-1	1777722..1778204	+	160	73668967	-	Mbar_A1444	-	hypothetical protein
1408	 39.45	0	1778902..1779408	+	168	73668968	-	Mbar_A1445	-	hypothetical protein
1409	 38.85	0	1779470..1780648	+	392	73668969	-	Mbar_A1446	-	hypothetical protein
1410	 40.04	0	1781627..1782163	+	178	73668970	-	Mbar_A1447	-	hypothetical protein
1411	 29.33	-2	1782395..1782844	+	149	73668971	-	Mbar_A1448	-	hypothetical protein
1412	 45.38	0	1783569..1783817	+	82	73668972	-	Mbar_A1450	-	ferrous iron transport protein A
1413	 44.16	0	1783819..1784049	+	76	73668973	-	Mbar_A1451	-	hypothetical protein
1414	 40.19	0	1784066..1786063	+	665	73668974	-	Mbar_A1452	-	ferrous iron transport protein B
1415	 42.63	0	1786076..1786516	+	146	73668975	-	Mbar_A1453	-	hypothetical protein
1416	 38.10	0	1786576..1786890	+	104	73668976	-	Mbar_A1454	-	hypothetical protein
1417	 36.00	-1	1787269..1787493	-	74	73668977	-	Mbar_A1455	-	hypothetical protein
1418	 32.77	-1	1787661..1788017	-	118	73668978	-	Mbar_A1456	-	hypothetical protein
1419	 37.89	0	1791399..1791881	+	160	73668979	-	Mbar_A1457	-	hypothetical protein
1420	 47.52	+1	1792392..1793441	+	349	73668980	-	Mbar_A1458	-	heme biosynthesis protein
1421	 42.08	0	1793453..1794001	+	182	73668981	-	Mbar_A1459	-	AsnC family transcriptional regulator
1422	 44.44	0	1794007..1794465	+	152	73668982	-	Mbar_A1460	-	AsnC family transcriptional regulator
1423	 45.48	0	1794541..1795215	+	224	73668983	-	Mbar_A1461	-	precorrin-2 oxidase / ferrochelatase
1424	 42.44	0	1795656..1797005	+	449	73668984	hemA	Mbar_A1462	-	glutamyl-tRNA reductase
1425	 45.85	0	1797260..1798234	+	324	73668985	-	Mbar_A1463	-	delta-aminolevulinic acid dehydratase
1426	 47.53	+1	1798765..1800039	+	424	73668986	-	Mbar_A1464	-	glutamate-1-semialdehyde aminotransferase
1427	 49.21	+1	1800088..1801038	+	316	73668987	hemC	Mbar_A1465	-	porphobilinogen deaminase
1428	 49.01	+1	1801127..1802032	+	301	73668988	-	Mbar_A1466	-	dihydroorotate dehydrogenase 1B
1429	 48.46	+1	1802032..1802811	+	259	73668989	-	Mbar_A1467	-	dihydroorotate dehydrogenase electron transfer subunit
1430	 46.26	0	1802885..1803619	+	244	73668990	-	Mbar_A1468	-	2-hydroxyhepta-2,4-diene-1,7-dioate isomerase
1431	 45.75	0	1803619..1803924	+	101	73668991	-	Mbar_A1469	-	hypothetical protein
1432	 46.21	0	1804159..1805874	+	571	73668992	gltX	Mbar_A1470	-	glutamyl-tRNA synthetase
1433	 40.67	0	1806344..1808401	+	685	73668993	-	Mbar_A1471	-	cell surface protein
1434	 39.35	0	1808933..1810909	+	658	73668994	-	Mbar_A1472	-	cell surface protein
1435	 41.27	0	1811446..1813485	+	679	73668995	-	Mbar_A1473	-	cell surface protein
1436	 39.06	0	1814018..1815763	+	581	73668996	-	Mbar_A1474	-	cell surface protein
1437	 42.72	0	1817252..1818220	+	322	73668997	-	Mbar_A1476	-	hypothetical protein
1438	 40.91	0	1819547..1820602	+	351	73668998	-	Mbar_A1477	-	hypothetical protein
1439	 39.89	0	1821150..1823177	+	675	73668999	-	Mbar_A1478	-	cell surface protein
1440	 39.20	0	1823881..1825890	+	669	73669000	-	Mbar_A1479	-	cell surface protein
1441	 36.55	-1	1827972..1828469	+	165	73669001	-	Mbar_A1481	-	inorganic pyrophosphatase
1442	 41.27	0	1829533..1830351	+	272	73669002	-	Mbar_A1482	-	hypothetical protein
1443	 39.39	0	1831201..1833315	+	704	73669003	-	Mbar_A1483	-	sensory transduction histidine kinase
1444	 38.49	0	1833790..1834914	+	374	73669004	-	Mbar_A1484	-	hypothetical protein
1445	 39.64	0	1834790..1835344	+	184	73669005	-	Mbar_A1485	-	putative surface layer protein
1446	 42.92	0	1835846..1836523	+	225	73669006	-	Mbar_A1486	-	hypothetical protein
1447	 35.12	-1	1836945..1839239	-	764	73669007	-	Mbar_A1487	-	hypothetical protein
1448	 38.62	0	1839565..1839810	+	81	73669008	-	Mbar_A1488	-	hypothetical protein
1449	 36.53	-1	1839839..1840213	+	124	73669009	-	Mbar_A1489	-	hypothetical protein
1450	 28.82	-2	1840374..1842014	+	546	73669010	-	Mbar_A1490	-	hypothetical protein
1451	 42.22	0	1843003..1843767	+	254	73669011	-	Mbar_A1491	-	hypothetical protein
1452	 46.77	+1	1843998..1844585	-	195	73669012	-	Mbar_A1492	-	cobalt-precorrin-6Y C(5)-methyltransferase
1453	 47.75	+1	1844624..1845643	-	339	73669013	cbiD	Mbar_A1493	-	cobalt-precorrin-6A synthase
1454	 44.44	0	1846299..1848377	-	692	73669014	-	Mbar_A1494	-	DNA mismatch repair protein MutL
1455	 44.91	0	1848453..1851155	-	900	73669015	-	Mbar_A1495	-	DNA mismatch repair protein
1456	 34.76	-1	1851875..1852576	-	233	73669016	-	Mbar_A1496	-	hypothetical protein
1457	 38.89	0	1852573..1852896	-	107	73669017	-	Mbar_A1497	-	PadR family transcriptional regulator
1458	 51.12	+1	1854537..1855070	-	177	73669018	-	Mbar_A1498	-	CDP-diacylglycerol-inositol 3-phosphatidyltransferase
1459	 46.13	0	1855678..1856826	+	382	73669019	-	Mbar_A1499	-	heterodisulfide reductase, subunit D
1460	 40.94	0	1857184..1857354	+	56	73669020	-	Mbar_A1500	-	nitrogenase iron protein
41.74	MEAN

4.78	STD DEV
