IslandPath Analysis: Marinomonas sp. MWYL1

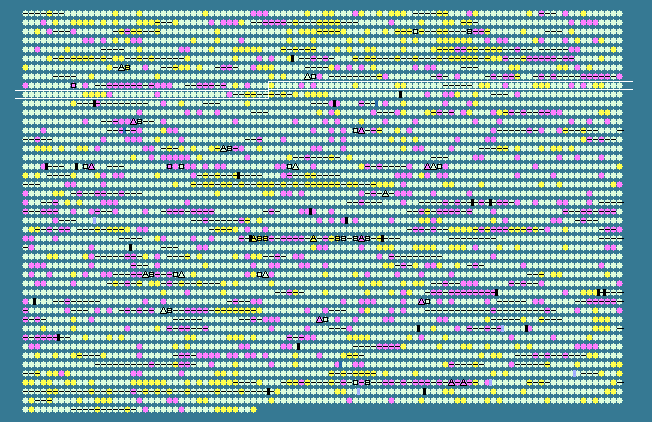

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.05 STD DEV: 3.35
Marinomonas sp. MWYL1, complete genome - 1..5100344
4439 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
842	 47.45	+1	938962..939804	-	280	152994885	-	Mmwyl1_0853	-	periplasmic binding protein
843	 43.90	0	939801..940898	-	365	152994886	-	Mmwyl1_0854	-	hemin-degrading family protein
844	 43.36	0	940977..943121	-	714	152994887	-	Mmwyl1_0855	-	TonB-dependent hemoglobin/transferrin/lactoferrin family receptor
845	 43.19	0	943460..943804	-	114	152994888	-	Mmwyl1_0856	-	protein of unknown function DUF861 cupin_3
846	 41.14	0	944220..946319	+	699	152994889	-	Mmwyl1_0857	-	hypothetical protein
847	 37.39	-1	946407..947441	-	344	152994890	-	Mmwyl1_0858	-	TRAP dicarboxylate transporter, DctP subunit
848	 41.39	0	947461..948738	-	425	152994891	-	Mmwyl1_0859	-	TRAP dicarboxylate transporter, DctM subunit
849	 32.57	-2	948738..949262	-	174	152994892	-	Mmwyl1_0860	-	tripartite ATP-independent periplasmic transporter DctQ
850	 46.27	0	949306..951090	-	594	152994893	-	Mmwyl1_0861	-	dihydroxy-acid dehydratase
851	 43.14	0	951163..952365	-	400	152994894	-	Mmwyl1_0862	-	hypothetical protein
852	 41.38	0	952479..953447	+	322	152994895	-	Mmwyl1_0863	-	LysR family transcriptional regulator
853	 43.42	0	953535..955121	+	528	152994896	-	Mmwyl1_0864	-	aldehyde dehydrogenase
854	 42.86	0	955150..955884	+	244	152994897	-	Mmwyl1_0865	-	short-chain dehydrogenase/reductase SDR
855	 42.87	0	955932..956780	+	282	152994898	-	Mmwyl1_0866	-	5-oxopent-3-ene-1,2,5-tricarboxylate decarboxylase
856	 46.62	+1	956845..958560	-	571	152994899	-	Mmwyl1_0867	-	sulfate transporter
857	 45.56	0	958574..960193	-	539	152994900	-	Mmwyl1_0868	-	hypothetical protein
858	 43.76	0	960296..961177	-	293	152994901	-	Mmwyl1_0869	-	beta-lactamase domain-containing protein
859	 43.76	0	961348..962757	+	469	152994902	-	Mmwyl1_0870	-	putative PAS/PAC sensor protein
860	 45.13	0	962896..963429	+	177	152994903	-	Mmwyl1_0871	-	PEBP family protein
861	 42.25	0	963453..964226	+	257	152994904	-	Mmwyl1_0872	-	helix-turn-helix domain-containing protein
862	 46.02	0	964241..965383	-	380	152994905	-	Mmwyl1_0873	-	ABC-2 type transporter
863	 46.71	+1	965373..966314	-	313	152994906	-	Mmwyl1_0874	-	ABC transporter related
864	 48.84	+1	966311..967258	-	315	152994907	-	Mmwyl1_0875	-	secretion protein HlyD family protein
865	 41.85	0	967255..967935	-	226	152994908	-	Mmwyl1_0876	-	TetR family transcriptional regulator
866	 44.55	0	968144..969766	-	540	152994909	-	Mmwyl1_0877	-	methyl-accepting chemotaxis sensory transducer
867	 45.56	0	969920..970753	+	277	152994910	-	Mmwyl1_0878	-	short-chain dehydrogenase/reductase SDR
868	 43.08	0	970779..971783	-	334	152994911	-	Mmwyl1_0879	-	hypothetical protein
869	 42.01	0	971802..972089	-	95	152994912	-	Mmwyl1_0880	-	hypothetical protein
870	 42.13	0	972262..973239	+	325	152994913	-	Mmwyl1_0881	-	periplasmic binding protein/LacI transcriptional regulator
871	 45.04	0	973408..974646	+	412	152994914	-	Mmwyl1_0882	-	extracellular solute-binding protein
872	 46.41	+1	974744..975661	+	305	152994915	-	Mmwyl1_0883	-	binding-protein-dependent transport systems inner membrane component
873	 44.52	0	975671..976564	+	297	152994916	-	Mmwyl1_0884	-	binding-protein-dependent transport systems inner membrane component
874	 42.09	0	976569..977642	+	357	152994917	-	Mmwyl1_0885	-	ABC transporter related
875	 42.09	0	977681..978445	+	254	152994918	-	Mmwyl1_0886	-	xylose isomerase domain-containing protein
876	 44.82	0	978442..979581	+	379	152994919	-	Mmwyl1_0887	-	oxidoreductase domain-containing protein
877	 48.77	+1	979591..980646	+	351	152994920	-	Mmwyl1_0888	-	xylose isomerase domain-containing protein
878	 47.58	+1	980651..981787	+	378	152994921	-	Mmwyl1_0889	-	oxidoreductase domain-containing protein
879	 41.44	0	981906..982127	+	73	152994922	-	Mmwyl1_0890	-	hypothetical protein
880	 39.84	0	982124..983122	-	332	152994923	-	Mmwyl1_0891	-	diguanylate cyclase
881	 37.14	-1	983180..984151	-	323	152994924	-	Mmwyl1_0892	-	diguanylate cyclase
882	 42.98	0	984315..984791	-	158	152994925	-	Mmwyl1_0893	-	hypothetical protein
883	 41.80	0	984959..985336	+	125	152994926	-	Mmwyl1_0894	-	membrane protein-like protein
884	 40.42	0	985416..986276	-	286	152994927	-	Mmwyl1_0895	-	hypothetical protein
885	 42.57	0	986465..987871	+	468	152994928	-	Mmwyl1_0896	-	amidohydrolase
886	 47.10	+1	988059..989402	+	447	152994929	-	Mmwyl1_0897	-	beta-lactamase domain-containing protein
887	 47.12	+1	989435..990457	-	340	152994930	-	Mmwyl1_0898	-	lysine 2,3-aminomutase YodO family protein
888	 46.70	+1	990672..991247	+	191	152994931	-	Mmwyl1_0899	-	translation elongation factor P
889	 42.08	0	991342..992244	-	300	152994932	-	Mmwyl1_0900	-	LysR family transcriptional regulator
890	 42.11	0	992370..992927	+	185	152994933	-	Mmwyl1_0901	-	hypothetical protein
891	 41.18	0	992927..993181	+	84	152994934	-	Mmwyl1_0902	-	hypothetical protein
892	 38.93	-1	993527..993973	+	148	152994935	-	Mmwyl1_0904	-	GCN5-related N-acetyltransferase
893	 44.05	0	994083..995360	-	425	152994936	-	Mmwyl1_0905	-	6-aminohexanoate-dimer hydrolase
894	 38.73	-1	995466..996632	-	388	152994937	-	Mmwyl1_0906	-	regulatory protein LuxR
895	 44.14	0	996988..997431	-	147	152994938	-	Mmwyl1_0907	-	DoxX family protein
896	 46.78	+1	997757..998485	+	242	152994939	-	Mmwyl1_0908	-	short-chain dehydrogenase/reductase SDR
897	 47.13	+1	998558..999550	-	330	152994940	-	Mmwyl1_0909	-	alcohol dehydrogenase
898	 44.35	0	999663..1001087	-	474	152994941	-	Mmwyl1_0910	-	GntR family transcriptional regulator
899	 43.53	0	1001324..1002235	+	303	152994942	-	Mmwyl1_0911	-	hypothetical protein
900	 43.46	0	1002211..1002852	+	213	152994943	-	Mmwyl1_0912	-	lysine exporter protein LysE/YggA
901	 44.55	0	1002913..1003875	+	320	152994944	-	Mmwyl1_0913	-	lysyl-tRNA synthetase-related protein GenX
902	 43.22	0	1003932..1006247	+	771	152994945	-	Mmwyl1_0914	-	multi-sensor signal transduction histidine kinase
903	 45.25	0	1006247..1007605	+	452	152994946	-	Mmwyl1_0915	-	two component, sigma54 specific, Fis family transcriptional regulator
904	 46.34	0	1007698..1009458	-	586	152994947	-	Mmwyl1_0916	-	gamma-glutamyltransferase
905	 45.48	0	1009681..1011294	-	537	152994948	-	Mmwyl1_0917	-	TRAP dicarboxylate transporter, DctM subunit
906	 42.77	0	1011311..1011988	-	225	152994949	-	Mmwyl1_0918	-	tripartite ATP-independent periplasmic transporter DctQ
907	 42.30	0	1012152..1013144	-	330	152994950	-	Mmwyl1_0919	-	TRAP dicarboxylate transporter, DctP subunit
908	 43.30	0	1013404..1015509	-	701	152994951	-	Mmwyl1_0920	-	protein of unknown function DUF699 ATPase putative
909	 41.54	0	1015647..1017680	-	677	152994952	-	Mmwyl1_0921	-	methyl-accepting chemotaxis sensory transducer
910	 40.89	0	1017919..1019943	-	674	152994953	-	Mmwyl1_0922	-	methyl-accepting chemotaxis sensory transducer
911	 48.39	+1	1020203..1021690	-	495	152994954	-	Mmwyl1_0923	-	2-methylcitrate dehydratase
912	 48.95	+1	1021728..1022867	-	379	152994955	-	Mmwyl1_0924	-	2-methylcitrate synthase/citrate synthase II
913	 47.90	+1	1022937..1023815	-	292	152994956	-	Mmwyl1_0925	-	2-methylisocitrate lyase
914	 48.26	+1	1023844..1024533	-	229	152994957	-	Mmwyl1_0926	-	GntR family transcriptional regulator
915	 38.31	-1	1024862..1025122	+	86	152994958	-	Mmwyl1_0927	-	hypothetical protein
916	 42.98	0	1025163..1025639	-	158	152994959	-	Mmwyl1_0928	-	AsnC family transcriptional regulator
917	 41.48	0	1025718..1026503	+	261	152994960	-	Mmwyl1_0929	-	hypothetical protein
918	 43.25	0	1026544..1027269	-	241	152994961	-	Mmwyl1_0930	-	oxidoreductase, short-chain dehydrogenase/reductase family protein
919	 45.29	0	1027308..1027700	-	130	152994962	-	Mmwyl1_0931	-	putative thiol-disulphide oxidoreductase DCC
920	 40.77	0	1027781..1028224	-	147	152994963	-	Mmwyl1_0932	-	hypothetical protein
921	 42.99	0	1028572..1029948	+	458	152994964	-	Mmwyl1_0933	-	glycyl-tRNA synthetase
922	 43.09	0	1030113..1032080	-	655	152994965	-	Mmwyl1_0934	-	putative outer membrane receptor
923	 38.93	-1	1032337..1033230	+	297	152994966	-	Mmwyl1_0935	-	LysR family transcriptional regulator
924	 43.47	0	1033269..1034363	-	364	152994967	-	Mmwyl1_0936	-	Zn-dependent hydrolase of the beta-lactamase fold
925	 42.37	0	1034534..1035031	+	165	152994968	-	Mmwyl1_0937	-	GCN5-related N-acetyltransferase
926	 43.10	0	1035275..1035745	-	156	152994969	-	Mmwyl1_0938	-	hypothetical protein
927	 43.48	0	1035846..1036121	-	91	152994970	-	Mmwyl1_0939	-	hypothetical protein
928	 41.30	0	1036174..1037127	+	317	152994971	-	Mmwyl1_0940	-	LysR family transcriptional regulator
929	 41.41	0	1037203..1037895	+	230	152994972	-	Mmwyl1_0941	-	helix-turn-helix type 11 domain-containing protein
930	 40.92	0	1038012..1038446	+	144	152994973	-	Mmwyl1_0942	-	glutathione-dependent formaldehyde-activating GFA
931	 45.73	0	1038618..1039964	-	448	152994974	-	Mmwyl1_0943	-	Na+ antiporter NhaC
932	 46.20	0	1040345..1040857	+	170	152994975	-	Mmwyl1_0944	-	GCN5-related N-acetyltransferase
933	 43.72	0	1040874..1041653	-	259	152994976	-	Mmwyl1_0945	-	hypothetical protein
934	 45.90	0	1041889..1042779	+	296	152994977	-	Mmwyl1_0946	-	LysR family transcriptional regulator
935	 34.17	-2	1042871..1043704	-	277	152994978	-	Mmwyl1_0947	-	hypothetical protein
936	 45.56	0	1044486..1045769	+	427	152994979	-	Mmwyl1_0948	-	branched-chain amino acid ABC transporter, putative
937	 45.53	0	1045918..1047540	+	540	152994980	-	Mmwyl1_0949	-	inner-membrane translocator
938	 47.27	+1	1047537..1048670	+	377	152994981	-	Mmwyl1_0950	-	inner-membrane translocator
939	 47.65	+1	1048667..1049518	+	283	152994982	-	Mmwyl1_0951	-	ABC transporter related
940	 45.76	0	1049515..1050222	+	235	152994983	-	Mmwyl1_0952	-	ABC transporter related
941	 45.69	0	1050276..1051214	+	312	152994984	-	Mmwyl1_0953	-	urease accessory protein UreD
43.05	MEAN

3.35	STD DEV
