IslandPathversion 1.0

IslandPath Analysis: Marinomonas sp. MWYL1

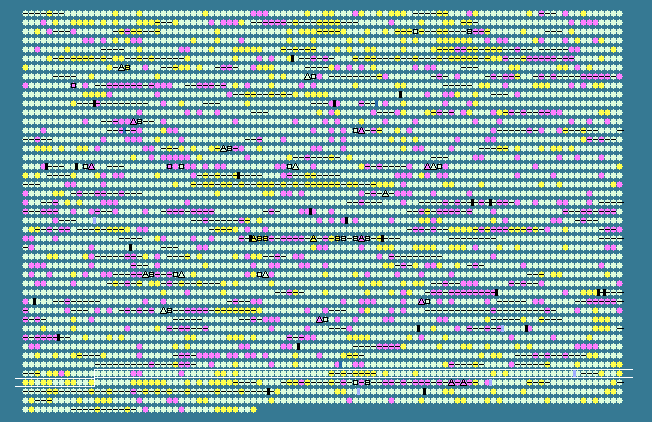

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.05 STD DEV: 3.35
Marinomonas sp. MWYL1, complete genome - 1..5100344
4439 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
4013	 42.42	0	4589850..4590575	-	241	152998056	-	Mmwyl1_4060	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
4014	 42.57	0	4590639..4592945	-	768	152998057	-	Mmwyl1_4061	-	diguanylate cyclase/phosphodiesterase
4015	 44.00	0	4593061..4594044	-	327	152998058	-	Mmwyl1_4062	-	putative SAM-dependent methyltransferase
4016	 42.55	0	4594155..4595087	-	310	152998059	-	Mmwyl1_4063	-	LysR family transcriptional regulator
4017	 43.06	0	4595199..4596164	+	321	152998060	-	Mmwyl1_4064	-	hypothetical protein
4018	 42.45	0	4596189..4596539	-	116	152998061	-	Mmwyl1_4065	-	hypothetical protein
4019	 38.55	-1	4596626..4598179	-	517	152998062	-	Mmwyl1_4066	-	diguanylate phosphodiesterase
4020	 39.13	-1	4598426..4598977	-	183	152998063	-	Mmwyl1_4067	-	putative lipoprotein
4021	 40.05	0	4599014..4599742	-	242	152998064	-	Mmwyl1_4068	-	hypothetical protein
4022	 41.09	0	4599768..4600283	-	171	152998065	-	Mmwyl1_4069	-	hypothetical protein
4023	 42.55	0	4600298..4601566	-	422	152998066	-	Mmwyl1_4070	-	cyclopropane-fatty-acyl-phospholipid synthase
4024	 41.73	0	4601606..4602391	-	261	152998067	-	Mmwyl1_4071	-	hypothetical protein
4025	 44.60	0	4602385..4603635	-	416	152998068	-	Mmwyl1_4072	-	amine oxidase
4026	 43.48	0	4603701..4604459	-	252	152998069	-	Mmwyl1_4073	-	short-chain dehydrogenase/reductase SDR
4027	 38.22	-1	4604470..4604919	-	149	152998070	-	Mmwyl1_4074	-	hypothetical protein
4028	 44.44	0	4605180..4605755	+	191	152998071	-	Mmwyl1_4075	-	ECF subfamily RNA polymerase sigma-24 factor
4029	 42.67	0	4605761..4606456	+	231	152998072	-	Mmwyl1_4076	-	anti-ECFsigma factor, ChrR
4030	 40.00	0	4606952..4607161	+	69	152998073	-	Mmwyl1_4077	-	hypothetical protein
4031	 44.37	0	4607372..4609084	+	570	152998074	-	Mmwyl1_4078	-	phospholipid/glycerol acyltransferase
4032	 42.16	0	4609635..4609940	+	101	152998075	-	Mmwyl1_4079	-	glycoside hydrolase family 13 protein
4033	 49.25	+1	4610249..4611706	+	485	152998076	-	Mmwyl1_4080	-	betaine aldehyde dehydrogenase
4034	 48.54	+1	4611768..4613450	+	560	152998077	-	Mmwyl1_4081	-	choline dehydrogenase
4035	 44.65	0	4613531..4615465	-	644	152998078	-	Mmwyl1_4082	-	5'-nucleotidase domain-containing protein
4036	 47.05	+1	4615908..4616585	-	225	152998079	-	Mmwyl1_4083	-	hypothetical protein
4037	 42.66	0	4616696..4617274	+	192	152998080	-	Mmwyl1_4084	-	heat shock protein DnaJ domain-containing protein
4038	 45.71	0	4617418..4618605	+	395	152998081	-	Mmwyl1_4085	-	MltA domain-containing protein
4039	 44.82	0	4618720..4619607	-	295	152998082	-	Mmwyl1_4086	-	TonB family protein
4040	 42.36	0	4619604..4620035	-	143	152998083	-	Mmwyl1_4087	-	biopolymer transport protein ExbD/TolR
4041	 42.55	0	4620032..4620454	-	140	152998084	-	Mmwyl1_4088	-	biopolymer transport protein ExbD/TolR
4042	 43.04	0	4620444..4621154	-	236	152998085	-	Mmwyl1_4089	-	MotA/TolQ/ExbB proton channel
4043	 41.72	0	4621321..4622274	-	317	152998086	-	Mmwyl1_4090	-	magnesium and cobalt transport protein CorA
4044	 41.67	0	4622583..4623326	-	247	152998087	-	Mmwyl1_4091	-	ABC transporter related
4045	 43.88	0	4623339..4624457	-	372	152998088	-	Mmwyl1_4092	-	polar amino acid ABC transporter, inner membrane subunit
4046	 41.63	0	4624459..4625664	-	401	152998089	-	Mmwyl1_4093	-	binding-protein-dependent transport systems inner membrane component
4047	 44.71	0	4625689..4626708	-	339	152998090	-	Mmwyl1_4094	-	extracellular solute-binding protein
4048	 43.01	0	4626980..4627651	-	223	152998091	-	Mmwyl1_4095	-	GntR family transcriptional regulator
4049	 44.33	0	4627825..4629006	+	393	152998092	-	Mmwyl1_4096	-	isoaspartyl dipeptidase
4050	 42.91	0	4629419..4630003	-	194	152998093	-	Mmwyl1_4097	-	lysine exporter protein LysE/YggA
4051	 45.08	0	4630077..4630919	-	280	152998094	-	Mmwyl1_4098	-	AraC family transcriptional regulator
4052	 47.33	+1	4631006..4632334	-	442	152998095	-	Mmwyl1_4099	-	MATE efflux family protein
4053	 46.10	0	4632435..4633679	-	414	152998096	-	Mmwyl1_4100	-	Bcr/CflA subfamily drug resistance transporter
4054	 47.02	+1	4633743..4635101	-	452	152998097	-	Mmwyl1_4101	-	amidohydrolase
4055	 43.52	0	4635671..4636681	+	336	152998098	-	Mmwyl1_4102	-	NMT1/THI5-like domain-containing protein
4056	 48.05	+1	4636814..4637764	+	316	152998099	-	Mmwyl1_4103	-	LysR family transcriptional regulator
4057	 50.70	+2	4637851..4639359	-	502	152998100	-	Mmwyl1_4104	-	aldehyde dehydrogenase
4058	 49.06	+1	4639530..4641290	-	586	152998101	-	Mmwyl1_4105	-	dihydroxy-acid dehydratase
4059	 49.42	+1	4641287..4642057	-	256	152998102	-	Mmwyl1_4106	-	short-chain dehydrogenase/reductase SDR
4060	 45.97	0	4642054..4643034	-	326	152998103	-	Mmwyl1_4107	-	hypothetical protein
4061	 46.67	+1	4643058..4644257	-	399	152998104	-	Mmwyl1_4108	-	monosaccharide-transporting ATPase
4062	 45.68	0	4644271..4645809	-	512	152998105	-	Mmwyl1_4109	-	ABC transporter related
4063	 44.73	0	4645935..4646996	-	353	152998106	-	Mmwyl1_4110	-	monosaccharide-transporting ATPase
4064	 43.29	0	4647286..4648872	+	528	152998107	-	Mmwyl1_4111	-	sodium/hydrogen exchanger
4065	 43.86	0	4648965..4649135	-	56	152998108	-	Mmwyl1_4112	-	hypothetical protein
4066	 46.98	+1	4649299..4650720	-	473	152998109	-	Mmwyl1_4113	-	glutamate synthase, small subunit
4067	 45.62	0	4650839..4655224	-	1461	152998110	-	Mmwyl1_4114	-	glutamate synthase subunit alpha
4068	 44.57	0	4655807..4657372	-	521	152998111	-	Mmwyl1_4115	-	sporulation domain-containing protein
4069	 43.72	0	4657405..4658511	-	368	152998112	-	Mmwyl1_4116	-	3-dehydroquinate synthase
4070	 44.26	0	4658511..4659059	-	182	152998113	-	Mmwyl1_4117	-	shikimate kinase
4071	 43.06	0	4659102..4660283	-	393	152998114	-	Mmwyl1_4118	-	type II and III secretion system protein
4072	 41.35	0	4660276..4660986	-	236	152998115	-	Mmwyl1_4119	-	hypothetical protein
4073	 41.87	0	4660958..4661929	-	323	152998116	-	Mmwyl1_4120	-	hypothetical protein
4074	 44.46	0	4662090..4664534	+	814	152998117	-	Mmwyl1_4121	-	1A family penicillin-binding protein
4075	 43.67	0	4664626..4665186	-	186	152998118	-	Mmwyl1_4122	-	hypothetical protein
4076	 44.92	0	4665298..4666566	-	422	152998119	-	Mmwyl1_4123	-	malate dehydrogenase
4077	 42.53	0	4666737..4667519	-	260	152998120	-	Mmwyl1_4124	-	nuclease
4078	 41.67	0	4667528..4667743	-	71	152998121	-	Mmwyl1_4125	-	ribosomal protein L31
4079	 47.63	+1	4668009..4670240	+	743	152998122	-	Mmwyl1_4126	-	primosomal protein N'
4080	 45.19	0	4670317..4670940	+	207	152998123	-	Mmwyl1_4127	-	sporulation domain-containing protein
4081	 46.74	+1	4671060..4671611	+	183	152998124	-	Mmwyl1_4128	-	ATP-dependent protease peptidase subunit
4082	 45.50	0	4671698..4673020	+	440	152998125	-	Mmwyl1_4129	-	ATP-dependent protease ATP-binding subunit
4083	 45.83	0	4673076..4673459	+	127	152998126	-	Mmwyl1_4130	-	hypothetical protein
4084	 44.77	0	4673497..4674117	+	206	152998127	-	Mmwyl1_4131	-	hypothetical protein
4085	 42.76	0	4674139..4675008	-	289	152998128	-	Mmwyl1_4132	-	hypothetical protein
4086	 44.65	0	4675079..4676059	-	326	152998129	-	Mmwyl1_4133	-	asparaginase
4087	 45.16	0	4676173..4677906	-	577	152998130	-	Mmwyl1_4134	-	arginyl-tRNA synthetase
4088	 45.15	0	4678041..4679546	-	501	152998131	-	Mmwyl1_4135	-	threonine dehydratase, biosynthetic
4089	 43.90	0	4679844..4680515	+	223	152998132	-	Mmwyl1_4136	-	ribose 5-phosphate isomerase
4090	 44.79	0	4680544..4681512	-	322	152998133	-	Mmwyl1_4137	-	Mg2 transporter protein CorA family protein
4091	 44.79	0	4681660..4682619	+	319	152998134	-	Mmwyl1_4138	-	inositol phosphatase/fructose-16-bisphosphatase
4092	 45.06	0	4682721..4683317	-	198	152998135	-	Mmwyl1_4139	-	flavoprotein WrbA
4093	 45.05	0	4689278..4690054	-	258	152998136	-	Mmwyl1_4140	-	sugar fermentation stimulation protein
4094	 42.17	0	4690178..4691014	+	278	152998137	-	Mmwyl1_4141	-	helix-turn-helix domain-containing protein
4095	 45.60	0	4691061..4691696	+	211	152998138	-	Mmwyl1_4142	-	lysine exporter protein LysE/YggA
4096	 43.57	0	4691857..4692813	+	318	152998139	-	Mmwyl1_4143	-	LysR family transcriptional regulator
4097	 47.33	+1	4693131..4694345	+	404	152998140	-	Mmwyl1_4144	-	major facilitator transporter
4098	 39.76	0	4694835..4696001	+	388	152998141	-	Mmwyl1_4145	-	ATPase central domain-containing protein
4099	 41.55	0	4696001..4698190	+	729	152998142	-	Mmwyl1_4146	-	peptidase S8 and S53 subtilisin kexin sedolisin
4100	 47.02	+1	4698446..4700023	-	525	152998143	-	Mmwyl1_4147	-	bifunctional GMP synthase/glutamine amidotransferase protein
4101	 46.56	+1	4700152..4701618	-	488	152998144	-	Mmwyl1_4148	-	inosine-5'-monophosphate dehydrogenase
4102	 47.87	+1	4701712..4703052	+	446	152998145	-	Mmwyl1_4149	-	exodeoxyribonuclease VII, large subunit
4103	 45.45	0	4703335..4704630	+	431	152998146	-	Mmwyl1_4150	-	major facilitator transporter
4104	 46.74	+1	4704705..4705487	-	260	152998147	-	Mmwyl1_4151	-	hypothetical protein
4105	 48.08	+1	4705584..4706987	-	467	152998148	-	Mmwyl1_4152	-	hypothetical protein
4106	 46.33	0	4707095..4707994	+	299	152998149	-	Mmwyl1_4153	-	LysR family transcriptional regulator
4107	 42.20	0	4708059..4709987	-	642	152998150	-	Mmwyl1_4154	-	methyl-accepting chemotaxis sensory transducer
4108	 47.95	+1	4710146..4711513	-	455	152998151	-	Mmwyl1_4155	-	two component, sigma54 specific, Fis family transcriptional regulator
4109	 48.37	+1	4711500..4713401	-	633	152998152	-	Mmwyl1_4156	-	integral membrane sensor signal transduction histidine kinase
4110	 45.54	0	4713748..4715172	+	474	152998153	-	Mmwyl1_4157	-	cytochrome bd ubiquinol oxidase subunit I
4111	 46.35	0	4715169..4716182	+	337	152998154	-	Mmwyl1_4158	-	cytochrome d ubiquinol oxidase, subunit II
4112	 46.77	+1	4716417..4718366	-	649	152998155	-	Mmwyl1_4159	-	TRAP transporter, 4TM/12TM fusion protein
43.05	MEAN

3.35	STD DEV
