IslandPath Analysis: Marinomonas sp. MWYL1

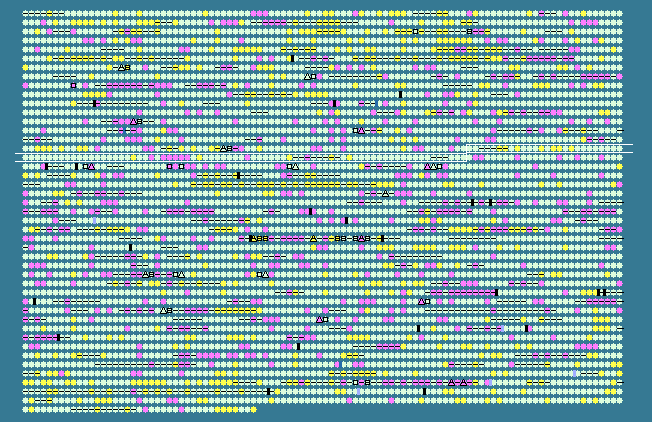

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.05 STD DEV: 3.35
Marinomonas sp. MWYL1, complete genome - 1..5100344
4439 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1575	 44.17	0	1778303..1779262	-	319	152995618	-	Mmwyl1_1590	-	periplasmic binding protein/LacI transcriptional regulator
1576	 44.56	0	1779733..1780890	+	385	152995619	-	Mmwyl1_1591	-	monosaccharide-transporting ATPase
1577	 44.36	0	1780944..1781741	+	265	152995620	-	Mmwyl1_1592	-	ABC transporter related
1578	 44.73	0	1781753..1782919	+	388	152995621	-	Mmwyl1_1593	-	oxidoreductase domain-containing protein
1579	 46.20	0	1782916..1784874	+	652	152995622	-	Mmwyl1_1594	-	ribokinase-like domain-containing protein
1580	 47.61	+1	1784874..1786736	+	620	152995623	-	Mmwyl1_1595	-	thiamine pyrophosphate protein central region
1581	 46.73	+1	1786810..1787742	+	310	152995624	-	Mmwyl1_1596	-	xylose isomerase domain-containing protein
1582	 46.48	+1	1787796..1789316	+	506	152995625	-	Mmwyl1_1597	-	methylmalonate-semialdehyde dehydrogenase
1583	 47.55	+1	1789337..1790152	+	271	152995626	-	Mmwyl1_1598	-	myo-inositol catabolism IolB domain-containing protein
1584	 46.15	0	1790309..1791307	+	332	152995627	-	Mmwyl1_1599	-	oxidoreductase domain-containing protein
1585	 40.97	0	1791385..1792458	-	357	152995628	-	Mmwyl1_1600	-	hypothetical protein
1586	 42.27	0	1792598..1793011	-	137	152995629	-	Mmwyl1_1601	-	thioesterase superfamily protein
1587	 48.97	+1	1793113..1794135	-	340	152995630	-	Mmwyl1_1602	-	periplasmic binding protein/LacI transcriptional regulator
1588	 45.28	0	1794132..1794767	-	211	152995631	-	Mmwyl1_1603	-	dual specificity protein phosphatase
1589	 47.42	+1	1794826..1795698	-	290	152995632	-	Mmwyl1_1604	-	inositol-phosphate phosphatase
1590	 47.01	+1	1795794..1796912	-	372	152995633	-	Mmwyl1_1605	-	ABC transporter periplasmic solute-binding protein
1591	 45.74	0	1796937..1798121	-	394	152995634	-	Mmwyl1_1606	-	ABC transporter related
1592	 47.65	+1	1798123..1799952	-	609	152995635	-	Mmwyl1_1607	-	binding-protein-dependent transport systems inner membrane component
1593	 41.67	0	1800137..1800736	+	199	152995636	-	Mmwyl1_1608	-	pentapeptide repeat-containing protein
1594	 44.63	0	1800770..1801309	+	179	152995637	-	Mmwyl1_1609	-	isochorismatase hydrolase
1595	 43.16	0	1801420..1801704	+	94	152995638	-	Mmwyl1_1610	-	hypothetical protein
1596	 46.19	0	1801804..1804215	+	803	152995639	-	Mmwyl1_1611	-	zinc/cadmium/mercury/lead-transporting ATPase
1597	 43.14	0	1804580..1805884	+	434	152995640	-	Mmwyl1_1612	-	L-fucose transporter
1598	 42.00	0	1806043..1806942	+	299	152995641	-	Mmwyl1_1613	-	cupin 2 domain-containing protein
1599	 42.46	0	1807062..1808408	+	448	152995642	-	Mmwyl1_1614	-	sugar (glycoside-Pentoside-hexuronide) transporter
1600	 43.96	0	1808481..1810052	+	523	152995643	-	Mmwyl1_1615	-	glycoside hydrolase family 3 protein
1601	 39.86	0	1810354..1810767	+	137	152995644	-	Mmwyl1_1616	-	GreA/GreB family elongation factor
1602	 41.44	0	1810861..1814871	-	1336	152995645	-	Mmwyl1_1617	-	amino acid adenylation domain-containing protein
1603	 41.73	0	1815044..1816282	-	412	152995646	-	Mmwyl1_1618	-	major facilitator transporter
1604	 39.76	0	1816362..1817201	-	279	152995647	-	Mmwyl1_1619	-	ABC transporter related
1605	 43.02	0	1817205..1818257	-	350	152995648	-	Mmwyl1_1620	-	transport system permease protein
1606	 42.77	0	1818786..1819961	+	391	152995649	-	Mmwyl1_1621	-	isochorismate synthase
1607	 42.26	0	1820406..1821290	+	294	152995650	-	Mmwyl1_1623	-	isochorismatase
1608	 42.16	0	1821287..1822045	+	252	152995651	-	Mmwyl1_1624	-	2,3-dihydroxybenzoate-2,3-dehydrogenase
1609	 42.44	0	1822666..1824906	-	746	152995652	-	Mmwyl1_1625	-	TonB-dependent siderophore receptor
1610	 40.45	0	1825001..1825969	-	322	152995653	-	Mmwyl1_1626	-	periplasmic binding protein
1611	 42.13	0	1825980..1826741	-	253	152995654	-	Mmwyl1_1627	-	ABC transporter related
1612	 40.69	0	1826738..1827688	-	316	152995655	-	Mmwyl1_1628	-	transport system permease protein
1613	 43.84	0	1827685..1828626	-	313	152995656	-	Mmwyl1_1629	-	transport system permease protein
1614	 41.93	0	1828744..1830081	-	445	152995657	-	Mmwyl1_1630	-	L-lysine 6-monooxygenase (NADPH)
1615	 41.71	0	1830115..1833051	-	978	152995658	-	Mmwyl1_1631	-	non-ribosomal peptide synthetase
1616	 43.03	0	1833236..1834843	+	535	152995659	-	Mmwyl1_1632	-	enterobactin synthase subunit E
1617	 42.67	0	1834881..1835780	+	299	152995660	-	Mmwyl1_1633	-	isochorismatase
1618	 41.48	0	1835844..1837709	+	621	152995661	-	Mmwyl1_1634	-	AMP-dependent synthetase and ligase
1619	 47.52	+1	1837781..1839373	-	530	152995662	-	Mmwyl1_1635	-	ABC transporter related
1620	 45.56	0	1839370..1840980	-	536	152995663	-	Mmwyl1_1636	-	ABC transporter related
1621	 41.58	0	1841045..1842196	-	383	152995664	-	Mmwyl1_1637	-	histidine decarboxylase
1622	 39.45	-1	1842604..1844760	+	718	152995665	-	Mmwyl1_1638	-	condensation domain-containing protein
1623	 42.60	0	1844873..1846339	-	488	152995666	-	Mmwyl1_1639	-	hypothetical protein
1624	 37.70	-1	1847006..1847554	-	182	152995667	-	Mmwyl1_1641	-	hypothetical protein
1625	 39.56	-1	1847648..1848868	+	406	152995668	-	Mmwyl1_1642	-	hypothetical protein
1626	 38.87	-1	1848924..1849700	+	258	152995669	-	Mmwyl1_1643	-	hypothetical protein
1627	 34.94	-2	1849733..1852102	+	789	152995670	-	Mmwyl1_1644	-	PAS/PAC sensor hybrid histidine kinase
1628	 38.62	-1	1852108..1853034	+	308	152995671	-	Mmwyl1_1645	-	response regulator receiver modulated diguanylate cyclase
1629	 43.27	0	1853075..1854403	+	442	152995672	-	Mmwyl1_1646	-	hypothetical protein
1630	 47.35	+1	1854501..1855256	-	251	152995673	-	Mmwyl1_1647	-	GntR family transcriptional regulator
1631	 44.53	0	1855327..1856442	-	371	152995674	-	Mmwyl1_1648	-	ABC transporter related
1632	 44.56	0	1856477..1857340	-	287	152995675	-	Mmwyl1_1649	-	binding-protein-dependent transport systems inner membrane component
1633	 41.88	0	1857351..1858286	-	311	152995676	-	Mmwyl1_1650	-	binding-protein-dependent transport systems inner membrane component
1634	 43.85	0	1858372..1859655	-	427	152995677	-	Mmwyl1_1651	-	extracellular solute-binding protein
1635	 44.32	0	1859879..1860679	+	266	152995678	-	Mmwyl1_1652	-	glucosamine-6-phosphate isomerase
1636	 45.24	0	1860676..1861557	+	293	152995679	-	Mmwyl1_1653	-	ATPase BadF/BadG/BcrA/BcrD type
1637	 43.62	0	1861554..1862720	+	388	152995680	-	Mmwyl1_1654	-	N-acetylglucosamine-6-phosphate deacetylase
1638	 39.52	-1	1862928..1863137	+	69	152995681	-	Mmwyl1_1655	-	cold-shock DNA-binding domain-containing protein
1639	 42.28	0	1863426..1863995	+	189	152995682	-	Mmwyl1_1656	-	beta-Ig-H3/fasciclin
1640	 41.99	0	1864108..1865031	-	307	152995683	-	Mmwyl1_1657	-	hypothetical protein
1641	 45.75	0	1865129..1866046	+	305	152995684	-	Mmwyl1_1658	-	LysR family transcriptional regulator
1642	 44.06	0	1866033..1866815	-	260	152995685	-	Mmwyl1_1659	-	methionine aminopeptidase, type I
1643	 42.67	0	1866817..1867041	-	74	152995686	-	Mmwyl1_1660	-	hypothetical protein
1644	 45.67	0	1867109..1867894	-	261	152995687	-	Mmwyl1_1661	-	tryptophan synthase, alpha subunit
1645	 46.86	+1	1867891..1869147	-	418	152995688	-	Mmwyl1_1662	-	tryptophan synthase subunit beta
1646	 44.44	0	1869377..1869961	+	194	152995689	-	Mmwyl1_1663	-	TetR family transcriptional regulator
1647	 42.35	0	1870011..1871252	-	413	152995690	-	Mmwyl1_1664	-	Bcr/CflA subfamily drug resistance transporter
1648	 35.06	-2	1871616..1872137	+	173	152995691	-	Mmwyl1_1665	-	GCN5-related N-acetyltransferase
1649	 42.68	0	1872223..1873527	+	434	152995692	-	Mmwyl1_1666	-	hypothetical protein
1650	 46.20	0	1873520..1874467	+	315	152995693	-	Mmwyl1_1667	-	formyl transferase domain-containing protein
1651	 46.19	0	1874511..1875101	+	196	152995694	-	Mmwyl1_1668	-	phage tail collar domain-containing protein
1652	 46.86	+1	1875178..1875798	+	206	152995695	-	Mmwyl1_1669	-	phage tail collar domain-containing protein
1653	 45.73	0	1876176..1877756	+	526	152995696	-	Mmwyl1_1670	-	outer membrane efflux protein
1654	 46.50	+1	1877756..1878484	+	242	152995697	-	Mmwyl1_1671	-	AcrA-like protein
1655	 47.88	+1	1878593..1888768	+	3391	152995698	-	Mmwyl1_1672	-	beta strand repeat-containing protein
1656	 42.73	0	1888772..1890112	+	446	152995699	-	Mmwyl1_1673	-	hypothetical protein
1657	 40.53	0	1890113..1892224	+	703	152995700	-	Mmwyl1_1674	-	peptidase M50
1658	 40.61	0	1892270..1893094	+	274	152995701	-	Mmwyl1_1675	-	hypothetical protein
1659	 42.06	0	1893084..1893587	+	167	152995702	-	Mmwyl1_1676	-	hypothetical protein
1660	 44.39	0	1893902..1895203	-	433	152995703	-	Mmwyl1_1677	-	guanine deaminase
1661	 43.25	0	1895292..1895654	-	120	152995704	-	Mmwyl1_1678	-	hypothetical protein
1662	 43.89	0	1895651..1896967	-	438	152995705	-	Mmwyl1_1679	-	DEAD/DEAH box helicase domain-containing protein
1663	 39.76	0	1897210..1899543	+	777	152995706	-	Mmwyl1_1680	-	diguanylate cyclase/phosphodiesterase
1664	 41.35	0	1899605..1900540	-	311	152995707	-	Mmwyl1_1681	-	LysR family transcriptional regulator
1665	 44.21	0	1900593..1901603	-	336	152995708	-	Mmwyl1_1682	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
1666	 44.64	0	1901603..1902601	-	332	152995709	-	Mmwyl1_1683	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
1667	 43.13	0	1902659..1903597	-	312	152995710	-	Mmwyl1_1684	-	binding-protein-dependent transport systems inner membrane component
1668	 41.49	0	1903594..1904574	-	326	152995711	-	Mmwyl1_1685	-	binding-protein-dependent transport systems inner membrane component
1669	 40.52	0	1904650..1906194	-	514	152995712	-	Mmwyl1_1686	-	extracellular solute-binding protein
1670	 41.83	0	1906369..1906968	+	199	152995713	-	Mmwyl1_1687	-	hypothetical protein
1671	 44.15	0	1907248..1908273	+	341	152995714	-	Mmwyl1_1688	-	GTP-binding protein HSR1-related
1672	 39.90	0	1908288..1908668	+	126	152995715	-	Mmwyl1_1689	-	hypothetical protein
1673	 42.17	0	1908756..1909355	+	199	152995716	-	Mmwyl1_1690	-	hypothetical protein
1674	 41.95	0	1909562..1911916	+	784	152995717	-	Mmwyl1_1691	-	fatty acid cistrans isomerase
43.05	MEAN

3.35	STD DEV
