IslandPath Analysis: Marinomonas sp. MWYL1

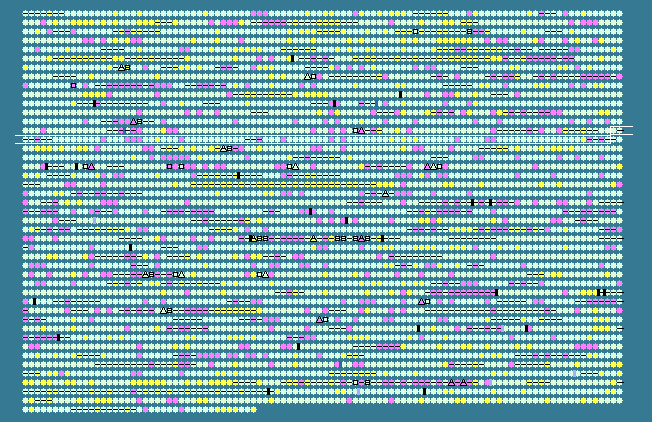

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.05 STD DEV: 3.35
Marinomonas sp. MWYL1, complete genome - 1..5100344
4439 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1399	 46.05	0	1584520..1585164	+	214	152995442	-	Mmwyl1_1413	-	cob(I)alamin adenosyltransferase
1400	 41.67	0	1585379..1585822	+	147	152995443	-	Mmwyl1_1414	-	hypothetical protein
1401	 39.92	0	1586064..1586579	+	171	152995444	-	Mmwyl1_1415	-	superoxide dismutase Ni-type
1402	 41.58	0	1586602..1586904	+	100	152995445	-	Mmwyl1_1416	-	putative phage repressor
1403	 38.65	-1	1587043..1587663	+	206	152995446	-	Mmwyl1_1417	-	hypothetical protein
1404	 42.61	0	1587828..1588883	-	351	152995447	-	Mmwyl1_1418	-	iron-containing alcohol dehydrogenase
1405	 42.76	0	1589141..1590445	-	434	152995448	-	Mmwyl1_1419	-	short chain fatty acid transporter
1406	 42.94	0	1590883..1591413	+	176	152995449	-	Mmwyl1_1420	-	GCN5-related N-acetyltransferase
1407	 42.46	0	1591444..1592133	+	229	152995450	-	Mmwyl1_1421	-	pseudouridine synthase
1408	 45.16	0	1592146..1592517	+	123	152995451	-	Mmwyl1_1422	-	hypothetical protein
1409	 42.86	0	1592712..1593341	+	209	152995452	-	Mmwyl1_1423	-	TetR family transcriptional regulator
1410	 43.16	0	1593348..1596806	-	1152	152995453	-	Mmwyl1_1424	-	multi-sensor hybrid histidine kinase
1411	 44.90	0	1597031..1597393	+	120	152995454	-	Mmwyl1_1425	-	DOPA 45-dioxygenase
1412	 43.97	0	1597435..1597857	+	140	152995455	-	Mmwyl1_1426	-	GCN5-related N-acetyltransferase
1413	 46.17	0	1598159..1598641	+	160	152995456	-	Mmwyl1_1427	-	peptidylprolyl isomerase FKBP-type
1414	 38.66	-1	1598855..1599643	+	262	152995457	-	Mmwyl1_1428	-	hypothetical protein
1415	 44.98	0	1599704..1600330	+	208	152995458	-	Mmwyl1_1429	-	uracil-DNA glycosylase superfamily protein
1416	 40.81	0	1600299..1600766	-	155	152995459	-	Mmwyl1_1430	-	GCN5-related N-acetyltransferase
1417	 39.90	0	1600926..1601732	+	268	152995460	-	Mmwyl1_1431	-	PhzF family phenazine biosynthesis protein
1418	 37.85	-1	1601801..1601977	+	58	152995461	-	Mmwyl1_1432	-	hypothetical protein
1419	 38.92	-1	1602075..1602593	+	172	152995462	-	Mmwyl1_1433	-	hypothetical protein
1420	 37.45	-1	1602780..1603022	-	80	152995463	-	Mmwyl1_1434	-	hypothetical protein
1421	 41.35	0	1603177..1603650	-	157	152995464	-	Mmwyl1_1435	-	AsnC family transcriptional regulator
1422	 45.06	0	1603803..1605038	+	411	152995465	-	Mmwyl1_1436	-	aminotransferase class V
1423	 47.03	+1	1605091..1605747	-	218	152995466	-	Mmwyl1_1437	-	cob(II)yrinic acid a,c-diamide reductase
1424	 44.51	0	1605839..1606366	-	175	152995467	-	Mmwyl1_1438	-	hypothetical protein
1425	 45.56	0	1606468..1608234	-	588	152995468	-	Mmwyl1_1439	-	Na+ symporter
1426	 43.68	0	1608240..1608500	-	86	152995469	-	Mmwyl1_1440	-	hypothetical protein
1427	 38.41	-1	1608864..1609316	+	150	152995470	-	Mmwyl1_1441	-	glyoxalase/bleomycin resistance protein/dioxygenase
1428	 42.14	0	1609442..1609918	+	158	152995471	-	Mmwyl1_1442	-	MOSC domain-containing protein
1429	 45.46	0	1609947..1611620	-	557	152995472	-	Mmwyl1_1443	-	aminotransferase class V
1430	 43.52	0	1611668..1612138	-	156	152995473	-	Mmwyl1_1444	-	AsnC family transcriptional regulator
1431	 44.52	0	1612450..1613316	+	288	152995474	-	Mmwyl1_1445	-	hypothetical protein
1432	 42.90	0	1613498..1614709	+	403	152995475	-	Mmwyl1_1446	-	cobalamin synthesis protein P47K
1433	 42.77	0	1614777..1617977	-	1066	152995476	-	Mmwyl1_1447	-	acriflavin resistance protein
1434	 43.87	0	1617977..1619143	-	388	152995477	-	Mmwyl1_1448	-	RND family efflux transporter MFP subunit
1435	 43.91	0	1619140..1620519	-	459	152995478	-	Mmwyl1_1449	-	RND efflux system outer membrane lipoprotein
1436	 44.55	0	1620681..1622195	-	504	152995479	-	Mmwyl1_1450	-	GntR family transcriptional regulator
1437	 43.02	0	1622576..1623184	+	202	152995480	-	Mmwyl1_1451	-	lysine exporter protein LysE/YggA
1438	 41.00	0	1623207..1623545	+	112	152995481	-	Mmwyl1_1452	-	excinuclease ABC subunit C
1439	 42.26	0	1623629..1624009	+	126	152995482	-	Mmwyl1_1453	-	glyoxalase/bleomycin resistance protein/dioxygenase
1440	 35.56	-2	1624141..1625265	+	374	152995483	-	Mmwyl1_1454	-	glycosyl transferase group 1
1441	 43.25	0	1625313..1627268	-	651	152995484	-	Mmwyl1_1455	-	ATP-dependent DNA helicase RecQ
1442	 40.97	0	1627265..1628272	-	335	152995485	-	Mmwyl1_1456	-	serine/threonine protein kinase
1443	 41.39	0	1628364..1629629	-	421	152995486	-	Mmwyl1_1457	-	response regulator receiver protein
1444	 39.17	-1	1629911..1631161	-	416	152995487	-	Mmwyl1_1458	-	response regulator receiver protein
1445	 39.63	-1	1631334..1631984	-	216	152995488	-	Mmwyl1_1459	-	hypothetical protein
1446	 42.87	0	1632376..1633980	+	534	152995489	-	Mmwyl1_1460	-	methyl-accepting chemotaxis sensory transducer
1447	 45.76	0	1634070..1635887	+	605	152995490	-	Mmwyl1_1461	-	lipid ABC transporter ATPase/inner membrane protein
1448	 43.04	0	1635884..1637923	-	679	152995491	-	Mmwyl1_1462	-	glycogen debranching enzyme GlgX
1449	 44.35	0	1637986..1640181	-	731	152995492	-	Mmwyl1_1463	-	1,4-alpha-glucan branching enzyme
1450	 43.67	0	1640208..1643333	-	1041	152995493	-	Mmwyl1_1464	-	phosphorylase kinase alphabeta
1451	 43.10	0	1643684..1645300	-	538	152995494	-	Mmwyl1_1465	-	methyl-accepting chemotaxis sensory transducer
1452	 38.85	-1	1645499..1645933	+	144	152995495	-	Mmwyl1_1466	-	hypothetical protein
1453	 41.32	0	1646001..1646714	+	237	152995496	-	Mmwyl1_1467	-	sporulation domain-containing protein
1454	 39.47	-1	1646814..1648166	-	450	152995497	-	Mmwyl1_1468	-	hypothetical protein
1455	 43.08	0	1648388..1649659	-	423	152995498	-	Mmwyl1_1469	-	TRAP dicarboxylate transporter, DctM subunit
1456	 41.67	0	1649659..1650222	-	187	152995499	-	Mmwyl1_1470	-	tripartite ATP-independent periplasmic transporter DctQ
1457	 40.10	0	1650292..1651281	-	329	152995500	-	Mmwyl1_1471	-	TRAP dicarboxylate transporter- DctP subunit
1458	 44.00	0	1651345..1652310	-	321	152995501	-	Mmwyl1_1472	-	pyruvate carboxyltransferase
1459	 45.63	0	1652320..1653555	-	411	152995502	-	Mmwyl1_1473	-	L-carnitine dehydratase/bile acid-inducible protein F
1460	 44.37	0	1653677..1654564	-	295	152995503	-	Mmwyl1_1474	-	LysR family transcriptional regulator
1461	 41.12	0	1654753..1655433	+	226	152995504	-	Mmwyl1_1475	-	hypothetical protein
1462	 49.62	+1	1655473..1656270	-	265	152995505	-	Mmwyl1_1476	-	transglutaminase domain-containing protein
1463	 41.18	0	1656555..1657943	+	462	152995506	-	Mmwyl1_1477	-	MATE efflux family protein
1464	 46.88	+1	1658164..1659027	-	287	152995507	-	Mmwyl1_1478	-	LysR family transcriptional regulator
1465	 46.02	0	1659165..1659566	+	133	152995508	-	Mmwyl1_1479	-	carboxymuconolactone decarboxylase
1466	 47.65	+1	1659647..1661260	-	537	152995509	-	Mmwyl1_1480	-	FAD dependent oxidoreductase
1467	 43.60	0	1661483..1662310	+	275	152995510	-	Mmwyl1_1481	-	5'-nucleotidase
1468	 44.12	0	1662404..1663840	-	478	152995511	-	Mmwyl1_1482	-	sodium/sulphate symporter
1469	 45.05	0	1663915..1664853	-	312	152995512	-	Mmwyl1_1483	-	N-acetyl-gamma-glutamyl-phosphate reductase
1470	 43.49	0	1665019..1666239	-	406	152995513	-	Mmwyl1_1484	-	major facilitator transporter
1471	 40.38	0	1666415..1666783	+	122	152995514	-	Mmwyl1_1485	-	putative transcriptional regulator, fis family protein
1472	 42.05	0	1666826..1668694	-	622	152995515	-	Mmwyl1_1486	-	sodium/hydrogen exchanger
1473	 39.39	-1	1668796..1669323	-	175	152995516	-	Mmwyl1_1487	-	protoporphyrinogen oxidase
1474	 41.10	0	1669513..1670490	-	325	152995517	-	Mmwyl1_1488	-	GTPase EngC
1475	 42.88	0	1670782..1671891	-	369	152995518	-	Mmwyl1_1489	-	agmatine deiminase
1476	 42.49	0	1672356..1672628	+	90	152995519	-	Mmwyl1_1490	-	hypothetical protein
1477	 40.74	0	1672696..1674045	-	449	152995520	-	Mmwyl1_1491	-	sigma-54 dependent trancsriptional regulator
1478	 39.32	-1	1674201..1674668	+	155	152995521	-	Mmwyl1_1492	-	hypothetical protein
1479	 38.66	-1	1674747..1675553	-	268	152995522	-	Mmwyl1_1493	-	hypothetical protein
1480	 45.67	0	1675752..1676513	-	253	152995523	-	Mmwyl1_1494	-	phosphoribosylformimino-5-aminoimidazole carboxamide ribotide isomerase
1481	 45.17	0	1676654..1677067	+	137	152995524	-	Mmwyl1_1495	-	class I peptide chain release factor
1482	 45.23	0	1677174..1678451	+	425	152995525	-	Mmwyl1_1496	-	O-acetylhomoserine/O-acetylserine sulfhydrylase
1483	 43.47	0	1678918..1679499	+	193	152995526	-	Mmwyl1_1498	-	hypothetical protein
1484	 45.68	0	1679496..1680629	+	377	152995527	-	Mmwyl1_1499	-	hypothetical protein
1485	 45.16	0	1680688..1681245	+	185	152995528	-	Mmwyl1_1500	-	hypothetical protein
1486	 45.55	0	1681245..1682030	+	261	152995529	-	Mmwyl1_1501	-	hypothetical protein
1487	 44.59	0	1682050..1682493	+	147	152995530	-	Mmwyl1_1502	-	YHS domain-containing protein
1488	 44.37	0	1682518..1682970	+	150	152995531	-	Mmwyl1_1503	-	hypothetical protein
1489	 44.04	0	1682973..1684766	+	597	152995532	-	Mmwyl1_1504	-	phospholipid/glycerol acyltransferase
1490	 42.60	0	1685421..1686995	+	524	152995533	-	Mmwyl1_1505	-	cytochrome bd ubiquinol oxidase subunit I
1491	 43.54	0	1686997..1688133	+	378	152995534	-	Mmwyl1_1506	-	cytochrome d ubiquinol oxidase, subunit II
1492	 40.54	0	1688198..1688308	+	36	152995535	-	Mmwyl1_1507	-	cyd operon protein YbgT
1493	 45.83	0	1688314..1690089	+	591	152995536	-	Mmwyl1_1508	-	ABC transporter CydDC cysteine exporter (CydDC-E) family permease/ATP-binding protein CydD
1494	 47.87	+1	1690169..1691716	+	515	152995537	-	Mmwyl1_1509	-	ABC transporter related
1495	 36.81	-1	1692332..1693279	+	315	152995538	-	Mmwyl1_1510	-	alpha/beta fold family hydrolase
1496	 45.69	0	1695255..1696241	+	328	152995539	-	Mmwyl1_1511	-	ATP-binding region, ATPase-like protein
1497	 39.01	-1	1696321..1696602	+	93	152995540	-	Mmwyl1_1512	-	hypothetical protein
1498	 42.47	0	1696717..1696935	+	72	152995541	-	Mmwyl1_1513	-	hypothetical protein
43.05	MEAN

3.35	STD DEV
