IslandPath Analysis: Magnetococcus sp. MC-1

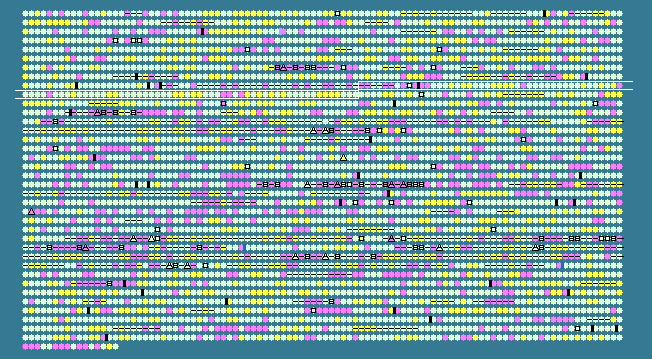

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 54.32 STD DEV: 4.16
Magnetococcus sp. MC-1, complete genome - 1..4719581
3716 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
857	 48.98	-1	1064530..1065858	+	442	117924175	-	Mmc1_0867	-	protein translocase subunit secY/sec61 alpha
858	 45.61	-2	1065911..1066024	+	37	117924176	-	Mmc1_0868	-	50S ribosomal protein L36P
859	 55.28	0	1066186..1066554	+	122	117924177	rpsM	Mmc1_0869	-	30S ribosomal protein S13
860	 53.79	0	1066569..1066964	+	131	117924178	-	Mmc1_0870	-	30S ribosomal protein S11
861	 48.96	-1	1066997..1067623	+	208	117924179	-	Mmc1_0871	-	SSU ribosomal protein S4P
862	 46.14	-1	1067659..1068681	+	340	117924180	-	Mmc1_0872	-	DNA-directed RNA polymerase, alpha subunit
863	 51.97	0	1068693..1069073	+	126	117924181	-	Mmc1_0873	-	50S ribosomal protein L17P
864	 49.79	-1	1069783..1070025	+	80	117924182	-	Mmc1_0874	-	hypothetical protein
865	 54.66	0	1070041..1071639	+	532	117924183	-	Mmc1_0875	-	transposase IS66
866	 45.44	-2	1071772..1072572	+	266	117924184	-	Mmc1_0876	-	hypothetical protein
867	 50.54	0	1073480..1075135	+	551	117924185	-	Mmc1_0877	-	cytochrome c family protein
868	 49.66	-1	1075135..1075728	+	197	117924186	-	Mmc1_0878	-	cytochrome B561
869	 53.12	0	1075785..1076633	-	282	117924187	-	Mmc1_0879	-	glutamine amidotransferase, class-II
870	 55.31	0	1076962..1078062	+	366	117924188	-	Mmc1_0880	-	hydrogenase formation HypD protein
871	 54.86	0	1078439..1079488	+	349	117924189	-	Mmc1_0881	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
872	 60.21	+1	1079485..1080336	+	283	117924190	-	Mmc1_0882	-	oxidoreductase FAD-binding subunit
873	 57.36	0	1080338..1081186	+	282	117924191	-	Mmc1_0883	-	NADH ubiquinone oxidoreductase, 20 kDa subunit
874	 58.12	0	1081189..1082487	+	432	117924192	-	Mmc1_0884	-	nickel-dependent hydrogenase, large subunit
875	 64.29	+2	1082487..1082990	+	167	117924193	-	Mmc1_0885	-	hypothetical protein
876	 53.28	0	1083369..1084601	+	410	117924194	-	Mmc1_0886	-	Ste24 endopeptidase
877	 53.81	0	1084668..1086401	+	577	117924195	-	Mmc1_0887	-	diguanylate cyclase/phosphodiesterase with PAS/PAC sensor(s)
878	 54.25	0	1086579..1087295	+	238	117924196	-	Mmc1_0888	-	3'-5' exonuclease
879	 58.41	0	1087330..1087656	-	108	117924197	-	Mmc1_0889	-	hypothetical protein
880	 57.88	0	1087966..1089741	+	591	117924198	-	Mmc1_0890	-	WD-40 repeat-containing protein
881	 60.06	+1	1089829..1091901	-	690	117924199	-	Mmc1_0891	-	AMP-dependent synthetase and ligase
882	 57.93	0	1091957..1093330	-	457	117924200	-	Mmc1_0892	-	hypothetical protein
883	 55.99	0	1093476..1094561	+	361	117924201	-	Mmc1_0893	-	radical SAM domain-containing protein
884	 50.54	0	1094721..1095179	+	152	117924202	-	Mmc1_0894	-	ferric uptake regulator family protein
885	 55.72	0	1095304..1097988	-	894	117924203	-	Mmc1_0895	-	PAS/PAC sensor hybrid histidine kinase
886	 54.14	0	1098272..1099780	-	502	117924204	-	Mmc1_0896	-	hypothetical protein
887	 52.15	0	1100089..1101390	+	433	117924205	-	Mmc1_0897	-	citrate synthase
888	 55.52	0	1101642..1103336	+	564	117924206	-	Mmc1_0898	-	acetolactate synthase, large subunit
889	 55.56	0	1103348..1103851	+	167	117924207	-	Mmc1_0899	-	acetolactate synthase, small subunit
890	 55.36	0	1104032..1105048	+	338	117924208	-	Mmc1_0900	-	ketol-acid reductoisomerase
891	 54.64	0	1105314..1105970	+	218	117924209	-	Mmc1_0901	-	phosphatidylserine decarboxylase related protein
892	 54.60	0	1105975..1106778	+	267	117924210	-	Mmc1_0902	-	CDP-diacylglycerol--serine O-phosphatidyltransferase
893	 55.51	0	1106902..1108443	+	513	117924211	-	Mmc1_0903	-	2-isopropylmalate synthase
894	 59.01	+1	1108731..1109174	+	147	117924212	-	Mmc1_0904	-	hypothetical protein
895	 53.81	0	1109433..1111229	+	598	117924213	-	Mmc1_0905	-	GTP-binding protein LepA
896	 53.98	0	1111233..1112099	+	288	117924214	-	Mmc1_0906	-	signal peptidase I
897	 59.65	+1	1112120..1112860	+	246	117924215	-	Mmc1_0907	-	ribonuclease III
898	 54.50	0	1112853..1113764	+	303	117924216	-	Mmc1_0908	-	GTP-binding protein Era
899	 60.91	+1	1113772..1114500	+	242	117924217	-	Mmc1_0909	-	DNA replication and repair protein RecO
900	 48.33	-1	1114624..1114803	+	59	117924218	-	Mmc1_0910	-	hypothetical protein
901	 55.15	0	1114888..1116459	+	523	117924219	-	Mmc1_0911	-	hypothetical protein
902	 54.80	0	1116462..1117700	+	412	117924220	-	Mmc1_0912	-	hypothetical protein
903	 56.63	0	1117763..1119187	-	474	117924221	-	Mmc1_0913	-	mannose-1-phosphate guanylyltransferase (GDP)
904	 53.26	0	1119533..1119808	+	91	117924222	-	Mmc1_0914	-	HU family DNA-binding protein
905	 50.36	0	1119886..1120161	-	91	117924223	-	Mmc1_0915	-	hypothetical protein
906	 57.17	0	1120327..1120905	+	192	117924224	-	Mmc1_0916	-	hypothetical protein
907	 52.82	0	1121129..1121872	+	247	117924225	-	Mmc1_0917	-	hypothetical protein
908	 53.68	0	1121970..1124048	-	692	117924226	-	Mmc1_0918	-	methyl-accepting chemotaxis sensory transducer
909	 58.13	0	1126235..1126714	-	159	117924227	-	Mmc1_0920	-	Sel1 domain-containing protein
910	 57.16	0	1126965..1128731	+	588	117924228	-	Mmc1_0921	-	carbamoyltransferase
911	 56.99	0	1128728..1129771	+	347	117924229	-	Mmc1_0922	-	glycosyl transferase family protein
912	 57.55	0	1129893..1131560	+	555	117924230	-	Mmc1_0923	-	sporulation domain-containing protein
913	 57.75	0	1131658..1133787	+	709	117924231	-	Mmc1_0924	-	sporulation domain-containing protein
914	 55.97	0	1133967..1134452	+	161	117924232	-	Mmc1_0925	-	response regulator receiver protein
915	 60.31	+1	1134572..1135546	-	324	117924233	-	Mmc1_0926	-	lipid-A-disaccharide synthase
916	 59.02	+1	1135660..1136967	-	435	117924234	-	Mmc1_0927	-	3-deoxy-D-manno-octulosonic-acid transferase domain-containing protein
917	 55.19	0	1137257..1138981	+	574	117924235	-	Mmc1_0928	-	pilus (MSHA type) biogenesis protein MshL
918	 57.54	0	1139001..1140008	+	335	117924236	-	Mmc1_0929	-	hypothetical protein
919	 54.88	0	1140005..1142227	+	740	117924237	-	Mmc1_0930	-	sporulation domain-containing protein
920	 53.68	0	1142232..1143887	+	551	117924238	-	Mmc1_0931	-	type II secretion system protein E
921	 50.86	0	1143926..1145152	+	408	117924239	-	Mmc1_0932	-	type II secretion system protein
922	 52.01	0	1145372..1145992	-	206	117924240	-	Mmc1_0933	-	putative type II secretion system protein
923	 51.11	0	1146445..1146939	+	164	117924241	-	Mmc1_0934	-	hypothetical protein
924	 52.42	0	1146936..1148360	+	474	117924242	-	Mmc1_0935	-	hypothetical protein
925	 54.01	0	1148357..1149067	+	236	117924243	-	Mmc1_0936	-	hypothetical protein
926	 58.30	0	1149167..1153459	-	1430	117924244	-	Mmc1_0937	-	serine/threonine protein kinase
927	 58.02	0	1153851..1156220	-	789	117924245	-	Mmc1_0938	-	helicase domain-containing protein
928	 55.75	0	1156325..1156993	+	222	117924246	-	Mmc1_0939	-	hypothetical protein
929	 59.56	+1	1156998..1157912	+	304	117924247	-	Mmc1_0940	-	N-acetylglucosamine kinase
930	 60.32	+1	1157925..1158680	+	251	117924248	-	Mmc1_0941	-	beta-lactamase domain-containing protein
931	 54.93	0	1158757..1160580	-	607	117924249	-	Mmc1_0942	-	aspartyl-tRNA synthetase
932	 56.05	0	1160822..1161697	-	291	117924250	-	Mmc1_0943	-	SecC motif-containing protein
933	 54.40	0	1162061..1163479	+	472	117924251	-	Mmc1_0944	-	glutamyl-tRNA synthetase
934	 46.67	-1	1163694..1164008	+	104	117924252	-	Mmc1_0945	-	anti-anti-sigma regulatory factor
935	 49.52	-1	1164237..1164551	+	104	117924253	-	Mmc1_0946	-	anti-sigma F factor antagonist, putative
936	 56.64	0	1164556..1165473	-	305	117924254	-	Mmc1_0947	-	L-lysine 2,3-aminomutase
937	 50.35	0	1165682..1166245	+	187	117924255	-	Mmc1_0948	-	translation elongation factor P (EF-P)
938	 59.96	+1	1166249..1167202	+	317	117924256	-	Mmc1_0949	-	tRNA synthetase, class II (D, K and N)
939	 55.56	0	1167420..1167977	+	185	117924257	-	Mmc1_0950	-	redoxin domain-containing protein
940	 58.02	0	1168911..1169789	-	292	117924258	-	Mmc1_0951	-	hypothetical protein
941	 52.93	0	1169859..1170353	-	164	117924259	-	Mmc1_0952	-	cyclic nucleotide-binding protein
942	 58.40	0	1170465..1171541	-	358	117924260	-	Mmc1_0953	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
943	 56.51	0	1171646..1171960	+	104	117924261	-	Mmc1_0954	-	hypothetical protein
944	 60.00	+1	1172208..1172807	+	199	117924262	-	Mmc1_0955	-	hypothetical protein
945	 57.77	0	1173039..1174847	+	602	117924263	-	Mmc1_0956	-	sporulation domain-containing protein
946	 56.87	0	1174853..1175434	-	193	117924264	-	Mmc1_0957	-	hypothetical protein
947	 54.12	0	1175548..1176360	-	270	117924265	-	Mmc1_0958	-	hypothetical protein
948	 55.14	0	1176363..1176848	-	161	117924266	-	Mmc1_0959	-	hypothetical protein
949	 56.28	0	1176899..1177360	+	153	117924267	-	Mmc1_0960	-	CBS domain-containing protein
950	 60.37	+1	1177373..1177864	+	163	117924268	-	Mmc1_0961	-	hypothetical protein
951	 58.26	0	1177854..1178876	+	340	117924269	-	Mmc1_0962	-	aminoglycoside phosphotransferase
952	 60.95	+1	1178876..1179610	+	244	117924270	-	Mmc1_0963	-	nucleotidyl transferase
953	 59.72	+1	1179782..1180429	+	215	117924271	-	Mmc1_0964	-	protein-L-isoaspartate(D-aspartate) O-methyltransferase
954	 53.70	0	1180572..1180787	+	71	117924272	-	Mmc1_0965	-	hypothetical protein
955	 54.10	0	1181103..1182359	+	418	117924273	-	Mmc1_0966	-	aspartate kinase
956	 53.71	0	1182442..1184046	+	534	117924274	-	Mmc1_0967	-	alpha-isopropylmalate/homocitrate synthase family transferase
54.32	MEAN

4.16	STD DEV
