IslandPath Analysis: Magnetococcus sp. MC-1

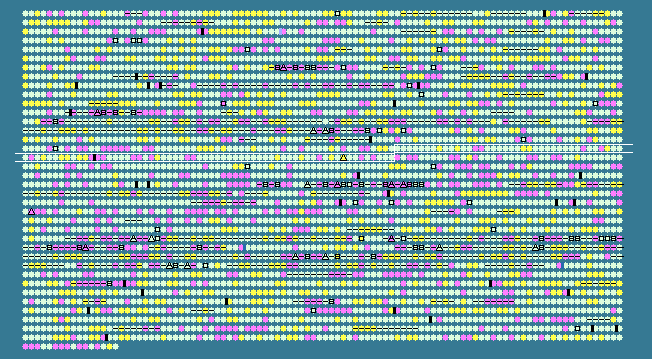

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 54.32 STD DEV: 4.16
Magnetococcus sp. MC-1, complete genome - 1..4719581
3716 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1563	 54.55	0	1952090..1953541	-	483	117924881	-	Mmc1_1583	-	adenylate/guanylate cyclase
1564	 52.46	0	1953914..1954786	+	290	117924882	-	Mmc1_1584	-	extracellular solute-binding protein
1565	 52.61	0	1954948..1957941	+	997	117924883	-	Mmc1_1585	-	methyl-accepting chemotaxis sensory transducer
1566	 57.12	0	1958061..1958825	-	254	117924884	-	Mmc1_1586	-	6-phosphogluconolactonase
1567	 53.30	0	1959596..1960186	-	196	117924885	-	Mmc1_1587	-	NapC/NirT cytochrome c domain-containing protein
1568	 54.25	0	1960255..1960713	-	152	117924886	-	Mmc1_1588	-	periplasmic nitrate reductase subunit NapB
1569	 56.18	0	1960723..1961580	-	285	117924887	-	Mmc1_1589	-	periplasmic nitrate reductase subunit NapH
1570	 58.37	0	1961577..1962347	-	256	117924888	-	Mmc1_1590	-	periplasmic nitrate reductase subunit NapG
1571	 54.14	0	1962473..1964986	-	837	117924889	-	Mmc1_1591	-	nitrate reductase
1572	 52.33	0	1964983..1965240	-	85	117924890	-	Mmc1_1592	-	NapD family protein
1573	 60.46	+1	1965237..1965800	-	187	117924891	-	Mmc1_1593	-	periplasmic nitrate reductase maturation protein NapF
1574	 52.53	0	1966411..1967457	+	348	117924892	-	Mmc1_1594	-	TonB-dependent receptor, plug
1575	 54.18	0	1967612..1969021	+	469	117924893	-	Mmc1_1595	-	hypothetical protein
1576	 50.68	0	1969052..1970152	+	366	117924894	-	Mmc1_1596	-	TonB-dependent receptor
1577	 49.67	-1	1970171..1970776	+	201	117924895	-	Mmc1_1597	-	hypothetical protein
1578	 53.96	0	1970850..1973744	+	964	117924896	-	Mmc1_1598	-	multi-sensor hybrid histidine kinase
1579	 53.21	0	1974183..1976174	-	663	117924897	-	Mmc1_1599	-	secreted hydrolase-like protein
1580	 52.82	0	1976425..1976778	-	117	117924898	-	Mmc1_1600	-	hypothetical protein
1581	 55.32	0	1976883..1978133	-	416	117924899	-	Mmc1_1601	-	protein of unknown function DUF395, YeeE/YedE
1582	 54.80	0	1978525..1979097	+	190	117924900	-	Mmc1_1602	-	hypothetical protein
1583	 55.18	0	1979245..1981473	-	742	117924901	-	Mmc1_1603	-	isocitrate dehydrogenase, NADP-dependent
1584	 57.86	0	1982004..1985774	-	1256	117924902	-	Mmc1_1604	-	helicase-associated
1585	 59.00	+1	1985917..1987989	-	690	117924903	-	Mmc1_1605	-	short chain dehydrogenase
1586	 55.40	0	1988077..1988955	-	292	117924904	-	Mmc1_1606	-	aldolase
1587	 54.53	0	1989129..1989713	-	194	117924905	-	Mmc1_1607	-	hypothetical protein
1588	 55.02	0	1989713..1990330	-	205	117924906	-	Mmc1_1608	-	hypothetical protein
1589	 54.43	0	1990347..1991384	-	345	117924907	-	Mmc1_1609	-	twitching motility protein
1590	 55.84	0	1991598..1992770	+	390	117924908	-	Mmc1_1610	-	recA protein
1591	 55.45	0	1992908..1995172	+	754	117924909	-	Mmc1_1611	-	DNA topoisomerase IV subunit A
1592	 55.80	0	1995221..1995763	+	180	117924910	-	Mmc1_1612	-	tripartite ATP-independent periplasmic transporter DctQ
1593	 57.36	0	1995763..1997148	+	461	117924911	-	Mmc1_1613	-	TRAP dicarboxylate transporter, DctM subunit
1594	 48.24	-1	1997567..1998076	-	169	117924912	-	Mmc1_1614	-	hypothetical protein
1595	 57.69	0	1998381..2002814	-	1477	117924913	-	Mmc1_1615	-	DNA translocase FtsK
1596	 53.63	0	2002818..2004497	-	559	117924914	-	Mmc1_1616	-	beta-lactamase domain-containing protein
1597	 49.26	-1	2004494..2005309	-	271	117924915	-	Mmc1_1617	-	Sec-independent protein translocase TatC
1598	 60.57	+1	2005545..2006003	-	152	117924916	-	Mmc1_1618	-	twin-arginine translocation protein, TatB subunit
1599	 52.86	0	2006070..2006279	-	69	117924917	-	Mmc1_1619	-	twin arginine-targeting protein translocase
1600	 54.02	0	2006406..2007338	-	310	117924918	-	Mmc1_1620	-	TPR repeat-containing protein
1601	 57.61	0	2007535..2008362	+	275	117924919	-	Mmc1_1621	-	DNA-(apurinic or apyrimidinic site) lyase / formamidopyrimidine-DNA glycosylase
1602	 46.40	-1	2008359..2008802	-	147	117924920	-	Mmc1_1622	-	type IV pilus assembly PilZ
1603	 56.32	0	2009123..2010301	-	392	117924921	-	Mmc1_1623	-	hypothetical protein
1604	 58.57	+1	2010303..2011859	-	518	117924922	-	Mmc1_1624	-	metal dependent phosphohydrolase
1605	 55.84	0	2011959..2012420	-	153	117924923	-	Mmc1_1625	-	hypothetical protein
1606	 57.19	0	2012457..2013554	-	365	117924924	-	Mmc1_1626	-	quinolinate synthetase
1607	 58.51	+1	2013615..2014778	+	387	117924925	-	Mmc1_1627	-	hypothetical protein
1608	 60.84	+1	2014799..2015296	-	165	117924926	-	Mmc1_1628	-	hypothetical protein
1609	 54.85	0	2015378..2016037	-	219	117924927	-	Mmc1_1629	-	DNA-(apurinic or apyrimidinic site) lyase / endonuclease III
1610	 59.24	+1	2016131..2018164	+	677	117924928	-	Mmc1_1630	-	molybdopterin oxidoreductase
1611	 59.73	+1	2018258..2019352	+	364	117924929	-	Mmc1_1631	-	Beta-N-acetylhexosaminidase
1612	 50.25	0	2019397..2019804	+	135	117924930	-	Mmc1_1632	-	hypothetical protein
1613	 44.40	-2	2021071..2022543	+	490	117924931	-	Mmc1_1633	-	radical SAM domain-containing protein
1614	 45.18	-2	2022859..2026209	+	1116	117924932	-	Mmc1_1634	-	ankyrin repeat-containing protein
1615	 54.59	0	2026800..2028671	+	623	117924933	-	Mmc1_1635	-	glycosyl transferase, group 1
1616	 56.17	0	2028673..2031579	+	968	117924934	-	Mmc1_1636	-	TPR repeat-containing protein
1617	 53.60	0	2031995..2032675	+	226	117924935	-	Mmc1_1637	-	hypothetical protein
1618	 55.02	0	2033323..2035203	+	626	117924936	-	Mmc1_1638	-	sulfate transporter
1619	 49.40	-1	2035327..2035662	+	111	117924937	-	Mmc1_1639	-	peptidase S16, lon-like protein
1620	 47.39	-1	2035862..2037277	-	471	117924938	-	Mmc1_1640	-	metal dependent phosphohydrolase
1621	 54.77	0	2037469..2038788	-	439	117924939	-	Mmc1_1641	-	DEAD/DEAH box helicase domain-containing protein
1622	 49.43	-1	2039130..2039570	-	146	117924940	-	Mmc1_1642	-	cache type 2 domain-containing protein
1623	 58.33	0	2040259..2040438	+	59	117924941	-	Mmc1_1643	-	50S ribosomal protein L32P
1624	 53.75	0	2040631..2041683	+	350	117924942	-	Mmc1_1644	-	phosphate:acyl-[acyl carrier protein] acyltransferase
1625	 56.20	0	2041791..2042831	+	346	117924943	-	Mmc1_1645	-	3-oxoacyl-[acyl-carrier-protein] synthase III
1626	 52.11	0	2042900..2044486	+	528	117924944	-	Mmc1_1646	-	lytic transglycosylase, catalytic
1627	 53.76	0	2044541..2045896	-	451	117924945	-	Mmc1_1647	-	hypothetical protein
1628	 50.22	0	2046120..2046794	+	224	117924946	-	Mmc1_1648	-	hemerythrin HHE cation binding domain-containing protein
1629	 49.05	-1	2047344..2048705	+	453	117924947	-	Mmc1_1649	-	diguanylate cyclase
1630	 55.07	0	2048787..2049605	-	272	117924948	-	Mmc1_1650	-	heat shock protein DnaJ domain-containing protein
1631	 54.82	0	2049751..2053347	-	1198	117924949	-	Mmc1_1651	-	transcription-repair coupling factor
1632	 50.87	0	2053510..2054199	-	229	117924950	-	Mmc1_1652	-	hypothetical protein
1633	 51.16	0	2054217..2054906	-	229	117924951	-	Mmc1_1653	-	hypothetical protein
1634	 54.06	0	2055203..2057716	+	837	117924952	-	Mmc1_1654	-	PAS/PAC sensor hybrid histidine kinase
1635	 55.90	0	2057858..2058526	+	222	117924953	-	Mmc1_1655	-	methyltransferase type 12
1636	 52.75	0	2058523..2059974	-	483	117924954	-	Mmc1_1656	-	diguanylate cyclase
1637	 56.21	0	2059999..2060763	-	254	117924955	-	Mmc1_1657	-	hydroxyacylglutathione hydrolase
1638	 55.90	0	2060898..2061668	+	256	117924956	-	Mmc1_1658	-	methyltransferase type 11
1639	 54.66	0	2061661..2062551	+	296	117924957	-	Mmc1_1659	-	tyrosine recombinase XerD subunit
1640	 56.97	0	2062552..2063655	+	367	117924958	-	Mmc1_1660	-	short-chain dehydrogenase/reductase SDR
1641	 54.44	0	2063786..2064619	+	277	117924959	-	Mmc1_1661	-	sodium/calcium exchange protein-like protein
1642	 52.84	0	2064948..2065229	-	93	117924960	-	Mmc1_1662	-	hypothetical protein
1643	 62.87	+2	2065279..2065752	-	157	117924961	-	Mmc1_1663	-	protein tyrosine phosphatase, receptor type, F-like protein
1644	 52.15	0	2065968..2066270	-	100	117924962	-	Mmc1_1664	-	hypothetical protein
1645	 53.42	0	2066491..2067894	+	467	117924963	-	Mmc1_1665	-	sigma-54 dependent trancsriptional regulator
1646	 55.72	0	2067891..2068877	-	328	117924964	-	Mmc1_1666	-	beta-lactamase domain-containing protein
1647	 58.83	+1	2069513..2070061	+	182	117924965	-	Mmc1_1667	-	hypothetical protein
1648	 55.01	0	2070110..2070598	-	162	117924966	-	Mmc1_1668	-	hypothetical protein
1649	 51.93	0	2071031..2071702	+	223	117924967	-	Mmc1_1669	-	outer membrane lipoprotein carrier protein LolA
1650	 48.35	-1	2071807..2072292	+	161	117924968	-	Mmc1_1670	-	nucleotide-binding protein
1651	 57.45	0	2072353..2073816	+	487	117924969	-	Mmc1_1671	-	MiaB-like tRNA modifying enzyme YliG
1652	 59.30	+1	2073819..2075162	+	447	117924970	-	Mmc1_1672	-	recombination factor protein RarA
1653	 55.65	0	2075153..2075524	+	123	117924971	-	Mmc1_1673	-	camphor resistance protein CrcB
1654	 57.91	0	2075698..2076690	+	330	117924972	-	Mmc1_1674	-	phage integrase family protein
1655	 54.94	0	2076789..2078255	-	488	117924973	-	Mmc1_1675	-	hypothetical protein
1656	 52.98	0	2078528..2079199	+	223	117924974	-	Mmc1_1676	-	hypothetical protein
1657	 48.86	-1	2079260..2079523	-	87	117924975	-	Mmc1_1677	-	hypothetical protein
1658	 52.75	0	2079752..2081353	+	533	117924976	-	Mmc1_1678	-	peptide chain release factor 3
1659	 49.92	-1	2081806..2082402	+	198	117924977	-	Mmc1_1679	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
1660	 51.78	0	2082692..2083282	+	196	117924978	-	Mmc1_1680	-	stress protein
1661	 56.02	0	2083312..2084166	+	284	117924979	-	Mmc1_1681	-	6-phosphogluconate dehydrogenase, NAD-binding
1662	 51.40	0	2084233..2084946	+	237	117924980	-	Mmc1_1682	-	hypothetical protein
54.32	MEAN

4.16	STD DEV
