IslandPath Analysis: Magnetococcus sp. MC-1

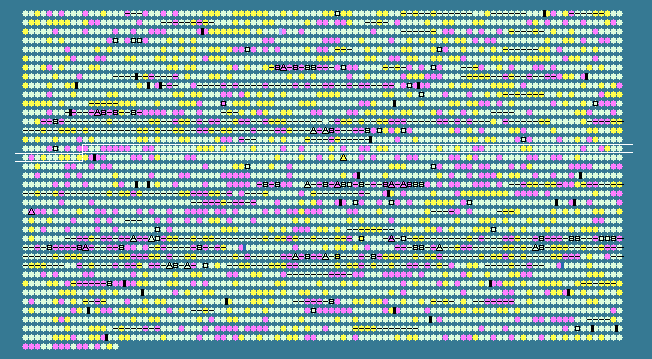

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 54.32 STD DEV: 4.16
Magnetococcus sp. MC-1, complete genome - 1..4719581
3716 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1511	 49.03	-1	1880505..1881224	+	239	117924829	-	Mmc1_1531	-	Crp/FNR family transcriptional regulator
1512	 56.05	0	1881670..1883910	+	746	117924830	-	Mmc1_1532	-	Sel1 domain-containing protein
1513	 55.71	0	1884052..1886982	+	976	117924831	-	Mmc1_1533	-	TPR repeat-containing protein
1514	 50.00	-1	1887065..1887274	+	69	117924832	-	Mmc1_1534	-	rubredoxin-type Fe(Cys)4 protein
1515	 48.60	-1	1887349..1888311	+	320	117924833	-	Mmc1_1535	-	NAD-dependent epimerase/dehydratase
1516	 49.27	-1	1888478..1890604	+	708	117924834	-	Mmc1_1536	-	histidine kinase
1517	 48.50	-1	1890742..1891677	+	311	117924835	-	Mmc1_1537	-	response regulator receiver protein
1518	 49.75	-1	1891834..1894848	-	1004	117924836	-	Mmc1_1538	-	metal dependent phosphohydrolase
1519	 52.21	0	1895887..1897269	+	460	117924837	-	Mmc1_1539	-	phosphate ABC transporter, inner membrane subunit PstC
1520	 52.66	0	1897262..1898560	+	432	117924838	-	Mmc1_1540	-	phosphate ABC transporter, inner membrane subunit PstA
1521	 50.13	-1	1898617..1899414	+	265	117924839	-	Mmc1_1541	-	phosphate ABC transporter, ATPase subunit
1522	 47.66	-1	1899438..1900142	+	234	117924840	-	Mmc1_1542	-	phosphate uptake regulator, PhoU
1523	 54.84	0	1900635..1901285	+	216	117924841	-	Mmc1_1543	-	rhodanese domain-containing protein
1524	 51.69	0	1901632..1902666	-	344	117924842	-	Mmc1_1544	-	phosphate binding protein, putative
1525	 53.65	0	1903130..1904965	-	611	117924843	-	Mmc1_1545	-	GTP-binding protein TypA
1526	 57.52	0	1905074..1906276	-	400	117924844	-	Mmc1_1546	-	glycosyl transferase, group 1
1527	 51.12	0	1906798..1907331	+	177	117924845	-	Mmc1_1547	-	putative phosphohistidine phosphatase, SixA
1528	 57.58	0	1907328..1908725	+	465	117924846	-	Mmc1_1548	-	peptidase M20
1529	 53.99	0	1909296..1910060	-	254	117924847	-	Mmc1_1549	-	glycosyl transferase family protein
1530	 62.76	+2	1910060..1911133	-	357	117924848	-	Mmc1_1550	-	lipopolysaccharide heptosyltransferase I
1531	 59.69	+1	1911130..1912104	-	324	117924849	-	Mmc1_1551	-	lipid A biosynthesis acyltransferase
1532	 61.49	+1	1912094..1913155	-	353	117924850	-	Mmc1_1552	-	lipopolysaccharide heptosyltransferase II
1533	 51.62	0	1913152..1914108	-	318	117924851	-	Mmc1_1553	-	ADP-glyceromanno-heptose 6-epimerase precursor
1534	 59.80	+1	1914123..1915607	-	494	117924852	-	Mmc1_1554	-	D-beta-D-heptose 1-phosphate adenylyltransferase / D-alpha,beta-D-heptose 7-phosphate 1-kinase
1535	 56.88	0	1915620..1916171	-	183	117924853	-	Mmc1_1555	-	D-alpha,beta-D-heptose 1,7-bisphosphate phosphatase
1536	 53.80	0	1916321..1917097	+	258	117924854	-	Mmc1_1556	-	hypothetical protein
1537	 56.20	0	1917400..1919043	+	547	117924855	-	Mmc1_1557	-	CTP synthetase
1538	 57.75	0	1919047..1919910	+	287	117924856	-	Mmc1_1558	-	2-dehydro-3-deoxyphosphooctonate aldolase
1539	 57.97	0	1919903..1921018	+	371	117924857	-	Mmc1_1559	-	aminomethyltransferase
1540	 57.58	0	1921083..1922468	+	461	117924858	-	Mmc1_1560	-	glycine dehydrogenase subunit 1
1541	 57.32	0	1922465..1923940	+	491	117924859	-	Mmc1_1561	-	glycine dehydrogenase subunit 2
1542	 52.33	0	1924023..1925312	+	429	117924860	-	Mmc1_1562	-	enolase
1543	 52.46	0	1925937..1927400	+	487	117924861	-	Mmc1_1563	-	hypothetical protein
1544	 46.53	-1	1927450..1927896	+	148	117924862	-	Mmc1_1564	-	MerR family transcriptional regulator
1545	 52.61	0	1928255..1929307	+	350	117924863	-	Mmc1_1565	-	signal peptide peptidase SppA, 36K type
1546	 55.43	0	1929462..1932077	+	871	117924864	-	Mmc1_1566	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
1547	 50.43	0	1932277..1932861	+	194	117924865	-	Mmc1_1567	-	glyoxalase/bleomycin resistance protein/dioxygenase
1548	 56.41	0	1932956..1933345	-	129	117924866	-	Mmc1_1568	-	hypothetical protein
1549	 54.84	0	1933649..1935499	+	616	117924867	-	Mmc1_1569	-	sodium/hydrogen exchanger
1550	 53.26	0	1935598..1935873	+	91	117924868	-	Mmc1_1570	-	hypothetical protein
1551	 55.21	0	1936154..1936930	+	258	117924869	-	Mmc1_1571	-	tRNA/rRNA methyltransferase (SpoU)
1552	 60.53	+1	1936957..1937640	+	227	117924870	-	Mmc1_1572	-	hypothetical protein
1553	 53.17	0	1937723..1938826	+	367	117924871	-	Mmc1_1573	-	HflK protein
1554	 50.06	-1	1938840..1939742	+	300	117924872	-	Mmc1_1574	-	HflC protein
1555	 52.69	0	1939739..1939924	+	61	117924873	-	Mmc1_1575	-	hypothetical protein
1556	 55.62	0	1939988..1940530	+	180	117924874	-	Mmc1_1576	-	hypothetical protein
1557	 44.80	-2	1940890..1942023	+	377	117924875	-	Mmc1_1577	-	hypothetical protein
1558	 46.78	-1	1942016..1942699	+	227	117924876	-	Mmc1_1578	-	hypothetical protein
1559	 55.34	0	1943003..1945024	-	673	117924877	-	Mmc1_1579	-	hypothetical protein
1560	 58.66	+1	1945217..1947301	-	694	117924878	-	Mmc1_1580	-	molybdopterin oxidoreductase
1561	 59.60	+1	1947415..1950822	+	1135	117924879	-	Mmc1_1581	-	aminotransferase, class V
1562	 53.30	0	1950900..1951946	-	348	117924880	-	Mmc1_1582	-	hypothetical protein
1563	 54.55	0	1952090..1953541	-	483	117924881	-	Mmc1_1583	-	adenylate/guanylate cyclase
1564	 52.46	0	1953914..1954786	+	290	117924882	-	Mmc1_1584	-	extracellular solute-binding protein
1565	 52.61	0	1954948..1957941	+	997	117924883	-	Mmc1_1585	-	methyl-accepting chemotaxis sensory transducer
1566	 57.12	0	1958061..1958825	-	254	117924884	-	Mmc1_1586	-	6-phosphogluconolactonase
1567	 53.30	0	1959596..1960186	-	196	117924885	-	Mmc1_1587	-	NapC/NirT cytochrome c domain-containing protein
1568	 54.25	0	1960255..1960713	-	152	117924886	-	Mmc1_1588	-	periplasmic nitrate reductase subunit NapB
1569	 56.18	0	1960723..1961580	-	285	117924887	-	Mmc1_1589	-	periplasmic nitrate reductase subunit NapH
1570	 58.37	0	1961577..1962347	-	256	117924888	-	Mmc1_1590	-	periplasmic nitrate reductase subunit NapG
1571	 54.14	0	1962473..1964986	-	837	117924889	-	Mmc1_1591	-	nitrate reductase
1572	 52.33	0	1964983..1965240	-	85	117924890	-	Mmc1_1592	-	NapD family protein
1573	 60.46	+1	1965237..1965800	-	187	117924891	-	Mmc1_1593	-	periplasmic nitrate reductase maturation protein NapF
1574	 52.53	0	1966411..1967457	+	348	117924892	-	Mmc1_1594	-	TonB-dependent receptor, plug
1575	 54.18	0	1967612..1969021	+	469	117924893	-	Mmc1_1595	-	hypothetical protein
1576	 50.68	0	1969052..1970152	+	366	117924894	-	Mmc1_1596	-	TonB-dependent receptor
1577	 49.67	-1	1970171..1970776	+	201	117924895	-	Mmc1_1597	-	hypothetical protein
1578	 53.96	0	1970850..1973744	+	964	117924896	-	Mmc1_1598	-	multi-sensor hybrid histidine kinase
1579	 53.21	0	1974183..1976174	-	663	117924897	-	Mmc1_1599	-	secreted hydrolase-like protein
1580	 52.82	0	1976425..1976778	-	117	117924898	-	Mmc1_1600	-	hypothetical protein
1581	 55.32	0	1976883..1978133	-	416	117924899	-	Mmc1_1601	-	protein of unknown function DUF395, YeeE/YedE
1582	 54.80	0	1978525..1979097	+	190	117924900	-	Mmc1_1602	-	hypothetical protein
1583	 55.18	0	1979245..1981473	-	742	117924901	-	Mmc1_1603	-	isocitrate dehydrogenase, NADP-dependent
1584	 57.86	0	1982004..1985774	-	1256	117924902	-	Mmc1_1604	-	helicase-associated
1585	 59.00	+1	1985917..1987989	-	690	117924903	-	Mmc1_1605	-	short chain dehydrogenase
1586	 55.40	0	1988077..1988955	-	292	117924904	-	Mmc1_1606	-	aldolase
1587	 54.53	0	1989129..1989713	-	194	117924905	-	Mmc1_1607	-	hypothetical protein
1588	 55.02	0	1989713..1990330	-	205	117924906	-	Mmc1_1608	-	hypothetical protein
1589	 54.43	0	1990347..1991384	-	345	117924907	-	Mmc1_1609	-	twitching motility protein
1590	 55.84	0	1991598..1992770	+	390	117924908	-	Mmc1_1610	-	recA protein
1591	 55.45	0	1992908..1995172	+	754	117924909	-	Mmc1_1611	-	DNA topoisomerase IV subunit A
1592	 55.80	0	1995221..1995763	+	180	117924910	-	Mmc1_1612	-	tripartite ATP-independent periplasmic transporter DctQ
1593	 57.36	0	1995763..1997148	+	461	117924911	-	Mmc1_1613	-	TRAP dicarboxylate transporter, DctM subunit
1594	 48.24	-1	1997567..1998076	-	169	117924912	-	Mmc1_1614	-	hypothetical protein
1595	 57.69	0	1998381..2002814	-	1477	117924913	-	Mmc1_1615	-	DNA translocase FtsK
1596	 53.63	0	2002818..2004497	-	559	117924914	-	Mmc1_1616	-	beta-lactamase domain-containing protein
1597	 49.26	-1	2004494..2005309	-	271	117924915	-	Mmc1_1617	-	Sec-independent protein translocase TatC
1598	 60.57	+1	2005545..2006003	-	152	117924916	-	Mmc1_1618	-	twin-arginine translocation protein, TatB subunit
1599	 52.86	0	2006070..2006279	-	69	117924917	-	Mmc1_1619	-	twin arginine-targeting protein translocase
1600	 54.02	0	2006406..2007338	-	310	117924918	-	Mmc1_1620	-	TPR repeat-containing protein
1601	 57.61	0	2007535..2008362	+	275	117924919	-	Mmc1_1621	-	DNA-(apurinic or apyrimidinic site) lyase / formamidopyrimidine-DNA glycosylase
1602	 46.40	-1	2008359..2008802	-	147	117924920	-	Mmc1_1622	-	type IV pilus assembly PilZ
1603	 56.32	0	2009123..2010301	-	392	117924921	-	Mmc1_1623	-	hypothetical protein
1604	 58.57	+1	2010303..2011859	-	518	117924922	-	Mmc1_1624	-	metal dependent phosphohydrolase
1605	 55.84	0	2011959..2012420	-	153	117924923	-	Mmc1_1625	-	hypothetical protein
1606	 57.19	0	2012457..2013554	-	365	117924924	-	Mmc1_1626	-	quinolinate synthetase
1607	 58.51	+1	2013615..2014778	+	387	117924925	-	Mmc1_1627	-	hypothetical protein
1608	 60.84	+1	2014799..2015296	-	165	117924926	-	Mmc1_1628	-	hypothetical protein
1609	 54.85	0	2015378..2016037	-	219	117924927	-	Mmc1_1629	-	DNA-(apurinic or apyrimidinic site) lyase / endonuclease III
1610	 59.24	+1	2016131..2018164	+	677	117924928	-	Mmc1_1630	-	molybdopterin oxidoreductase
54.32	MEAN

4.16	STD DEV
