IslandPath Analysis: Listeria monocytogenes EGD-e

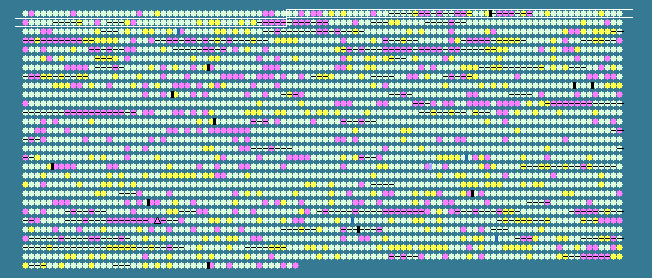

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.00 STD DEV: 3.37
Listeria monocytogenes EGD-e, complete genome - 1..2944528
2846 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
45	 41.15	0	49934..50470	+	178	16802093	ssb	lmo0045	-	hypothetical protein
46	 39.58	0	50514..50753	+	79	16802094	rpsR	lmo0046	-	30S ribosomal protein S18
47	 32.03	-1	50907..51518	+	203	16802095	-	lmo0047	-	hypothetical protein
48	 35.61	0	51775..52389	+	204	16802096	-	lmo0048	-	putative accessory gene regulator protein
49	 29.01	-2	52373..52534	+	53	16802097	-	lmo0049	-	hypothetical protein
50	 32.10	-1	52630..53925	+	431	16802098	-	lmo0050	-	hypothetical protein
51	 35.25	0	53944..54672	+	242	16802099	-	lmo0051	-	hypothetical protein
52	 42.50	+1	54839..56812	+	657	16802100	-	lmo0052	-	hypothetical protein
53	 35.12	0	56815..57261	+	148	16802101	rplI	lmo0053	-	50S ribosomal protein L9
54	 42.79	+1	57286..58638	+	450	16802102	dnaC	lmo0054	-	replicative DNA helicase
55	 39.29	0	58897..60189	+	430	16802103	purA	lmo0055	-	adenylosuccinate synthetase
56	 38.10	0	60506..60799	+	97	16802104	-	lmo0056	-	hypothetical protein
57	 36.33	0	60948..64154	+	1068	16802105	-	lmo0057	-	hypothetical protein
58	 38.18	0	64144..64659	+	171	16802106	-	lmo0058	-	hypothetical protein
59	 33.33	-1	64677..64928	+	83	16802107	-	lmo0059	-	hypothetical protein
60	 35.42	0	64950..66146	+	398	16802108	-	lmo0060	-	hypothetical protein
61	 40.00	0	66160..70656	+	1498	16802109	-	lmo0061	-	hypothetical protein
62	 34.60	-1	70676..71071	+	131	16802110	-	lmo0062	-	hypothetical protein
63	 36.00	0	71064..71363	+	99	16802111	-	lmo0063	-	hypothetical protein
64	 35.33	0	71360..72061	+	233	16802112	-	lmo0064	-	hypothetical protein
65	 37.24	0	72062..72394	+	110	16802113	-	lmo0065	-	hypothetical protein
66	 41.98	+1	72408..74222	+	604	16802114	-	lmo0066	-	hypothetical protein
67	 32.53	-1	74239..75228	+	329	16802115	-	lmo0067	-	hypothetical protein
68	 32.10	-1	75342..75665	+	107	16802116	-	lmo0068	-	hypothetical protein
69	 37.07	0	75832..76125	+	97	16802117	-	lmo0069	-	hypothetical protein
70	 27.39	-2	76262..76984	+	240	16802118	-	lmo0070	-	hypothetical protein
71	 36.05	0	77149..77406	+	85	16802119	-	lmo0071	-	hypothetical protein
72	 34.80	0	77863..78066	+	67	16802120	-	lmo0072	-	hypothetical protein
73	 30.18	-2	78090..78374	+	94	16802121	-	lmo0073	-	hypothetical protein
74	 26.44	-2	78362..78811	+	149	16802122	-	lmo0074	-	hypothetical protein
75	 46.25	+2	79047..79820	+	257	16802123	-	lmo0075	-	hypothetical protein
76	 41.31	0	79817..80869	+	350	16802124	-	lmo0076	-	hypothetical protein
77	 38.03	0	80892..81530	-	212	16802125	-	lmo0077	-	hypothetical protein
78	 44.31	+1	81661..82617	+	318	16802126	-	lmo0078	-	hypothetical protein
79	 37.12	0	82959..84437	+	492	16802127	-	lmo0079	-	hypothetical protein
80	 32.83	-1	84451..84849	+	132	16802128	-	lmo0080	-	hypothetical protein
81	 28.52	-2	85025..85627	+	200	16802129	-	lmo0081	-	hypothetical protein
82	 31.80	-1	85902..86228	+	108	16802130	-	lmo0082	-	hypothetical protein
83	 40.65	0	86323..86691	-	122	16802131	-	lmo0083	-	hypothetical protein
84	 42.28	+1	86747..87730	-	327	16802132	-	lmo0084	-	hypothetical protein
85	 31.16	-2	88121..88810	+	229	16802133	-	lmo0085	-	hypothetical protein
86	 34.86	0	88888..94767	+	1959	16802134	-	lmo0086	-	hypothetical protein
87	 35.50	0	94764..97070	+	768	16802135	-	lmo0087	-	hypothetical protein
88	 42.39	+1	97127..97369	+	80	16802136	-	lmo0088	-	hypothetical protein
89	 34.98	0	97381..98412	+	343	16802137	-	lmo0089	-	hypothetical protein
90	 39.14	0	98409..99905	+	498	16802138	-	lmo0090	-	F0F1 ATP synthase subunit alpha
91	 38.16	0	99902..100771	+	289	16802139	-	lmo0091	-	hypothetical protein
92	 39.97	0	100772..102142	+	456	16802140	-	lmo0092	-	F0F1 ATP synthase subunit beta
93	 38.58	0	102155..102478	+	107	16802141	-	lmo0093	-	hypothetical protein
94	 34.94	0	102468..103028	+	186	16802142	-	lmo0094	-	hypothetical protein
95	 34.91	0	103204..103836	+	210	16802143	-	lmo0095	-	hypothetical protein
96	 40.37	0	104134..105099	+	321	16802144	-	lmo0096	-	hypothetical protein
97	 43.00	+1	105123..105929	+	268	16802145	-	lmo0097	-	hypothetical protein
98	 40.57	0	105951..106862	+	303	16802146	-	lmo0098	-	hypothetical protein
99	 38.46	0	106988..107377	+	129	16802147	-	lmo0099	-	hypothetical protein
100	 35.61	0	107499..107849	+	116	16802148	-	lmo0100	-	hypothetical protein
101	 33.67	-1	107915..108208	-	97	16802149	-	lmo0101	-	hypothetical protein
102	 39.86	0	108320..108610	+	96	16802150	-	lmo0102	-	hypothetical protein
103	 39.97	0	108624..109256	+	210	16802151	-	lmo0103	-	hypothetical protein
104	 34.95	0	109349..109720	+	123	16802152	-	lmo0104	-	hypothetical protein
105	 41.17	0	110013..112283	+	756	16802153	-	lmo0105	-	hypothetical protein
106	 39.53	0	112386..113288	+	300	16802154	-	lmo0106	-	hypothetical protein
107	 40.57	0	113313..115094	-	593	16802155	-	lmo0107	-	hypothetical protein
108	 39.93	0	115087..116829	-	580	16802156	-	lmo0108	-	hypothetical protein
109	 37.77	0	116972..117805	+	277	16802157	-	lmo0109	-	hypothetical protein
110	 42.11	+1	117841..118956	+	371	16802158	-	lmo0110	-	hypothetical protein
111	 37.01	0	119063..119770	+	235	16802159	-	lmo0111	-	hypothetical protein
112	 36.64	0	119740..120435	-	231	16802160	-	lmo0112	-	hypothetical protein
113	 33.11	-1	120654..121106	-	150	16802161	-	lmo0113	-	hypothetical protein
114	 36.01	0	121112..121447	-	111	16802162	-	lmo0114	-	hypothetical protein
115	 34.73	0	121664..122092	+	142	16802163	lmaD	lmo0115	-	hypothetical protein
116	 36.93	0	122104..122520	+	138	16802164	lmaC	lmo0116	-	hypothetical protein
117	 36.92	0	122798..123187	+	129	16802165	lmaB	lmo0117	-	antigen B
118	 42.11	+1	123200..123712	+	170	16802166	lmaA	lmo0118	-	antigen A
119	 32.67	-1	123760..124062	+	100	16802167	-	lmo0119	-	hypothetical protein
120	 36.05	0	124104..124508	+	134	16802168	-	lmo0120	-	hypothetical protein
121	 40.29	0	124495..126363	+	622	16802169	-	lmo0121	-	hypothetical protein
122	 38.46	0	126360..127178	+	272	16802170	-	lmo0122	-	hypothetical protein
123	 35.27	0	127188..128324	+	378	16802171	-	lmo0123	-	hypothetical protein
124	 37.33	0	128314..128613	+	99	16802172	-	lmo0124	-	hypothetical protein
125	 37.50	0	128628..129203	+	191	16802173	-	lmo0125	-	hypothetical protein
126	 41.25	0	129218..129697	+	159	16802174	-	lmo0126	-	hypothetical protein
127	 37.62	0	129694..130230	+	178	16802175	-	lmo0127	-	hypothetical protein
128	 38.06	0	130249..130671	+	140	16802176	-	lmo0128	-	hypothetical protein
129	 34.71	0	130652..131380	+	242	16802177	-	lmo0129	-	hypothetical protein
130	 42.38	+1	131419..133773	-	784	16802178	-	lmo0130	-	hypothetical protein
131	 35.87	0	133961..134710	+	249	16802179	-	lmo0131	-	hypothetical protein
132	 42.94	+1	134782..136290	-	502	16802180	-	lmo0132	-	inositol-5-monophosphate dehydrogenase
133	 43.16	+1	136469..136702	+	77	16802181	-	lmo0133	-	hypothetical protein
134	 39.43	0	136714..136992	+	92	16802182	-	lmo0134	-	hypothetical protein
135	 38.92	0	137323..138897	+	524	16802183	-	lmo0135	-	hypothetical protein
136	 40.17	0	138999..139949	+	316	16802184	-	lmo0136	-	hypothetical protein
137	 45.19	+2	139960..140853	+	297	16802185	-	lmo0137	-	hypothetical protein
138	 40.70	0	141052..141336	+	94	16802186	-	lmo0138	-	hypothetical protein
139	 42.55	+1	141337..141705	+	122	16802187	-	lmo0139	-	hypothetical protein
140	 39.67	0	141618..143006	+	462	16802188	-	lmo0140	-	hypothetical protein
141	 25.10	-2	143016..143258	+	80	16802189	-	lmo0141	-	hypothetical protein
142	 28.29	-2	143366..143722	+	118	16802190	-	lmo0142	-	hypothetical protein
143	 26.55	-2	144097..144273	+	58	16802191	-	lmo0143	-	hypothetical protein
144	 26.13	-2	144397..144840	+	147	16802192	-	lmo0144	-	hypothetical protein
38.00	MEAN

3.37	STD DEV
