IslandPathversion 1.0

IslandPath Analysis: Listeria monocytogenes EGD-e

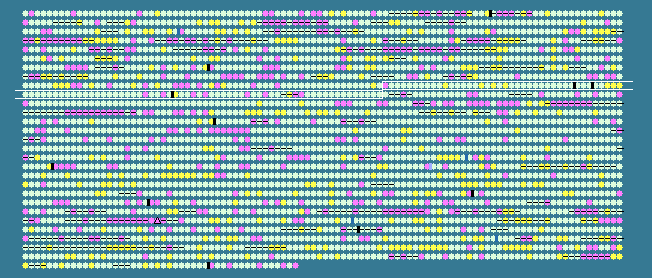

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.00 STD DEV: 3.37
Listeria monocytogenes EGD-e, complete genome - 1..2944528
2846 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
861	 32.08	-1	908499..909056	-	185	16802909	-	lmo0868	-	hypothetical protein
862	 35.64	0	909159..910157	+	332	16802910	-	lmo0869	-	hypothetical protein
863	 35.26	0	910173..910484	+	103	16802911	-	lmo0870	-	hypothetical protein
864	 40.40	0	910517..910870	-	117	16802912	-	lmo0871	-	hypothetical protein
865	 40.10	0	910998..912164	+	388	16802913	-	lmo0872	-	hypothetical protein
866	 36.31	0	912372..914390	+	672	16802914	-	lmo0873	-	hypothetical protein
867	 34.85	0	914405..914734	+	109	16802915	-	lmo0874	-	hypothetical protein
868	 34.82	0	914735..915070	+	111	16802916	-	lmo0875	-	hypothetical protein
869	 40.42	0	915090..916415	+	441	16802917	-	lmo0876	-	hypothetical protein
870	 39.64	0	916436..917164	+	242	16802918	-	lmo0877	-	hypothetical protein
871	 43.29	+1	917164..918117	+	317	16802919	-	lmo0878	-	hypothetical protein
872	 39.32	0	918135..918902	+	255	16802920	-	lmo0879	-	hypothetical protein
873	 37.65	0	919020..920408	+	462	16802921	-	lmo0880	-	hypothetical protein
874	 36.90	0	920452..920928	-	158	16802922	-	lmo0881	-	hypothetical protein
875	 39.54	0	921062..921544	+	160	16802923	-	lmo0882	-	hypothetical protein
876	 40.45	0	921537..923012	+	491	16802924	-	lmo0883	-	hypothetical protein
877	 41.74	+1	923161..924540	+	459	16802925	-	lmo0884	-	protoporphyrinogen oxidase
878	 37.54	0	924542..924898	+	118	16802926	-	lmo0885	-	hypothetical protein
879	 41.64	+1	924917..926023	+	368	16802927	dal	lmo0886	-	hypothetical protein
880	 40.86	0	926229..926507	+	92	16802928	-	lmo0887	-	hypothetical protein
881	 42.24	+1	926511..926858	+	115	16802929	-	lmo0888	-	hypothetical protein
882	 37.51	0	927110..927946	+	278	16802930	RsbR	lmo0889	-	hypothetical protein
883	 38.10	0	927952..928308	+	118	16802931	rsbS	lmo0890	-	hypothetical protein
884	 37.47	0	928311..928721	+	136	16802932	rsbT	lmo0891	-	hypothetical protein
885	 36.62	0	928738..929742	+	334	16802933	rsbU	lmo0892	-	hypothetical protein
886	 37.68	0	929892..930236	+	114	16802934	rsbV	lmo0893	-	anti-anti-sigma factor (antagonist of RsbW)
887	 38.40	0	930220..930693	+	157	16802935	rsbW	lmo0894	-	serine-protein kinase RsbW
888	 38.85	0	930671..931450	+	259	16802936	sigB	lmo0895	-	RNA polymerase sigma factor SigB
889	 36.83	0	931451..932050	+	199	16802937	rsbX	lmo0896	-	indirect negative regulation of sigma B dependant gene expression (serine phosphatase)
890	 39.61	0	932257..933882	+	541	16802938	-	lmo0897	-	hypothetical protein
891	 39.35	0	933959..936136	+	725	16802939	-	lmo0898	-	hypothetical protein
892	 40.38	0	936136..936603	+	155	16802940	-	lmo0899	-	hypothetical protein
893	 36.64	0	937202..937594	+	130	16802941	-	lmo0900	-	hypothetical protein
894	 38.31	0	937739..939025	+	428	16802942	-	lmo0901	-	hypothetical protein
895	 39.22	0	939106..939819	+	237	16802943	-	lmo0902	-	hypothetical protein
896	 34.65	0	940316..940696	+	126	16802944	-	lmo0903	-	hypothetical protein
897	 37.63	0	940810..941484	+	224	16802945	-	lmo0904	-	hypothetical protein
898	 42.97	+1	941615..942112	+	165	16802946	-	lmo0905	-	hypothetical protein
899	 42.59	+1	942148..943497	+	449	16802947	-	lmo0906	-	glutathione reductase
900	 42.96	+1	943526..944200	+	224	16802948	-	lmo0907	-	hypothetical protein
901	 35.27	0	944243..945379	-	378	16802949	-	lmo0908	-	hypothetical protein
902	 39.95	0	945520..945912	+	130	16802950	-	lmo0909	-	hypothetical protein
903	 35.42	0	945915..947018	+	367	16802951	-	lmo0910	-	hypothetical protein
904	 37.30	0	947101..947604	+	167	16802952	-	lmo0911	-	hypothetical protein
905	 41.45	+1	947718..948530	+	270	16802953	-	lmo0912	-	hypothetical protein
906	 38.85	0	948754..950220	+	488	16802954	-	lmo0913	-	hypothetical protein
907	 37.25	0	950363..950668	+	101	16802955	-	lmo0914	-	hypothetical protein
908	 38.06	0	950673..951941	+	422	16802956	-	lmo0915	-	hypothetical protein
909	 37.61	0	951956..952306	+	116	16802957	-	lmo0916	-	hypothetical protein
910	 37.05	0	952318..953769	+	483	16802958	-	lmo0917	-	hypothetical protein
911	 35.60	0	953842..955740	+	632	16802959	-	lmo0918	-	hypothetical protein
912	 37.85	0	956031..957602	+	523	16802960	-	lmo0919	-	hypothetical protein
913	 39.77	0	957724..958764	+	346	16802961	-	lmo0920	-	hypothetical protein
914	 34.76	0	958783..959622	+	279	16802962	-	lmo0921	-	hypothetical protein
915	 37.46	0	959711..960631	+	306	16802963	-	lmo0922	-	pantothenate kinase
916	 37.76	0	960748..961221	+	157	16802964	-	lmo0923	-	hypothetical protein
917	 38.80	0	961469..962584	+	371	16802965	-	lmo0925	-	hypothetical protein
918	 36.83	0	962607..963263	+	218	16802966	-	lmo0926	-	hypothetical protein
919	 36.34	0	963294..965255	-	653	16802967	-	lmo0927	-	hypothetical protein
920	 39.42	0	965513..966136	+	207	16802968	-	lmo0928	-	hypothetical protein
921	 34.08	-1	966245..966913	+	222	16802969	-	lmo0929	-	hypothetical protein
922	 38.66	0	967029..967760	+	243	16802970	-	lmo0930	-	hypothetical protein
923	 35.84	0	967784..968779	+	331	16802971	-	lmo0931	-	hypothetical protein
924	 33.00	-1	968819..969424	-	201	16802972	-	lmo0932	-	hypothetical protein
925	 35.76	0	969549..970496	-	315	16802973	-	lmo0933	-	hypothetical protein
926	 42.11	+1	971037..972176	+	379	16802974	-	lmo0934	-	hypothetical protein
927	 35.49	0	972197..972706	+	169	16802975	-	lmo0935	-	hypothetical protein
928	 39.27	0	972719..973459	+	246	16802976	-	lmo0936	-	hypothetical protein
929	 28.40	-2	973509..973670	-	53	16802977	-	lmo0937	-	hypothetical protein
930	 39.65	0	973758..974216	-	152	16802978	-	lmo0938	-	hypothetical protein
931	 34.00	-1	974229..974975	-	248	16802979	-	lmo0939	-	hypothetical protein
932	 38.01	0	975071..976033	-	320	16802980	-	lmo0940	-	hypothetical protein
933	 36.92	0	976065..977039	-	324	16802981	-	lmo0941	-	hypothetical protein
934	 36.27	0	977051..978856	-	601	16802982	-	lmo0942	-	hypothetical protein
935	 35.24	0	979059..979529	+	156	16802983	fri	lmo0943	-	non-heme iron-binding ferritin
936	 36.96	0	979762..980064	+	100	16802984	-	lmo0944	-	hypothetical protein
937	 37.40	0	980177..981307	+	376	16802985	-	lmo0945	-	hypothetical protein
938	 34.21	-1	981317..981544	+	75	16802986	-	lmo0946	-	hypothetical protein
939	 37.77	0	981743..982960	-	405	16802987	-	lmo0947	-	hypothetical protein
940	 38.99	0	982957..983646	-	229	16802988	-	lmo0948	-	hypothetical protein
941	 33.24	-1	983768..984814	+	348	16802989	-	lmo0949	-	hypothetical protein
942	 35.78	0	984823..985722	-	299	16802990	-	lmo0950	-	hypothetical protein
943	 35.64	0	985743..986564	-	273	16802991	-	lmo0951	-	hypothetical protein
944	 36.38	0	986722..987180	+	152	16802992	-	lmo0952	-	hypothetical protein
945	 42.54	+1	987274..987501	+	75	16802993	-	lmo0953	-	hypothetical protein
946	 33.97	-1	987735..988049	+	104	16802994	-	lmo0954	-	hypothetical protein
947	 33.22	-1	988065..988910	+	281	16802995	-	lmo0955	-	hypothetical protein
948	 38.98	0	989099..990232	+	377	16802996	-	lmo0956	-	hypothetical protein
949	 37.02	0	990248..990952	+	234	16802997	-	lmo0957	-	hypothetical protein
950	 40.66	0	990968..991690	+	240	16802998	-	lmo0958	-	hypothetical protein
951	 35.32	0	991810..992865	+	351	16802999	-	lmo0959	-	hypothetical protein
952	 39.49	0	992978..993886	+	302	16803000	-	lmo0960	-	hypothetical protein
953	 40.67	0	993900..995126	+	408	16803001	-	lmo0961	-	hypothetical protein
954	 35.66	0	995210..995767	+	185	16803002	lemA	lmo0962	-	epitope LemA
955	 38.91	0	995790..996704	+	304	16803003	-	lmo0963	-	heat shock protein HtpX
956	 37.73	0	996739..997557	-	272	16803004	-	lmo0964	-	hypothetical protein
957	 34.53	-1	997795..998379	-	194	16803005	-	lmo0965	-	hypothetical protein
958	 40.17	0	998396..998863	-	155	16803006	-	lmo0966	-	hypothetical protein
959	 37.22	0	999022..999690	+	222	16803007	-	lmo0967	-	hypothetical protein
960	 39.25	0	999722..1000516	+	264	16803008	ppnK	lmo0968	-	inorganic polyphosphate/ATP-NAD kinase
38.00	MEAN

3.37	STD DEV
