IslandPath Analysis: Listeria monocytogenes EGD-e

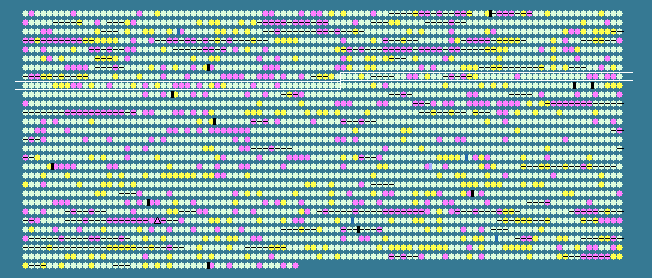

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.00 STD DEV: 3.37
Listeria monocytogenes EGD-e, complete genome - 1..2944528
2846 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
754	 40.72	0	785754..786362	+	202	16802802	-	lmo0760	-	hypothetical protein
755	 39.13	0	786372..786992	+	206	16802803	-	lmo0761	-	hypothetical protein
756	 40.25	0	787320..788576	+	418	16802804	-	lmo0762	-	hypothetical protein
757	 42.96	+1	788642..789514	+	290	16802805	-	lmo0763	-	hypothetical protein
758	 36.67	0	789520..790509	+	329	16802806	-	lmo0764	-	hypothetical protein
759	 34.95	0	790662..791960	+	432	16802807	-	lmo0765	-	hypothetical protein
760	 35.58	0	791977..792867	+	296	16802808	-	lmo0766	-	hypothetical protein
761	 34.82	0	792879..793754	+	291	16802809	-	lmo0767	-	hypothetical protein
762	 36.04	0	793777..795030	+	417	16802810	-	lmo0768	-	hypothetical protein
763	 34.99	0	795034..796062	+	342	16802811	-	lmo0769	-	hypothetical protein
764	 34.67	0	796075..797193	-	372	16802812	-	lmo0770	-	hypothetical protein
765	 31.47	-1	797353..798105	+	250	16802813	-	lmo0771	-	hypothetical protein
766	 32.56	-1	798141..798788	+	215	16802814	-	lmo0772	-	hypothetical protein
767	 39.80	0	798828..799817	-	329	16802815	-	lmo0773	-	hypothetical protein
768	 42.58	+1	799996..800925	+	309	16802816	-	lmo0774	-	hypothetical protein
769	 36.94	0	800965..801297	+	110	16802817	-	lmo0775	-	hypothetical protein
770	 41.06	0	801336..802202	-	288	16802818	-	lmo0776	-	hypothetical protein
771	 39.32	0	802356..802739	+	127	16802819	-	lmo0777	-	hypothetical protein
772	 34.48	-1	803201..803548	+	115	16802820	-	lmo0778	-	hypothetical protein
773	 38.46	0	803745..804212	-	155	16802821	-	lmo0779	-	hypothetical protein
774	 31.03	-2	804382..804729	+	115	16802822	-	lmo0780	-	hypothetical protein
775	 42.43	+1	804887..805765	-	292	16802823	-	lmo0781	-	mannose-specific PTS system protein IID
776	 42.68	+1	805784..806596	-	270	16802824	-	lmo0782	-	hypothetical protein
777	 38.07	0	806770..807255	-	161	16802825	-	lmo0783	-	hypothetical protein
778	 40.00	0	807255..807689	-	144	16802826	-	lmo0784	-	hypothetical protein
779	 37.88	0	807976..810792	-	938	16802827	-	lmo0785	-	hypothetical protein
780	 35.38	0	810985..811620	+	211	16802828	-	lmo0786	-	hypothetical protein
781	 38.13	0	811813..813189	+	458	16802829	-	lmo0787	-	hypothetical protein
782	 40.54	0	813451..817878	+	1475	16802830	-	lmo0788	-	hypothetical protein
783	 33.57	-1	817914..818762	-	282	16802831	-	lmo0789	-	hypothetical protein
784	 40.67	0	818789..819265	-	158	16802832	-	lmo0790	-	hypothetical protein
785	 34.72	0	819389..820039	+	216	16802833	-	lmo0791	-	hypothetical protein
786	 37.04	0	820145..821035	+	296	16802834	-	lmo0792	-	hypothetical protein
787	 40.88	0	821070..821771	-	233	16802835	-	lmo0793	-	hypothetical protein
788	 40.97	0	821886..822527	-	213	16802836	-	lmo0794	-	hypothetical protein
789	 39.41	0	822611..823531	-	306	16802837	-	lmo0795	-	hypothetical protein
790	 40.30	0	823638..824168	-	176	16802838	-	lmo0796	-	hypothetical protein
791	 34.85	0	824423..824884	+	153	16802839	-	lmo0797	-	hypothetical protein
792	 40.31	0	824936..826396	-	486	16802840	-	lmo0798	-	hypothetical protein
793	 35.43	0	826752..827513	-	253	16802841	-	lmo0799	-	hypothetical protein
794	 35.04	0	827666..828016	+	116	16802842	-	lmo0800	-	hypothetical protein
795	 31.63	-1	828168..830108	+	646	16802843	-	lmo0801	-	hypothetical protein
796	 33.18	-1	830259..830897	+	212	16802844	-	lmo0802	-	hypothetical protein
797	 38.46	0	831025..833073	+	682	16802845	-	lmo0803	-	hypothetical protein
798	 32.48	-1	833117..833587	-	156	16802846	-	lmo0804	-	hypothetical protein
799	 32.25	-1	833615..834076	-	153	16802847	-	lmo0805	-	hypothetical protein
800	 36.46	0	834287..834829	+	180	16802848	-	lmo0806	-	hypothetical protein
801	 38.26	0	834845..835939	+	364	16802849	-	lmo0807	-	hypothetical protein
802	 36.30	0	835939..836748	+	269	16802850	-	lmo0808	-	hypothetical protein
803	 38.41	0	836745..837551	+	268	16802851	-	lmo0809	-	hypothetical protein
804	 39.20	0	837548..838621	+	357	16802852	-	lmo0810	-	hypothetical protein
805	 38.03	0	838751..839452	+	233	16802853	-	lmo0811	-	hypothetical protein
806	 42.17	+1	839520..840062	+	180	16802854	-	lmo0812	-	hypothetical protein
807	 42.38	+1	840200..841072	+	290	16802855	-	lmo0813	-	hypothetical protein
808	 44.84	+2	841157..842086	+	309	16802856	-	lmo0814	-	hypothetical protein
809	 30.02	-2	842313..842765	+	150	16802857	-	lmo0815	-	hypothetical protein
810	 29.19	-2	842781..843287	+	168	16802858	-	lmo0816	-	hypothetical protein
811	 40.82	0	843311..843724	-	137	16802859	-	lmo0817	-	hypothetical protein
812	 41.58	+1	843949..846579	+	876	16802860	-	lmo0818	-	hypothetical protein
813	 37.22	0	846594..847442	+	282	16802861	-	lmo0819	-	hypothetical protein
814	 38.71	0	847552..848109	+	185	16802862	-	lmo0820	-	hypothetical protein
815	 34.24	-1	848126..848788	+	220	16802863	-	lmo0821	-	hypothetical protein
816	 41.03	0	848804..849193	-	129	16802864	-	lmo0822	-	hypothetical protein
817	 38.67	0	849314..850138	+	274	16802865	-	lmo0823	-	hypothetical protein
818	 41.07	0	850216..851184	+	322	16802866	-	lmo0824	-	hypothetical protein
819	 42.15	+1	851225..852505	+	426	16802867	-	lmo0825	-	hypothetical protein
820	 40.24	0	852704..854338	+	544	16802868	-	lmo0826	-	hypothetical protein
821	 33.99	-1	854443..854748	+	101	16802869	-	lmo0827	-	hypothetical protein
822	 35.84	0	854745..855581	+	278	16802870	-	lmo0828	-	hypothetical protein
823	 42.13	+1	855759..859406	+	1215	16802871	nifJ	lmo0829	-	hypothetical protein
824	 37.05	0	859656..861617	-	653	16802872	fbp	lmo0830	-	hypothetical protein
825	 37.50	0	861731..862642	-	303	16802873	-	lmo0831	-	hypothetical protein
826	 27.02	-2	863322..863606	+	94	16802874	-	lmo0832	-	hypothetical protein
827	 33.00	-1	863798..864688	+	296	16802875	-	lmo0833	-	hypothetical protein
828	 30.67	-2	864824..865537	+	237	16802876	-	lmo0834	-	hypothetical protein
829	 34.73	0	865530..866534	+	334	16802877	-	lmo0835	-	peptidoglycan binding protein
830	 34.30	-1	866577..866990	-	137	16802878	-	lmo0836	-	phosphate-starvation-inducible protein PsiE
831	 36.29	0	869095..870480	+	461	16802879	uhpT	lmo0838	-	sugar phosphate antiporter
832	 41.77	+1	870587..871807	-	406	16802880	-	lmo0839	-	hypothetical protein
833	 33.33	-1	871940..872410	-	156	16802881	-	lmo0840	-	hypothetical protein
834	 42.15	+1	872616..875258	+	880	16802882	-	lmo0841	-	hypothetical protein
835	 36.67	0	875721..881855	+	2044	16802883	-	lmo0842	-	peptidoglycan binding protein
836	 39.15	0	881992..882249	-	85	16802884	-	lmo0843	-	hypothetical protein
837	 38.62	0	882328..882705	+	125	16802885	-	lmo0844	-	hypothetical protein
838	 41.21	0	882962..884065	+	367	16802886	-	lmo0845	-	hypothetical protein
839	 34.24	-1	884170..885270	+	366	16802887	-	lmo0846	-	hypothetical protein
840	 37.01	0	885440..886882	+	480	16802888	-	lmo0847	-	hypothetical protein
841	 38.41	0	886875..887603	+	242	16802889	-	lmo0848	-	hypothetical protein
842	 37.01	0	887652..889502	-	616	16802890	-	lmo0849	-	amidase
843	 33.33	-1	890069..890215	+	48	16802891	-	lmo0850	-	hypothetical protein
844	 35.57	0	890439..891197	+	252	16802892	-	lmo0851	-	hypothetical protein
845	 40.72	0	891277..891831	+	184	16802893	-	lmo0852	-	hypothetical protein
846	 38.01	0	891848..892189	+	113	16802894	-	lmo0853	-	hypothetical protein
847	 38.32	0	892192..892512	+	106	16802895	-	lmo0854	-	hypothetical protein
848	 39.71	0	892662..893774	+	370	16802896	ddl	lmo0855	-	D-alanyl-alanine synthetase A
849	 40.17	0	893838..895211	+	457	16802897	murF	lmo0856	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diamino pimelate-D-alanyl-D-alanyl ligase
850	 38.80	0	895278..895991	+	237	16802898	-	lmo0857	-	hypothetical protein
851	 37.62	0	896003..897028	-	341	16802899	-	lmo0858	-	hypothetical protein
852	 38.71	0	897273..898592	+	439	16802900	-	lmo0859	-	hypothetical protein
853	 37.77	0	898589..899467	+	292	16802901	-	lmo0860	-	hypothetical protein
38.00	MEAN

3.37	STD DEV
