IslandPathversion 1.0

IslandPath Analysis: Listeria monocytogenes EGD-e

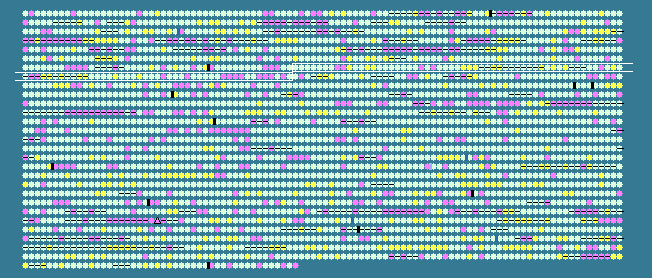

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.00 STD DEV: 3.37
Listeria monocytogenes EGD-e, complete genome - 1..2944528
2846 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
646	 39.29	0	694973..695509	-	178	16802694	-	lmo0652	-	hypothetical protein
647	 40.50	0	695496..696416	-	306	16802695	-	lmo0653	-	hypothetical protein
648	 37.62	0	696606..696815	+	69	16802696	-	lmo0654	-	hypothetical protein
649	 38.84	0	696883..697590	+	235	16802697	-	lmo0655	-	hypothetical protein
650	 36.17	0	697634..698197	-	187	16802698	-	lmo0656	-	hypothetical protein
651	 39.09	0	698317..698733	+	138	16802699	-	lmo0657	-	hypothetical protein
652	 37.89	0	698785..699420	+	211	16802700	-	lmo0658	-	hypothetical protein
653	 30.55	-2	699410..700306	-	298	16802701	-	lmo0659	-	hypothetical protein
654	 33.68	-1	700537..700821	+	94	16802702	-	lmo0660	-	hypothetical protein
655	 44.66	+1	700876..701184	-	102	16802703	-	lmo0661	-	hypothetical protein
656	 41.18	0	701247..702062	-	271	16802704	thiD	lmo0662	-	hypothetical protein
657	 38.18	0	702088..702954	-	288	16802705	-	lmo0663	-	hypothetical protein
658	 42.55	+1	703128..703691	+	187	16802706	-	lmo0664	-	hypothetical protein
659	 41.67	+1	703688..703951	+	87	16802707	-	lmo0665	-	hypothetical protein
660	 40.74	0	703961..704338	+	125	16802708	-	lmo0666	-	hypothetical protein
661	 39.32	0	704452..705387	+	311	16802709	-	lmo0667	-	hypothetical protein
662	 39.69	0	705380..706150	+	256	16802710	-	lmo0668	-	hypothetical protein
663	 40.68	0	706408..707292	+	294	16802711	-	lmo0669	-	hypothetical protein
664	 39.55	0	707310..707486	+	58	16802712	-	lmo0670	-	hypothetical protein
665	 34.65	0	707612..708220	+	202	16802713	-	lmo0671	-	hypothetical protein
666	 36.83	0	709134..709562	+	142	16802714	-	lmo0672	-	hypothetical protein
667	 32.38	-1	709601..709810	-	69	16802715	-	lmo0673	-	hypothetical protein
668	 35.07	0	709829..710749	-	306	16802716	-	lmo0674	-	hypothetical protein
669	 32.70	-1	711121..711435	+	104	16802717	-	lmo0675	-	hypothetical protein
670	 38.15	0	711428..712195	+	255	16802718	fliP	lmo0676	-	flagellar biosynthesis protein FliP
671	 41.03	0	712208..712480	+	90	16802719	fliQ	lmo0677	-	flagellar biosynthesis protein FliQ
672	 37.80	0	712483..713244	+	253	16802720	fliR	lmo0678	-	flagellar biosynthesis protein FliR
673	 41.36	0	713260..714306	+	348	16802721	flhB	lmo0679	-	flagellar biosynthesis protein FlhB
674	 41.57	+1	714353..716428	+	691	16802722	flhA	lmo0680	-	flagellar biosynthesis protein FlhA
675	 41.83	+1	716450..717673	+	407	16802723	-	lmo0681	-	flagellar biosynthesis regulator FlhF
676	 41.54	+1	717670..718449	+	259	16802724	flgG	lmo0682	-	flagellar basal body rod protein FlgG
677	 38.78	0	718478..719266	+	262	16802725	-	lmo0683	-	hypothetical protein
678	 37.20	0	719291..719626	+	111	16802726	-	lmo0684	-	hypothetical protein
679	 42.96	+1	719653..720504	+	283	16802727	-	lmo0685	-	flagellar motor protein MotA
680	 42.51	+1	720464..721291	+	275	16802728	motB	lmo0686	-	hypothetical protein
681	 37.13	0	721301..721801	+	166	16802729	-	lmo0687	-	hypothetical protein
682	 38.61	0	721824..723737	+	637	16802730	-	lmo0688	-	hypothetical protein
683	 38.06	0	723750..724658	+	302	16802731	-	lmo0689	-	hypothetical protein
684	 38.19	0	724896..725759	+	287	16802732	flaA	lmo0690	-	flagellin
685	 40.83	0	726034..726393	+	119	16802733	cheY	lmo0691	-	chemotaxis response regulator CheY
686	 40.93	0	726413..728269	+	618	16802734	cheA	lmo0692	-	two-component sensor histidine kinase CheA
687	 42.00	+1	728282..728581	+	99	16802735	-	lmo0693	-	flagellar motor switch protein
688	 37.71	0	728600..729010	+	136	16802736	-	lmo0694	-	hypothetical protein
689	 43.08	+1	729026..730072	+	348	16802737	-	lmo0695	-	hypothetical protein
690	 39.48	0	730074..730496	+	140	16802738	flgD	lmo0696	-	flagellar basal body rod modification protein
691	 41.99	+1	730516..731751	+	411	16802739	flgE	lmo0697	-	flagellar hook protein FlgE
692	 40.08	0	731765..732001	+	78	16802740	-	lmo0698	-	flagellar motor switch protein
693	 40.38	0	732022..733014	+	330	16802741	fliM	lmo0699	-	flagellar motor switch protein FliM
694	 40.83	0	733017..734564	+	515	16802742	-	lmo0700	-	flagellar motor switch protein
695	 39.39	0	734570..735973	+	467	16802743	-	lmo0701	-	hypothetical protein
696	 35.82	0	735996..737162	+	388	16802744	-	lmo0702	-	hypothetical protein
697	 32.69	-1	737269..737733	+	154	16802745	-	lmo0703	-	hypothetical protein
698	 35.43	0	737743..738171	+	142	16802746	-	lmo0704	-	hypothetical protein
699	 42.14	+1	738191..739711	+	506	16802747	flgK	lmo0705	-	flagellar hook-associated protein FlgK
700	 38.24	0	739723..740598	+	291	16802748	flgL	lmo0706	-	flagellar hook-associated protein FlgL
701	 39.38	0	740610..741899	+	429	16802749	fliD	lmo0707	-	flagellar capping protein
702	 33.33	-1	741918..742304	+	128	16802750	-	lmo0708	-	hypothetical protein
703	 34.04	-1	742276..742557	+	93	16802751	-	lmo0709	-	hypothetical protein
704	 41.54	+1	742578..742979	+	133	16802752	flgB	lmo0710	-	flagellar basal body rod protein FlgB
705	 42.58	+1	742991..743401	+	136	16802753	flgC	lmo0711	-	flagellar basal body rod protein FlgC
706	 40.40	0	743418..743714	+	98	16802754	fliE	lmo0712	-	flagellar hook-basal body protein FliE
707	 41.86	+1	743782..745434	+	550	16802755	fliF	lmo0713	-	flagellar MS-ring protein
708	 40.92	0	745437..746543	+	368	16802756	fliG	lmo0714	-	flagellar motor switch protein G
709	 38.38	0	746530..747222	+	230	16802757	fliH	lmo0715	-	flagellar assembly protein H
710	 43.01	+1	747219..748520	+	433	16802758	fliI	lmo0716	-	flagellum-specific ATP synthase
711	 42.45	+1	748537..749205	+	222	16802759	-	lmo0717	-	hypothetical protein
712	 37.67	0	749219..749863	+	214	16802760	-	lmo0718	-	hypothetical protein
713	 39.14	0	749985..750311	+	108	16802761	-	lmo0719	-	hypothetical protein
714	 38.58	0	750311..750634	+	107	16802762	-	lmo0720	-	hypothetical protein
715	 38.12	0	750680..751327	-	215	16802763	-	lmo0721	-	putative fibronectin-binding protein
716	 42.69	+1	751598..753328	+	576	16802764	-	lmo0722	-	pyruvate oxidase
717	 40.48	0	753490..755295	+	601	16802765	-	lmo0723	-	hypothetical protein
718	 39.51	0	755308..756036	+	242	16802766	-	lmo0724	-	hypothetical protein
719	 38.50	0	756079..756291	-	70	16802767	-	lmo0725	-	peptidoglycan binding protein
720	 46.53	+2	756494..756637	+	47	16802768	-	lmo0726	-	hypothetical protein
721	 40.75	0	756738..758543	+	601	16802769	-	lmo0727	-	D-fructose-6-phosphate amidotransferase
722	 41.30	0	758656..759396	+	246	16802770	-	lmo0728	-	hypothetical protein
723	 40.00	0	759479..759958	+	159	16802771	-	lmo0729	-	hypothetical protein
724	 34.51	-1	759972..760310	+	112	16802772	-	lmo0730	-	hypothetical protein
725	 39.51	0	760455..760859	+	134	16802773	-	lmo0731	-	hypothetical protein
726	 37.87	0	761552..763468	+	638	16802774	-	lmo0732	-	peptidoglycan binding protein
727	 37.06	0	763798..764307	+	169	16802775	-	lmo0733	-	hypothetical protein
728	 34.33	-1	764465..765469	-	334	16802776	-	lmo0734	-	hypothetical protein
729	 35.86	0	765683..766354	+	223	16802777	-	lmo0735	-	hypothetical protein
730	 37.14	0	766351..766797	+	148	16802778	-	lmo0736	-	ribose-5-phosphate isomerase B
731	 38.05	0	766810..767742	+	310	16802779	-	lmo0737	-	hypothetical protein
732	 39.27	0	767766..769619	+	617	16802780	-	lmo0738	-	hypothetical protein
733	 35.66	0	769639..771012	+	457	16802781	-	lmo0739	-	hypothetical protein
734	 33.79	-1	771026..771685	-	219	16802782	-	lmo0740	-	hypothetical protein
735	 34.13	-1	771949..772326	+	125	16802783	-	lmo0741	-	hypothetical protein
736	 34.35	-1	772310..772999	+	229	16802784	-	lmo0742	-	hypothetical protein
737	 34.47	-1	772996..773700	+	234	16802785	-	lmo0743	-	hypothetical protein
738	 35.18	0	773715..775715	+	666	16802786	-	lmo0744	-	hypothetical protein
739	 36.31	0	775744..776247	+	167	16802787	-	lmo0745	-	hypothetical protein
740	 29.67	-2	776398..776697	-	99	16802788	-	lmo0746	-	hypothetical protein
741	 30.12	-2	776761..777102	+	113	16802789	-	lmo0747	-	hypothetical protein
742	 31.94	-1	777209..777496	+	95	16802790	-	lmo0748	-	hypothetical protein
743	 35.75	0	777493..777699	+	68	16802791	-	lmo0749	-	hypothetical protein
744	 33.14	-1	777692..778207	+	171	16802792	-	lmo0750	-	hypothetical protein
745	 35.69	0	778262..778558	+	98	16802793	-	lmo0751	-	hypothetical protein
38.00	MEAN

3.37	STD DEV
