IslandPath Analysis: Listeria monocytogenes EGD-e

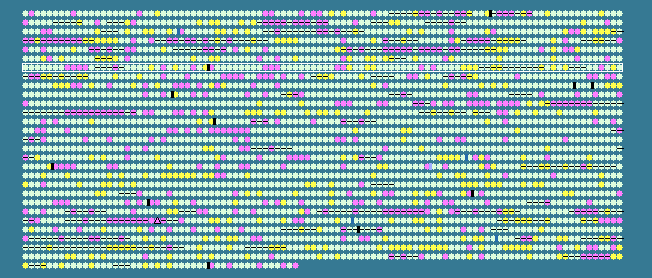

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.00 STD DEV: 3.37
Listeria monocytogenes EGD-e, complete genome - 1..2944528
2846 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
601	 39.35	0	645878..647590	+	570	16802649	-	lmo0607	-	hypothetical protein
602	 39.22	0	647587..649404	+	605	16802650	-	lmo0608	-	hypothetical protein
603	 38.33	0	649520..649819	+	99	16802651	-	lmo0609	-	hypothetical protein
604	 36.78	0	649864..651633	-	589	16802652	-	lmo0610	-	hypothetical protein
605	 37.96	0	651794..652420	-	208	16802653	acpD	lmo0611	-	azoreductase
606	 37.06	0	652589..653044	+	151	16802654	-	lmo0612	-	hypothetical protein
607	 39.81	0	653041..653982	+	313	16802655	-	lmo0613	-	hypothetical protein
608	 33.15	-1	654078..654611	+	177	16802656	-	lmo0614	-	hypothetical protein
609	 33.74	-1	654608..654850	-	80	16802657	-	lmo0615	-	hypothetical protein
610	 33.90	-1	654957..656708	+	583	16802658	-	lmo0616	-	glycerophosphoryl diester phosphodiesterase
611	 32.32	-1	656749..657243	-	164	16802659	-	lmo0617	-	hypothetical protein
612	 37.01	0	657323..658465	-	380	16802660	-	lmo0618	-	hypothetical protein
613	 35.75	0	658572..659027	+	151	16802661	-	lmo0619	-	hypothetical protein
614	 35.11	0	659083..659475	+	130	16802662	-	lmo0620	-	hypothetical protein
615	 35.90	0	659572..660312	+	246	16802663	-	lmo0621	-	hypothetical protein
616	 28.67	-2	660398..660676	+	92	16802664	-	lmo0622	-	hypothetical protein
617	 37.08	0	660692..660958	+	88	16802665	-	lmo0623	-	hypothetical protein
618	 35.59	0	660996..661439	-	147	16802666	-	lmo0624	-	hypothetical protein
619	 38.18	0	661470..662171	-	233	16802667	-	lmo0625	-	hypothetical protein
620	 35.54	0	662257..663936	-	559	16802668	-	lmo0626	-	hypothetical protein
621	 36.96	0	664242..668990	+	1582	16802669	-	lmo0627	-	pepdidoglycan bound protein
622	 43.12	+1	669086..669361	+	91	16802670	-	lmo0628	-	hypothetical protein
623	 35.23	0	669423..669950	+	175	16802671	-	lmo0629	-	hypothetical protein
624	 34.17	-1	670309..672339	+	676	16802672	-	lmo0630	-	hypothetical protein
625	 34.88	0	672341..672793	+	150	16802673	-	lmo0631	-	hypothetical protein
626	 42.18	+1	672794..673855	+	353	16802674	-	lmo0632	-	putative fructose-like permease EIIC subunit 2
627	 37.22	0	673870..674178	+	102	16802675	-	lmo0633	-	putative fructose-like phosphotransferase EIIB subunit 2
628	 37.51	0	674205..675473	+	422	16802676	-	lmo0634	-	hypothetical protein
629	 34.18	-1	675563..676267	+	234	16802677	-	lmo0635	-	hypothetical protein
630	 38.85	0	676372..676788	+	138	16802678	-	lmo0636	-	hypothetical protein
631	 42.09	+1	676802..677395	+	197	16802679	-	lmo0637	-	hypothetical protein
632	 34.29	-1	678494..679123	+	209	16802680	-	lmo0638	-	hypothetical protein
633	 36.14	0	679763..680296	+	177	16802681	-	lmo0639	-	hypothetical protein
634	 39.00	0	680360..681277	+	305	16802682	-	lmo0640	-	hypothetical protein
635	 41.47	+1	681543..683423	+	626	16802683	-	lmo0641	-	hypothetical protein
636	 37.31	0	683519..684247	+	242	16802684	-	lmo0642	-	hypothetical protein
637	 37.63	0	684390..685040	+	216	16802685	-	lmo0643	-	hypothetical protein
638	 37.29	0	685083..686903	-	606	16802686	-	lmo0644	-	hypothetical protein
639	 39.51	0	687138..688529	+	463	16802687	-	lmo0645	-	hypothetical protein
640	 41.07	0	688619..689458	+	279	16802688	-	lmo0646	-	hypothetical protein
641	 34.04	-1	689541..689825	-	94	16802689	-	lmo0647	-	hypothetical protein
642	 33.02	-1	689923..690873	+	316	16802690	-	lmo0648	-	hypothetical protein
643	 33.80	-1	690897..691538	+	213	16802691	-	lmo0649	-	hypothetical protein
644	 38.54	0	691581..694271	+	896	16802692	-	lmo0650	-	hypothetical protein
645	 35.49	0	694317..694964	+	215	16802693	-	lmo0651	-	hypothetical protein
646	 39.29	0	694973..695509	-	178	16802694	-	lmo0652	-	hypothetical protein
647	 40.50	0	695496..696416	-	306	16802695	-	lmo0653	-	hypothetical protein
648	 37.62	0	696606..696815	+	69	16802696	-	lmo0654	-	hypothetical protein
649	 38.84	0	696883..697590	+	235	16802697	-	lmo0655	-	hypothetical protein
650	 36.17	0	697634..698197	-	187	16802698	-	lmo0656	-	hypothetical protein
651	 39.09	0	698317..698733	+	138	16802699	-	lmo0657	-	hypothetical protein
652	 37.89	0	698785..699420	+	211	16802700	-	lmo0658	-	hypothetical protein
653	 30.55	-2	699410..700306	-	298	16802701	-	lmo0659	-	hypothetical protein
654	 33.68	-1	700537..700821	+	94	16802702	-	lmo0660	-	hypothetical protein
655	 44.66	+1	700876..701184	-	102	16802703	-	lmo0661	-	hypothetical protein
656	 41.18	0	701247..702062	-	271	16802704	thiD	lmo0662	-	hypothetical protein
657	 38.18	0	702088..702954	-	288	16802705	-	lmo0663	-	hypothetical protein
658	 42.55	+1	703128..703691	+	187	16802706	-	lmo0664	-	hypothetical protein
659	 41.67	+1	703688..703951	+	87	16802707	-	lmo0665	-	hypothetical protein
660	 40.74	0	703961..704338	+	125	16802708	-	lmo0666	-	hypothetical protein
661	 39.32	0	704452..705387	+	311	16802709	-	lmo0667	-	hypothetical protein
662	 39.69	0	705380..706150	+	256	16802710	-	lmo0668	-	hypothetical protein
663	 40.68	0	706408..707292	+	294	16802711	-	lmo0669	-	hypothetical protein
664	 39.55	0	707310..707486	+	58	16802712	-	lmo0670	-	hypothetical protein
665	 34.65	0	707612..708220	+	202	16802713	-	lmo0671	-	hypothetical protein
666	 36.83	0	709134..709562	+	142	16802714	-	lmo0672	-	hypothetical protein
667	 32.38	-1	709601..709810	-	69	16802715	-	lmo0673	-	hypothetical protein
668	 35.07	0	709829..710749	-	306	16802716	-	lmo0674	-	hypothetical protein
669	 32.70	-1	711121..711435	+	104	16802717	-	lmo0675	-	hypothetical protein
670	 38.15	0	711428..712195	+	255	16802718	fliP	lmo0676	-	flagellar biosynthesis protein FliP
671	 41.03	0	712208..712480	+	90	16802719	fliQ	lmo0677	-	flagellar biosynthesis protein FliQ
672	 37.80	0	712483..713244	+	253	16802720	fliR	lmo0678	-	flagellar biosynthesis protein FliR
673	 41.36	0	713260..714306	+	348	16802721	flhB	lmo0679	-	flagellar biosynthesis protein FlhB
674	 41.57	+1	714353..716428	+	691	16802722	flhA	lmo0680	-	flagellar biosynthesis protein FlhA
675	 41.83	+1	716450..717673	+	407	16802723	-	lmo0681	-	flagellar biosynthesis regulator FlhF
676	 41.54	+1	717670..718449	+	259	16802724	flgG	lmo0682	-	flagellar basal body rod protein FlgG
677	 38.78	0	718478..719266	+	262	16802725	-	lmo0683	-	hypothetical protein
678	 37.20	0	719291..719626	+	111	16802726	-	lmo0684	-	hypothetical protein
679	 42.96	+1	719653..720504	+	283	16802727	-	lmo0685	-	flagellar motor protein MotA
680	 42.51	+1	720464..721291	+	275	16802728	motB	lmo0686	-	hypothetical protein
681	 37.13	0	721301..721801	+	166	16802729	-	lmo0687	-	hypothetical protein
682	 38.61	0	721824..723737	+	637	16802730	-	lmo0688	-	hypothetical protein
683	 38.06	0	723750..724658	+	302	16802731	-	lmo0689	-	hypothetical protein
684	 38.19	0	724896..725759	+	287	16802732	flaA	lmo0690	-	flagellin
685	 40.83	0	726034..726393	+	119	16802733	cheY	lmo0691	-	chemotaxis response regulator CheY
686	 40.93	0	726413..728269	+	618	16802734	cheA	lmo0692	-	two-component sensor histidine kinase CheA
687	 42.00	+1	728282..728581	+	99	16802735	-	lmo0693	-	flagellar motor switch protein
688	 37.71	0	728600..729010	+	136	16802736	-	lmo0694	-	hypothetical protein
689	 43.08	+1	729026..730072	+	348	16802737	-	lmo0695	-	hypothetical protein
690	 39.48	0	730074..730496	+	140	16802738	flgD	lmo0696	-	flagellar basal body rod modification protein
691	 41.99	+1	730516..731751	+	411	16802739	flgE	lmo0697	-	flagellar hook protein FlgE
692	 40.08	0	731765..732001	+	78	16802740	-	lmo0698	-	flagellar motor switch protein
693	 40.38	0	732022..733014	+	330	16802741	fliM	lmo0699	-	flagellar motor switch protein FliM
694	 40.83	0	733017..734564	+	515	16802742	-	lmo0700	-	flagellar motor switch protein
695	 39.39	0	734570..735973	+	467	16802743	-	lmo0701	-	hypothetical protein
696	 35.82	0	735996..737162	+	388	16802744	-	lmo0702	-	hypothetical protein
697	 32.69	-1	737269..737733	+	154	16802745	-	lmo0703	-	hypothetical protein
698	 35.43	0	737743..738171	+	142	16802746	-	lmo0704	-	hypothetical protein
699	 42.14	+1	738191..739711	+	506	16802747	flgK	lmo0705	-	flagellar hook-associated protein FlgK
700	 38.24	0	739723..740598	+	291	16802748	flgL	lmo0706	-	flagellar hook-associated protein FlgL
38.00	MEAN

3.37	STD DEV
