IslandPath Analysis: Listeria monocytogenes EGD-e

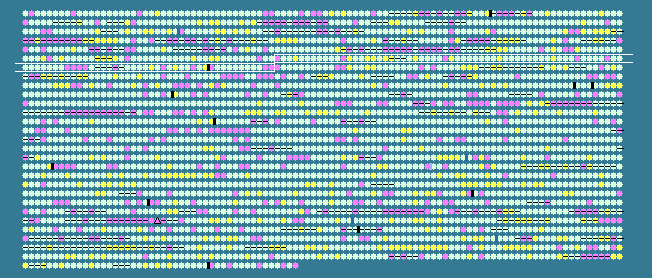

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.00 STD DEV: 3.37
Listeria monocytogenes EGD-e, complete genome - 1..2944528
2846 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
543	 31.08	-2	586329..586994	+	221	16802591	-	lmo0548	-	hypothetical protein
544	 36.05	0	587012..589033	+	673	16802592	-	lmo0549	-	hypothetical protein
545	 40.07	0	589066..589362	+	98	16802593	-	lmo0550	-	pepdidoglycan bound protein
546	 43.42	+1	589406..590248	+	280	16802594	-	lmo0551	-	hypothetical protein
547	 36.63	0	590324..591355	+	343	16802595	-	lmo0552	-	hypothetical protein
548	 35.85	0	591412..592047	-	211	16802596	-	lmo0553	-	hypothetical protein
549	 38.92	0	592257..593438	+	393	16802597	-	lmo0554	-	hypothetical protein
550	 40.77	0	593528..595006	+	492	16802598	-	lmo0555	-	hypothetical protein
551	 38.84	0	595135..595842	+	235	16802599	-	lmo0556	-	hypothetical protein
552	 38.07	0	595843..596538	+	231	16802600	-	lmo0557	-	hypothetical protein
553	 39.58	0	596580..597620	-	346	16802601	-	lmo0558	-	hypothetical protein
554	 30.91	-2	598020..598925	+	301	16802602	-	lmo0559	-	hypothetical protein
555	 43.28	+1	598968..600344	-	458	16802603	-	lmo0560	-	glutamate dehydrogenase
556	 37.50	0	600837..601148	-	103	16802604	hisE	lmo0561	-	phosphoribosyl-ATP pyrophosphatase
557	 40.25	0	601149..601466	-	105	16802605	-	lmo0562	-	phosphoribosyl-AMP cyclohydrolase
558	 45.50	+2	601463..602218	-	251	16802606	hisF	lmo0563	-	imidazole glycerol phosphate synthase subunit HisF
559	 42.74	+1	602208..602930	-	240	16802607	hisA	lmo0564	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
560	 40.67	0	602909..603535	-	208	16802608	hisH	lmo0565	-	imidazole glycerol phosphate synthase subunit HisH
561	 41.88	+1	603536..604120	-	194	16802609	hisB	lmo0566	-	imidazoleglycerol-phosphate dehydratase
562	 42.60	+1	604121..605404	-	427	16802610	hisD	lmo0567	-	histidinol dehydrogenase
563	 38.16	0	605401..606042	-	213	16802611	hisG	lmo0568	-	ATP phosphoribosyltransferase catalytic subunit
564	 40.19	0	606039..607220	-	393	16802612	hisZ	lmo0569	-	ATP phosphoribosyltransferase regulatory subunit
565	 40.34	0	607372..608199	+	275	16802613	hisJ	lmo0570	-	histidinol-phosphatase
566	 44.44	+1	608184..608480	-	98	16802614	-	lmo0571	-	hypothetical protein
567	 35.85	0	608557..609588	+	343	16802615	-	lmo0572	-	hypothetical protein
568	 41.20	0	609629..610924	-	431	16802616	-	lmo0573	-	hypothetical protein
569	 40.14	0	611240..612634	+	464	16802617	-	lmo0574	-	hypothetical protein
570	 39.92	0	612678..613406	+	242	16802618	-	lmo0575	-	hypothetical protein
571	 34.43	-1	613836..615299	+	487	16802619	-	lmo0576	-	hypothetical protein
572	 44.23	+1	615353..615811	-	152	16802620	-	lmo0577	-	hypothetical protein
573	 39.84	0	615825..616577	-	250	16802621	-	lmo0578	-	hypothetical protein
574	 38.57	0	616742..616951	+	69	16802622	-	lmo0579	-	hypothetical protein
575	 39.12	0	616973..617629	+	218	16802623	-	lmo0580	-	hypothetical protein
576	 37.38	0	617660..618844	-	394	16802624	-	lmo0581	-	hypothetical protein
577	 38.85	0	618932..620380	-	482	16802625	iap	lmo0582	-	P60 extracellular protein, invasion associated protein Iap
578	 39.55	0	620805..623135	+	776	16802626	-	lmo0583	-	preprotein translocase subunit SecA
579	 34.70	0	623251..624423	+	390	16802627	-	lmo0584	-	hypothetical protein
580	 43.42	+1	624682..625395	+	237	16802628	-	lmo0585	-	putative secreted protein
581	 35.19	0	625463..626488	+	341	16802629	-	lmo0586	-	hypothetical protein
582	 40.27	0	626506..628971	+	821	16802630	-	lmo0587	-	putative secreted protein
583	 39.10	0	629088..630491	+	467	16802631	-	lmo0588	-	hypothetical protein
584	 37.44	0	630629..631042	+	137	16802632	-	lmo0589	-	hypothetical protein
585	 39.84	0	631045..632811	+	588	16802633	-	lmo0590	-	hypothetical protein
586	 36.06	0	632811..633581	+	256	16802634	-	lmo0591	-	hypothetical protein
587	 36.46	0	633709..634251	+	180	16802635	-	lmo0592	-	hypothetical protein
588	 36.45	0	634479..635279	+	266	16802636	-	lmo0593	-	hypothetical protein
589	 41.82	+1	635317..636423	-	368	16802637	metX	lmo0594	-	homoserine O-acetyltransferase
590	 40.92	0	636440..637717	-	425	16802638	-	lmo0595	-	hypothetical protein
591	 36.55	0	638165..638692	+	175	16802639	-	lmo0596	-	hypothetical protein
592	 36.18	0	638781..639482	-	233	16802640	-	lmo0597	-	hypothetical protein
593	 32.43	-1	640300..640632	+	110	16802641	-	lmo0599	-	hypothetical protein
594	 37.23	0	640625..641215	+	196	16802642	-	lmo0600	-	hypothetical protein
595	 35.15	0	641208..642308	+	366	16802643	-	lmo0601	-	hypothetical protein
596	 38.72	0	642414..642914	+	166	16802644	-	lmo0602	-	hypothetical protein
597	 39.28	0	642962..643348	-	128	16802645	-	lmo0603	-	hypothetical protein
598	 34.49	-1	643400..643744	-	114	16802646	-	lmo0604	-	hypothetical protein
599	 40.72	0	643891..645231	-	446	16802647	-	lmo0605	-	hypothetical protein
600	 36.80	0	645397..645858	+	153	16802648	-	lmo0606	-	hypothetical protein
601	 39.35	0	645878..647590	+	570	16802649	-	lmo0607	-	hypothetical protein
602	 39.22	0	647587..649404	+	605	16802650	-	lmo0608	-	hypothetical protein
603	 38.33	0	649520..649819	+	99	16802651	-	lmo0609	-	hypothetical protein
604	 36.78	0	649864..651633	-	589	16802652	-	lmo0610	-	hypothetical protein
605	 37.96	0	651794..652420	-	208	16802653	acpD	lmo0611	-	azoreductase
606	 37.06	0	652589..653044	+	151	16802654	-	lmo0612	-	hypothetical protein
607	 39.81	0	653041..653982	+	313	16802655	-	lmo0613	-	hypothetical protein
608	 33.15	-1	654078..654611	+	177	16802656	-	lmo0614	-	hypothetical protein
609	 33.74	-1	654608..654850	-	80	16802657	-	lmo0615	-	hypothetical protein
610	 33.90	-1	654957..656708	+	583	16802658	-	lmo0616	-	glycerophosphoryl diester phosphodiesterase
611	 32.32	-1	656749..657243	-	164	16802659	-	lmo0617	-	hypothetical protein
612	 37.01	0	657323..658465	-	380	16802660	-	lmo0618	-	hypothetical protein
613	 35.75	0	658572..659027	+	151	16802661	-	lmo0619	-	hypothetical protein
614	 35.11	0	659083..659475	+	130	16802662	-	lmo0620	-	hypothetical protein
615	 35.90	0	659572..660312	+	246	16802663	-	lmo0621	-	hypothetical protein
616	 28.67	-2	660398..660676	+	92	16802664	-	lmo0622	-	hypothetical protein
617	 37.08	0	660692..660958	+	88	16802665	-	lmo0623	-	hypothetical protein
618	 35.59	0	660996..661439	-	147	16802666	-	lmo0624	-	hypothetical protein
619	 38.18	0	661470..662171	-	233	16802667	-	lmo0625	-	hypothetical protein
620	 35.54	0	662257..663936	-	559	16802668	-	lmo0626	-	hypothetical protein
621	 36.96	0	664242..668990	+	1582	16802669	-	lmo0627	-	pepdidoglycan bound protein
622	 43.12	+1	669086..669361	+	91	16802670	-	lmo0628	-	hypothetical protein
623	 35.23	0	669423..669950	+	175	16802671	-	lmo0629	-	hypothetical protein
624	 34.17	-1	670309..672339	+	676	16802672	-	lmo0630	-	hypothetical protein
625	 34.88	0	672341..672793	+	150	16802673	-	lmo0631	-	hypothetical protein
626	 42.18	+1	672794..673855	+	353	16802674	-	lmo0632	-	putative fructose-like permease EIIC subunit 2
627	 37.22	0	673870..674178	+	102	16802675	-	lmo0633	-	putative fructose-like phosphotransferase EIIB subunit 2
628	 37.51	0	674205..675473	+	422	16802676	-	lmo0634	-	hypothetical protein
629	 34.18	-1	675563..676267	+	234	16802677	-	lmo0635	-	hypothetical protein
630	 38.85	0	676372..676788	+	138	16802678	-	lmo0636	-	hypothetical protein
631	 42.09	+1	676802..677395	+	197	16802679	-	lmo0637	-	hypothetical protein
632	 34.29	-1	678494..679123	+	209	16802680	-	lmo0638	-	hypothetical protein
633	 36.14	0	679763..680296	+	177	16802681	-	lmo0639	-	hypothetical protein
634	 39.00	0	680360..681277	+	305	16802682	-	lmo0640	-	hypothetical protein
635	 41.47	+1	681543..683423	+	626	16802683	-	lmo0641	-	hypothetical protein
636	 37.31	0	683519..684247	+	242	16802684	-	lmo0642	-	hypothetical protein
637	 37.63	0	684390..685040	+	216	16802685	-	lmo0643	-	hypothetical protein
638	 37.29	0	685083..686903	-	606	16802686	-	lmo0644	-	hypothetical protein
639	 39.51	0	687138..688529	+	463	16802687	-	lmo0645	-	hypothetical protein
640	 41.07	0	688619..689458	+	279	16802688	-	lmo0646	-	hypothetical protein
641	 34.04	-1	689541..689825	-	94	16802689	-	lmo0647	-	hypothetical protein
642	 33.02	-1	689923..690873	+	316	16802690	-	lmo0648	-	hypothetical protein
38.00	MEAN

3.37	STD DEV
