IslandPath Analysis: Listeria monocytogenes EGD-e

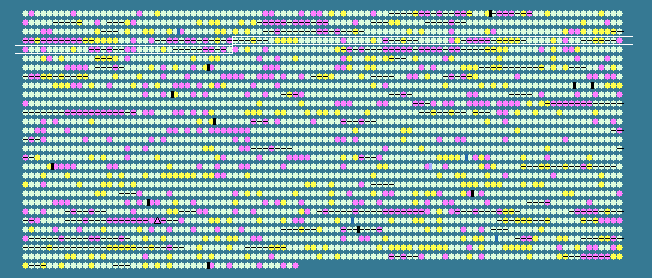

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.00 STD DEV: 3.37
Listeria monocytogenes EGD-e, complete genome - 1..2944528
2846 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
336	 37.37	0	370032..370403	+	123	16802384	-	lmo0339	-	hypothetical protein
337	 39.73	0	370416..370634	+	72	16802385	-	lmo0340	-	hypothetical protein
338	 35.44	0	370732..371064	-	110	16802386	-	lmo0341	-	hypothetical protein
339	 47.10	+2	371130..373127	-	665	16802387	-	lmo0342	-	hypothetical protein
340	 40.94	0	373129..373785	-	218	16802388	-	lmo0343	-	putative translaldolase
341	 40.92	0	373832..374596	-	254	16802389	-	lmo0344	-	short chain dehydrogenase
342	 40.94	0	374621..375067	-	148	16802390	-	lmo0345	-	hypothetical protein
343	 41.57	+1	375074..375838	-	254	16802391	-	lmo0346	-	hypothetical protein
344	 44.70	+1	375842..376492	-	216	16802392	-	lmo0347	-	hypothetical protein
345	 42.77	+1	376514..377509	-	331	16802393	-	lmo0348	-	hypothetical protein
346	 42.40	+1	377531..377872	-	113	16802394	-	lmo0349	-	hypothetical protein
347	 38.43	0	377888..378319	-	143	16802395	-	lmo0350	-	hypothetical protein
348	 38.10	0	378404..378781	-	125	16802396	-	lmo0351	-	hypothetical protein
349	 36.34	0	378964..379728	+	254	16802397	-	lmo0352	-	hypothetical protein
350	 38.41	0	379794..380207	+	137	16802398	-	lmo0353	-	hypothetical protein
351	 39.16	0	380253..381779	-	508	16802399	-	lmo0354	-	hypothetical protein
352	 38.86	0	382016..383536	+	506	16802400	-	lmo0355	-	fumarate reductase flavoprotein subunit
353	 37.66	0	383710..384726	+	338	16802401	-	lmo0356	-	hypothetical protein
354	 29.08	-2	384926..385372	+	148	16802402	-	lmo0357	-	hypothetical protein
355	 41.15	0	385386..386780	+	464	16802403	-	lmo0358	-	hypothetical protein
356	 37.86	0	386780..387640	+	286	16802404	-	lmo0359	-	hypothetical protein
357	 38.13	0	387697..388467	+	256	16802405	-	lmo0360	-	hypothetical protein
358	 38.37	0	388807..389541	-	244	16802406	-	lmo0361	-	hypothetical protein
359	 44.44	+1	389538..389717	-	59	16802407	-	lmo0362	-	hypothetical protein
360	 36.25	0	389813..390430	-	205	16802408	-	lmo0363	-	hypothetical protein
361	 32.38	-1	390529..391473	+	314	16802409	-	lmo0364	-	hypothetical protein
362	 40.51	0	391604..393052	+	482	16802410	-	lmo0365	-	hypothetical protein
363	 39.62	0	393086..394246	+	386	16802411	-	lmo0366	-	hypothetical protein
364	 45.42	+2	394264..395529	+	421	16802412	-	lmo0367	-	hypothetical protein
365	 39.41	0	395602..396111	+	169	16802413	-	lmo0368	-	hypothetical protein
366	 38.06	0	396208..396927	+	239	16802414	-	lmo0369	-	hypothetical protein
367	 41.37	0	396964..397299	+	111	16802415	-	lmo0370	-	hypothetical protein
368	 38.94	0	397340..398053	-	237	16802416	-	lmo0371	-	hypothetical protein
369	 38.39	0	398210..399652	+	480	16802417	-	lmo0372	-	hypothetical protein
370	 38.43	0	399645..400979	+	444	16802418	-	lmo0373	-	hypothetical protein
371	 39.27	0	400997..401299	+	100	16802419	-	lmo0374	-	hypothetical protein
372	 32.82	-1	401386..401580	+	64	16802420	-	lmo0375	-	hypothetical protein
373	 42.13	+1	401619..402539	-	306	16802421	-	lmo0376	-	hypothetical protein
374	 40.24	0	402641..403060	+	139	16802422	-	lmo0377	-	hypothetical protein
375	 27.07	-2	403279..403725	+	148	16802423	-	lmo0378	-	hypothetical protein
376	 31.36	-1	403743..404198	+	151	16802424	-	lmo0379	-	hypothetical protein
377	 27.14	-2	404365..404994	+	209	16802425	-	lmo0380	-	hypothetical protein
378	 28.94	-2	405221..405607	+	128	16802426	-	lmo0381	-	hypothetical protein
379	 41.34	0	405680..406441	-	253	16802427	-	lmo0382	-	hypothetical protein
380	 43.69	+1	406637..408103	+	488	16802428	-	lmo0383	-	hypothetical protein
381	 44.16	+1	408116..408937	+	273	16802429	-	lmo0384	-	hypothetical protein
382	 42.02	+1	408954..409931	+	325	16802430	-	lmo0385	-	hypothetical protein
383	 47.21	+2	409944..411860	+	638	16802431	-	lmo0386	-	hypothetical protein
384	 36.56	0	411992..412363	+	123	16802432	-	lmo0387	-	hypothetical protein
385	 37.13	0	412457..412825	+	122	16802433	-	lmo0388	-	hypothetical protein
386	 37.37	0	412849..413964	-	371	16802434	ltrA	lmo0389	-	low temperature requirement protein A
387	 40.99	0	414095..414760	+	221	16802435	-	lmo0390	-	uracil-DNA glycosylase
388	 39.33	0	414928..415227	+	99	16802436	-	lmo0391	-	hypothetical protein
389	 42.12	+1	415224..416168	+	314	16802437	-	lmo0392	-	hypothetical protein
390	 38.44	0	416203..416652	+	149	16802438	-	lmo0393	-	hypothetical protein
391	 34.21	-1	416796..417479	+	227	16802439	-	lmo0394	-	hypothetical protein
392	 37.09	0	417535..417960	+	141	16802440	-	lmo0395	-	hypothetical protein
393	 40.82	0	417963..418763	-	266	16802441	proC	lmo0396	-	pyrroline-5-carboxylate reductase
394	 39.13	0	418891..419373	+	160	16802442	-	lmo0397	-	hypothetical protein
395	 39.43	0	419544..420002	+	152	16802443	-	lmo0398	-	hypothetical protein
396	 44.74	+2	419999..420331	+	110	16802444	-	lmo0399	-	hypothetical protein
397	 42.59	+1	420335..421447	+	370	16802445	-	lmo0400	-	hypothetical protein
398	 40.03	0	421469..424096	+	875	16802446	-	lmo0401	-	alpha-mannosidase
399	 38.55	0	424130..426064	+	644	16802447	-	lmo0402	-	hypothetical protein
400	 32.85	-1	426190..426606	+	138	16802448	-	lmo0403	-	hypothetical protein
401	 32.08	-1	426597..426995	+	132	16802449	-	lmo0404	-	hypothetical protein
402	 40.58	0	427104..428111	+	335	16802450	-	lmo0405	-	hypothetical protein
403	 37.53	0	428127..428507	+	126	16802451	-	lmo0406	-	hypothetical protein
404	 33.08	-1	428576..428968	+	130	16802452	-	lmo0407	-	hypothetical protein
405	 37.12	0	428981..429403	+	140	16802453	-	lmo0408	-	hypothetical protein
406	 36.86	0	429630..432095	+	821	16802454	-	lmo0409	-	hypothetical protein
407	 39.86	0	433153..434745	-	530	16802455	-	lmo0411	-	phosphoenolpyruvate synthase
408	 40.66	0	434945..435817	-	290	16802456	-	lmo0412	-	hypothetical protein
409	 42.19	+1	436161..436352	+	63	16802457	-	lmo0413	-	hypothetical protein
410	 41.48	+1	436379..437188	+	269	16802458	-	lmo0414	-	hypothetical protein
411	 36.69	0	437482..438882	+	466	16802459	-	lmo0415	-	hypothetical protein
412	 34.31	-1	439009..439212	+	67	16802460	-	lmo0416	-	hypothetical protein
413	 27.98	-2	439214..439624	+	136	16802461	-	lmo0417	-	hypothetical protein
414	 37.33	0	439677..439976	-	99	16802462	-	lmo0418	-	hypothetical protein
415	 33.87	-1	440056..440610	-	184	16802463	-	lmo0419	-	hypothetical protein
416	 39.48	0	440758..441570	+	270	16802464	-	lmo0420	-	hypothetical protein
417	 37.17	0	441622..442872	-	416	16802465	-	lmo0421	-	hypothetical protein
418	 31.71	-1	442869..443300	-	143	16802466	lstR	lmo0422	-	lineage-specific thermal regulator protein
419	 32.79	-1	443303..443851	-	182	16802467	-	lmo0423	-	RNA polymerase factor sigma C
420	 40.91	0	444031..444888	-	285	16802468	-	lmo0424	-	hypothetical protein
421	 39.76	0	445049..447010	+	653	16802469	-	lmo0425	-	hypothetical protein
422	 36.34	0	447010..447474	+	154	16802470	-	lmo0426	-	hypothetical protein
423	 39.88	0	447471..447791	+	106	16802471	-	lmo0427	-	hypothetical protein
424	 43.54	+1	447804..448910	+	368	16802472	-	lmo0428	-	hypothetical protein
425	 41.23	0	448926..451508	+	860	16802473	-	lmo0429	-	hypothetical protein
426	 36.30	0	451531..452406	-	291	16802474	-	lmo0430	-	hypothetical protein
427	 40.53	0	452524..453093	+	189	16802475	-	lmo0431	-	hypothetical protein
428	 41.10	0	453107..453853	+	248	16802476	-	lmo0432	-	hypothetical protein
429	 37.33	0	454534..456936	+	800	16802477	inlA	lmo0433	-	internalin A
430	 36.45	0	457021..458913	+	630	16802478	inlB	lmo0434	-	internalin B
431	 33.55	-1	459681..465722	+	2013	16802479	-	lmo0435	-	peptidoglycan binding protein
432	 31.89	-1	465934..466419	-	161	16802480	-	lmo0436	-	hypothetical protein
433	 41.02	0	466517..467362	+	281	16802481	-	lmo0437	-	hypothetical protein
434	 33.82	-1	467519..468136	+	205	16802482	-	lmo0438	-	hypothetical protein
435	 38.30	0	468169..469437	-	422	16802483	-	lmo0439	-	hypothetical protein
38.00	MEAN

3.37	STD DEV
