IslandPath Analysis: Listeria monocytogenes EGD-e

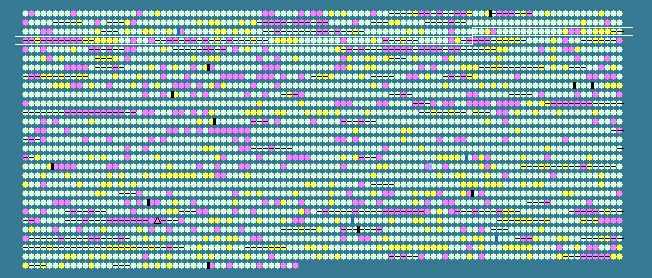

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.00 STD DEV: 3.37
Listeria monocytogenes EGD-e, complete genome - 1..2944528
2846 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
276	 38.24	0	300617..301717	-	366	16802324	-	lmo0278	-	hypothetical protein
277	 39.62	0	302008..304140	+	710	16802325	-	lmo0279	-	anaerobic ribonucleoside triphosphate reductase
278	 44.93	+2	304133..304684	+	183	16802326	-	lmo0280	-	hypothetical protein
279	 32.29	-1	304942..305613	-	223	16802327	-	lmo0281	-	hypothetical protein
280	 38.33	0	305775..306554	-	259	16802328	-	lmo0282	-	hypothetical protein
281	 40.42	0	306644..307306	-	220	16802329	-	lmo0283	-	hypothetical protein
282	 40.41	0	307303..308319	-	338	16802330	-	lmo0284	-	hypothetical protein
283	 35.77	0	308334..309155	-	273	16802331	-	lmo0285	-	putative lipoprotein
284	 41.12	0	309538..310719	+	393	16802332	-	lmo0286	-	transaminase
285	 40.34	0	310932..311645	+	237	16802333	-	lmo0287	-	hypothetical protein
286	 39.72	0	311830..313662	+	610	16802334	-	lmo0288	-	hypothetical protein
287	 35.22	0	313659..314981	+	440	16802335	-	lmo0289	-	hypothetical protein
288	 37.26	0	314984..315823	+	279	16802336	-	lmo0290	-	hypothetical protein
289	 37.55	0	315945..316775	+	276	16802337	-	lmo0291	-	hypothetical protein
290	 39.92	0	316873..318375	+	500	16802338	-	lmo0292	-	hypothetical protein
291	 47.08	+2	319049..319528	+	159	16802339	-	lmo0293	-	SPOUT methyltransferase superfamily protein
292	 32.75	-1	319560..320423	-	287	16802340	-	lmo0294	-	hypothetical protein
293	 33.20	-1	320542..321279	+	245	16802341	-	lmo0295	-	hypothetical protein
294	 41.94	+1	321490..322128	+	212	16802342	-	lmo0296	-	hypothetical protein
295	 38.46	0	322134..324005	-	623	16802343	-	lmo0297	-	hypothetical protein
296	 42.62	+1	324104..325417	-	437	16802344	-	lmo0298	-	hypothetical protein
297	 43.99	+1	325422..325712	-	96	16802345	-	lmo0299	-	hypothetical protein
298	 42.82	+1	325729..327120	-	463	16802346	-	lmo0300	-	hypothetical protein
299	 42.69	+1	327113..327454	-	113	16802347	-	lmo0301	-	hypothetical protein
300	 40.35	0	327621..327905	+	94	16802348	-	lmo0302	-	hypothetical protein
301	 31.17	-2	327941..328495	+	184	16802349	-	lmo0303	-	putaive secreted, lysin rich protein
302	 30.81	-2	328701..329966	+	421	16802350	-	lmo0304	-	hypothetical protein
303	 42.90	+1	329923..330999	+	358	16802351	-	lmo0305	-	hypothetical protein
304	 27.08	-2	331063..331446	-	127	16802352	-	lmo0306	-	hypothetical protein
305	 30.63	-2	331543..332688	+	381	16802353	-	lmo0307	-	hypothetical protein
306	 28.10	-2	333534..335195	+	553	16802354	-	lmo0309	-	hypothetical protein
307	 28.13	-2	335350..336426	+	358	16802355	-	lmo0310	-	hypothetical protein
308	 30.11	-2	336541..337161	+	206	16802356	-	lmo0311	-	hypothetical protein
309	 30.84	-2	337161..338363	+	400	16802357	-	lmo0312	-	hypothetical protein
310	 29.05	-2	338341..339087	+	248	16802358	-	lmo0313	-	hypothetical protein
311	 45.29	+2	339270..340055	+	261	16802359	-	lmo0314	-	hypothetical protein
312	 46.67	+2	340278..340952	+	224	16802360	-	lmo0315	-	hypothetical protein
313	 48.40	+2	340945..341754	+	269	16802361	-	lmo0316	-	hydroxyethylthiazole kinase
314	 45.90	+2	341751..342554	+	267	16802362	-	lmo0317	-	hypothetical protein
315	 47.13	+2	342551..343195	+	214	16802363	-	lmo0318	-	hypothetical protein
316	 42.09	+1	343221..344636	-	471	16802364	-	lmo0319	-	hypothetical protein
317	 39.58	0	344850..346049	-	399	16802365	-	lmo0320	-	hypothetical protein
318	 40.00	0	346377..347036	+	219	16802366	-	lmo0321	-	hypothetical protein
319	 31.04	-2	347219..347611	+	130	16802367	-	lmo0322	-	hypothetical protein
320	 39.30	0	347658..348428	-	256	16802368	-	lmo0323	-	hypothetical protein
321	 37.08	0	348586..349065	+	159	16802369	-	lmo0324	-	hypothetical protein
322	 33.78	-1	349326..350228	+	300	16802370	-	lmo0325	-	hypothetical protein
323	 38.83	0	350392..351264	+	290	16802371	-	lmo0326	-	hypothetical protein
324	 37.46	0	351459..355505	+	1348	16802372	-	lmo0327	-	hypothetical protein
325	 32.31	-1	355643..356323	+	226	16802373	-	lmo0328	-	hypothetical protein
326	 33.99	-1	356567..356872	+	101	16802374	-	lmo0329	-	hypothetical protein
327	 35.91	0	356890..357705	+	271	16802375	-	lmo0330	-	hypothetical protein
328	 34.44	-1	357775..359676	-	633	16802376	-	lmo0331	-	hypothetical protein
329	 30.36	-2	360172..360507	+	111	16802377	-	lmo0332	-	hypothetical protein
330	 35.73	0	360936..366272	+	1778	16802378	-	lmo0333	-	hypothetical protein
331	 30.48	-2	366508..367032	+	174	16802379	-	lmo0334	-	hypothetical protein
332	 41.40	+1	367248..367532	+	94	16802380	-	lmo0335	-	hypothetical protein
333	 42.01	+1	367533..367901	+	122	16802381	-	lmo0336	-	hypothetical protein
334	 39.63	0	367898..369373	+	491	16802382	-	lmo0337	-	hypothetical protein
335	 28.87	-2	369377..369757	+	126	16802383	-	lmo0338	-	hypothetical protein
336	 37.37	0	370032..370403	+	123	16802384	-	lmo0339	-	hypothetical protein
337	 39.73	0	370416..370634	+	72	16802385	-	lmo0340	-	hypothetical protein
338	 35.44	0	370732..371064	-	110	16802386	-	lmo0341	-	hypothetical protein
339	 47.10	+2	371130..373127	-	665	16802387	-	lmo0342	-	hypothetical protein
340	 40.94	0	373129..373785	-	218	16802388	-	lmo0343	-	putative translaldolase
341	 40.92	0	373832..374596	-	254	16802389	-	lmo0344	-	short chain dehydrogenase
342	 40.94	0	374621..375067	-	148	16802390	-	lmo0345	-	hypothetical protein
343	 41.57	+1	375074..375838	-	254	16802391	-	lmo0346	-	hypothetical protein
344	 44.70	+1	375842..376492	-	216	16802392	-	lmo0347	-	hypothetical protein
345	 42.77	+1	376514..377509	-	331	16802393	-	lmo0348	-	hypothetical protein
346	 42.40	+1	377531..377872	-	113	16802394	-	lmo0349	-	hypothetical protein
347	 38.43	0	377888..378319	-	143	16802395	-	lmo0350	-	hypothetical protein
348	 38.10	0	378404..378781	-	125	16802396	-	lmo0351	-	hypothetical protein
349	 36.34	0	378964..379728	+	254	16802397	-	lmo0352	-	hypothetical protein
350	 38.41	0	379794..380207	+	137	16802398	-	lmo0353	-	hypothetical protein
351	 39.16	0	380253..381779	-	508	16802399	-	lmo0354	-	hypothetical protein
352	 38.86	0	382016..383536	+	506	16802400	-	lmo0355	-	fumarate reductase flavoprotein subunit
353	 37.66	0	383710..384726	+	338	16802401	-	lmo0356	-	hypothetical protein
354	 29.08	-2	384926..385372	+	148	16802402	-	lmo0357	-	hypothetical protein
355	 41.15	0	385386..386780	+	464	16802403	-	lmo0358	-	hypothetical protein
356	 37.86	0	386780..387640	+	286	16802404	-	lmo0359	-	hypothetical protein
357	 38.13	0	387697..388467	+	256	16802405	-	lmo0360	-	hypothetical protein
358	 38.37	0	388807..389541	-	244	16802406	-	lmo0361	-	hypothetical protein
359	 44.44	+1	389538..389717	-	59	16802407	-	lmo0362	-	hypothetical protein
360	 36.25	0	389813..390430	-	205	16802408	-	lmo0363	-	hypothetical protein
361	 32.38	-1	390529..391473	+	314	16802409	-	lmo0364	-	hypothetical protein
362	 40.51	0	391604..393052	+	482	16802410	-	lmo0365	-	hypothetical protein
363	 39.62	0	393086..394246	+	386	16802411	-	lmo0366	-	hypothetical protein
364	 45.42	+2	394264..395529	+	421	16802412	-	lmo0367	-	hypothetical protein
365	 39.41	0	395602..396111	+	169	16802413	-	lmo0368	-	hypothetical protein
366	 38.06	0	396208..396927	+	239	16802414	-	lmo0369	-	hypothetical protein
367	 41.37	0	396964..397299	+	111	16802415	-	lmo0370	-	hypothetical protein
368	 38.94	0	397340..398053	-	237	16802416	-	lmo0371	-	hypothetical protein
369	 38.39	0	398210..399652	+	480	16802417	-	lmo0372	-	hypothetical protein
370	 38.43	0	399645..400979	+	444	16802418	-	lmo0373	-	hypothetical protein
371	 39.27	0	400997..401299	+	100	16802419	-	lmo0374	-	hypothetical protein
372	 32.82	-1	401386..401580	+	64	16802420	-	lmo0375	-	hypothetical protein
373	 42.13	+1	401619..402539	-	306	16802421	-	lmo0376	-	hypothetical protein
374	 40.24	0	402641..403060	+	139	16802422	-	lmo0377	-	hypothetical protein
375	 27.07	-2	403279..403725	+	148	16802423	-	lmo0378	-	hypothetical protein
38.00	MEAN

3.37	STD DEV
