IslandPath Analysis: Listeria monocytogenes EGD-e

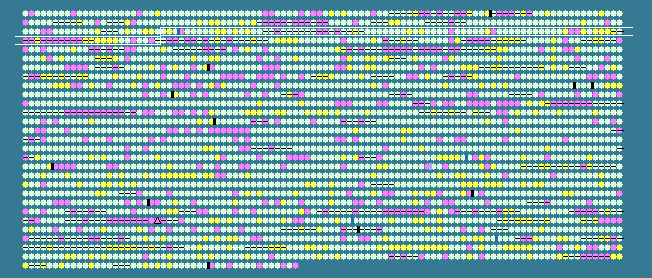

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.00 STD DEV: 3.37
Listeria monocytogenes EGD-e, complete genome - 1..2944528
2846 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
224	 36.88	0	233858..234337	+	159	16802272	folK	lmo0226	-	hypothetical protein
225	 42.67	+1	234414..235409	+	331	16802273	-	lmo0227	-	hypothetical protein
226	 39.41	0	235524..237020	+	498	16802274	lysS	lmo0228	-	lysyl-tRNA synthetase
227	 30.94	-2	248555..249013	+	152	16802275	-	lmo0229	-	hypothetical protein
228	 38.92	0	249026..249544	+	172	16802276	-	lmo0230	-	hypothetical protein
229	 36.75	0	249541..250563	+	340	16802277	-	lmo0231	-	ATP:guanido phosphotransferase
230	 40.52	0	250592..253054	+	820	16802278	clpC	lmo0232	-	endopeptidase Clp ATP-binding chain C
231	 41.48	+1	253200..254573	+	457	16802279	-	lmo0233	-	DNA repair protein RadA
232	 35.57	0	254707..255780	+	357	16802280	-	lmo0234	-	hypothetical protein
233	 42.78	+1	255800..256498	+	232	16802281	ispD	lmo0235	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
234	 41.77	+1	256491..256964	+	157	16802282	ispF	lmo0236	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
235	 37.87	0	256983..258458	+	491	16802283	gltX	lmo0237	-	hypothetical protein
236	 44.88	+2	258856..259470	+	204	16802284	cysE	lmo0238	-	hypothetical protein
237	 40.40	0	259477..260892	+	471	16802285	cysS	lmo0239	-	cysteinyl-tRNA synthetase
238	 41.61	+1	260896..261306	+	136	16802286	-	lmo0240	-	hypothetical protein
239	 41.01	0	261306..262061	+	251	16802287	-	lmo0241	-	hypothetical protein
240	 40.94	0	262064..262576	+	170	16802288	-	lmo0242	-	hypothetical protein
241	 38.28	0	262657..263262	+	201	16802289	sigH	lmo0243	-	RNA polymerase factor sigma-70
242	 39.33	0	263366..263515	+	49	16802290	rpmG	lmo0244	-	50S ribosomal protein L33
243	 31.11	-2	263535..263714	+	59	16802291	secE	lmo0245	-	preprotein translocase subunit SecE
244	 38.76	0	263844..264377	+	177	16802292	nusG	lmo0246	-	transcription antitermination protein NusG
245	 35.88	0	264432..264902	+	156	16802293	-	lmo0247	-	hypothetical protein
246	 40.85	0	265029..265454	+	141	16802294	rplK	lmo0248	-	50S ribosomal protein L11
247	 39.86	0	265494..266183	+	229	16802295	rplA	lmo0249	-	50S ribosomal protein L1
248	 40.52	0	266431..266931	+	166	16802296	rplJ	lmo0250	-	50S ribosomal protein L10
249	 38.57	0	267010..267372	+	120	16802297	rplL	lmo0251	-	50S ribosomal protein L7/L12
250	 32.30	-1	267530..267916	+	128	16802298	-	lmo0252	-	hypothetical protein
251	 32.28	-1	267909..268949	+	346	16802299	-	lmo0253	-	hypothetical protein
252	 36.65	0	269067..269729	+	220	16802300	-	lmo0254	-	hypothetical protein
253	 33.93	-1	269754..270257	+	167	16802301	-	lmo0255	-	hypothetical protein
254	 36.96	0	270372..270977	+	201	16802302	-	lmo0256	-	hypothetical protein
255	 39.95	0	271324..272502	+	392	16802303	-	lmo0257	-	hypothetical protein
256	 41.88	+1	273003..276557	+	1184	16802304	rpoB	lmo0258	-	DNA-directed RNA polymerase subunit beta
257	 41.35	0	276728..280333	+	1201	16802305	rpoC	lmo0259	-	DNA-directed RNA polymerase subunit beta'
258	 41.03	0	280410..280955	+	181	16802306	-	lmo0260	-	hypothetical protein
259	 41.00	0	281021..282481	+	486	16802307	-	lmo0261	-	hypothetical protein
260	 36.39	0	282755..284227	+	490	16802308	inlG	lmo0262	-	internalin G
261	 38.55	0	284365..286011	+	548	16802309	inlH	lmo0263	-	internalin H
262	 35.07	0	286219..287718	+	499	16802310	inlE	lmo0264	-	internalin E
263	 37.98	0	287853..288992	+	379	16802311	-	lmo0265	-	succinyl-diaminopimelate desuccinylase
264	 37.65	0	289139..289555	+	138	16802312	-	lmo0266	-	hypothetical protein
265	 43.02	+1	289562..290521	+	319	16802313	-	lmo0267	-	hypothetical protein
266	 41.04	0	290593..291228	+	211	16802314	-	lmo0268	-	hypothetical protein
267	 41.71	+1	291312..293198	+	628	16802315	-	lmo0269	-	hypothetical protein
268	 38.57	0	293212..293841	-	209	16802316	-	lmo0270	-	hypothetical protein
269	 40.78	0	293845..295281	-	478	16802317	-	lmo0271	-	hypothetical protein
270	 36.90	0	295401..296213	-	270	16802318	-	lmo0272	-	hypothetical protein
271	 38.10	0	296349..296852	+	167	16802319	-	lmo0273	-	hypothetical protein
272	 32.88	-1	296889..297551	-	220	16802320	-	lmo0274	-	hypothetical protein
273	 37.25	0	297810..298652	-	280	16802321	-	lmo0275	-	hypothetical protein
274	 37.59	0	298669..299490	-	273	16802322	-	lmo0276	-	hypothetical protein
275	 38.99	0	299607..300578	+	323	16802323	-	lmo0277	-	hypothetical protein
276	 38.24	0	300617..301717	-	366	16802324	-	lmo0278	-	hypothetical protein
277	 39.62	0	302008..304140	+	710	16802325	-	lmo0279	-	anaerobic ribonucleoside triphosphate reductase
278	 44.93	+2	304133..304684	+	183	16802326	-	lmo0280	-	hypothetical protein
279	 32.29	-1	304942..305613	-	223	16802327	-	lmo0281	-	hypothetical protein
280	 38.33	0	305775..306554	-	259	16802328	-	lmo0282	-	hypothetical protein
281	 40.42	0	306644..307306	-	220	16802329	-	lmo0283	-	hypothetical protein
282	 40.41	0	307303..308319	-	338	16802330	-	lmo0284	-	hypothetical protein
283	 35.77	0	308334..309155	-	273	16802331	-	lmo0285	-	putative lipoprotein
284	 41.12	0	309538..310719	+	393	16802332	-	lmo0286	-	transaminase
285	 40.34	0	310932..311645	+	237	16802333	-	lmo0287	-	hypothetical protein
286	 39.72	0	311830..313662	+	610	16802334	-	lmo0288	-	hypothetical protein
287	 35.22	0	313659..314981	+	440	16802335	-	lmo0289	-	hypothetical protein
288	 37.26	0	314984..315823	+	279	16802336	-	lmo0290	-	hypothetical protein
289	 37.55	0	315945..316775	+	276	16802337	-	lmo0291	-	hypothetical protein
290	 39.92	0	316873..318375	+	500	16802338	-	lmo0292	-	hypothetical protein
291	 47.08	+2	319049..319528	+	159	16802339	-	lmo0293	-	SPOUT methyltransferase superfamily protein
292	 32.75	-1	319560..320423	-	287	16802340	-	lmo0294	-	hypothetical protein
293	 33.20	-1	320542..321279	+	245	16802341	-	lmo0295	-	hypothetical protein
294	 41.94	+1	321490..322128	+	212	16802342	-	lmo0296	-	hypothetical protein
295	 38.46	0	322134..324005	-	623	16802343	-	lmo0297	-	hypothetical protein
296	 42.62	+1	324104..325417	-	437	16802344	-	lmo0298	-	hypothetical protein
297	 43.99	+1	325422..325712	-	96	16802345	-	lmo0299	-	hypothetical protein
298	 42.82	+1	325729..327120	-	463	16802346	-	lmo0300	-	hypothetical protein
299	 42.69	+1	327113..327454	-	113	16802347	-	lmo0301	-	hypothetical protein
300	 40.35	0	327621..327905	+	94	16802348	-	lmo0302	-	hypothetical protein
301	 31.17	-2	327941..328495	+	184	16802349	-	lmo0303	-	putaive secreted, lysin rich protein
302	 30.81	-2	328701..329966	+	421	16802350	-	lmo0304	-	hypothetical protein
303	 42.90	+1	329923..330999	+	358	16802351	-	lmo0305	-	hypothetical protein
304	 27.08	-2	331063..331446	-	127	16802352	-	lmo0306	-	hypothetical protein
305	 30.63	-2	331543..332688	+	381	16802353	-	lmo0307	-	hypothetical protein
306	 28.10	-2	333534..335195	+	553	16802354	-	lmo0309	-	hypothetical protein
307	 28.13	-2	335350..336426	+	358	16802355	-	lmo0310	-	hypothetical protein
308	 30.11	-2	336541..337161	+	206	16802356	-	lmo0311	-	hypothetical protein
309	 30.84	-2	337161..338363	+	400	16802357	-	lmo0312	-	hypothetical protein
310	 29.05	-2	338341..339087	+	248	16802358	-	lmo0313	-	hypothetical protein
311	 45.29	+2	339270..340055	+	261	16802359	-	lmo0314	-	hypothetical protein
312	 46.67	+2	340278..340952	+	224	16802360	-	lmo0315	-	hypothetical protein
313	 48.40	+2	340945..341754	+	269	16802361	-	lmo0316	-	hydroxyethylthiazole kinase
314	 45.90	+2	341751..342554	+	267	16802362	-	lmo0317	-	hypothetical protein
315	 47.13	+2	342551..343195	+	214	16802363	-	lmo0318	-	hypothetical protein
316	 42.09	+1	343221..344636	-	471	16802364	-	lmo0319	-	hypothetical protein
317	 39.58	0	344850..346049	-	399	16802365	-	lmo0320	-	hypothetical protein
318	 40.00	0	346377..347036	+	219	16802366	-	lmo0321	-	hypothetical protein
319	 31.04	-2	347219..347611	+	130	16802367	-	lmo0322	-	hypothetical protein
320	 39.30	0	347658..348428	-	256	16802368	-	lmo0323	-	hypothetical protein
321	 37.08	0	348586..349065	+	159	16802369	-	lmo0324	-	hypothetical protein
322	 33.78	-1	349326..350228	+	300	16802370	-	lmo0325	-	hypothetical protein
323	 38.83	0	350392..351264	+	290	16802371	-	lmo0326	-	hypothetical protein
38.00	MEAN

3.37	STD DEV
