IslandPath Analysis: Listeria monocytogenes EGD-e

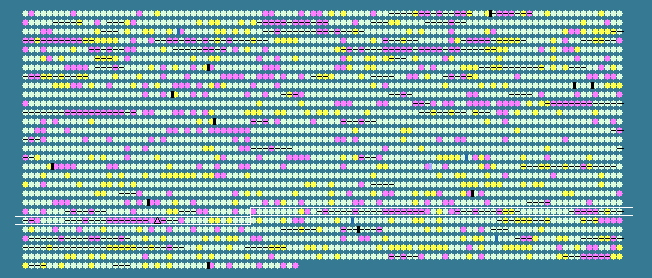

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.00 STD DEV: 3.37
Listeria monocytogenes EGD-e, complete genome - 1..2944528
2846 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2239	 33.66	-1	2337786..2338406	+	206	16804287	-	lmo2248	-	hypothetical protein
2240	 41.04	0	2338420..2339418	+	332	16804288	-	lmo2249	-	hypothetical protein
2241	 39.22	0	2339611..2341071	+	486	16804289	arpJ	lmo2250	-	hypothetical protein
2242	 41.18	0	2341064..2341789	+	241	16804290	-	lmo2251	-	hypothetical protein
2243	 37.25	0	2341865..2343013	+	382	16804291	-	lmo2252	-	aspartate aminotransferase
2244	 39.21	0	2343056..2343685	-	209	16804292	-	lmo2253	-	hypothetical protein
2245	 39.75	0	2343858..2345150	+	430	16804293	-	lmo2254	-	hypothetical protein
2246	 40.07	0	2345260..2345526	+	88	16804294	-	lmo2255	-	hypothetical protein
2247	 41.95	+1	2345567..2346088	-	173	16804295	-	lmo2256	-	hypothetical protein
2248	 30.43	-2	2346252..2346596	-	114	16804296	-	lmo2257	-	hypothetical protein
2249	 37.50	0	2346593..2346784	-	63	16804297	-	lmo2258	-	hypothetical protein
2250	 37.32	0	2346935..2347285	+	116	16804298	-	lmo2259	-	hypothetical protein
2251	 33.68	-1	2347276..2348151	-	291	16804299	-	lmo2260	-	hypothetical protein
2252	 39.48	0	2348231..2348539	-	102	16804300	-	lmo2261	-	hypothetical protein
2253	 37.98	0	2348604..2349356	-	250	16804301	-	lmo2262	-	hypothetical protein
2254	 39.24	0	2349475..2350320	+	281	16804302	-	lmo2263	-	hypothetical protein
2255	 34.55	-1	2350398..2351300	-	300	16804303	-	lmo2264	-	hypothetical protein
2256	 31.68	-1	2351384..2351746	-	120	16804304	-	lmo2265	-	hypothetical protein
2257	 36.63	0	2351767..2352615	-	282	16804305	-	lmo2266	-	hypothetical protein
2258	 34.95	0	2352616..2356323	-	1235	16804306	-	lmo2267	-	hypothetical protein
2259	 35.09	0	2356325..2359798	-	1157	16804307	addB	lmo2268	-	hypothetical protein
2260	 34.60	-1	2359948..2360184	-	78	16804308	-	lmo2269	-	hypothetical protein
2261	 29.39	-2	2360435..2360713	+	92	16804309	comK'	lmo2270	-	hypothetical protein
2262	 28.63	-2	2360908..2361141	-	77	16804310	-	lmo2271	-	hypothetical protein
2263	 33.81	-1	2361582..2361791	+	69	16804311	-	lmo2272	-	hypothetical protein
2264	 33.07	-1	2361897..2362274	+	125	16804312	-	lmo2273	-	protein gp30
2265	 31.91	-1	2362306..2362656	+	116	16804313	-	lmo2274	-	protein gp29
2266	 31.11	-2	2362661..2363110	+	149	16804314	-	lmo2275	-	protein gp28
2267	 34.34	-1	2363135..2363632	+	165	16804315	-	lmo2276	-	hypothetical protein
2268	 29.17	-2	2363709..2364260	-	183	16804316	-	lmo2277	-	hypothetical protein
2269	 39.01	0	2364754..2365599	-	281	16804317	lysA	lmo2278	-	L-alanoyl-D-glutamate peptidase
2270	 41.49	+1	2365599..2365880	-	93	16804318	-	lmo2279	-	holin
2271	 34.70	0	2365893..2366258	-	121	16804319	-	lmo2280	-	protein gp23
2272	 33.33	-1	2366288..2366446	-	52	16804320	-	lmo2281	-	protein gp22
2273	 33.33	-1	2366451..2366768	-	105	16804321	-	lmo2282	-	protein gp21
2274	 37.15	0	2366780..2367853	-	357	16804322	-	lmo2283	-	protein gp20
2275	 35.57	0	2367853..2368881	-	342	16804323	-	lmo2284	-	protein gp19
2276	 34.31	-1	2368882..2369907	-	341	16804324	-	lmo2285	-	protein gp18
2277	 37.36	0	2369916..2370734	-	272	16804325	-	lmo2286	-	protein gp17
2278	 39.93	0	2370736..2376099	-	1787	16804326	-	lmo2287	-	putative tape-measure
2279	 34.82	0	2376110..2376715	-	201	16804327	-	lmo2288	-	protein gp15
2280	 31.44	-1	2376721..2377143	-	140	16804328	-	lmo2289	-	protein gp14
2281	 42.34	+1	2377198..2377530	-	110	16804329	-	lmo2290	-	protein gp13
2282	 44.37	+1	2377460..2377894	-	144	16804330	-	lmo2291	-	major tail shaft protein
2283	 34.56	-1	2377897..2378304	-	135	16804331	-	lmo2292	-	protein gp11
2284	 40.41	0	2378304..2378642	-	112	16804332	-	lmo2293	-	protein gp10
2285	 35.81	0	2378642..2379004	-	120	16804333	-	lmo2294	-	protein gp9
2286	 40.91	0	2379004..2379399	-	131	16804334	-	lmo2295	-	protein gp8
2287	 41.32	0	2379418..2380419	-	333	16804335	-	lmo2296	-	hypothetical protein
2288	 38.07	0	2380419..2381009	-	196	16804336	-	lmo2297	-	putative scaffolding protein
2289	 39.82	0	2381088..2382227	-	379	16804337	-	lmo2298	-	protein gp4
2290	 38.05	0	2382228..2383988	-	586	16804338	-	lmo2299	-	putative portal protein
2291	 37.24	0	2384001..2385332	-	443	16804339	-	lmo2300	-	putative terminase large subunit from bacteriophage A118
2292	 35.72	0	2385301..2386095	-	264	16804340	-	lmo2301	-	hypothetical protein
2293	 28.15	-2	2386141..2386680	-	179	16804341	-	lmo2302	-	hypothetical protein
2294	 34.48	-1	2387046..2387480	-	144	16804342	-	lmo2303	-	protein gp66
2295	 27.27	-2	2387499..2387663	-	54	16804343	-	lmo2304	-	bacteriophage A118 gp65 protein
2296	 34.38	-1	2387792..2388175	-	127	16804344	-	lmo2305	-	hypothetical protein
2297	 36.79	0	2388179..2388583	-	134	16804345	-	lmo2306	-	hypothetical protein
2298	 42.08	+1	2388528..2388710	-	60	16804346	-	lmo2307	-	hypothetical protein
2299	 38.72	0	2388729..2389211	-	160	16804347	-	lmo2308	-	hypothetical protein
2300	 36.11	0	2389208..2389387	-	59	16804348	-	lmo2309	-	hypothetical protein
2301	 39.88	0	2389491..2389658	-	55	16804349	-	lmo2310	-	hypothetical protein
2302	 33.98	-1	2389655..2390116	-	153	16804350	-	lmo2311	-	hypothetical protein
2303	 32.70	-1	2390113..2390583	-	156	16804351	-	lmo2312	-	hypothetical protein
2304	 39.86	0	2390580..2391023	-	147	16804352	-	lmo2313	-	hypothetical protein
2305	 34.85	0	2391020..2391217	-	65	16804353	-	lmo2314	-	hypothetical protein
2306	 38.02	0	2391220..2391816	-	198	16804354	-	lmo2315	-	hypothetical protein
2307	 37.27	0	2391813..2392625	-	270	16804355	-	lmo2316	-	hypothetical protein
2308	 37.33	0	2392622..2393596	-	324	16804356	-	lmo2317	-	hypothetical protein
2309	 36.77	0	2393613..2394311	-	232	16804357	-	lmo2318	-	hypothetical protein
2310	 36.27	0	2394317..2394793	-	158	16804358	-	lmo2319	-	hypothetical protein
2311	 30.26	-2	2394790..2394984	-	64	16804359	-	lmo2320	-	hypothetical protein
2312	 38.10	0	2395290..2395478	-	62	16804360	-	lmo2321	-	hypothetical protein
2313	 34.72	0	2395586..2395801	-	71	16804361	-	lmo2322	-	gp44
2314	 37.45	0	2395798..2396331	-	177	16804362	-	lmo2323	-	hypothetical protein
2315	 33.08	-1	2396454..2397230	-	258	16804363	-	lmo2324	-	hypothetical protein
2316	 34.42	-1	2397212..2397487	-	91	16804364	-	lmo2325	-	hypothetical protein
2317	 31.56	-1	2397493..2397774	-	93	16804365	-	lmo2326	-	hypothetical protein
2318	 32.28	-1	2397800..2398084	-	94	16804366	-	lmo2327	-	hypothetical protein
2319	 33.74	-1	2398287..2398529	-	80	16804367	-	lmo2328	-	hypothetical protein
2320	 33.54	-1	2398685..2399161	+	158	16804368	-	lmo2329	-	hypothetical protein
2321	 31.20	-2	2399542..2400243	+	233	16804369	-	lmo2330	-	hypothetical protein
2322	 30.10	-2	2400264..2400944	+	226	16804370	-	lmo2331	-	hypothetical protein
2323	 33.63	-1	2401008..2402366	+	452	16804371	int	lmo2332	-	putative integrase
2324	 34.20	-1	2402888..2403235	-	115	16804372	-	lmo2334	-	hypothetical protein
2325	 39.34	0	2403341..2405239	-	632	16804373	fruA	lmo2335	-	hypothetical protein
2326	 37.66	0	2405241..2406164	-	307	16804374	fruB	lmo2336	-	fructose-1-phosphate kinase
2327	 34.00	-1	2406161..2406913	-	250	16804375	-	lmo2337	-	hypothetical protein
2328	 34.99	0	2407128..2408453	+	441	16804376	pepC	lmo2338	-	aminopeptidase C
2329	 40.32	0	2408450..2408893	-	147	16804377	-	lmo2339	-	hypothetical protein
2330	 39.91	0	2408967..2409878	-	303	16804378	-	lmo2340	-	hypothetical protein
2331	 41.38	+1	2409875..2410993	-	372	16804379	-	lmo2341	-	hypothetical protein
2332	 42.17	+1	2411126..2411827	-	233	16804380	-	lmo2342	-	hypothetical protein
2333	 42.86	+1	2411900..2413222	-	440	16804381	-	lmo2343	-	hypothetical protein
2334	 38.58	0	2413219..2413485	-	88	16804382	-	lmo2344	-	hypothetical protein
2335	 41.77	+1	2413478..2414473	-	331	16804383	-	lmo2345	-	hypothetical protein
2336	 40.51	0	2414470..2415249	-	259	16804384	-	lmo2346	-	hypothetical protein
2337	 41.10	0	2415246..2415953	-	235	16804385	-	lmo2347	-	hypothetical protein
2338	 38.63	0	2415967..2416683	-	238	16804386	-	lmo2348	-	hypothetical protein
38.00	MEAN

3.37	STD DEV
