IslandPath Analysis: Listeria monocytogenes EGD-e

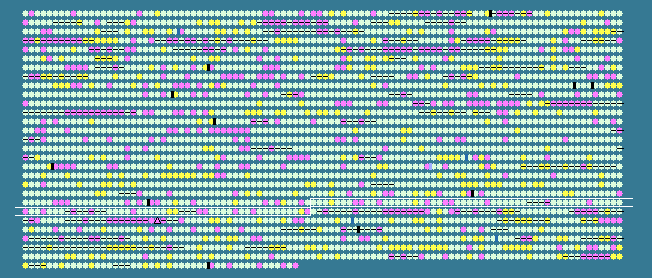

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.00 STD DEV: 3.37
Listeria monocytogenes EGD-e, complete genome - 1..2944528
2846 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2149	 37.10	0	2242097..2242282	-	61	16804197	-	lmo2158	-	hypothetical protein
2150	 39.52	0	2242376..2243425	-	349	16804198	-	lmo2159	-	hypothetical protein
2151	 39.73	0	2243448..2244416	-	322	16804199	-	lmo2160	-	hypothetical protein
2152	 43.85	+1	2244419..2245141	-	240	16804200	-	lmo2161	-	hypothetical protein
2153	 38.33	0	2245143..2245883	-	246	16804201	-	lmo2162	-	hypothetical protein
2154	 39.74	0	2245899..2246975	-	358	16804202	-	lmo2163	-	hypothetical protein
2155	 35.84	0	2247050..2247928	-	292	16804203	-	lmo2164	-	hypothetical protein
2156	 29.89	-2	2247998..2248693	-	231	16804204	-	lmo2165	-	hypothetical protein
2157	 31.99	-1	2248946..2249617	-	223	16804205	-	lmo2166	-	hypothetical protein
2158	 35.11	0	2249683..2250300	-	205	16804206	-	lmo2167	-	hypothetical protein
2159	 37.18	0	2250431..2250820	+	129	16804207	-	lmo2168	-	hypothetical protein
2160	 30.19	-2	2250846..2251004	+	52	16804208	-	lmo2169	-	hypothetical protein
2161	 41.08	0	2251050..2251979	-	309	16804209	-	lmo2170	-	hypothetical protein
2162	 41.26	0	2252001..2253224	-	407	16804210	-	lmo2171	-	hypothetical protein
2163	 39.77	0	2253221..2254804	-	527	16804211	-	lmo2172	-	hypothetical protein
2164	 38.60	0	2255034..2256401	-	455	16804212	-	lmo2173	-	hypothetical protein
2165	 36.03	0	2256507..2257580	-	357	16804213	-	lmo2174	-	hypothetical protein
2166	 42.39	+1	2257754..2258515	-	253	16804214	-	lmo2175	-	3-ketoacyl-(acyl-carrier-protein) reductase
2167	 35.64	0	2258697..2259260	+	187	16804215	-	lmo2176	-	hypothetical protein
2168	 32.47	-1	2259366..2259713	+	115	16804216	-	lmo2177	-	hypothetical protein
2169	 36.83	0	2259753..2264591	-	1612	16804217	-	lmo2178	-	peptidoglycan binding protein
2170	 35.27	0	2264772..2268230	-	1152	16804218	-	lmo2179	-	peptidoglycan binding protein
2171	 30.19	-2	2268424..2268900	-	158	16804219	-	lmo2180	-	hypothetical protein
2172	 34.28	-1	2268961..2269701	-	246	16804220	-	lmo2181	-	hypothetical protein
2173	 36.41	0	2269705..2270484	-	259	16804221	-	lmo2182	-	hypothetical protein
2174	 38.69	0	2270465..2271454	-	329	16804222	-	lmo2183	-	hypothetical protein
2175	 38.14	0	2271444..2272316	-	290	16804223	-	lmo2184	-	hypothetical protein
2176	 35.91	0	2272403..2274112	-	569	16804224	-	lmo2185	-	hypothetical protein
2177	 37.18	0	2274127..2274750	-	207	16804225	-	lmo2186	-	hypothetical protein
2178	 30.27	-2	2274961..2275221	-	86	16804226	-	lmo2187	-	hypothetical protein
2179	 35.33	0	2275520..2277325	-	601	16804227	-	lmo2188	-	hypothetical protein
2180	 34.86	0	2277398..2278513	-	371	16804228	-	lmo2189	-	hypothetical protein
2181	 36.39	0	2278639..2279292	-	217	16804229	mecA	lmo2190	-	adaptor protein
2182	 37.37	0	2279524..2279919	-	131	16804230	spxA	lmo2191	-	transcriptional regulator Spx
2183	 36.74	0	2280238..2281206	-	322	16804231	-	lmo2192	-	hypothetical protein
2184	 38.44	0	2281203..2282279	-	358	16804232	-	lmo2193	-	hypothetical protein
2185	 36.04	0	2282297..2283331	-	344	16804233	-	lmo2194	-	hypothetical protein
2186	 37.10	0	2283331..2284260	-	309	16804234	-	lmo2195	-	hypothetical protein
2187	 35.78	0	2284539..2286215	-	558	16804235	-	lmo2196	-	hypothetical protein
2188	 31.01	-2	2286839..2287183	+	114	16804236	-	lmo2197	-	hypothetical protein
2189	 36.45	0	2287518..2288513	+	331	16804237	trpS	lmo2198	-	tryptophanyl-tRNA synthetase
2190	 39.33	0	2288571..2288987	-	138	16804238	-	lmo2199	-	hypothetical protein
2191	 35.10	0	2288971..2289423	-	150	16804239	-	lmo2200	-	hypothetical protein
2192	 39.37	0	2289545..2290786	-	413	16804240	-	lmo2201	-	hypothetical protein
2193	 40.04	0	2290989..2291927	-	312	16804241	-	lmo2202	-	3-oxoacyl-(acyl carrier protein) synthase III
2194	 36.08	0	2292047..2293174	-	375	16804242	-	lmo2203	-	hypothetical protein
2195	 32.80	-1	2293497..2293685	+	62	16804243	-	lmo2204	-	hypothetical protein
2196	 37.54	0	2293775..2294464	-	229	16804244	-	lmo2205	-	hypothetical protein
2197	 38.41	0	2294555..2297155	-	866	16804245	clpB	lmo2206	-	hypothetical protein
2198	 38.35	0	2297304..2297981	-	225	16804246	-	lmo2207	-	hypothetical protein
2199	 36.06	0	2298093..2298863	-	256	16804247	-	lmo2208	-	hypothetical protein
2200	 36.39	0	2298927..2299712	-	261	16804248	-	lmo2209	-	hypothetical protein
2201	 32.75	-1	2299833..2300177	-	114	16804249	-	lmo2210	-	hypothetical protein
2202	 38.92	0	2300334..2301263	-	309	16804250	hemH	lmo2211	-	ferrochelatase
2203	 37.57	0	2301260..2302321	-	353	16804251	hemE	lmo2212	-	uroporphyrinogen decarboxylase
2204	 34.52	-1	2302518..2303021	+	167	16804252	-	lmo2213	-	hypothetical protein
2205	 35.78	0	2303060..2304283	-	407	16804253	-	lmo2214	-	hypothetical protein
2206	 35.99	0	2304267..2305019	-	250	16804254	-	lmo2215	-	hypothetical protein
2207	 37.83	0	2305180..2305602	+	140	16804255	-	lmo2216	-	hypothetical protein
2208	 35.54	0	2305632..2305994	+	120	16804256	-	lmo2217	-	hypothetical protein
2209	 31.67	-1	2306177..2306716	+	179	16804257	-	lmo2218	-	hypothetical protein
2210	 36.17	0	2306833..2307714	+	293	16804258	-	lmo2219	-	hypothetical protein
2211	 37.15	0	2307755..2308696	-	313	16804259	-	lmo2220	-	3'-5' exoribonuclease YhaM
2212	 34.51	-1	2308741..2311464	-	907	16804260	-	lmo2221	-	hypothetical protein
2213	 37.54	0	2311461..2312696	-	411	16804261	-	lmo2222	-	hypothetical protein
2214	 34.75	0	2312839..2313192	-	117	16804262	-	lmo2223	-	hypothetical protein
2215	 35.27	0	2313274..2314407	-	377	16804263	-	lmo2224	-	hypothetical protein
2216	 39.04	0	2314511..2315878	-	455	16804264	fumC	lmo2225	-	fumarate hydratase
2217	 37.99	0	2315948..2316742	-	264	16804265	-	lmo2226	-	hypothetical protein
2218	 35.65	0	2316739..2317644	-	301	16804266	-	lmo2227	-	hypothetical protein
2219	 27.78	-2	2317644..2317841	-	65	16804267	-	lmo2228	-	hypothetical protein
2220	 38.74	0	2317950..2320094	-	714	16804268	-	lmo2229	-	hypothetical protein
2221	 36.62	0	2320416..2320841	+	141	16804269	-	lmo2230	-	hypothetical protein
2222	 36.55	0	2320906..2321775	+	289	16804270	-	lmo2231	-	hypothetical protein
2223	 37.85	0	2322031..2323335	+	434	16804271	-	lmo2232	-	hypothetical protein
2224	 39.02	0	2323375..2324253	-	292	16804272	-	lmo2233	-	hypothetical protein
2225	 42.11	+1	2324554..2325408	+	284	16804273	-	lmo2234	-	hypothetical protein
2226	 42.99	+1	2325477..2327402	+	641	16804274	-	lmo2235	-	hypothetical protein
2227	 38.62	0	2327461..2328330	+	289	16804275	-	lmo2236	-	shikimate 5-dehydrogenase
2228	 37.47	0	2328363..2329571	+	402	16804276	-	lmo2237	-	hypothetical protein
2229	 36.36	0	2329731..2330921	+	396	16804277	-	lmo2238	-	hypothetical protein
2230	 32.02	-1	2330959..2332023	-	354	16804278	-	lmo2239	-	hypothetical protein
2231	 34.13	-1	2332020..2332898	-	292	16804279	-	lmo2240	-	hypothetical protein
2232	 35.86	0	2332888..2333283	-	131	16804280	-	lmo2241	-	hypothetical protein
2233	 35.82	0	2333375..2333857	-	160	16804281	-	lmo2242	-	hypothetical protein
2234	 37.57	0	2334003..2334569	+	188	16804282	-	lmo2243	-	hypothetical protein
2235	 39.31	0	2334586..2335455	+	289	16804283	-	lmo2244	-	hypothetical protein
2236	 33.84	-1	2335468..2335860	-	130	16804284	-	lmo2245	-	hypothetical protein
2237	 39.73	0	2335862..2336518	-	218	16804285	-	lmo2246	-	hypothetical protein
2238	 39.32	0	2336515..2337399	-	294	16804286	-	lmo2247	-	hypothetical protein
2239	 33.66	-1	2337786..2338406	+	206	16804287	-	lmo2248	-	hypothetical protein
2240	 41.04	0	2338420..2339418	+	332	16804288	-	lmo2249	-	hypothetical protein
2241	 39.22	0	2339611..2341071	+	486	16804289	arpJ	lmo2250	-	hypothetical protein
2242	 41.18	0	2341064..2341789	+	241	16804290	-	lmo2251	-	hypothetical protein
2243	 37.25	0	2341865..2343013	+	382	16804291	-	lmo2252	-	aspartate aminotransferase
2244	 39.21	0	2343056..2343685	-	209	16804292	-	lmo2253	-	hypothetical protein
2245	 39.75	0	2343858..2345150	+	430	16804293	-	lmo2254	-	hypothetical protein
2246	 40.07	0	2345260..2345526	+	88	16804294	-	lmo2255	-	hypothetical protein
2247	 41.95	+1	2345567..2346088	-	173	16804295	-	lmo2256	-	hypothetical protein
2248	 30.43	-2	2346252..2346596	-	114	16804296	-	lmo2257	-	hypothetical protein
38.00	MEAN

3.37	STD DEV
