IslandPathversion 1.0

IslandPath Analysis: Listeria monocytogenes EGD-e

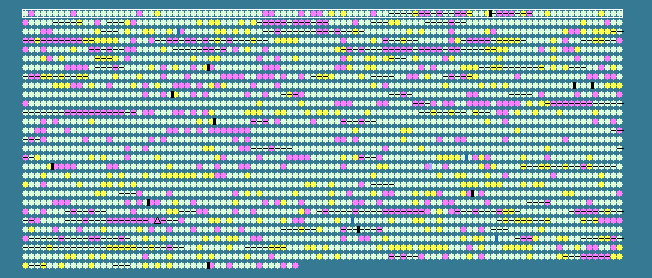

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.00 STD DEV: 3.37
Listeria monocytogenes EGD-e, complete genome - 1..2944528
2846 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 36.95	0	318..1673	+	451	16802049	dnaA	lmo0001	-	chromosomal replication initiation protein
2	 34.38	-1	1867..3012	+	381	16802050	dnaN	lmo0002	-	DNA polymerase III subunit beta
3	 39.43	0	3121..4464	+	447	16802051	-	lmo0003	-	hypothetical protein
4	 39.64	0	4644..4865	+	73	16802052	-	lmo0004	-	hypothetical protein
5	 39.71	0	4869..5981	+	370	16802053	recF	lmo0005	-	recombination protein F
6	 40.24	0	6030..7970	+	646	16802054	gyrB	lmo0006	-	DNA gyrase subunit B
7	 39.90	0	8065..10593	+	842	16802055	gyrA	lmo0007	-	DNA gyrase subunit A
8	 38.94	0	10728..12242	+	504	16802056	-	lmo0008	-	hypothetical protein
9	 34.10	-1	12258..12776	+	172	16802057	-	lmo0009	-	hypothetical protein
10	 38.70	0	12918..13886	+	322	16802058	-	lmo0010	-	hypothetical protein
11	 40.02	0	13843..14814	+	323	16802059	-	lmo0011	-	hypothetical protein
12	 39.54	0	14795..15874	+	359	16802060	-	lmo0012	-	hypothetical protein
13	 38.39	0	16219..17325	+	368	16802061	qoxA	lmo0013	-	AA3-600 quinol oxidase subunit II
14	 40.71	0	17344..19323	+	659	16802062	qoxB	lmo0014	-	AA3-600 quinol oxidase subunit I
15	 38.40	0	19311..19922	+	203	16802063	qoxC	lmo0015	-	AA3-600 quinol oxidase subunit III
16	 37.84	0	19924..20256	+	110	16802064	qoxD	lmo0016	-	hypothetical protein
17	 35.84	0	20308..21426	-	372	16802065	-	lmo0017	-	hypothetical protein
18	 39.61	0	21652..23085	+	477	16802066	-	lmo0018	-	beta-glucosidase
19	 38.93	0	23132..23953	-	273	16802067	-	lmo0019	-	hypothetical protein
20	 31.85	-1	24194..24934	+	246	16802068	-	lmo0020	-	hypothetical protein
21	 39.80	0	24950..25351	+	133	16802069	-	lmo0021	-	hypothetical protein
22	 37.22	0	25351..25839	+	162	16802070	-	lmo0022	-	hypothetical protein
23	 41.67	+1	25862..26665	+	267	16802071	-	lmo0023	-	hypothetical protein
24	 38.77	0	26640..27467	+	275	16802072	-	lmo0024	-	hypothetical protein
25	 40.57	0	27495..28199	+	234	16802073	-	lmo0025	-	hypothetical protein
26	 38.63	0	28254..28895	+	213	16802074	-	lmo0026	-	hypothetical protein
27	 38.32	0	29100..31004	+	634	16802075	-	lmo0027	-	hypothetical protein
28	 36.42	0	31088..31963	+	291	16802076	-	lmo0028	-	hypothetical protein
29	 40.71	0	32197..32535	+	112	16802077	-	lmo0029	-	hypothetical protein
30	 36.42	0	32571..33380	-	269	16802078	-	lmo0030	-	hypothetical protein
31	 37.12	0	33397..34452	-	351	16802079	-	lmo0031	-	LacI family transcription regulator
32	 41.30	0	34654..35619	+	321	16802080	-	lmo0032	-	hypothetical protein
33	 40.99	0	35616..38018	+	800	16802081	-	lmo0033	-	hypothetical protein
34	 38.80	0	38031..39383	+	450	16802082	-	lmo0034	-	hypothetical protein
35	 38.77	0	39385..40470	+	361	16802083	-	lmo0035	-	hypothetical protein
36	 37.13	0	40705..41730	+	341	16802084	-	lmo0036	-	putrescine carbamoyltransferase
37	 37.09	0	41803..43188	+	461	16802085	-	lmo0037	-	hypothetical protein
38	 39.19	0	43175..44266	+	363	16802086	-	lmo0038	-	agmatine deiminase
39	 40.98	0	44282..45223	+	313	16802087	-	lmo0039	-	carbamate kinase
40	 39.01	0	45325..46434	+	369	16802088	-	lmo0040	-	agmatine deiminase
41	 33.08	-1	46451..47230	+	259	16802089	-	lmo0041	-	hypothetical protein
42	 33.48	-1	47335..47994	+	219	16802090	-	lmo0042	-	hypothetical protein
43	 38.44	0	48074..49306	+	410	16802091	-	lmo0043	-	arginine deiminase
44	 35.71	0	49585..49878	+	97	16802092	rpsF	lmo0044	-	30S ribosomal protein S6
45	 41.15	0	49934..50470	+	178	16802093	ssb	lmo0045	-	hypothetical protein
46	 39.58	0	50514..50753	+	79	16802094	rpsR	lmo0046	-	30S ribosomal protein S18
47	 32.03	-1	50907..51518	+	203	16802095	-	lmo0047	-	hypothetical protein
48	 35.61	0	51775..52389	+	204	16802096	-	lmo0048	-	putative accessory gene regulator protein
49	 29.01	-2	52373..52534	+	53	16802097	-	lmo0049	-	hypothetical protein
50	 32.10	-1	52630..53925	+	431	16802098	-	lmo0050	-	hypothetical protein
51	 35.25	0	53944..54672	+	242	16802099	-	lmo0051	-	hypothetical protein
52	 42.50	+1	54839..56812	+	657	16802100	-	lmo0052	-	hypothetical protein
53	 35.12	0	56815..57261	+	148	16802101	rplI	lmo0053	-	50S ribosomal protein L9
54	 42.79	+1	57286..58638	+	450	16802102	dnaC	lmo0054	-	replicative DNA helicase
55	 39.29	0	58897..60189	+	430	16802103	purA	lmo0055	-	adenylosuccinate synthetase
56	 38.10	0	60506..60799	+	97	16802104	-	lmo0056	-	hypothetical protein
57	 36.33	0	60948..64154	+	1068	16802105	-	lmo0057	-	hypothetical protein
58	 38.18	0	64144..64659	+	171	16802106	-	lmo0058	-	hypothetical protein
59	 33.33	-1	64677..64928	+	83	16802107	-	lmo0059	-	hypothetical protein
60	 35.42	0	64950..66146	+	398	16802108	-	lmo0060	-	hypothetical protein
61	 40.00	0	66160..70656	+	1498	16802109	-	lmo0061	-	hypothetical protein
62	 34.60	-1	70676..71071	+	131	16802110	-	lmo0062	-	hypothetical protein
63	 36.00	0	71064..71363	+	99	16802111	-	lmo0063	-	hypothetical protein
64	 35.33	0	71360..72061	+	233	16802112	-	lmo0064	-	hypothetical protein
65	 37.24	0	72062..72394	+	110	16802113	-	lmo0065	-	hypothetical protein
66	 41.98	+1	72408..74222	+	604	16802114	-	lmo0066	-	hypothetical protein
67	 32.53	-1	74239..75228	+	329	16802115	-	lmo0067	-	hypothetical protein
68	 32.10	-1	75342..75665	+	107	16802116	-	lmo0068	-	hypothetical protein
69	 37.07	0	75832..76125	+	97	16802117	-	lmo0069	-	hypothetical protein
70	 27.39	-2	76262..76984	+	240	16802118	-	lmo0070	-	hypothetical protein
71	 36.05	0	77149..77406	+	85	16802119	-	lmo0071	-	hypothetical protein
72	 34.80	0	77863..78066	+	67	16802120	-	lmo0072	-	hypothetical protein
73	 30.18	-2	78090..78374	+	94	16802121	-	lmo0073	-	hypothetical protein
74	 26.44	-2	78362..78811	+	149	16802122	-	lmo0074	-	hypothetical protein
75	 46.25	+2	79047..79820	+	257	16802123	-	lmo0075	-	hypothetical protein
76	 41.31	0	79817..80869	+	350	16802124	-	lmo0076	-	hypothetical protein
77	 38.03	0	80892..81530	-	212	16802125	-	lmo0077	-	hypothetical protein
78	 44.31	+1	81661..82617	+	318	16802126	-	lmo0078	-	hypothetical protein
79	 37.12	0	82959..84437	+	492	16802127	-	lmo0079	-	hypothetical protein
80	 32.83	-1	84451..84849	+	132	16802128	-	lmo0080	-	hypothetical protein
81	 28.52	-2	85025..85627	+	200	16802129	-	lmo0081	-	hypothetical protein
82	 31.80	-1	85902..86228	+	108	16802130	-	lmo0082	-	hypothetical protein
83	 40.65	0	86323..86691	-	122	16802131	-	lmo0083	-	hypothetical protein
84	 42.28	+1	86747..87730	-	327	16802132	-	lmo0084	-	hypothetical protein
85	 31.16	-2	88121..88810	+	229	16802133	-	lmo0085	-	hypothetical protein
86	 34.86	0	88888..94767	+	1959	16802134	-	lmo0086	-	hypothetical protein
87	 35.50	0	94764..97070	+	768	16802135	-	lmo0087	-	hypothetical protein
88	 42.39	+1	97127..97369	+	80	16802136	-	lmo0088	-	hypothetical protein
89	 34.98	0	97381..98412	+	343	16802137	-	lmo0089	-	hypothetical protein
90	 39.14	0	98409..99905	+	498	16802138	-	lmo0090	-	F0F1 ATP synthase subunit alpha
91	 38.16	0	99902..100771	+	289	16802139	-	lmo0091	-	hypothetical protein
92	 39.97	0	100772..102142	+	456	16802140	-	lmo0092	-	F0F1 ATP synthase subunit beta
93	 38.58	0	102155..102478	+	107	16802141	-	lmo0093	-	hypothetical protein
94	 34.94	0	102468..103028	+	186	16802142	-	lmo0094	-	hypothetical protein
95	 34.91	0	103204..103836	+	210	16802143	-	lmo0095	-	hypothetical protein
96	 40.37	0	104134..105099	+	321	16802144	-	lmo0096	-	hypothetical protein
97	 43.00	+1	105123..105929	+	268	16802145	-	lmo0097	-	hypothetical protein
98	 40.57	0	105951..106862	+	303	16802146	-	lmo0098	-	hypothetical protein
99	 38.46	0	106988..107377	+	129	16802147	-	lmo0099	-	hypothetical protein
100	 35.61	0	107499..107849	+	116	16802148	-	lmo0100	-	hypothetical protein
38.00	MEAN

3.37	STD DEV
