IslandPathversion 1.0

IslandPath Analysis: Listeria monocytogenes EGD-e

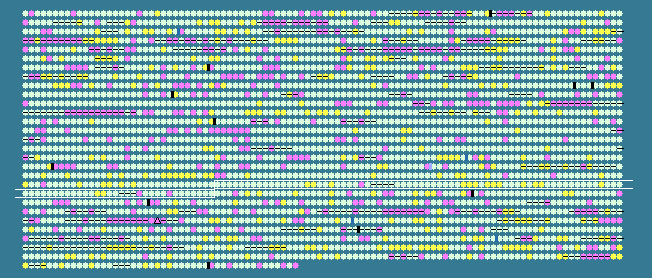

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.00 STD DEV: 3.37
Listeria monocytogenes EGD-e, complete genome - 1..2944528
2846 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1933	 36.89	0	2016858..2018261	-	467	16803981	recS	lmo1942	-	hypothetical protein
1934	 37.30	0	2018258..2019265	-	335	16803982	-	lmo1943	-	hypothetical protein
1935	 35.56	0	2019420..2019644	+	74	16803983	-	lmo1944	-	hypothetical protein
1936	 36.44	0	2019686..2020297	-	203	16803984	-	lmo1945	-	hypothetical protein
1937	 39.69	0	2020738..2021256	-	172	16803985	-	lmo1946	-	hypothetical protein
1938	 35.90	0	2021272..2023062	-	596	16803986	resE	lmo1947	-	hypothetical protein
1939	 41.00	0	2023163..2023879	-	238	16803987	resD	lmo1948	-	hypothetical protein
1940	 38.10	0	2024062..2024796	-	244	16803988	-	lmo1949	-	hypothetical protein
1941	 41.04	0	2024799..2025395	-	198	16803989	-	lmo1950	-	hypothetical protein
1942	 34.93	0	2025392..2026141	-	249	16803990	scpA	lmo1951	-	segregation and condensation protein A
1943	 39.82	0	2026157..2027467	-	436	16803991	lysA	lmo1952	-	hypothetical protein
1944	 39.68	0	2027648..2028466	-	272	16803992	pnp	lmo1953	-	purine nucleoside phosphorylase
1945	 38.82	0	2028485..2029669	-	394	16803993	drm	lmo1954	-	phosphopentomutase
1946	 39.04	0	2029698..2030591	-	297	16803994	-	lmo1955	-	hypothetical protein
1947	 39.07	0	2030744..2031196	-	150	16803995	fur	lmo1956	-	hypothetical protein
1948	 41.84	+1	2031438..2032460	-	340	16803996	fhuG	lmo1957	-	hypothetical protein
1949	 42.69	+1	2032460..2033485	-	341	16803997	fhuB	lmo1958	-	hypothetical protein
1950	 39.81	0	2033587..2034528	-	313	16803998	-	lmo1959	-	hypothetical protein
1951	 40.12	0	2034693..2035517	+	274	16803999	fhuC	lmo1960	-	hypothetical protein
1952	 42.64	+1	2035507..2036505	+	332	16804000	-	lmo1961	-	hypothetical protein
1953	 39.45	0	2036521..2037141	-	206	16804001	-	lmo1962	-	hypothetical protein
1954	 38.36	0	2037141..2037956	-	271	16804002	-	lmo1963	-	hypothetical protein
1955	 36.94	0	2037953..2038840	-	295	16804003	-	lmo1964	-	hypothetical protein
1956	 37.10	0	2039441..2039998	-	185	16804004	-	lmo1965	-	hypothetical protein
1957	 33.33	-1	2040274..2040933	+	219	16804005	-	lmo1966	-	hypothetical protein
1958	 38.83	0	2040911..2042110	+	399	16804006	-	lmo1967	-	hypothetical protein
1959	 37.10	0	2042157..2042900	-	247	16804007	-	lmo1968	-	hypothetical protein
1960	 37.44	0	2042913..2043521	-	202	16804008	-	lmo1969	-	hypothetical protein
1961	 38.67	0	2043540..2044457	-	305	16804009	-	lmo1970	-	hypothetical protein
1962	 37.51	0	2044481..2045749	-	422	16804010	ulaA	lmo1971	-	ascorbate-specific PTS system enzyme IIC
1963	 37.59	0	2045765..2046046	-	93	16804011	-	lmo1972	-	hypothetical protein
1964	 38.06	0	2046046..2046489	-	147	16804012	-	lmo1973	-	hypothetical protein
1965	 36.13	0	2046507..2047256	-	249	16804013	-	lmo1974	-	hypothetical protein
1966	 39.68	0	2047444..2048514	-	356	16804014	-	lmo1975	-	hypothetical protein
1967	 35.61	0	2048623..2049414	-	263	16804015	-	lmo1976	-	hypothetical protein
1968	 37.68	0	2049419..2050339	-	306	16804016	-	lmo1977	-	hypothetical protein
1969	 39.43	0	2050639..2052114	+	491	16804017	-	lmo1978	-	glucose-6-phosphate 1-dehydrogenase
1970	 35.19	0	2052233..2052664	+	143	16804018	-	lmo1979	-	hypothetical protein
1971	 34.78	0	2052696..2052833	+	45	16804019	-	lmo1980	-	hypothetical protein
1972	 39.09	0	2052816..2053301	-	161	16804020	-	lmo1981	-	hypothetical protein
1973	 37.88	0	2053274..2053801	-	175	16804021	-	lmo1982	-	hypothetical protein
1974	 43.66	+1	2054493..2056187	+	564	16804022	ilvD	lmo1983	-	dihydroxy-acid dehydratase
1975	 43.79	+1	2056205..2057926	+	573	16804023	ilvB	lmo1984	-	hypothetical protein
1976	 43.70	+1	2057927..2058418	+	163	16804024	ilvN	lmo1985	-	acetolactate synthase 3 regulatory subunit
1977	 40.36	0	2058516..2059511	+	331	16804025	ilvC	lmo1986	-	ketol-acid reductoisomerase
1978	 43.01	+1	2059669..2061207	+	512	16804026	leuA	lmo1987	-	2-isopropylmalate synthase
1979	 43.11	+1	2061209..2062261	+	350	16804027	leuB	lmo1988	-	3-isopropylmalate dehydrogenase
1980	 43.27	+1	2062263..2063651	+	462	16804028	leuC	lmo1989	-	isopropylmalate isomerase large subunit
1981	 39.69	0	2063638..2064219	+	193	16804029	leuD	lmo1990	-	isopropylmalate isomerase small subunit
1982	 40.66	0	2064238..2065506	+	422	16804030	ilvA	lmo1991	-	threonine dehydratase
1983	 40.00	0	2065698..2066417	+	239	16804031	-	lmo1992	-	hypothetical protein
1984	 41.94	+1	2066455..2067756	-	433	16804032	pdp	lmo1993	-	pyrimidine-nucleoside phosphorylase
1985	 40.36	0	2067887..2068897	-	336	16804033	-	lmo1994	-	hypothetical protein
1986	 42.71	+1	2068977..2069648	-	223	16804034	dra	lmo1995	-	hypothetical protein
1987	 41.88	+1	2069710..2070657	-	315	16804035	-	lmo1996	-	hypothetical protein
1988	 40.05	0	2070754..2071170	-	138	16804036	-	lmo1997	-	hypothetical protein
1989	 38.35	0	2071187..2072182	-	331	16804037	-	lmo1998	-	hypothetical protein
1990	 39.44	0	2072205..2073269	-	354	16804038	-	lmo1999	-	hypothetical protein
1991	 36.98	0	2073282..2074103	-	273	16804039	-	lmo2000	-	hypothetical protein
1992	 40.29	0	2074084..2074902	-	272	16804040	-	lmo2001	-	hypothetical protein
1993	 36.97	0	2074925..2075392	-	155	16804041	-	lmo2002	-	hypothetical protein
1994	 34.76	0	2075412..2076113	-	233	16804042	-	lmo2003	-	hypothetical protein
1995	 36.89	0	2076115..2076846	-	243	16804043	-	lmo2004	-	hypothetical protein
1996	 39.76	0	2077019..2078014	-	331	16804044	-	lmo2005	-	hypothetical protein
1997	 42.93	+1	2078132..2079829	-	565	16804045	alsS	lmo2006	-	acetolactate synthase
1998	 36.63	0	2080027..2081484	-	485	16804046	-	lmo2007	-	hypothetical protein
1999	 38.27	0	2081505..2082476	-	323	16804047	-	lmo2008	-	hypothetical protein
2000	 37.85	0	2082495..2083424	-	309	16804048	-	lmo2009	-	hypothetical protein
2001	 37.04	0	2083537..2085021	-	494	16804049	-	lmo2010	-	hypothetical protein
2002	 35.80	0	2085021..2086760	-	579	16804050	-	lmo2011	-	hypothetical protein
2003	 38.56	0	2086817..2087428	-	203	16804051	-	lmo2012	-	hypothetical protein
2004	 40.92	0	2087489..2088793	-	434	16804052	-	lmo2013	-	hypothetical protein
2005	 41.46	+1	2088797..2091454	-	885	16804053	-	lmo2014	-	hypothetical protein
2006	 40.98	0	2091698..2094808	+	1036	16804054	-	lmo2015	-	hypothetical protein
2007	 40.80	0	2094877..2095077	-	66	16804055	cspB	lmo2016	-	hypothetical protein
2008	 39.94	0	2095366..2096061	-	231	16804056	-	lmo2017	-	hypothetical protein
2009	 38.89	0	2096075..2097064	-	329	16804057	dapF	lmo2018	-	diaminopimelate epimerase
2010	 40.20	0	2097176..2099941	-	921	16804058	ileS	lmo2019	-	isoleucyl-tRNA synthetase
2011	 37.12	0	2100224..2100751	-	175	16804059	divIVA	lmo2020	-	hypothetical protein
2012	 39.66	0	2100845..2101366	-	173	16804060	-	lmo2021	-	hypothetical protein
2013	 41.64	+1	2101371..2102477	-	368	16804061	-	lmo2022	-	hypothetical protein
2014	 43.09	+1	2102608..2104062	+	484	16804062	nadB	lmo2023	-	L-aspartate oxidase
2015	 41.37	+1	2104059..2104904	+	281	16804063	nadC	lmo2024	-	nicotinate-nucleotide pyrophosphorylase
2016	 40.42	0	2104901..2106001	+	366	16804064	nadA	lmo2025	-	quinolinate synthetase
2017	 37.80	0	2106329..2108209	-	626	16804065	-	lmo2026	-	peptidoglycan binding protein
2018	 35.05	0	2108500..2109603	-	367	16804066	-	lmo2027	-	putative cell surface protein, internalin proteins
2019	 39.00	0	2110009..2110785	-	258	16804067	-	lmo2028	-	hypothetical protein
2020	 33.68	-1	2110909..2111199	-	96	16804068	-	lmo2029	-	hypothetical protein
2021	 38.34	0	2111222..2111680	-	152	16804069	-	lmo2030	-	hypothetical protein
2022	 37.54	0	2111684..2112373	-	229	16804070	-	lmo2031	-	hypothetical protein
2023	 40.48	0	2112492..2113667	-	391	16804071	ftsZ	lmo2032	-	cell division protein FtsZ
2024	 38.88	0	2113734..2115014	-	426	16804072	ftsA	lmo2033	-	hypothetical protein
2025	 33.70	-1	2115381..2116193	-	270	16804073	divIB	lmo2034	-	hypothetical protein
2026	 38.64	0	2116216..2117307	-	363	16804074	murG	lmo2035	-	N-acetylglucosaminyl transferase
2027	 38.30	0	2117304..2118671	-	455	16804075	murD	lmo2036	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
2028	 37.85	0	2118812..2119786	-	324	16804076	mraY	lmo2037	-	hypothetical protein
2029	 40.18	0	2119833..2121308	-	491	16804077	murE	lmo2038	-	hypothetical protein
2030	 38.48	0	2121483..2123738	-	751	16804078	pbpB	lmo2039	-	hypothetical protein
2031	 35.26	0	2123735..2124097	-	120	16804079	ftsL	lmo2040	-	hypothetical protein
2032	 39.08	0	2124114..2125052	-	312	16804080	mraW	lmo2041	-	S-adenosyl-methyltransferase MraW
38.00	MEAN

3.37	STD DEV
