IslandPathversion 1.0

IslandPath Analysis: Listeria monocytogenes EGD-e

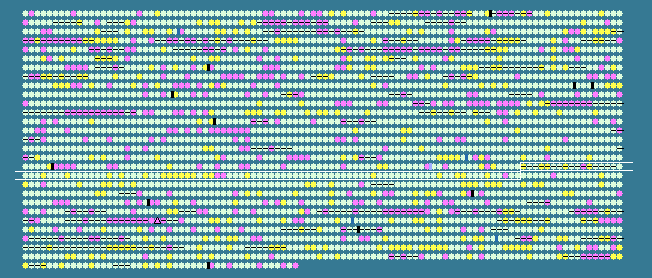

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.00 STD DEV: 3.37
Listeria monocytogenes EGD-e, complete genome - 1..2944528
2846 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1784	 41.60	+1	1864657..1865394	-	245	16803832	trmD	lmo1792	-	hypothetical protein
1785	 37.96	0	1865394..1865912	-	172	16803833	-	lmo1793	-	hypothetical protein
1786	 36.43	0	1865922..1866308	-	128	16803834	-	lmo1794	-	hypothetical protein
1787	 42.59	+1	1866336..1867070	-	244	16803835	-	lmo1795	-	hypothetical protein
1788	 43.29	+1	1867180..1867410	-	76	16803836	-	lmo1796	-	hypothetical protein
1789	 37.00	0	1867427..1867699	-	90	16803837	rpsP	lmo1797	-	30S ribosomal protein S16
1790	 36.29	0	1867802..1869460	-	552	16803838	-	lmo1798	-	hypothetical protein
1791	 52.40	+2	1869532..1872243	-	903	16803839	-	lmo1799	-	peptidoglycan binding protein
1792	 37.90	0	1872724..1873620	-	298	16803840	-	lmo1800	-	hypothetical protein
1793	 41.32	0	1873764..1875116	-	450	16803841	ffh	lmo1801	-	hypothetical protein
1794	 32.43	-1	1875129..1875461	-	110	16803842	-	lmo1802	-	hypothetical protein
1795	 41.84	+1	1875574..1876560	-	328	16803843	-	lmo1803	-	hypothetical protein
1796	 39.34	0	1876575..1880135	-	1186	16803844	smc	lmo1804	-	hypothetical protein
1797	 38.70	0	1880158..1880847	-	229	16803845	rncS	lmo1805	-	hypothetical protein
1798	 40.17	0	1881041..1881274	-	77	16803846	acpA	lmo1806	-	hypothetical protein
1799	 40.46	0	1881381..1882124	-	247	16803847	fabG	lmo1807	-	hypothetical protein
1800	 40.76	0	1882128..1883069	-	313	16803848	fabD	lmo1808	-	acyl-carrier-protein S-malonyltransferase
1801	 38.56	0	1883062..1884075	-	337	16803849	plsX	lmo1809	-	putative glycerol-3-phosphate acyltransferase PlsX
1802	 38.95	0	1884096..1884665	-	189	16803850	-	lmo1810	-	fatty acid biosynthesis transcriptional regulator
1803	 40.31	0	1884846..1886894	-	682	16803851	-	lmo1811	-	hypothetical protein
1804	 44.89	+2	1886887..1887777	-	296	16803852	-	lmo1812	-	hypothetical protein
1805	 39.97	0	1887913..1888575	-	220	16803853	-	lmo1813	-	hypothetical protein
1806	 38.88	0	1888615..1890273	-	552	16803854	-	lmo1814	-	hypothetical protein
1807	 35.79	0	1890288..1890653	-	121	16803855	-	lmo1815	-	hypothetical protein
1808	 42.86	+1	1890951..1891139	+	62	16803856	rpmB	lmo1816	-	50S ribosomal protein L28
1809	 39.22	0	1891236..1891880	-	214	16803857	-	lmo1817	-	hypothetical protein
1810	 38.96	0	1891944..1892600	-	218	16803858	-	lmo1818	-	ribulose-phosphate 3-epimerase
1811	 38.24	0	1892603..1893478	-	291	16803859	-	lmo1819	-	ribosome-associated GTPase
1812	 37.04	0	1893497..1895464	-	655	16803860	-	lmo1820	-	hypothetical protein
1813	 41.24	0	1895461..1896219	-	252	16803861	-	lmo1821	-	hypothetical protein
1814	 38.95	0	1896242..1897576	-	444	16803862	-	lmo1822	-	hypothetical protein
1815	 42.49	+1	1897577..1898515	-	312	16803863	fmt	lmo1823	-	hypothetical protein
1816	 41.48	+1	1898529..1900922	-	797	16803864	priA	lmo1824	-	primosome assembly protein PriA
1817	 41.92	+1	1900927..1902126	-	399	16803865	-	lmo1825	-	hypothetical protein
1818	 35.29	0	1902281..1902484	-	67	16803866	-	lmo1826	-	hypothetical protein
1819	 40.45	0	1902484..1903101	-	205	16803867	-	lmo1827	-	hypothetical protein
1820	 39.38	0	1903120..1903995	-	291	16803868	-	lmo1828	-	hypothetical protein
1821	 41.51	+1	1904152..1905864	+	570	16803869	-	lmo1829	-	hypothetical protein
1822	 40.67	0	1905952..1906551	+	199	16803870	-	lmo1830	-	short chain dehydrogenase
1823	 39.37	0	1906592..1907221	-	209	16803871	pyrE	lmo1831	-	orotate phosphoribosyltransferase
1824	 42.02	+1	1907218..1907919	-	233	16803872	pyrF	lmo1832	-	hypothetical protein
1825	 44.70	+1	1907916..1908830	-	304	16803873	pyrD	lmo1833	-	dihydroorotate dehydrogenase 1B
1826	 44.18	+1	1908827..1909591	-	254	16803874	pyrDII	lmo1834	-	hypothetical protein
1827	 42.51	+1	1909614..1912826	-	1070	16803875	carB	lmo1835	-	carbamoyl phosphate synthase large subunit
1828	 41.58	+1	1912819..1913910	-	363	16803876	pyrAa	lmo1836	-	carbamoyl phosphate synthase small subunit
1829	 41.53	+1	1913907..1915187	-	426	16803877	pyrC	lmo1837	-	dihydroorotase
1830	 40.68	0	1915175..1916086	-	303	16803878	pyrB	lmo1838	-	aspartate carbamoyltransferase catalytic subunit
1831	 42.58	+1	1916166..1917452	-	428	16803879	pyrP	lmo1839	-	hypothetical protein
1832	 43.66	+1	1917581..1918132	-	183	16803880	pyrR	lmo1840	-	pyrimidine regulatory protein PyrR
1833	 32.03	-1	1918363..1918593	+	76	16803881	-	lmo1841	-	hypothetical protein
1834	 33.33	-1	1918681..1919505	+	274	16803882	-	lmo1842	-	hypothetical protein
1835	 39.58	0	1919525..1920436	-	303	16803883	-	lmo1843	-	hypothetical protein
1836	 35.27	0	1920436..1920900	-	154	16803884	lspA	lmo1844	-	lipoprotein signal peptidase
1837	 41.20	0	1920982..1922265	-	427	16803885	-	lmo1845	-	hypothetical protein
1838	 42.01	+1	1922439..1923809	+	456	16803886	-	lmo1846	-	multidrug efflux protein
1839	 37.30	0	1923825..1924757	-	310	16803887	-	lmo1847	-	hypothetical protein
1840	 36.54	0	1924754..1925596	-	280	16803888	-	lmo1848	-	hypothetical protein
1841	 40.80	0	1925600..1926322	-	240	16803889	-	lmo1849	-	hypothetical protein
1842	 36.93	0	1926482..1926898	-	138	16803890	-	lmo1850	-	hypothetical protein
1843	 37.89	0	1926935..1928425	-	496	16803891	-	lmo1851	-	hypothetical protein
1844	 38.16	0	1928579..1928785	-	68	16803892	-	lmo1852	-	hypothetical protein
1845	 39.97	0	1928798..1931011	-	737	16803893	-	lmo1853	-	hypothetical protein
1846	 37.76	0	1931026..1931319	-	97	16803894	-	lmo1854	-	hypothetical protein
1847	 37.58	0	1931442..1932266	-	274	16803895	-	lmo1855	-	hypothetical protein
1848	 39.03	0	1932324..1933025	-	233	16803896	deoD	lmo1856	-	purine nucleoside phosphorylase
1849	 36.75	0	1933037..1933270	-	77	16803897	-	lmo1857	-	hypothetical protein
1850	 40.29	0	1933333..1934238	-	301	16803898	-	lmo1858	-	hypothetical protein
1851	 40.87	0	1934321..1934758	-	145	16803899	-	lmo1859	-	methionine sulfoxide reductase B
1852	 39.89	0	1934765..1935298	-	177	16803900	-	lmo1860	-	methionine sulfoxide reductase A
1853	 36.42	0	1935334..1935948	-	204	16803901	-	lmo1861	-	hypothetical protein
1854	 34.99	0	1935964..1936749	-	261	16803902	-	lmo1862	-	hypothetical protein
1855	 36.19	0	1936764..1937603	-	279	16803903	-	lmo1863	-	hypothetical protein
1856	 38.70	0	1937783..1938415	+	210	16803904	-	lmo1864	-	hypothetical protein
1857	 40.29	0	1938538..1939155	+	205	16803905	-	lmo1865	-	hypothetical protein
1858	 41.21	0	1939168..1939980	+	270	16803906	-	lmo1866	-	hypothetical protein
1859	 42.88	+1	1939999..1942638	+	879	16803907	-	lmo1867	-	pyruvate phosphate dikinase
1860	 35.19	0	1942687..1943064	-	125	16803908	-	lmo1868	-	hypothetical protein
1861	 38.21	0	1943068..1944051	-	327	16803909	-	lmo1869	-	hypothetical protein
1862	 36.86	0	1944145..1944768	-	207	16803910	-	lmo1870	-	hypothetical protein
1863	 40.74	0	1944908..1946419	-	503	16803911	-	lmo1871	-	hypothetical protein
1864	 39.38	0	1946488..1947363	-	291	16803912	-	lmo1872	-	hypothetical protein
1865	 38.51	0	1947416..1947898	-	160	16803913	-	lmo1873	-	hypothetical protein
1866	 38.31	0	1947914..1948858	-	314	16803914	thyA	lmo1874	-	thymidylate synthase
1867	 41.15	0	1948871..1950763	-	630	16803915	-	lmo1875	-	hypothetical protein
1868	 41.14	0	1951284..1952564	-	426	16803916	-	lmo1877	-	hypothetical protein
1869	 38.23	0	1952721..1953149	-	142	16803917	-	lmo1878	-	manganese transport transcriptional regulator
1870	 42.29	+1	1953513..1953713	+	66	16803918	cspD	lmo1879	-	hypothetical protein
1871	 39.80	0	1953836..1954237	+	133	16803919	-	lmo1880	-	hypothetical protein
1872	 40.78	0	1954255..1955127	-	290	16803920	-	lmo1881	-	hypothetical protein
1873	 45.19	+2	1955205..1955474	-	89	16803921	rpsN	lmo1882	-	30S ribosomal protein S14
1874	 41.64	+1	1955598..1956656	-	352	16803922	-	lmo1883	-	hypothetical protein
1875	 40.37	0	1956848..1958155	-	435	16803923	-	lmo1884	-	hypothetical protein
1876	 38.34	0	1958162..1958740	-	192	16803924	-	lmo1885	-	xanthine phosphoribosyltransferase
1877	 37.57	0	1958968..1960476	-	502	16803925	-	lmo1886	-	hypothetical protein
1878	 41.69	+1	1960496..1961644	-	382	16803926	-	lmo1887	-	hypothetical protein
1879	 36.55	0	1962225..1962566	-	113	16803927	-	lmo1888	-	hypothetical protein
1880	 38.46	0	1962698..1963243	-	181	16803928	-	lmo1889	-	hypothetical protein
1881	 32.51	-1	1963240..1963605	-	121	16803929	-	lmo1890	-	hypothetical protein
1882	 36.96	0	1963852..1964457	+	201	16803930	recU	lmo1891	-	Holliday junction-specific endonuclease
1883	 40.10	0	1964489..1966972	+	827	16803931	pbpA	lmo1892	-	hypothetical protein
38.00	MEAN

3.37	STD DEV
