IslandPath Analysis: Listeria monocytogenes EGD-e

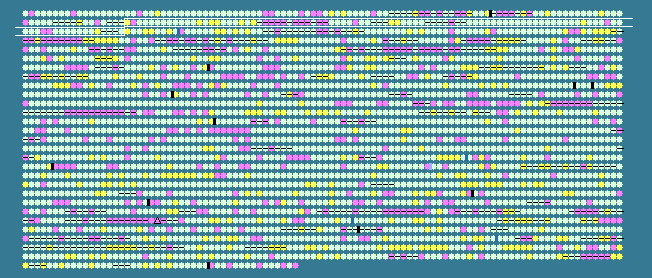

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.00 STD DEV: 3.37
Listeria monocytogenes EGD-e, complete genome - 1..2944528
2846 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
118	 42.11	+1	123200..123712	+	170	16802166	lmaA	lmo0118	-	antigen A
119	 32.67	-1	123760..124062	+	100	16802167	-	lmo0119	-	hypothetical protein
120	 36.05	0	124104..124508	+	134	16802168	-	lmo0120	-	hypothetical protein
121	 40.29	0	124495..126363	+	622	16802169	-	lmo0121	-	hypothetical protein
122	 38.46	0	126360..127178	+	272	16802170	-	lmo0122	-	hypothetical protein
123	 35.27	0	127188..128324	+	378	16802171	-	lmo0123	-	hypothetical protein
124	 37.33	0	128314..128613	+	99	16802172	-	lmo0124	-	hypothetical protein
125	 37.50	0	128628..129203	+	191	16802173	-	lmo0125	-	hypothetical protein
126	 41.25	0	129218..129697	+	159	16802174	-	lmo0126	-	hypothetical protein
127	 37.62	0	129694..130230	+	178	16802175	-	lmo0127	-	hypothetical protein
128	 38.06	0	130249..130671	+	140	16802176	-	lmo0128	-	hypothetical protein
129	 34.71	0	130652..131380	+	242	16802177	-	lmo0129	-	hypothetical protein
130	 42.38	+1	131419..133773	-	784	16802178	-	lmo0130	-	hypothetical protein
131	 35.87	0	133961..134710	+	249	16802179	-	lmo0131	-	hypothetical protein
132	 42.94	+1	134782..136290	-	502	16802180	-	lmo0132	-	inositol-5-monophosphate dehydrogenase
133	 43.16	+1	136469..136702	+	77	16802181	-	lmo0133	-	hypothetical protein
134	 39.43	0	136714..136992	+	92	16802182	-	lmo0134	-	hypothetical protein
135	 38.92	0	137323..138897	+	524	16802183	-	lmo0135	-	hypothetical protein
136	 40.17	0	138999..139949	+	316	16802184	-	lmo0136	-	hypothetical protein
137	 45.19	+2	139960..140853	+	297	16802185	-	lmo0137	-	hypothetical protein
138	 40.70	0	141052..141336	+	94	16802186	-	lmo0138	-	hypothetical protein
139	 42.55	+1	141337..141705	+	122	16802187	-	lmo0139	-	hypothetical protein
140	 39.67	0	141618..143006	+	462	16802188	-	lmo0140	-	hypothetical protein
141	 25.10	-2	143016..143258	+	80	16802189	-	lmo0141	-	hypothetical protein
142	 28.29	-2	143366..143722	+	118	16802190	-	lmo0142	-	hypothetical protein
143	 26.55	-2	144097..144273	+	58	16802191	-	lmo0143	-	hypothetical protein
144	 26.13	-2	144397..144840	+	147	16802192	-	lmo0144	-	hypothetical protein
145	 41.38	+1	145085..145171	+	28	16802193	-	lmo0145	-	hypothetical protein
146	 29.47	-2	145354..145560	+	68	16802194	-	lmo0146	-	hypothetical protein
147	 26.94	-2	145869..146306	+	145	16802195	-	lmo0147	-	hypothetical protein
148	 28.77	-2	146306..146656	+	116	16802196	-	lmo0148	-	hypothetical protein
149	 38.35	0	146764..147381	+	205	16802197	-	lmo0149	-	hypothetical protein
150	 27.60	-2	147399..147764	+	121	16802198	-	lmo0150	-	hypothetical protein
151	 30.15	-2	147884..148291	+	135	16802199	-	lmo0151	-	hypothetical protein
152	 41.12	0	148354..150009	-	551	16802200	-	lmo0152	-	hypothetical protein
153	 39.38	0	150232..151173	+	313	16802201	-	lmo0153	-	hypothetical protein
154	 39.01	0	151186..151890	+	234	16802202	-	lmo0154	-	hypothetical protein
155	 41.39	+1	151839..152645	+	268	16802203	-	lmo0155	-	hypothetical protein
156	 29.81	-2	152648..153328	-	226	16802204	-	lmo0156	-	hypothetical protein
157	 39.70	0	153608..155947	+	779	16802205	-	lmo0157	-	hypothetical protein
158	 37.02	0	155993..156805	+	270	16802206	-	lmo0158	-	hypothetical protein
159	 40.60	0	157089..159470	+	793	16802207	-	lmo0159	-	peptidoglycan binding protein
160	 38.11	0	159663..161378	+	571	16802208	-	lmo0160	-	peptidoglycan binding protein
161	 36.82	0	161420..162250	-	276	16802209	-	lmo0161	-	hypothetical protein
162	 42.40	+1	162467..163459	+	330	16802210	-	lmo0162	-	DNA polymerase III subunit delta'
163	 42.09	+1	163465..164298	+	277	16802211	-	lmo0163	-	hypothetical protein
164	 40.00	0	164309..164698	+	129	16802212	-	lmo0164	-	DNA replication intiation control protein YabA
165	 37.72	0	164756..165508	+	250	16802213	-	lmo0165	-	hypothetical protein
166	 37.36	0	165492..165764	+	90	16802214	-	lmo0166	-	GIY-YIG nuclease superfamily protein
167	 41.38	+1	165761..166642	+	293	16802215	-	lmo0167	-	hypothetical protein
168	 36.84	0	166687..166971	-	94	16802216	-	lmo0168	-	hypothetical protein
169	 37.53	0	167086..167943	+	285	16802217	-	lmo0169	-	hypothetical protein
170	 36.57	0	168005..169270	+	421	16802218	-	lmo0170	-	hypothetical protein
171	 36.41	0	169510..172008	+	832	16802219	-	lmo0171	-	hypothetical protein
172	 34.31	-1	172903..173208	-	101	16802220	-	lmo0174	-	hypothetical protein
173	 36.38	0	173309..174556	-	415	16802221	-	lmo0175	-	peptidoglycan binding protein
174	 38.33	0	174834..175694	+	286	16802222	-	lmo0176	-	hypothetical protein
175	 38.40	0	175766..177760	+	664	16802223	metS	lmo0177	-	methionyl-tRNA synthetase
176	 36.71	0	177924..179138	+	404	16802224	-	lmo0178	-	hypothetical protein
177	 37.54	0	179174..180052	+	292	16802225	-	lmo0179	-	hypothetical protein
178	 36.98	0	180052..180900	+	282	16802226	-	lmo0180	-	hypothetical protein
179	 37.07	0	180928..182184	+	418	16802227	-	lmo0181	-	hypothetical protein
180	 39.75	0	182267..185569	+	1100	16802228	-	lmo0182	-	hypothetical protein
181	 40.27	0	185572..187863	+	763	16802229	-	lmo0183	-	hypothetical protein
182	 38.87	0	187867..189528	+	553	16802230	-	lmo0184	-	hypothetical protein
183	 40.18	0	189625..190398	+	257	16802231	-	lmo0185	-	hypothetical protein
184	 36.02	0	190690..191916	+	408	16802232	-	lmo0186	-	hypothetical protein
185	 40.97	0	192018..192593	+	191	16802233	-	lmo0187	-	hypothetical protein
186	 38.51	0	192586..193473	+	295	16802234	ksgA	lmo0188	-	dimethyladenosine transferase
187	 34.88	0	193593..193850	+	85	16802235	-	lmo0189	-	hypothetical protein
188	 41.38	+1	193989..194870	+	293	16802236	-	lmo0190	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
189	 39.57	0	194892..195629	+	245	16802237	-	lmo0191	-	hypothetical protein
190	 39.80	0	195793..196611	+	272	16802238	-	lmo0192	-	purine operon repressor
191	 36.87	0	196786..197463	+	225	16802239	-	lmo0193	-	hypothetical protein
192	 40.26	0	197512..198204	+	230	16802240	-	lmo0194	-	ABC transporter, ATP-binding protein
193	 38.30	0	198201..199409	+	402	16802241	-	lmo0195	-	hypothetical protein
194	 42.39	+1	200094..200402	+	102	16802242	-	lmo0196	-	regulatory protein SpoVG
195	 40.45	0	200522..200830	+	102	16802243	-	lmo0197	-	regulatory protein SpoVG
196	 38.79	0	201217..202590	+	457	16802244	gcaD	lmo0198	-	hypothetical protein
197	 38.98	0	202641..203597	+	318	16802245	prs	lmo0199	-	phosphoribosyl pyrophosphate synthetase
198	 33.33	-1	203640..204353	-	237	16802246	prfA	lmo0200	-	listeriolysin positive regulatory protein
199	 35.32	0	204624..205577	-	317	16802247	plcA	lmo0201	-	phosphatidylinositol-specific phospholipase c
200	 35.97	0	205819..207408	+	529	16802248	hly	lmo0202	-	listeriolysin O precursor
201	 38.42	0	207739..209271	+	510	16802249	mpl	lmo0203	-	Zinc metalloproteinase precursor
202	 40.05	0	209470..211389	+	639	16802250	actA	lmo0204	-	actin-assembly inducing protein precursor
203	 35.52	0	211425..212294	+	289	16802251	plcB	lmo0205	-	phospholipase C
204	 30.56	-2	212366..212689	+	107	16802252	-	lmo0206	-	hypothetical protein
205	 33.77	-1	212824..213285	+	153	16802253	-	lmo0207	-	hypothetical protein
206	 40.54	0	213336..213668	-	110	16802254	-	lmo0208	-	hypothetical protein
207	 37.48	0	213735..214409	-	224	16802255	-	lmo0209	-	hypothetical protein
208	 39.49	0	214486..215427	-	313	16802256	ldh	lmo0210	-	L-lactate dehydrogenase
209	 38.94	0	215721..216344	+	207	16802257	ctc	lmo0211	-	50S ribosomal protein L25/general stress protein Ctc
210	 37.78	0	216434..217018	+	194	16802258	-	lmo0212	-	hypothetical protein
211	 37.43	0	217125..217685	+	186	16802259	pth	lmo0213	-	peptidyl-tRNA hydrolase
212	 40.59	0	217800..221339	+	1179	16802260	mfd	lmo0214	-	transcription-repair coupling factor
213	 42.08	+1	221370..222959	+	529	16802261	-	lmo0215	-	hypothetical protein
214	 36.56	0	222983..223261	+	92	16802262	-	lmo0216	-	hypothetical protein
215	 36.69	0	223490..223876	+	128	16802263	-	lmo0217	-	hypothetical protein
216	 39.86	0	224027..224455	+	142	16802264	-	lmo0218	-	hypothetical protein
217	 38.32	0	224562..226508	+	648	16802265	-	lmo0219	-	hypothetical protein
38.00	MEAN

3.37	STD DEV
