IslandPath Analysis: Listeria monocytogenes EGD-e

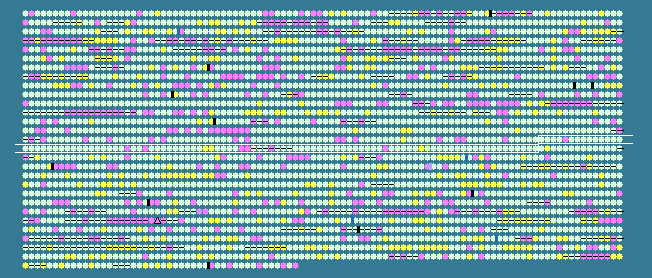

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.00 STD DEV: 3.37
Listeria monocytogenes EGD-e, complete genome - 1..2944528
2846 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1487	 38.46	0	1526748..1527371	-	207	16803535	-	lmo1495	-	hypothetical protein
1488	 37.06	0	1527422..1527904	-	160	16803536	-	lmo1496	-	hypothetical protein
1489	 35.40	0	1528098..1528727	-	209	16803537	udk	lmo1497	-	uridine kinase
1490	 37.61	0	1528724..1529377	-	217	16803538	-	lmo1498	-	hypothetical protein
1491	 32.96	-1	1529454..1530524	-	356	16803539	-	lmo1499	-	hypothetical protein
1492	 37.64	0	1530727..1531353	+	208	16803540	-	lmo1500	-	hypothetical protein
1493	 34.98	0	1531398..1531700	-	100	16803541	-	lmo1501	-	hypothetical protein
1494	 41.01	0	1531716..1532132	-	138	16803542	-	lmo1502	-	hypothetical protein
1495	 34.80	0	1532129..1532401	-	90	16803543	-	lmo1503	-	hypothetical protein
1496	 39.47	0	1532493..1535132	-	879	16803544	alaS	lmo1504	-	alanyl-tRNA synthetase
1497	 36.35	0	1535439..1536134	-	231	16803545	-	lmo1505	-	hypothetical protein
1498	 38.91	0	1536143..1537648	-	501	16803546	-	lmo1506	-	hypothetical protein
1499	 36.83	0	1537815..1538501	+	228	16803547	-	lmo1507	-	hypothetical protein
1500	 35.35	0	1538498..1539937	+	479	16803548	-	lmo1508	-	hypothetical protein
1501	 40.38	0	1539979..1542375	-	798	16803549	-	lmo1509	-	hypothetical protein
1502	 36.93	0	1542403..1543041	-	212	16803550	-	lmo1510	-	hypothetical protein
1503	 36.71	0	1543082..1543822	-	246	16803551	-	lmo1511	-	hypothetical protein
1504	 39.78	0	1543940..1545055	-	371	16803552	-	lmo1512	-	hypothetical protein
1505	 39.86	0	1545074..1546222	-	382	16803553	-	lmo1513	-	hypothetical protein
1506	 40.61	0	1546608..1547885	-	425	16803554	-	lmo1514	-	recombination factor protein RarA
1507	 39.48	0	1548034..1548456	+	140	16803555	-	lmo1515	-	hypothetical protein
1508	 40.38	0	1548701..1549906	+	401	16803556	-	lmo1516	-	hypothetical protein
1509	 39.07	0	1549920..1550285	+	121	16803557	-	lmo1517	-	hypothetical protein
1510	 37.53	0	1550435..1550815	+	126	16803558	-	lmo1518	-	hypothetical protein
1511	 39.19	0	1550854..1552629	-	591	16803559	aspS	lmo1519	-	aspartyl-tRNA synthetase
1512	 38.50	0	1552632..1553909	-	425	16803560	hisS	lmo1520	-	histidyl-tRNA synthetase
1513	 39.72	0	1554360..1555643	+	427	16803561	-	lmo1521	-	hypothetical protein
1514	 39.96	0	1555680..1556132	-	150	16803562	-	lmo1522	-	D-tyrosyl-tRNA deacylase
1515	 37.66	0	1556148..1558364	-	738	16803563	relA	lmo1523	-	hypothetical protein
1516	 38.12	0	1558570..1559091	-	173	16803564	apt	lmo1524	-	adenine phosphoribosyltransferase
1517	 39.33	0	1559081..1561432	-	783	16803565	-	lmo1525	-	hypothetical protein
1518	 33.04	-1	1561538..1561882	-	114	16803566	-	lmo1526	-	hypothetical protein
1519	 38.06	0	1561978..1564242	-	754	16803567	-	lmo1527	-	bifunctional preprotein translocase subunit SecD/SecF
1520	 35.05	0	1564343..1564633	-	96	16803568	-	lmo1528	-	hypothetical protein
1521	 32.73	-1	1564776..1565105	-	109	16803569	-	lmo1529	-	hypothetical protein
1522	 40.88	0	1565139..1566278	-	379	16803570	tgt	lmo1530	-	queuine tRNA-ribosyltransferase
1523	 39.94	0	1566365..1567393	-	342	16803571	-	lmo1531	-	hypothetical protein
1524	 40.97	0	1567397..1568404	-	335	16803572	ruvB	lmo1532	-	Holliday junction DNA helicase B
1525	 38.78	0	1568420..1569025	-	201	16803573	ruvA	lmo1533	-	hypothetical protein
1526	 40.60	0	1569149..1570084	-	311	16803574	-	lmo1534	-	hypothetical protein
1527	 38.29	0	1570154..1570879	-	241	16803575	-	lmo1535	-	hypothetical protein
1528	 39.69	0	1570990..1571838	-	282	16803576	-	lmo1536	-	prephenate dehydratase
1529	 41.40	+1	1571905..1573194	-	429	16803577	obgE	lmo1537	-	GTPase ObgE
1530	 39.02	0	1573354..1574847	-	497	16803578	glpK	lmo1538	-	glycerol kinase
1531	 42.00	+1	1574922..1575740	-	272	16803579	-	lmo1539	-	hypothetical protein
1532	 41.92	+1	1576107..1576397	-	96	16803580	rpmA	lmo1540	-	50S ribosomal protein L27
1533	 40.25	0	1576411..1576728	-	105	16803581	-	lmo1541	-	hypothetical protein
1534	 37.54	0	1576747..1577055	-	102	16803582	rplU	lmo1542	-	50S ribosomal protein L21
1535	 36.42	0	1577212..1578573	-	453	16803583	-	lmo1543	-	hypothetical protein
1536	 37.20	0	1578625..1579425	-	266	16803584	minD	lmo1544	-	hypothetical protein
1537	 33.92	-1	1579428..1580105	-	225	16803585	minC	lmo1545	-	septum formation inhibitor
1538	 29.87	-2	1580283..1580801	-	172	16803586	mreD	lmo1546	-	hypothetical protein
1539	 37.05	0	1580804..1581691	-	295	16803587	mreC	lmo1547	-	hypothetical protein
1540	 37.97	0	1581777..1582790	-	337	16803588	mreB	lmo1548	-	hypothetical protein
1541	 36.00	0	1583242..1583916	-	224	16803589	radC	lmo1549	-	DNA repair protein RadC
1542	 27.57	-2	1583928..1584638	-	236	16803590	comC	lmo1550	-	hypothetical protein
1543	 35.04	0	1584850..1586139	-	429	16803591	folC	lmo1551	-	hypothetical protein
1544	 35.56	0	1586201..1588852	-	883	16803592	valS	lmo1552	-	valyl-tRNA synthetase
1545	 40.31	0	1589175..1590464	-	429	16803593	hemL	lmo1553	-	glutamate-1-semialdehyde aminotransferase
1546	 36.72	0	1590477..1591451	-	324	16803594	hemB	lmo1554	-	delta-aminolevulinic acid dehydratase
1547	 34.58	-1	1591448..1592170	-	240	16803595	hemD	lmo1555	-	uroporphyrinogen-III synthase
1548	 37.63	0	1592167..1593096	-	309	16803596	hemC	lmo1556	-	porphobilinogen deaminase
1549	 37.00	0	1593100..1594407	-	435	16803597	hemA	lmo1557	-	glutamyl-tRNA reductase
1550	 37.44	0	1594535..1595119	-	194	16803598	-	lmo1558	-	GTPase EngB
1551	 39.63	0	1595227..1597149	-	640	16803599	thrS	lmo1559	-	threonyl-tRNA synthetase
1552	 38.31	0	1597499..1598422	-	307	16803600	dnaI	lmo1560	-	primosomal protein DnaI
1553	 37.69	0	1598432..1599808	-	458	16803601	dnaB	lmo1561	-	chromosome replication initiation / membrane attachment protein DnaB
1554	 39.35	0	1599814..1600278	-	154	16803602	-	lmo1562	-	transcriptional regulator NrdR
1555	 37.48	0	1600356..1600958	-	200	16803603	-	lmo1563	-	hypothetical protein
1556	 39.66	0	1600975..1601796	-	273	16803604	mutM	lmo1564	-	hypothetical protein
1557	 37.60	0	1601820..1604447	-	875	16803605	polA	lmo1565	-	DNA polymerase I
1558	 39.98	0	1604613..1605875	-	420	16803606	citC	lmo1566	-	isocitrate dehydrogenase
1559	 37.52	0	1605895..1607016	-	373	16803607	citZ	lmo1567	-	methylcitrate synthase
1560	 38.10	0	1607053..1607514	-	153	16803608	-	lmo1568	-	hypothetical protein
1561	 32.01	-1	1607671..1608048	-	125	16803609	fxsA	lmo1569	-	FxsA
1562	 39.82	0	1608166..1609923	-	585	16803610	pykA	lmo1570	-	pyruvate kinase
1563	 40.42	0	1610206..1611165	-	319	16803611	pfkA	lmo1571	-	6-phosphofructokinase
1564	 39.60	0	1611449..1612405	-	318	16803612	accA	lmo1572	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
1565	 38.98	0	1612395..1613279	-	294	16803613	accD	lmo1573	-	acetyl-CoA carboxylase subunit beta
1566	 39.31	0	1613497..1616823	-	1108	16803614	dnaE	lmo1574	-	hypothetical protein
1567	 41.77	+1	1616945..1617880	-	311	16803615	-	lmo1575	-	hypothetical protein
1568	 39.27	0	1617901..1619214	-	437	16803616	-	lmo1576	-	hypothetical protein
1569	 39.74	0	1619240..1619926	-	228	16803617	-	lmo1577	-	hypothetical protein
1570	 40.98	0	1620091..1621188	+	365	16803618	-	lmo1578	-	hypothetical protein
1571	 40.61	0	1621230..1622342	-	370	16803619	-	lmo1579	-	hypothetical protein
1572	 39.57	0	1622583..1623047	+	154	16803620	-	lmo1580	-	hypothetical protein
1573	 39.70	0	1623099..1624292	-	397	16803621	ackA	lmo1581	-	acetate kinase
1574	 36.64	0	1624316..1625314	-	332	16803622	-	lmo1582	-	hypothetical protein
1575	 38.15	0	1625505..1626002	-	165	16803623	-	lmo1583	-	hypothetical protein
1576	 36.69	0	1626064..1626600	-	178	16803624	-	lmo1584	-	hypothetical protein
1577	 38.86	0	1626620..1627633	-	337	16803625	-	lmo1585	-	hypothetical protein
1578	 34.83	0	1627812..1628615	+	267	16803626	ppnK	lmo1586	-	inorganic polyphosphate/ATP-NAD kinase
1579	 39.54	0	1628647..1629597	-	316	16803627	argF	lmo1587	-	ornithine carbamoyltransferase
1580	 39.71	0	1629594..1630754	-	386	16803628	argD	lmo1588	-	acetylornithine aminotransferase
1581	 40.24	0	1630751..1631503	-	250	16803629	argB	lmo1589	-	acetylglutamate kinase
1582	 41.02	0	1631516..1632712	-	398	16803630	argJ	lmo1590	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
1583	 39.92	0	1632728..1633759	-	343	16803631	argC	lmo1591	-	N-acetyl-gamma-glutamyl-phosphate reductase
1584	 39.77	0	1633933..1635144	-	403	16803632	-	lmo1592	-	hypothetical protein
1585	 38.77	0	1635146..1636285	-	379	16803633	-	lmo1593	-	hypothetical protein
1586	 36.83	0	1636412..1638127	-	571	16803634	-	lmo1594	-	septation ring formation regulator EzrA
38.00	MEAN

3.37	STD DEV
