IslandPath Analysis: Listeria monocytogenes EGD-e

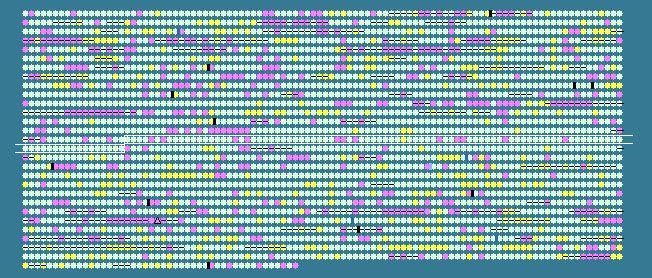

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.00 STD DEV: 3.37
Listeria monocytogenes EGD-e, complete genome - 1..2944528
2846 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1418	 36.89	0	1457461..1458387	-	308	16803466	opuCC	lmo1426	-	hypothetical protein
1419	 40.49	0	1458389..1459045	-	218	16803467	opuCB	lmo1427	-	hypothetical protein
1420	 37.94	0	1459049..1460242	-	397	16803468	opuCA	lmo1428	-	hypothetical protein
1421	 40.29	0	1460534..1461094	-	186	16803469	-	lmo1429	-	hypothetical protein
1422	 34.38	-1	1461343..1461726	-	127	16803470	-	lmo1430	-	hypothetical protein
1423	 37.08	0	1461866..1463467	+	533	16803471	-	lmo1431	-	hypothetical protein
1424	 34.41	-1	1463506..1464156	-	216	16803472	-	lmo1432	-	hypothetical protein
1425	 38.48	0	1464209..1465549	-	446	16803473	-	lmo1433	-	hypothetical protein
1426	 36.51	0	1465638..1467305	-	555	16803474	-	lmo1434	-	hypothetical protein
1427	 38.21	0	1467325..1468206	-	293	16803475	dapA	lmo1435	-	dihydrodipicolinate synthase
1428	 38.86	0	1468221..1469432	-	403	16803476	-	lmo1436	-	aspartate kinase I
1429	 38.89	0	1469444..1470487	-	347	16803477	-	lmo1437	-	hypothetical protein
1430	 38.09	0	1470685..1472850	-	721	16803478	-	lmo1438	-	hypothetical protein
1431	 40.39	0	1472980..1473588	-	202	16803479	sod	lmo1439	-	superoxide dismutase
1432	 34.96	0	1473889..1474689	+	266	16803480	-	lmo1440	-	hypothetical protein
1433	 39.11	0	1474802..1475908	+	368	16803481	ispG	lmo1441	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
1434	 36.86	0	1475944..1476651	+	235	16803482	-	lmo1442	-	hypothetical protein
1435	 35.17	0	1476642..1476968	+	108	16803483	-	lmo1443	-	hypothetical protein
1436	 33.67	-1	1477050..1477934	-	294	16803484	-	lmo1444	-	hypothetical protein
1437	 34.98	0	1478071..1478496	-	141	16803485	zurR	lmo1445	-	transcriptional regulator ZurR (ferric uptake regulation)
1438	 34.02	-1	1478477..1479355	-	292	16803486	zurM	lmo1446	-	metal (zinc) transport protein (ABC transporter, permease protein)
1439	 38.37	0	1479330..1480103	-	257	16803487	zurA	lmo1447	-	metal (zinc) transport protein(ABC transporter, ATP-binding protein)
1440	 37.86	0	1480246..1481172	-	308	16803488	-	lmo1448	-	putative manganese-dependent inorganic pyrophosphatase
1441	 39.26	0	1481188..1482081	-	297	16803489	-	lmo1449	-	endonuclease IV
1442	 37.77	0	1482096..1483403	-	435	16803490	-	lmo1450	-	hypothetical protein
1443	 39.76	0	1483549..1484544	+	331	16803491	ispH	lmo1451	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
1444	 36.01	0	1484590..1485711	-	373	16803492	-	lmo1452	-	hypothetical protein
1445	 37.30	0	1485708..1486412	-	234	16803493	-	lmo1453	-	hypothetical protein
1446	 40.18	0	1486480..1487604	-	374	16803494	rpoD	lmo1454	-	RNA polymerase sigma factor RpoD
1447	 37.43	0	1487699..1489579	-	626	16803495	dnaG	lmo1455	-	DNA primase
1448	 37.64	0	1489599..1490039	-	146	16803496	-	lmo1456	-	hypothetical protein
1449	 37.58	0	1490229..1491053	-	274	16803497	-	lmo1457	-	hypothetical protein
1450	 36.91	0	1491087..1493153	-	688	16803498	glyS	lmo1458	-	hypothetical protein
1451	 39.96	0	1493146..1494036	-	296	16803499	glyQ	lmo1459	-	glycyl-tRNA synthetase subunit alpha
1452	 36.72	0	1494317..1495084	-	255	16803500	recO	lmo1460	-	DNA repair protein RecO
1453	 34.13	-1	1495221..1495850	+	209	16803501	-	lmo1461	-	hypothetical protein
1454	 34.44	-1	1495899..1496804	-	301	16803502	era	lmo1462	-	GTP-binding protein Era
1455	 40.66	0	1496801..1497196	-	131	16803503	-	lmo1463	-	hypothetical protein
1456	 34.09	-1	1497221..1497616	-	131	16803504	-	lmo1464	-	hypothetical protein
1457	 39.09	0	1497594..1498079	-	161	16803505	-	lmo1465	-	putative metalloprotease
1458	 35.61	0	1498096..1500252	-	718	16803506	-	lmo1466	-	hypothetical protein
1459	 36.88	0	1500268..1501227	-	319	16803507	-	lmo1467	-	hypothetical protein
1460	 40.94	0	1501415..1501861	-	148	16803508	-	lmo1468	-	hypothetical protein
1461	 36.78	0	1501881..1502054	-	57	16803509	rpsU	lmo1469	-	30S ribosomal protein S21
1462	 39.97	0	1502252..1503019	-	255	16803510	-	lmo1470	-	hypothetical protein
1463	 39.37	0	1503020..1503964	-	314	16803511	prmA	lmo1471	-	ribosomal protein L11 methyltransferase
1464	 42.15	+1	1504037..1505170	-	377	16803512	dnaJ	lmo1472	-	heat shock protein DnaJ
1465	 38.98	0	1505312..1507153	-	613	16803513	dnaK	lmo1473	-	class I heat-shock protein (molecular chaperone) DnaK
1466	 37.15	0	1507187..1507762	-	191	16803514	grpE	lmo1474	-	heat shock protein GrpE
1467	 37.67	0	1507804..1508841	-	345	16803515	hrcA	lmo1475	-	heat-inducible transcription repressor
1468	 37.56	0	1508988..1510145	-	385	16803516	hemN	lmo1476	-	coproporphyrinogen III oxidase
1469	 36.73	0	1510234..1511262	-	342	16803517	-	lmo1477	-	hypothetical protein
1470	 32.42	-1	1511375..1511812	+	145	16803518	-	lmo1478	-	hypothetical protein
1471	 37.55	0	1511858..1513684	-	608	16803519	lepA	lmo1479	-	GTP-binding protein LepA
1472	 39.22	0	1513917..1514171	+	84	16803520	rpsT	lmo1480	-	30S ribosomal protein S20
1473	 33.33	-1	1514257..1515288	-	343	16803521	holA	lmo1481	-	DNA polymerase III subunit delta
1474	 34.10	-1	1515356..1517578	-	740	16803522	comEC	lmo1482	-	hypothetical protein
1475	 39.22	0	1517613..1518173	-	186	16803523	comEB	lmo1483	-	hypothetical protein
1476	 34.66	0	1518245..1518847	-	200	16803524	comEA	lmo1484	-	hypothetical protein
1477	 34.56	-1	1518950..1519681	-	243	16803525	-	lmo1485	-	hypothetical protein
1478	 37.82	0	1519736..1520092	-	118	16803526	-	lmo1486	-	hypothetical protein
1479	 38.72	0	1520097..1520672	-	191	16803527	-	lmo1487	-	hypothetical protein
1480	 38.45	0	1520659..1521225	-	188	16803528	-	lmo1488	-	hypothetical protein
1481	 34.02	-1	1521243..1521533	-	96	16803529	-	lmo1489	-	hypothetical protein
1482	 37.23	0	1521533..1522354	-	273	16803530	-	lmo1490	-	hypothetical protein
1483	 39.69	0	1522374..1523474	-	366	16803531	-	lmo1491	-	GTP-binding protein YqeH
1484	 36.97	0	1523471..1523992	-	173	16803532	-	lmo1492	-	hypothetical protein
1485	 38.64	0	1524154..1525962	+	602	16803533	-	lmo1493	-	hypothetical protein
1486	 37.89	0	1525997..1526698	-	233	16803534	-	lmo1494	-	hypothetical protein
1487	 38.46	0	1526748..1527371	-	207	16803535	-	lmo1495	-	hypothetical protein
1488	 37.06	0	1527422..1527904	-	160	16803536	-	lmo1496	-	hypothetical protein
1489	 35.40	0	1528098..1528727	-	209	16803537	udk	lmo1497	-	uridine kinase
1490	 37.61	0	1528724..1529377	-	217	16803538	-	lmo1498	-	hypothetical protein
1491	 32.96	-1	1529454..1530524	-	356	16803539	-	lmo1499	-	hypothetical protein
1492	 37.64	0	1530727..1531353	+	208	16803540	-	lmo1500	-	hypothetical protein
1493	 34.98	0	1531398..1531700	-	100	16803541	-	lmo1501	-	hypothetical protein
1494	 41.01	0	1531716..1532132	-	138	16803542	-	lmo1502	-	hypothetical protein
1495	 34.80	0	1532129..1532401	-	90	16803543	-	lmo1503	-	hypothetical protein
1496	 39.47	0	1532493..1535132	-	879	16803544	alaS	lmo1504	-	alanyl-tRNA synthetase
1497	 36.35	0	1535439..1536134	-	231	16803545	-	lmo1505	-	hypothetical protein
1498	 38.91	0	1536143..1537648	-	501	16803546	-	lmo1506	-	hypothetical protein
1499	 36.83	0	1537815..1538501	+	228	16803547	-	lmo1507	-	hypothetical protein
1500	 35.35	0	1538498..1539937	+	479	16803548	-	lmo1508	-	hypothetical protein
1501	 40.38	0	1539979..1542375	-	798	16803549	-	lmo1509	-	hypothetical protein
1502	 36.93	0	1542403..1543041	-	212	16803550	-	lmo1510	-	hypothetical protein
1503	 36.71	0	1543082..1543822	-	246	16803551	-	lmo1511	-	hypothetical protein
1504	 39.78	0	1543940..1545055	-	371	16803552	-	lmo1512	-	hypothetical protein
1505	 39.86	0	1545074..1546222	-	382	16803553	-	lmo1513	-	hypothetical protein
1506	 40.61	0	1546608..1547885	-	425	16803554	-	lmo1514	-	recombination factor protein RarA
1507	 39.48	0	1548034..1548456	+	140	16803555	-	lmo1515	-	hypothetical protein
1508	 40.38	0	1548701..1549906	+	401	16803556	-	lmo1516	-	hypothetical protein
1509	 39.07	0	1549920..1550285	+	121	16803557	-	lmo1517	-	hypothetical protein
1510	 37.53	0	1550435..1550815	+	126	16803558	-	lmo1518	-	hypothetical protein
1511	 39.19	0	1550854..1552629	-	591	16803559	aspS	lmo1519	-	aspartyl-tRNA synthetase
1512	 38.50	0	1552632..1553909	-	425	16803560	hisS	lmo1520	-	histidyl-tRNA synthetase
1513	 39.72	0	1554360..1555643	+	427	16803561	-	lmo1521	-	hypothetical protein
1514	 39.96	0	1555680..1556132	-	150	16803562	-	lmo1522	-	D-tyrosyl-tRNA deacylase
1515	 37.66	0	1556148..1558364	-	738	16803563	relA	lmo1523	-	hypothetical protein
1516	 38.12	0	1558570..1559091	-	173	16803564	apt	lmo1524	-	adenine phosphoribosyltransferase
1517	 39.33	0	1559081..1561432	-	783	16803565	-	lmo1525	-	hypothetical protein
38.00	MEAN

3.37	STD DEV
