IslandPath Analysis: Listeria monocytogenes EGD-e

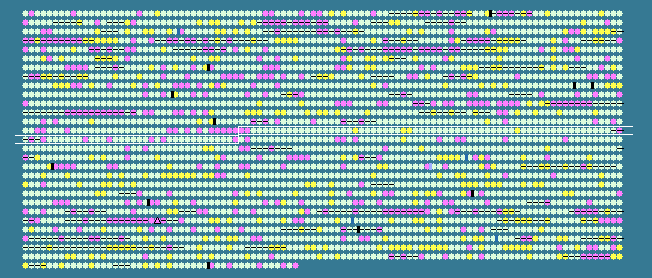

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.00 STD DEV: 3.37
Listeria monocytogenes EGD-e, complete genome - 1..2944528
2846 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1337	 34.26	-1	1370108..1370431	-	107	16803385	-	lmo1345	-	hypothetical protein
1338	 32.07	-1	1370445..1371476	-	343	16803386	comGB	lmo1346	-	hypothetical protein
1339	 37.54	0	1371454..1372476	-	340	16803387	comGA	lmo1347	-	hypothetical protein
1340	 38.02	0	1373015..1374103	+	362	16803388	-	lmo1348	-	glycine cleavage system aminomethyltransferase T
1341	 38.38	0	1374119..1375465	+	448	16803389	-	lmo1349	-	glycine dehydrogenase subunit 1
1342	 38.85	0	1375462..1376928	+	488	16803390	-	lmo1350	-	glycine dehydrogenase subunit 2
1343	 35.43	0	1376968..1377348	-	126	16803391	-	lmo1351	-	hypothetical protein
1344	 34.80	0	1377410..1377682	-	90	16803392	-	lmo1352	-	hypothetical protein
1345	 37.47	0	1377695..1378660	-	321	16803393	-	lmo1353	-	hypothetical protein
1346	 35.78	0	1378840..1379901	+	353	16803394	-	lmo1354	-	hypothetical protein
1347	 37.46	0	1380004..1380561	+	185	16803395	efp	lmo1355	-	elongation factor P
1348	 38.68	0	1380720..1381187	+	155	16803396	-	lmo1356	-	hypothetical protein
1349	 39.71	0	1381201..1382565	+	454	16803397	-	lmo1357	-	acetyl-CoA carboxylase biotin carboxylase subunit
1350	 37.99	0	1382569..1382976	+	135	16803398	-	lmo1358	-	hypothetical protein
1351	 34.63	-1	1383007..1383393	+	128	16803399	nusB	lmo1359	-	transcription antitermination protein NusB
1352	 37.08	0	1383489..1384343	+	284	16803400	folD	lmo1360	-	hypothetical protein
1353	 39.32	0	1384362..1385714	+	450	16803401	xseA	lmo1361	-	exodeoxyribonuclease VII large subunit
1354	 36.84	0	1385704..1385931	+	75	16803402	-	lmo1362	-	hypothetical protein
1355	 38.21	0	1385934..1386815	+	293	16803403	-	lmo1363	-	hypothetical protein
1356	 43.28	+1	1387014..1387214	+	66	16803404	cspL	lmo1364	-	hypothetical protein
1357	 40.16	0	1387381..1389210	+	609	16803405	tktB	lmo1365	-	1-deoxy-D-xylulose-5-phosphate synthase
1358	 39.03	0	1389207..1390031	+	274	16803406	-	lmo1366	-	hypothetical protein
1359	 35.11	0	1390222..1390671	+	149	16803407	-	lmo1367	-	arginine repressor
1360	 37.88	0	1390694..1392385	+	563	16803408	recN	lmo1368	-	DNA repair and genetic recombination
1361	 38.41	0	1392514..1393380	+	288	16803409	-	lmo1369	-	hypothetical protein
1362	 40.17	0	1393517..1394584	+	355	16803410	-	lmo1370	-	butyrate kinase
1363	 40.34	0	1394599..1396026	+	475	16803411	-	lmo1371	-	dihydrolipoamide dehydrogenase
1364	 41.77	+1	1396051..1397046	+	331	16803412	-	lmo1372	-	hypothetical protein
1365	 42.48	+1	1397063..1398046	+	327	16803413	-	lmo1373	-	hypothetical protein
1366	 39.65	0	1398077..1399327	+	416	16803414	-	lmo1374	-	hypothetical protein
1367	 36.98	0	1399699..1400796	+	365	16803415	-	lmo1375	-	hypothetical protein
1368	 40.45	0	1400941..1402359	+	472	16803416	-	lmo1376	-	6-phosphogluconate dehydrogenase
1369	 39.65	0	1402550..1403230	+	226	16803417	lisR	lmo1377	-	two-component response regulator
1370	 36.02	0	1403227..1404678	+	483	16803418	lisK	lmo1378	-	two-component sensor histidine kinase
1371	 35.75	0	1404714..1405541	-	275	16803419	-	lmo1379	-	OxaA-like protein precursor
1372	 35.46	0	1405578..1405859	-	93	16803420	-	lmo1380	-	hypothetical protein
1373	 36.88	0	1405945..1406226	-	93	16803421	-	lmo1381	-	hypothetical protein
1374	 38.22	0	1406366..1406713	+	115	16803422	-	lmo1382	-	hypothetical protein
1375	 39.18	0	1406742..1407818	+	358	16803423	-	lmo1383	-	isopentenyl pyrophosphate isomerase
1376	 38.85	0	1407859..1408818	-	319	16803424	-	lmo1384	-	hypothetical protein
1377	 38.19	0	1409070..1409996	+	308	16803425	-	lmo1385	-	hypothetical protein
1378	 38.57	0	1410148..1412421	+	757	16803426	-	lmo1386	-	hypothetical protein
1379	 37.26	0	1412455..1413294	-	279	16803427	-	lmo1387	-	pyrroline-5-carboxylate reductase
1380	 38.27	0	1413646..1414719	+	357	16803428	tcsA	lmo1388	-	CD4+ T cell-stimulating antigen, lipoprotein
1381	 38.72	0	1415152..1416693	+	513	16803429	-	lmo1389	-	hypothetical protein
1382	 39.32	0	1416686..1417738	+	350	16803430	-	lmo1390	-	hypothetical protein
1383	 41.85	+1	1417735..1418685	+	316	16803431	-	lmo1391	-	hypothetical protein
1384	 35.03	0	1418803..1420095	+	430	16803432	-	lmo1392	-	hypothetical protein
1385	 36.44	0	1420076..1421362	+	428	16803433	-	lmo1393	-	hypothetical protein
1386	 37.57	0	1421454..1422185	+	243	16803434	-	lmo1394	-	hypothetical protein
1387	 36.34	0	1422236..1423165	+	309	16803435	-	lmo1395	-	hypothetical protein
1388	 35.75	0	1423255..1423833	+	192	16803436	-	lmo1396	-	hypothetical protein
1389	 36.95	0	1423902..1425146	+	414	16803437	cinA	lmo1397	-	hypothetical protein
1390	 39.26	0	1425419..1426465	+	348	16803438	recA	lmo1398	-	recombinase A
1391	 41.39	+1	1426766..1428328	+	520	16803439	-	lmo1399	-	phosphodiesterase
1392	 38.55	0	1428442..1428939	+	165	16803440	-	lmo1400	-	hypothetical protein
1393	 40.55	0	1428945..1429748	+	267	16803441	-	lmo1401	-	hypothetical protein
1394	 37.47	0	1429765..1430127	+	120	16803442	-	lmo1402	-	hypothetical protein
1395	 39.02	0	1430237..1432819	+	860	16803443	mutS	lmo1403	-	DNA mismatch repair protein
1396	 38.32	0	1432839..1434644	+	601	16803444	mutL	lmo1404	-	DNA mismatch repair protein
1397	 37.89	0	1434661..1435209	+	182	16803445	-	lmo1405	-	hypothetical protein
1398	 39.07	0	1435635..1437866	+	743	16803446	pflB	lmo1406	-	pyruvate formate-lyase
1399	 37.88	0	1437943..1438689	+	248	16803447	pflC	lmo1407	-	pyruvate-formate lyase activating enzyme
1400	 32.20	-1	1438724..1439254	-	176	16803448	-	lmo1408	-	hypothetical protein
1401	 37.02	0	1439421..1440614	+	397	16803449	-	lmo1409	-	hypothetical protein
1402	 28.96	-2	1440748..1441296	+	182	16803450	-	lmo1410	-	hypothetical protein
1403	 35.09	0	1441313..1441540	+	75	16803451	-	lmo1411	-	hypothetical protein
1404	 30.34	-2	1441581..1442114	+	177	16803452	-	lmo1412	-	modulates DNA topology
1405	 35.00	0	1442368..1443687	-	439	16803453	-	lmo1413	-	peptidoglycan binding protein
1406	 39.91	0	1443873..1445042	-	389	16803454	-	lmo1414	-	hypothetical protein
1407	 37.62	0	1445192..1446358	+	388	16803455	-	lmo1415	-	hypothetical protein
1408	 35.67	0	1446383..1446982	-	199	16803456	-	lmo1416	-	hypothetical protein
1409	 36.14	0	1447052..1448296	-	414	16803457	-	lmo1417	-	hypothetical protein
1410	 37.90	0	1448315..1449583	-	422	16803458	-	lmo1418	-	hypothetical protein
1411	 32.18	-1	1449647..1450684	-	345	16803459	-	lmo1419	-	hypothetical protein
1412	 38.46	0	1450701..1451597	-	298	16803460	-	lmo1420	-	hypothetical protein
1413	 39.72	0	1451813..1452799	+	328	16803461	-	lmo1421	-	hypothetical protein
1414	 36.37	0	1452796..1454310	+	504	16803462	-	lmo1422	-	hypothetical protein
1415	 32.37	-1	1454347..1455177	-	276	16803463	-	lmo1423	-	hypothetical protein
1416	 38.01	0	1455316..1456662	-	448	16803464	-	lmo1424	-	manganese transport protein MntH
1417	 40.92	0	1456775..1457446	-	223	16803465	opuCD	lmo1425	-	hypothetical protein
1418	 36.89	0	1457461..1458387	-	308	16803466	opuCC	lmo1426	-	hypothetical protein
1419	 40.49	0	1458389..1459045	-	218	16803467	opuCB	lmo1427	-	hypothetical protein
1420	 37.94	0	1459049..1460242	-	397	16803468	opuCA	lmo1428	-	hypothetical protein
1421	 40.29	0	1460534..1461094	-	186	16803469	-	lmo1429	-	hypothetical protein
1422	 34.38	-1	1461343..1461726	-	127	16803470	-	lmo1430	-	hypothetical protein
1423	 37.08	0	1461866..1463467	+	533	16803471	-	lmo1431	-	hypothetical protein
1424	 34.41	-1	1463506..1464156	-	216	16803472	-	lmo1432	-	hypothetical protein
1425	 38.48	0	1464209..1465549	-	446	16803473	-	lmo1433	-	hypothetical protein
1426	 36.51	0	1465638..1467305	-	555	16803474	-	lmo1434	-	hypothetical protein
1427	 38.21	0	1467325..1468206	-	293	16803475	dapA	lmo1435	-	dihydrodipicolinate synthase
1428	 38.86	0	1468221..1469432	-	403	16803476	-	lmo1436	-	aspartate kinase I
1429	 38.89	0	1469444..1470487	-	347	16803477	-	lmo1437	-	hypothetical protein
1430	 38.09	0	1470685..1472850	-	721	16803478	-	lmo1438	-	hypothetical protein
1431	 40.39	0	1472980..1473588	-	202	16803479	sod	lmo1439	-	superoxide dismutase
1432	 34.96	0	1473889..1474689	+	266	16803480	-	lmo1440	-	hypothetical protein
1433	 39.11	0	1474802..1475908	+	368	16803481	ispG	lmo1441	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
1434	 36.86	0	1475944..1476651	+	235	16803482	-	lmo1442	-	hypothetical protein
1435	 35.17	0	1476642..1476968	+	108	16803483	-	lmo1443	-	hypothetical protein
1436	 33.67	-1	1477050..1477934	-	294	16803484	-	lmo1444	-	hypothetical protein
38.00	MEAN

3.37	STD DEV
