IslandPath Analysis: Listeria monocytogenes EGD-e

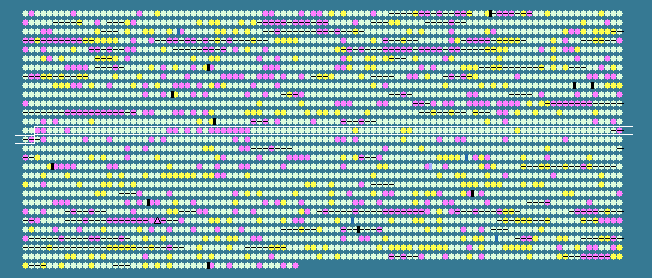

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 38.00   STD DEV: 3.37
Listeria monocytogenes EGD-e, complete genome - 1..2944528
2846 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1303	 31.59	-1	1337742..1338947	-	401	16803351	-	lmo1311	-	hypothetical protein
1304	 28.80	-2	1338925..1339299	-	124	16803352	-	lmo1312	-	hypothetical protein
1305	 40.19	0	1339592..1340320	+	242	16803353	smbA	lmo1313	-	hypothetical protein
1306	 35.84	0	1340320..1340877	+	185	16803354	frr	lmo1314	-	hypothetical protein
1307	 38.87	0	1341107..1341865	+	252	16803355	-	lmo1315	-	hypothetical protein
1308	 34.22	-1	1341879..1342667	+	262	16803356	cdsA	lmo1316	-	hypothetical protein
1309	 39.46	0	1342682..1343824	+	380	16803357	-	lmo1317	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1310	 38.56	0	1343838..1345100	+	420	16803358	-	lmo1318	-	hypothetical protein
1311	 39.13	0	1345140..1346846	+	568	16803359	proS	lmo1319	-	prolyl-tRNA synthetase
1312	 38.73	0	1346951..1351285	+	1444	16803360	polC	lmo1320	-	DNA polymerase III PolC
1313	 39.53	0	1351467..1351934	+	155	16803361	-	lmo1321	-	hypothetical protein
1314	 40.30	0	1351964..1353082	+	372	16803362	nusA	lmo1322	-	transcription elongation factor NusA
1315	 40.00	0	1353097..1353381	+	94	16803363	-	lmo1323	-	hypothetical protein
1316	 38.67	0	1353374..1353673	+	99	16803364	-	lmo1324	-	hypothetical protein
1317	 39.70	0	1353696..1356035	+	779	16803365	infB	lmo1325	-	translation initiation factor IF-2
1318	 40.14	0	1356032..1356310	+	92	16803366	-	lmo1326	-	hypothetical protein
1319	 39.42	0	1356327..1356671	+	114	16803367	rbfA	lmo1327	-	ribosome-binding factor A
1320	 38.91	0	1356769..1357683	+	304	16803368	truB	lmo1328	-	hypothetical protein
1321	 38.94	0	1357753..1358697	+	314	16803369	ribC	lmo1329	-	hypothetical protein
1322	 37.78	0	1358834..1359103	+	89	16803370	rpsO	lmo1330	-	30S ribosomal protein S15
1323	 39.55	0	1359352..1361523	+	723	16803371	pnpA	lmo1331	-	polynucleotide phosphorylase/polyadenylase
1324	 38.42	0	1361564..1362604	-	346	16803372	-	lmo1332	-	hypothetical protein
1325	 33.33	-1	1362765..1363244	-	159	16803373	-	lmo1333	-	hypothetical protein
1326	 33.05	-1	1363272..1363628	-	118	16803374	-	lmo1334	-	hypothetical protein
1327	 34.67	0	1363826..1363975	+	49	16803375	rpmG	lmo1335	-	50S ribosomal protein L33
1328	 33.89	-1	1364031..1364570	+	179	16803376	-	lmo1336	-	hypothetical protein
1329	 36.39	0	1364669..1366207	+	512	16803377	-	lmo1337	-	hypothetical protein
1330	 26.29	-2	1366220..1366432	+	70	16803378	-	lmo1338	-	hypothetical protein
1331	 38.18	0	1366457..1367425	+	322	16803379	-	lmo1339	-	hypothetical protein
1332	 31.59	-1	1367559..1368650	+	363	16803380	-	lmo1340	-	hypothetical protein
1333	 31.13	-2	1368668..1368985	-	105	16803381	-	lmo1341	-	hypothetical protein
1334	 32.69	-1	1368982..1369449	-	155	16803382	-	lmo1342	-	hypothetical protein
1335	 33.33	-1	1369412..1369696	-	94	16803383	-	lmo1343	-	hypothetical protein
1336	 30.54	-2	1369683..1370111	-	142	16803384	-	lmo1344	-	hypothetical protein
1337	 34.26	-1	1370108..1370431	-	107	16803385	-	lmo1345	-	hypothetical protein
1338	 32.07	-1	1370445..1371476	-	343	16803386	comGB	lmo1346	-	hypothetical protein
1339	 37.54	0	1371454..1372476	-	340	16803387	comGA	lmo1347	-	hypothetical protein
1340	 38.02	0	1373015..1374103	+	362	16803388	-	lmo1348	-	glycine cleavage system aminomethyltransferase T
1341	 38.38	0	1374119..1375465	+	448	16803389	-	lmo1349	-	glycine dehydrogenase subunit 1
1342	 38.85	0	1375462..1376928	+	488	16803390	-	lmo1350	-	glycine dehydrogenase subunit 2
1343	 35.43	0	1376968..1377348	-	126	16803391	-	lmo1351	-	hypothetical protein
1344	 34.80	0	1377410..1377682	-	90	16803392	-	lmo1352	-	hypothetical protein
1345	 37.47	0	1377695..1378660	-	321	16803393	-	lmo1353	-	hypothetical protein
1346	 35.78	0	1378840..1379901	+	353	16803394	-	lmo1354	-	hypothetical protein
1347	 37.46	0	1380004..1380561	+	185	16803395	efp	lmo1355	-	elongation factor P
1348	 38.68	0	1380720..1381187	+	155	16803396	-	lmo1356	-	hypothetical protein
1349	 39.71	0	1381201..1382565	+	454	16803397	-	lmo1357	-	acetyl-CoA carboxylase biotin carboxylase subunit
1350	 37.99	0	1382569..1382976	+	135	16803398	-	lmo1358	-	hypothetical protein
1351	 34.63	-1	1383007..1383393	+	128	16803399	nusB	lmo1359	-	transcription antitermination protein NusB
1352	 37.08	0	1383489..1384343	+	284	16803400	folD	lmo1360	-	hypothetical protein
1353	 39.32	0	1384362..1385714	+	450	16803401	xseA	lmo1361	-	exodeoxyribonuclease VII large subunit
1354	 36.84	0	1385704..1385931	+	75	16803402	-	lmo1362	-	hypothetical protein
1355	 38.21	0	1385934..1386815	+	293	16803403	-	lmo1363	-	hypothetical protein
1356	 43.28	+1	1387014..1387214	+	66	16803404	cspL	lmo1364	-	hypothetical protein
1357	 40.16	0	1387381..1389210	+	609	16803405	tktB	lmo1365	-	1-deoxy-D-xylulose-5-phosphate synthase
1358	 39.03	0	1389207..1390031	+	274	16803406	-	lmo1366	-	hypothetical protein
1359	 35.11	0	1390222..1390671	+	149	16803407	-	lmo1367	-	arginine repressor
1360	 37.88	0	1390694..1392385	+	563	16803408	recN	lmo1368	-	DNA repair and genetic recombination
1361	 38.41	0	1392514..1393380	+	288	16803409	-	lmo1369	-	hypothetical protein
1362	 40.17	0	1393517..1394584	+	355	16803410	-	lmo1370	-	butyrate kinase
1363	 40.34	0	1394599..1396026	+	475	16803411	-	lmo1371	-	dihydrolipoamide dehydrogenase
1364	 41.77	+1	1396051..1397046	+	331	16803412	-	lmo1372	-	hypothetical protein
1365	 42.48	+1	1397063..1398046	+	327	16803413	-	lmo1373	-	hypothetical protein
1366	 39.65	0	1398077..1399327	+	416	16803414	-	lmo1374	-	hypothetical protein
1367	 36.98	0	1399699..1400796	+	365	16803415	-	lmo1375	-	hypothetical protein
1368	 40.45	0	1400941..1402359	+	472	16803416	-	lmo1376	-	6-phosphogluconate dehydrogenase
1369	 39.65	0	1402550..1403230	+	226	16803417	lisR	lmo1377	-	two-component response regulator
1370	 36.02	0	1403227..1404678	+	483	16803418	lisK	lmo1378	-	two-component sensor histidine kinase
1371	 35.75	0	1404714..1405541	-	275	16803419	-	lmo1379	-	OxaA-like protein precursor
1372	 35.46	0	1405578..1405859	-	93	16803420	-	lmo1380	-	hypothetical protein
1373	 36.88	0	1405945..1406226	-	93	16803421	-	lmo1381	-	hypothetical protein
1374	 38.22	0	1406366..1406713	+	115	16803422	-	lmo1382	-	hypothetical protein
1375	 39.18	0	1406742..1407818	+	358	16803423	-	lmo1383	-	isopentenyl pyrophosphate isomerase
1376	 38.85	0	1407859..1408818	-	319	16803424	-	lmo1384	-	hypothetical protein
1377	 38.19	0	1409070..1409996	+	308	16803425	-	lmo1385	-	hypothetical protein
1378	 38.57	0	1410148..1412421	+	757	16803426	-	lmo1386	-	hypothetical protein
1379	 37.26	0	1412455..1413294	-	279	16803427	-	lmo1387	-	pyrroline-5-carboxylate reductase
1380	 38.27	0	1413646..1414719	+	357	16803428	tcsA	lmo1388	-	CD4+ T cell-stimulating antigen, lipoprotein
1381	 38.72	0	1415152..1416693	+	513	16803429	-	lmo1389	-	hypothetical protein
1382	 39.32	0	1416686..1417738	+	350	16803430	-	lmo1390	-	hypothetical protein
1383	 41.85	+1	1417735..1418685	+	316	16803431	-	lmo1391	-	hypothetical protein
1384	 35.03	0	1418803..1420095	+	430	16803432	-	lmo1392	-	hypothetical protein
1385	 36.44	0	1420076..1421362	+	428	16803433	-	lmo1393	-	hypothetical protein
1386	 37.57	0	1421454..1422185	+	243	16803434	-	lmo1394	-	hypothetical protein
1387	 36.34	0	1422236..1423165	+	309	16803435	-	lmo1395	-	hypothetical protein
1388	 35.75	0	1423255..1423833	+	192	16803436	-	lmo1396	-	hypothetical protein
1389	 36.95	0	1423902..1425146	+	414	16803437	cinA	lmo1397	-	hypothetical protein
1390	 39.26	0	1425419..1426465	+	348	16803438	recA	lmo1398	-	recombinase A
1391	 41.39	+1	1426766..1428328	+	520	16803439	-	lmo1399	-	phosphodiesterase
1392	 38.55	0	1428442..1428939	+	165	16803440	-	lmo1400	-	hypothetical protein
1393	 40.55	0	1428945..1429748	+	267	16803441	-	lmo1401	-	hypothetical protein
1394	 37.47	0	1429765..1430127	+	120	16803442	-	lmo1402	-	hypothetical protein
1395	 39.02	0	1430237..1432819	+	860	16803443	mutS	lmo1403	-	DNA mismatch repair protein
1396	 38.32	0	1432839..1434644	+	601	16803444	mutL	lmo1404	-	DNA mismatch repair protein
1397	 37.89	0	1434661..1435209	+	182	16803445	-	lmo1405	-	hypothetical protein
1398	 39.07	0	1435635..1437866	+	743	16803446	pflB	lmo1406	-	pyruvate formate-lyase
1399	 37.88	0	1437943..1438689	+	248	16803447	pflC	lmo1407	-	pyruvate-formate lyase activating enzyme
1400	 32.20	-1	1438724..1439254	-	176	16803448	-	lmo1408	-	hypothetical protein
1401	 37.02	0	1439421..1440614	+	397	16803449	-	lmo1409	-	hypothetical protein
1402	 28.96	-2	1440748..1441296	+	182	16803450	-	lmo1410	-	hypothetical protein
38.00	MEAN

3.37	STD DEV
