IslandPath Analysis: Listeria monocytogenes EGD-e

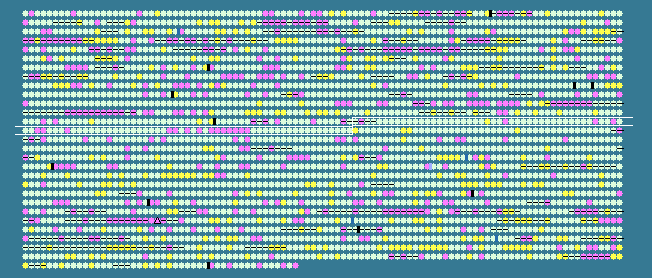

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 38.00   STD DEV: 3.37
Listeria monocytogenes EGD-e, complete genome - 1..2944528
2846 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1256	 35.21	0	1287710..1288243	+	177	16803304	-	lmo1264	-	hypothetical protein
1257	 33.33	-1	1288261..1288926	+	221	16803305	-	lmo1265	-	hypothetical protein
1258	 34.82	0	1289188..1290126	+	312	16803306	-	lmo1266	-	hypothetical protein
1259	 37.77	0	1290241..1291524	+	427	16803307	tig	lmo1267	-	trigger factor
1260	 37.22	0	1291710..1292969	+	419	16803308	clpX	lmo1268	-	ATP-dependent protease ATP-binding subunit
1261	 35.10	0	1293088..1293654	+	188	16803309	-	lmo1269	-	hypothetical protein
1262	 39.30	0	1293689..1294258	+	189	16803310	-	lmo1270	-	hypothetical protein
1263	 36.46	0	1294360..1294902	+	180	16803311	-	lmo1271	-	hypothetical protein
1264	 37.62	0	1294912..1295775	+	287	16803312	rbgA	lmo1272	-	ribosomal biogenesis GTPase
1265	 36.26	0	1295772..1296557	+	261	16803313	rnhB	lmo1273	-	hypothetical protein
1266	 37.28	0	1296691..1297551	+	286	16803314	-	lmo1274	-	hypothetical protein
1267	 37.71	0	1297823..1299901	+	692	16803315	topA	lmo1275	-	DNA topoisomerase I
1268	 40.00	0	1299964..1301268	+	434	16803316	gid	lmo1276	-	tRNA (uracil-5-)-methyltransferase Gid
1269	 37.32	0	1301551..1302453	+	300	16803317	codV	lmo1277	-	hypothetical protein
1270	 40.74	0	1302474..1303013	+	179	16803318	clpQ	lmo1278	-	ATP-dependent protease peptidase subunit
1271	 37.02	0	1303027..1304436	+	469	16803319	hslU	lmo1279	-	ATP-dependent protease ATP-binding subunit
1272	 36.92	0	1304457..1305236	+	259	16803320	codY	lmo1280	-	transcriptional repressor CodY
1273	 36.86	0	1305390..1305758	+	122	16803321	-	lmo1281	-	hypothetical protein
1274	 37.18	0	1305781..1306092	+	103	16803322	-	lmo1282	-	hypothetical protein
1275	 37.34	0	1306095..1306967	+	290	16803323	-	lmo1283	-	hypothetical protein
1276	 39.53	0	1307009..1307605	-	198	16803324	-	lmo1284	-	hypothetical protein
1277	 37.99	0	1307763..1308170	+	135	16803325	-	lmo1285	-	hypothetical protein
1278	 42.43	+1	1308351..1310318	+	655	16803326	parE	lmo1286	-	DNA topoisomerase IV subunit B
1279	 38.05	0	1310315..1312774	+	819	16803327	parC	lmo1287	-	DNA topoisomerase IV subunit A
1280	 38.46	0	1312857..1313324	+	155	16803328	-	lmo1288	-	S-ribosylhomocysteinase
1281	 33.22	-1	1313654..1315435	+	593	16803329	-	lmo1289	-	hypothetical protein
1282	 35.56	0	1315767..1317563	+	598	16803330	-	lmo1290	-	hypothetical protein
1283	 36.70	0	1317596..1319464	-	622	16803331	-	lmo1291	-	hypothetical protein
1284	 37.91	0	1319677..1320375	+	232	16803332	-	lmo1292	-	hypothetical protein
1285	 37.98	0	1320608..1322284	+	558	16803333	glpD	lmo1293	-	hypothetical protein
1286	 38.13	0	1322410..1323327	+	305	16803334	miaA	lmo1294	-	hypothetical protein
1287	 36.32	0	1323450..1323683	+	77	16803335	-	lmo1295	-	hypothetical protein
1288	 37.25	0	1323794..1325017	+	407	16803336	-	lmo1296	-	hypothetical protein
1289	 39.28	0	1325010..1326236	+	408	16803337	-	lmo1297	-	hypothetical protein
1290	 38.75	0	1326440..1326808	+	122	16803338	glnR	lmo1298	-	hypothetical protein
1291	 38.50	0	1326879..1328213	+	444	16803339	glnA	lmo1299	-	hypothetical protein
1292	 37.04	0	1328357..1329652	+	431	16803340	-	lmo1300	-	hypothetical protein
1293	 37.36	0	1329696..1330217	-	173	16803341	-	lmo1301	-	hypothetical protein
1294	 37.56	0	1330247..1330861	-	204	16803342	-	lmo1302	-	LexA repressor
1295	 37.58	0	1331018..1331347	+	109	16803343	-	lmo1303	-	hypothetical protein
1296	 32.89	-1	1331439..1331666	+	75	16803344	-	lmo1304	-	hypothetical protein
1297	 39.55	0	1331813..1333807	+	664	16803345	tkt	lmo1305	-	hypothetical protein
1298	 34.58	-1	1334028..1334267	+	79	16803346	-	lmo1306	-	hypothetical protein
1299	 28.94	-2	1334318..1335160	-	280	16803347	-	lmo1307	-	hypothetical protein
1300	 39.62	0	1335179..1335910	-	243	16803348	-	lmo1308	-	hypothetical protein
1301	 37.67	0	1335932..1336438	-	168	16803349	-	lmo1309	-	hypothetical protein
1302	 35.40	0	1336448..1337752	-	434	16803350	-	lmo1310	-	hypothetical protein
1303	 31.59	-1	1337742..1338947	-	401	16803351	-	lmo1311	-	hypothetical protein
1304	 28.80	-2	1338925..1339299	-	124	16803352	-	lmo1312	-	hypothetical protein
1305	 40.19	0	1339592..1340320	+	242	16803353	smbA	lmo1313	-	hypothetical protein
1306	 35.84	0	1340320..1340877	+	185	16803354	frr	lmo1314	-	hypothetical protein
1307	 38.87	0	1341107..1341865	+	252	16803355	-	lmo1315	-	hypothetical protein
1308	 34.22	-1	1341879..1342667	+	262	16803356	cdsA	lmo1316	-	hypothetical protein
1309	 39.46	0	1342682..1343824	+	380	16803357	-	lmo1317	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1310	 38.56	0	1343838..1345100	+	420	16803358	-	lmo1318	-	hypothetical protein
1311	 39.13	0	1345140..1346846	+	568	16803359	proS	lmo1319	-	prolyl-tRNA synthetase
1312	 38.73	0	1346951..1351285	+	1444	16803360	polC	lmo1320	-	DNA polymerase III PolC
1313	 39.53	0	1351467..1351934	+	155	16803361	-	lmo1321	-	hypothetical protein
1314	 40.30	0	1351964..1353082	+	372	16803362	nusA	lmo1322	-	transcription elongation factor NusA
1315	 40.00	0	1353097..1353381	+	94	16803363	-	lmo1323	-	hypothetical protein
1316	 38.67	0	1353374..1353673	+	99	16803364	-	lmo1324	-	hypothetical protein
1317	 39.70	0	1353696..1356035	+	779	16803365	infB	lmo1325	-	translation initiation factor IF-2
1318	 40.14	0	1356032..1356310	+	92	16803366	-	lmo1326	-	hypothetical protein
1319	 39.42	0	1356327..1356671	+	114	16803367	rbfA	lmo1327	-	ribosome-binding factor A
1320	 38.91	0	1356769..1357683	+	304	16803368	truB	lmo1328	-	hypothetical protein
1321	 38.94	0	1357753..1358697	+	314	16803369	ribC	lmo1329	-	hypothetical protein
1322	 37.78	0	1358834..1359103	+	89	16803370	rpsO	lmo1330	-	30S ribosomal protein S15
1323	 39.55	0	1359352..1361523	+	723	16803371	pnpA	lmo1331	-	polynucleotide phosphorylase/polyadenylase
1324	 38.42	0	1361564..1362604	-	346	16803372	-	lmo1332	-	hypothetical protein
1325	 33.33	-1	1362765..1363244	-	159	16803373	-	lmo1333	-	hypothetical protein
1326	 33.05	-1	1363272..1363628	-	118	16803374	-	lmo1334	-	hypothetical protein
1327	 34.67	0	1363826..1363975	+	49	16803375	rpmG	lmo1335	-	50S ribosomal protein L33
1328	 33.89	-1	1364031..1364570	+	179	16803376	-	lmo1336	-	hypothetical protein
1329	 36.39	0	1364669..1366207	+	512	16803377	-	lmo1337	-	hypothetical protein
1330	 26.29	-2	1366220..1366432	+	70	16803378	-	lmo1338	-	hypothetical protein
1331	 38.18	0	1366457..1367425	+	322	16803379	-	lmo1339	-	hypothetical protein
1332	 31.59	-1	1367559..1368650	+	363	16803380	-	lmo1340	-	hypothetical protein
1333	 31.13	-2	1368668..1368985	-	105	16803381	-	lmo1341	-	hypothetical protein
1334	 32.69	-1	1368982..1369449	-	155	16803382	-	lmo1342	-	hypothetical protein
1335	 33.33	-1	1369412..1369696	-	94	16803383	-	lmo1343	-	hypothetical protein
1336	 30.54	-2	1369683..1370111	-	142	16803384	-	lmo1344	-	hypothetical protein
1337	 34.26	-1	1370108..1370431	-	107	16803385	-	lmo1345	-	hypothetical protein
1338	 32.07	-1	1370445..1371476	-	343	16803386	comGB	lmo1346	-	hypothetical protein
1339	 37.54	0	1371454..1372476	-	340	16803387	comGA	lmo1347	-	hypothetical protein
1340	 38.02	0	1373015..1374103	+	362	16803388	-	lmo1348	-	glycine cleavage system aminomethyltransferase T
1341	 38.38	0	1374119..1375465	+	448	16803389	-	lmo1349	-	glycine dehydrogenase subunit 1
1342	 38.85	0	1375462..1376928	+	488	16803390	-	lmo1350	-	glycine dehydrogenase subunit 2
1343	 35.43	0	1376968..1377348	-	126	16803391	-	lmo1351	-	hypothetical protein
1344	 34.80	0	1377410..1377682	-	90	16803392	-	lmo1352	-	hypothetical protein
1345	 37.47	0	1377695..1378660	-	321	16803393	-	lmo1353	-	hypothetical protein
1346	 35.78	0	1378840..1379901	+	353	16803394	-	lmo1354	-	hypothetical protein
1347	 37.46	0	1380004..1380561	+	185	16803395	efp	lmo1355	-	elongation factor P
1348	 38.68	0	1380720..1381187	+	155	16803396	-	lmo1356	-	hypothetical protein
1349	 39.71	0	1381201..1382565	+	454	16803397	-	lmo1357	-	acetyl-CoA carboxylase biotin carboxylase subunit
1350	 37.99	0	1382569..1382976	+	135	16803398	-	lmo1358	-	hypothetical protein
1351	 34.63	-1	1383007..1383393	+	128	16803399	nusB	lmo1359	-	transcription antitermination protein NusB
1352	 37.08	0	1383489..1384343	+	284	16803400	folD	lmo1360	-	hypothetical protein
1353	 39.32	0	1384362..1385714	+	450	16803401	xseA	lmo1361	-	exodeoxyribonuclease VII large subunit
1354	 36.84	0	1385704..1385931	+	75	16803402	-	lmo1362	-	hypothetical protein
1355	 38.21	0	1385934..1386815	+	293	16803403	-	lmo1363	-	hypothetical protein
38.00	MEAN

3.37	STD DEV
