IslandPath Analysis: Listeria monocytogenes EGD-e

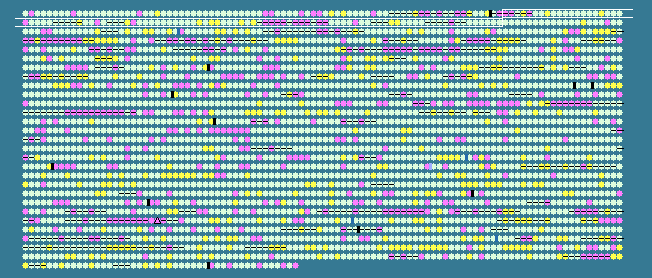

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.00 STD DEV: 3.37
Listeria monocytogenes EGD-e, complete genome - 1..2944528
2846 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
81	 28.52	-2	85025..85627	+	200	16802129	-	lmo0081	-	hypothetical protein
82	 31.80	-1	85902..86228	+	108	16802130	-	lmo0082	-	hypothetical protein
83	 40.65	0	86323..86691	-	122	16802131	-	lmo0083	-	hypothetical protein
84	 42.28	+1	86747..87730	-	327	16802132	-	lmo0084	-	hypothetical protein
85	 31.16	-2	88121..88810	+	229	16802133	-	lmo0085	-	hypothetical protein
86	 34.86	0	88888..94767	+	1959	16802134	-	lmo0086	-	hypothetical protein
87	 35.50	0	94764..97070	+	768	16802135	-	lmo0087	-	hypothetical protein
88	 42.39	+1	97127..97369	+	80	16802136	-	lmo0088	-	hypothetical protein
89	 34.98	0	97381..98412	+	343	16802137	-	lmo0089	-	hypothetical protein
90	 39.14	0	98409..99905	+	498	16802138	-	lmo0090	-	F0F1 ATP synthase subunit alpha
91	 38.16	0	99902..100771	+	289	16802139	-	lmo0091	-	hypothetical protein
92	 39.97	0	100772..102142	+	456	16802140	-	lmo0092	-	F0F1 ATP synthase subunit beta
93	 38.58	0	102155..102478	+	107	16802141	-	lmo0093	-	hypothetical protein
94	 34.94	0	102468..103028	+	186	16802142	-	lmo0094	-	hypothetical protein
95	 34.91	0	103204..103836	+	210	16802143	-	lmo0095	-	hypothetical protein
96	 40.37	0	104134..105099	+	321	16802144	-	lmo0096	-	hypothetical protein
97	 43.00	+1	105123..105929	+	268	16802145	-	lmo0097	-	hypothetical protein
98	 40.57	0	105951..106862	+	303	16802146	-	lmo0098	-	hypothetical protein
99	 38.46	0	106988..107377	+	129	16802147	-	lmo0099	-	hypothetical protein
100	 35.61	0	107499..107849	+	116	16802148	-	lmo0100	-	hypothetical protein
101	 33.67	-1	107915..108208	-	97	16802149	-	lmo0101	-	hypothetical protein
102	 39.86	0	108320..108610	+	96	16802150	-	lmo0102	-	hypothetical protein
103	 39.97	0	108624..109256	+	210	16802151	-	lmo0103	-	hypothetical protein
104	 34.95	0	109349..109720	+	123	16802152	-	lmo0104	-	hypothetical protein
105	 41.17	0	110013..112283	+	756	16802153	-	lmo0105	-	hypothetical protein
106	 39.53	0	112386..113288	+	300	16802154	-	lmo0106	-	hypothetical protein
107	 40.57	0	113313..115094	-	593	16802155	-	lmo0107	-	hypothetical protein
108	 39.93	0	115087..116829	-	580	16802156	-	lmo0108	-	hypothetical protein
109	 37.77	0	116972..117805	+	277	16802157	-	lmo0109	-	hypothetical protein
110	 42.11	+1	117841..118956	+	371	16802158	-	lmo0110	-	hypothetical protein
111	 37.01	0	119063..119770	+	235	16802159	-	lmo0111	-	hypothetical protein
112	 36.64	0	119740..120435	-	231	16802160	-	lmo0112	-	hypothetical protein
113	 33.11	-1	120654..121106	-	150	16802161	-	lmo0113	-	hypothetical protein
114	 36.01	0	121112..121447	-	111	16802162	-	lmo0114	-	hypothetical protein
115	 34.73	0	121664..122092	+	142	16802163	lmaD	lmo0115	-	hypothetical protein
116	 36.93	0	122104..122520	+	138	16802164	lmaC	lmo0116	-	hypothetical protein
117	 36.92	0	122798..123187	+	129	16802165	lmaB	lmo0117	-	antigen B
118	 42.11	+1	123200..123712	+	170	16802166	lmaA	lmo0118	-	antigen A
119	 32.67	-1	123760..124062	+	100	16802167	-	lmo0119	-	hypothetical protein
120	 36.05	0	124104..124508	+	134	16802168	-	lmo0120	-	hypothetical protein
121	 40.29	0	124495..126363	+	622	16802169	-	lmo0121	-	hypothetical protein
122	 38.46	0	126360..127178	+	272	16802170	-	lmo0122	-	hypothetical protein
123	 35.27	0	127188..128324	+	378	16802171	-	lmo0123	-	hypothetical protein
124	 37.33	0	128314..128613	+	99	16802172	-	lmo0124	-	hypothetical protein
125	 37.50	0	128628..129203	+	191	16802173	-	lmo0125	-	hypothetical protein
126	 41.25	0	129218..129697	+	159	16802174	-	lmo0126	-	hypothetical protein
127	 37.62	0	129694..130230	+	178	16802175	-	lmo0127	-	hypothetical protein
128	 38.06	0	130249..130671	+	140	16802176	-	lmo0128	-	hypothetical protein
129	 34.71	0	130652..131380	+	242	16802177	-	lmo0129	-	hypothetical protein
130	 42.38	+1	131419..133773	-	784	16802178	-	lmo0130	-	hypothetical protein
131	 35.87	0	133961..134710	+	249	16802179	-	lmo0131	-	hypothetical protein
132	 42.94	+1	134782..136290	-	502	16802180	-	lmo0132	-	inositol-5-monophosphate dehydrogenase
133	 43.16	+1	136469..136702	+	77	16802181	-	lmo0133	-	hypothetical protein
134	 39.43	0	136714..136992	+	92	16802182	-	lmo0134	-	hypothetical protein
135	 38.92	0	137323..138897	+	524	16802183	-	lmo0135	-	hypothetical protein
136	 40.17	0	138999..139949	+	316	16802184	-	lmo0136	-	hypothetical protein
137	 45.19	+2	139960..140853	+	297	16802185	-	lmo0137	-	hypothetical protein
138	 40.70	0	141052..141336	+	94	16802186	-	lmo0138	-	hypothetical protein
139	 42.55	+1	141337..141705	+	122	16802187	-	lmo0139	-	hypothetical protein
140	 39.67	0	141618..143006	+	462	16802188	-	lmo0140	-	hypothetical protein
141	 25.10	-2	143016..143258	+	80	16802189	-	lmo0141	-	hypothetical protein
142	 28.29	-2	143366..143722	+	118	16802190	-	lmo0142	-	hypothetical protein
143	 26.55	-2	144097..144273	+	58	16802191	-	lmo0143	-	hypothetical protein
144	 26.13	-2	144397..144840	+	147	16802192	-	lmo0144	-	hypothetical protein
145	 41.38	+1	145085..145171	+	28	16802193	-	lmo0145	-	hypothetical protein
146	 29.47	-2	145354..145560	+	68	16802194	-	lmo0146	-	hypothetical protein
147	 26.94	-2	145869..146306	+	145	16802195	-	lmo0147	-	hypothetical protein
148	 28.77	-2	146306..146656	+	116	16802196	-	lmo0148	-	hypothetical protein
149	 38.35	0	146764..147381	+	205	16802197	-	lmo0149	-	hypothetical protein
150	 27.60	-2	147399..147764	+	121	16802198	-	lmo0150	-	hypothetical protein
151	 30.15	-2	147884..148291	+	135	16802199	-	lmo0151	-	hypothetical protein
152	 41.12	0	148354..150009	-	551	16802200	-	lmo0152	-	hypothetical protein
153	 39.38	0	150232..151173	+	313	16802201	-	lmo0153	-	hypothetical protein
154	 39.01	0	151186..151890	+	234	16802202	-	lmo0154	-	hypothetical protein
155	 41.39	+1	151839..152645	+	268	16802203	-	lmo0155	-	hypothetical protein
156	 29.81	-2	152648..153328	-	226	16802204	-	lmo0156	-	hypothetical protein
157	 39.70	0	153608..155947	+	779	16802205	-	lmo0157	-	hypothetical protein
158	 37.02	0	155993..156805	+	270	16802206	-	lmo0158	-	hypothetical protein
159	 40.60	0	157089..159470	+	793	16802207	-	lmo0159	-	peptidoglycan binding protein
160	 38.11	0	159663..161378	+	571	16802208	-	lmo0160	-	peptidoglycan binding protein
161	 36.82	0	161420..162250	-	276	16802209	-	lmo0161	-	hypothetical protein
162	 42.40	+1	162467..163459	+	330	16802210	-	lmo0162	-	DNA polymerase III subunit delta'
163	 42.09	+1	163465..164298	+	277	16802211	-	lmo0163	-	hypothetical protein
164	 40.00	0	164309..164698	+	129	16802212	-	lmo0164	-	DNA replication intiation control protein YabA
165	 37.72	0	164756..165508	+	250	16802213	-	lmo0165	-	hypothetical protein
166	 37.36	0	165492..165764	+	90	16802214	-	lmo0166	-	GIY-YIG nuclease superfamily protein
167	 41.38	+1	165761..166642	+	293	16802215	-	lmo0167	-	hypothetical protein
168	 36.84	0	166687..166971	-	94	16802216	-	lmo0168	-	hypothetical protein
169	 37.53	0	167086..167943	+	285	16802217	-	lmo0169	-	hypothetical protein
170	 36.57	0	168005..169270	+	421	16802218	-	lmo0170	-	hypothetical protein
171	 36.41	0	169510..172008	+	832	16802219	-	lmo0171	-	hypothetical protein
172	 34.31	-1	172903..173208	-	101	16802220	-	lmo0174	-	hypothetical protein
173	 36.38	0	173309..174556	-	415	16802221	-	lmo0175	-	peptidoglycan binding protein
174	 38.33	0	174834..175694	+	286	16802222	-	lmo0176	-	hypothetical protein
175	 38.40	0	175766..177760	+	664	16802223	metS	lmo0177	-	methionyl-tRNA synthetase
176	 36.71	0	177924..179138	+	404	16802224	-	lmo0178	-	hypothetical protein
177	 37.54	0	179174..180052	+	292	16802225	-	lmo0179	-	hypothetical protein
178	 36.98	0	180052..180900	+	282	16802226	-	lmo0180	-	hypothetical protein
179	 37.07	0	180928..182184	+	418	16802227	-	lmo0181	-	hypothetical protein
180	 39.75	0	182267..185569	+	1100	16802228	-	lmo0182	-	hypothetical protein
38.00	MEAN

3.37	STD DEV
